Description

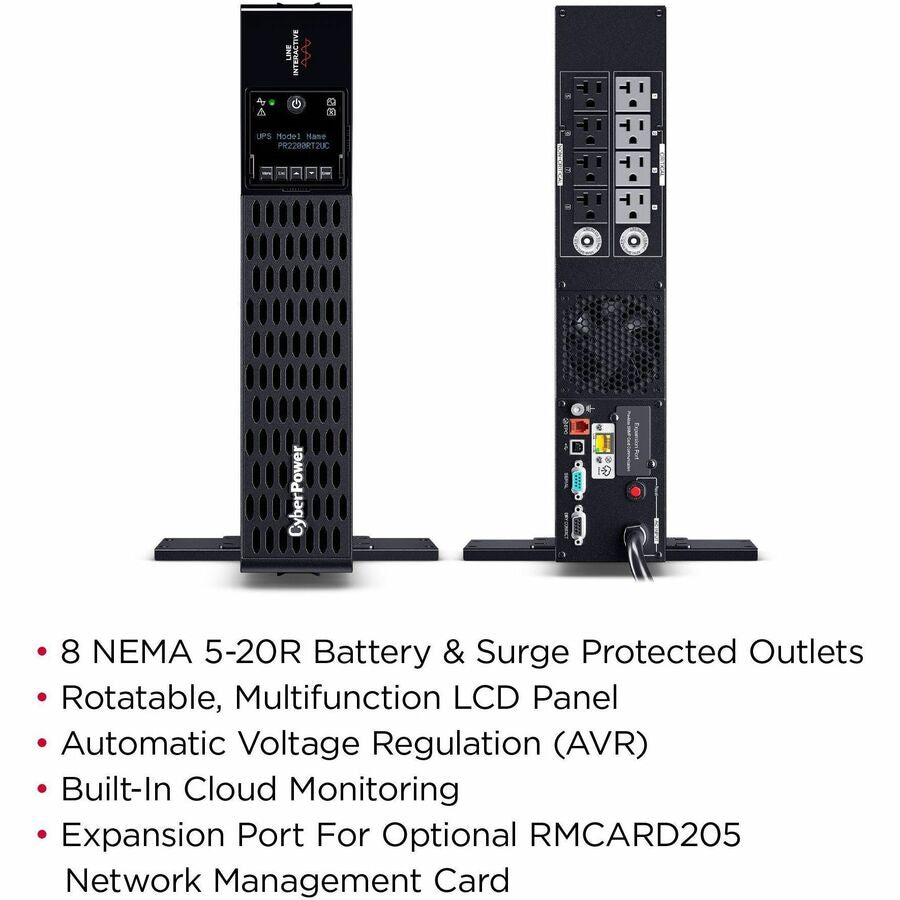

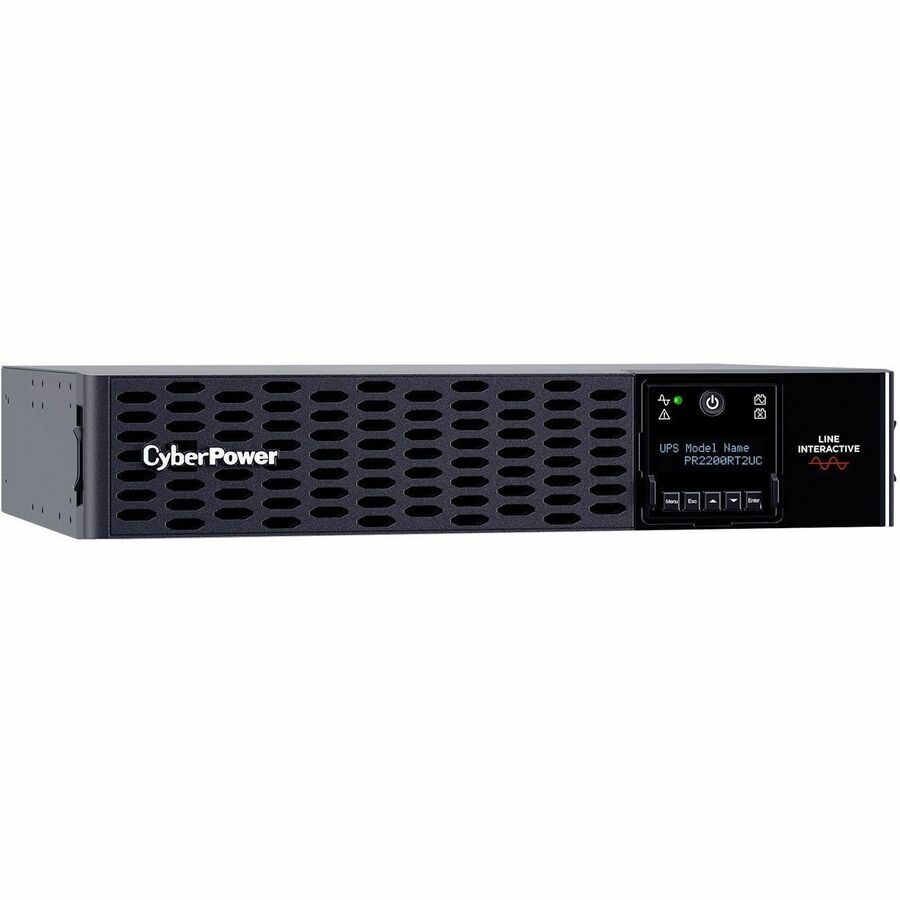

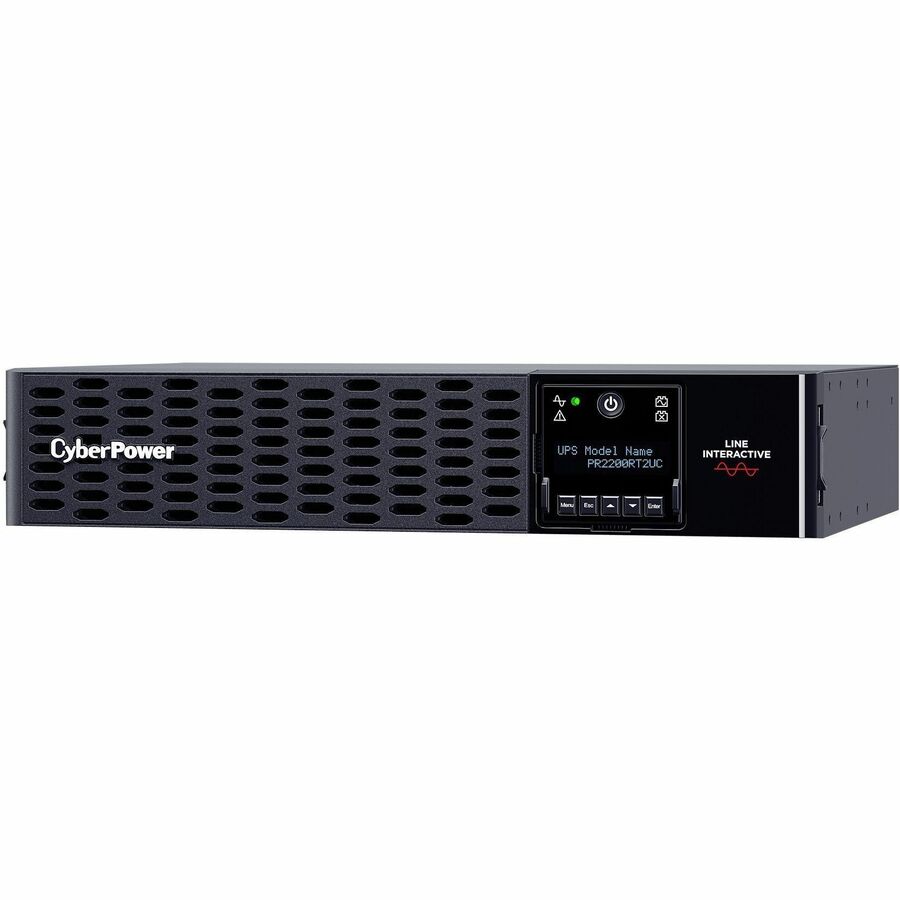

The PR2200RT2UC is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment.

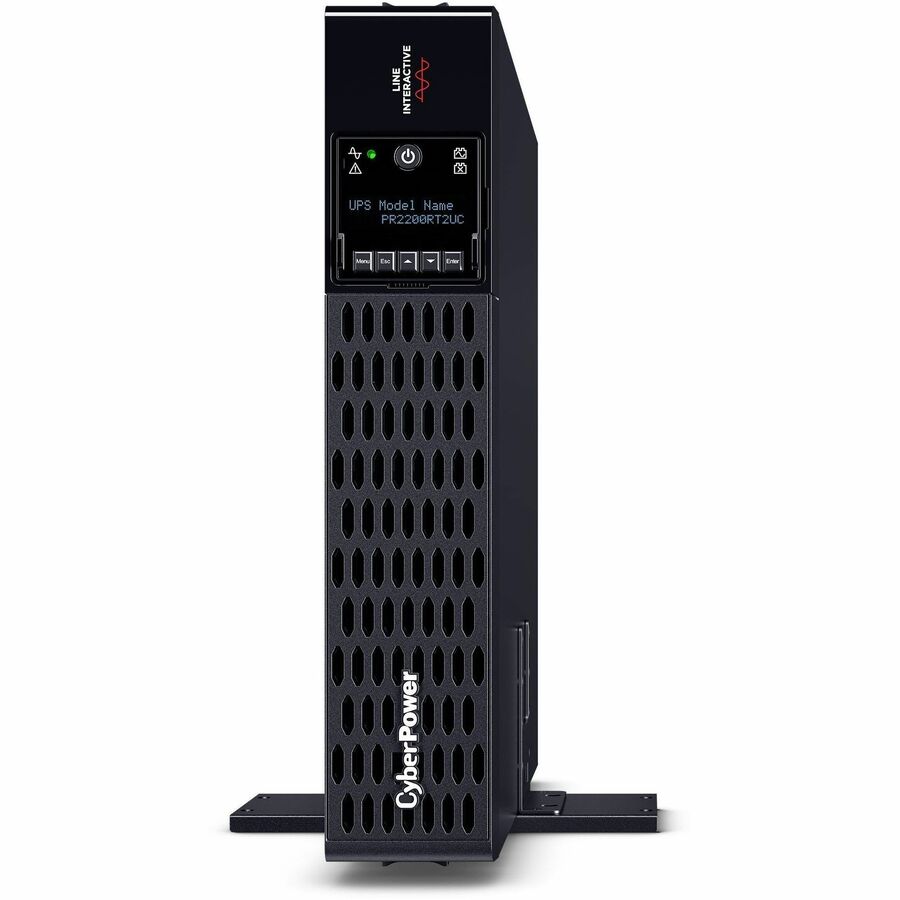

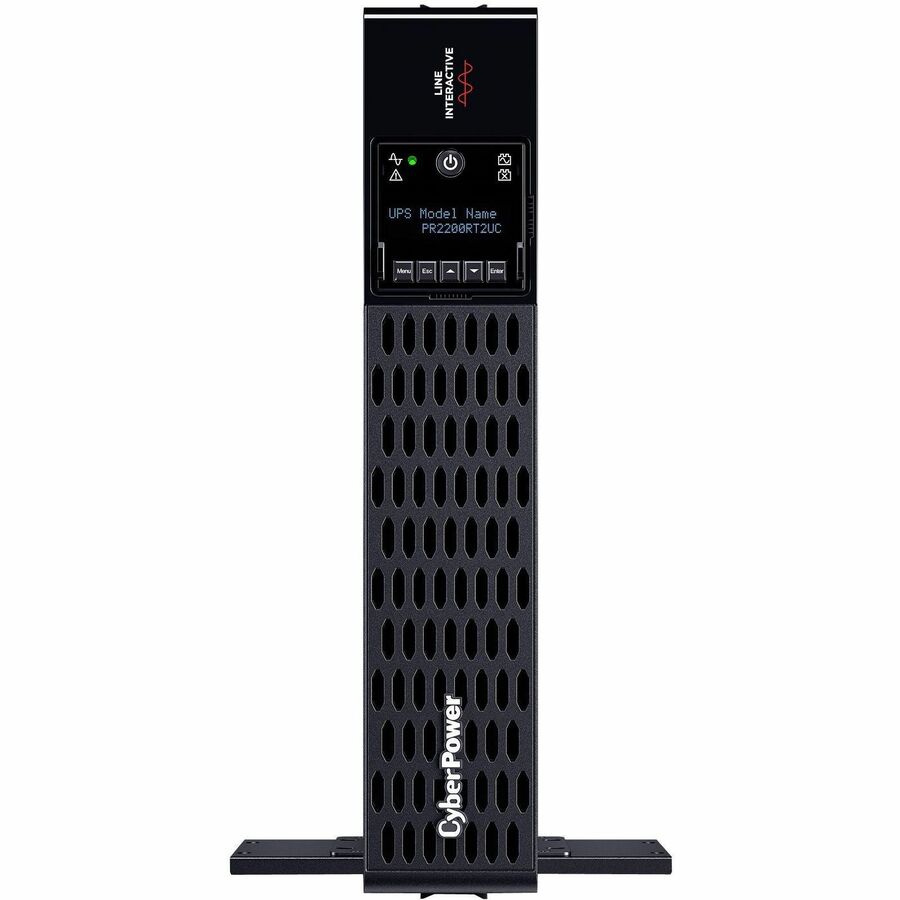

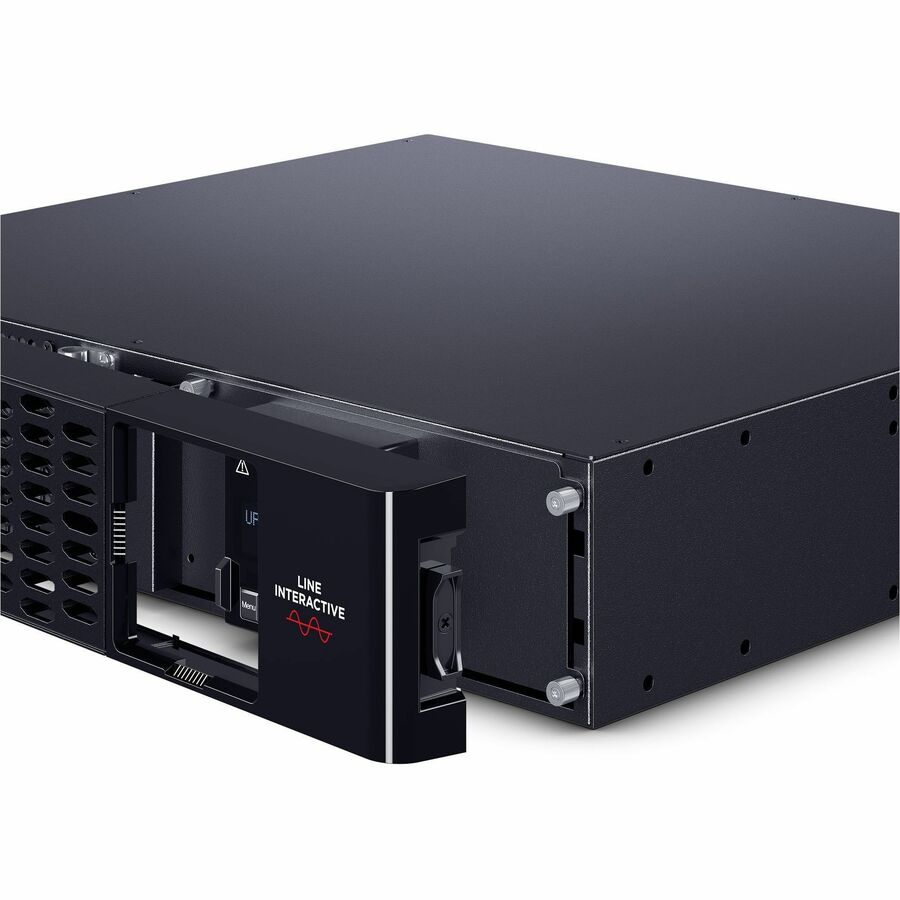

The Smart App Sinewave PR2200RT2UC improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR2200RT2UC also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.

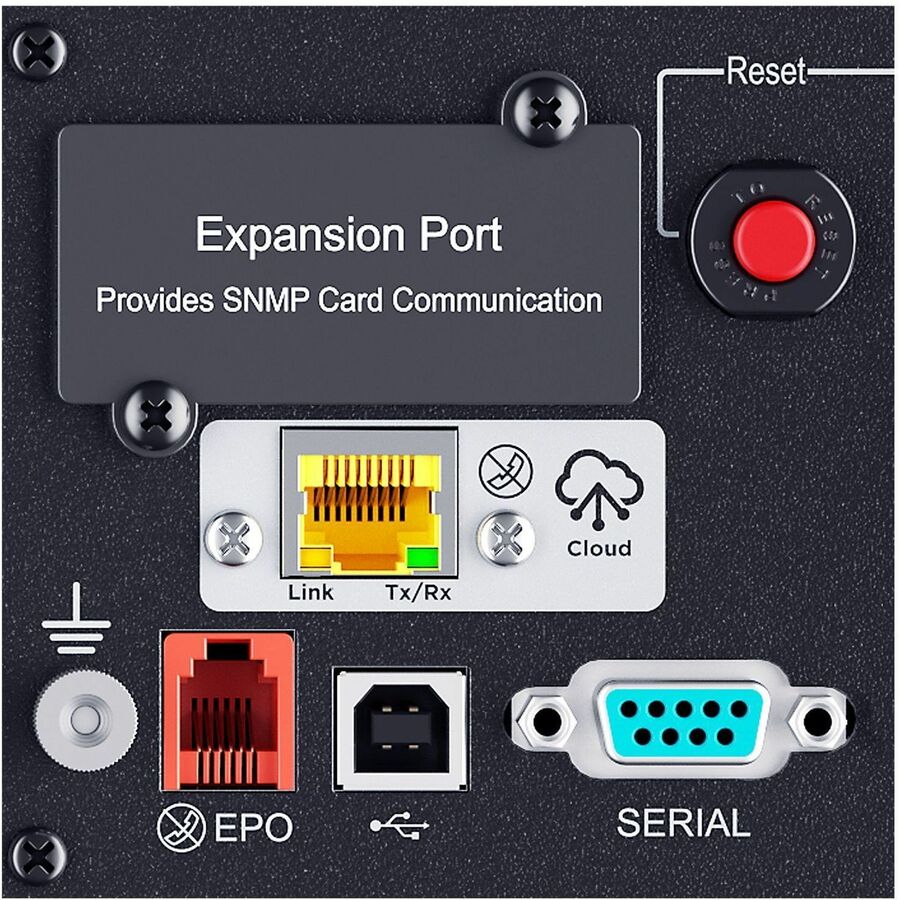

This model accepts the RMCARD205 network management card for remote management and control via a standard web browser or network management system. Includes built in cloud monitoring.
With a ,400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR2200RT2UC.
- Experience higher efficiency with lower energy cost
- Keep your sensitive devices powered with a backup of up to 3.20 minute at full load
- Battery Size : 12V
- Number of Battery & Surge Outlets : 8
- Backup/Run Time (Full Load) : 3.20 Minute
- Load Capacity : 2.20 kVA/2.20 kW
- Energy Star : Yes
- Manufacturer : CyberPower Systems, Inc
- Input Voltage Range : 70 V AC - 155 V AC
- Rack Height : 2U
- Output Frequency : 60 Hz
- Output Power Factor : 1
- Environmental Certification : GreenPower UPS,RoHS
- Environmentally Friendly : Yes
- Number of Critical Load Outlets : 4
- Product Color : Black
- Additional Warranty Information :
Connected Equipment Guarantee: Lifetime
- Input Voltage : 120 V AC
- Limited Warranty : 3 Year
- Typical Battery Recharge Time : 3 Hour
- Waveform Type : Sine Wave
- Input Frequency : 63 Hz
- Operating Humidity : 95%
- Battery Capacity : 9000 mAh
- Product Type : Line-interactive UPS
- Replaceable Battery : Yes
- Storage Relative Humidity : 95%
- USB (HID Compliant) Port : Yes
- Output Voltage : 100 V AC,110 V AC,120 V AC,125 V AC
- AVR : Yes

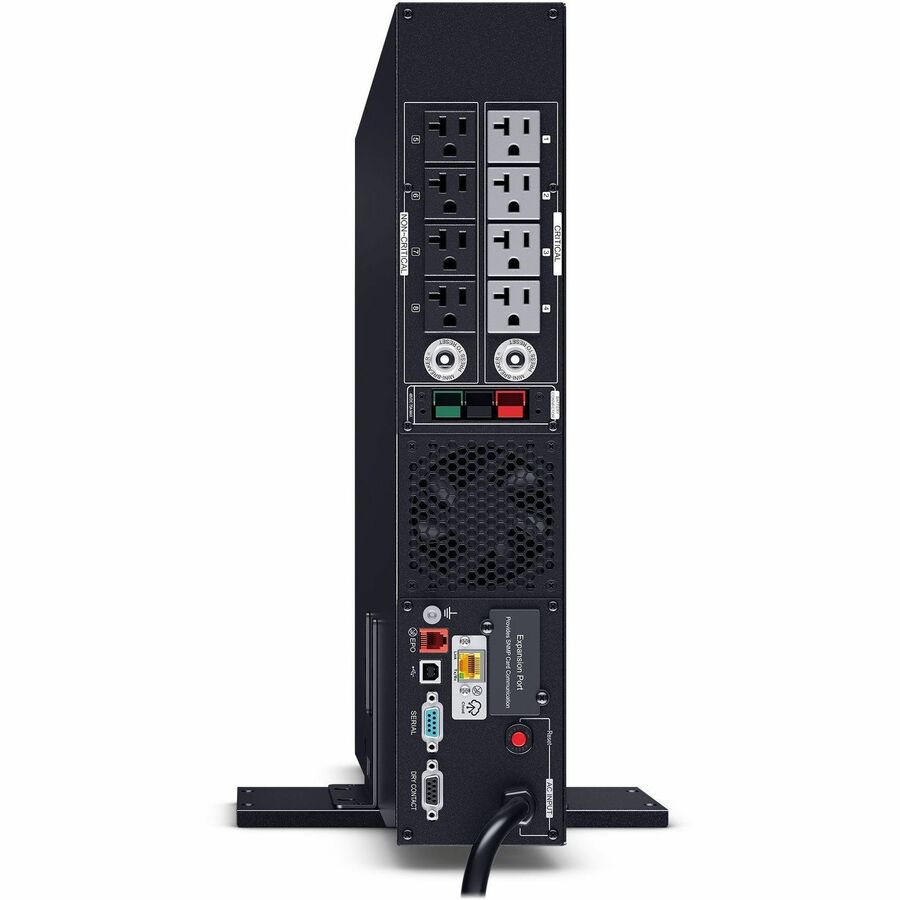

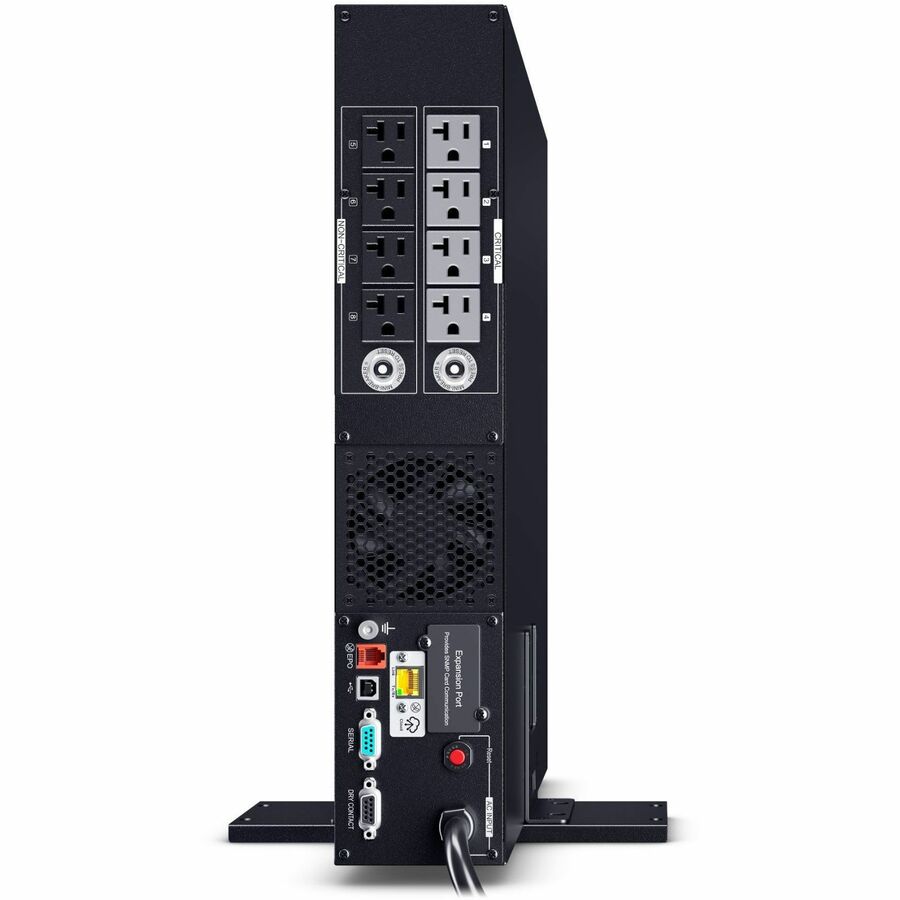

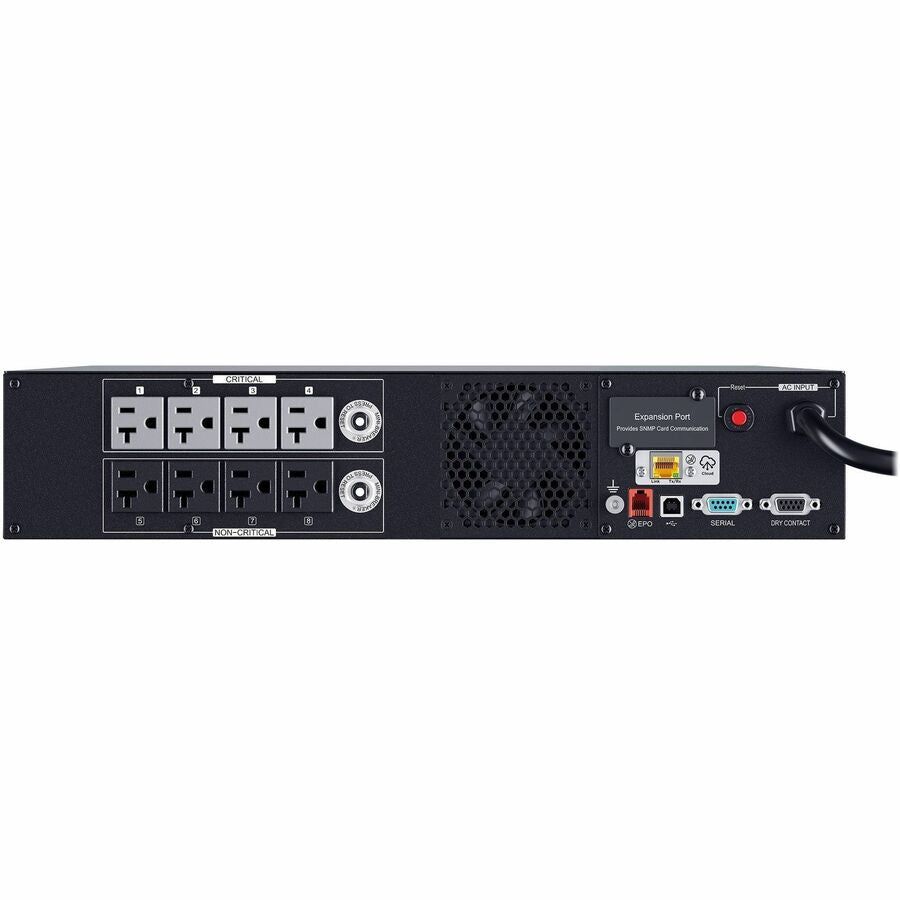

- Receptacle Detail : 8 x NEMA 5-20R
- Network Management : Relay-MS Card,Dry Contact,SNMP/HTTP Remote Monitoring
- Serial Port : Yes
- Sound Emission (A-Weighted) : 52.5 dB(A)
- Maximum Operating Elevation : 9842.52 ft (3000000 mm)

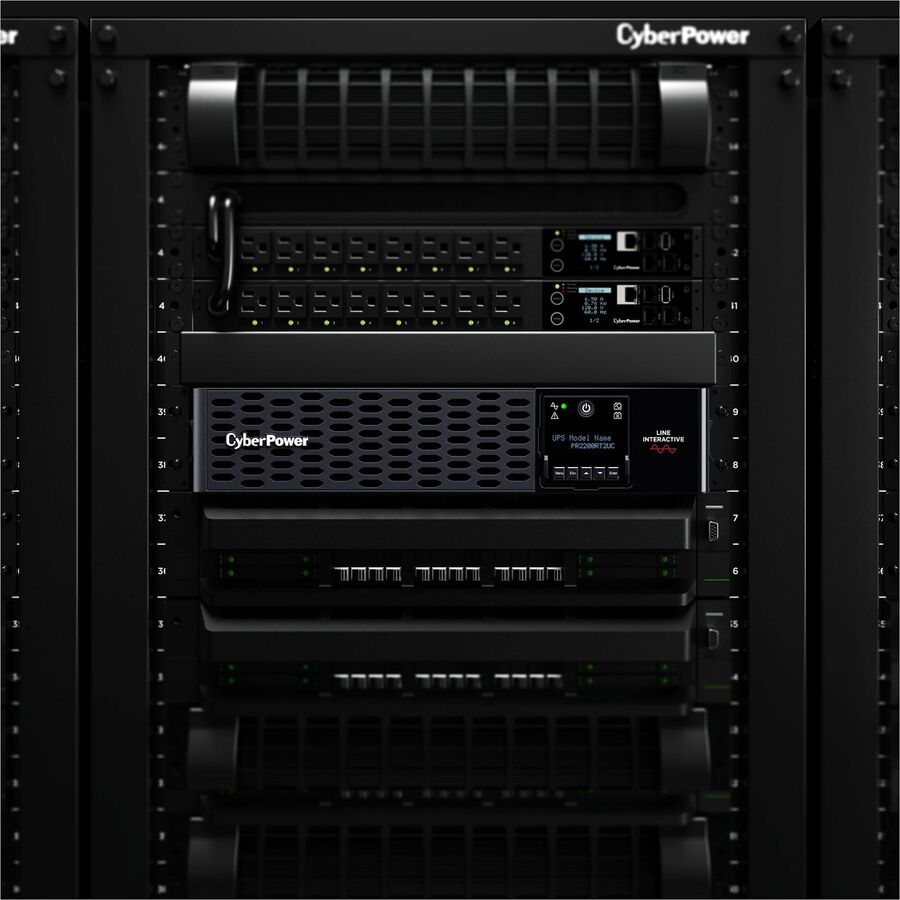

- Form Factor : Rack/Tower
- Number of Batteries : 4
- Thermal Dissipation : 135 BTU/h
- Battery Chemistry : Lead Acid
- Product Model : PR2200RT2UC
- Maximum Operating Temperature : 104°F (40°C)
- Backup/Run Time (Half Load) : 11.80 Minute
- Battery Characteristics : Sealed
- Storage Temperature : 5°F (-15°C) - 113°F (45°C)
- Receptacle Type : NEMA 5-20R
- USB : Yes
- EMI/RFI Noise Filter : Yes
- EPO Port : Yes
- Transfer Time : 4 ms
- Overload Protection : Yes
- Plug/Connector Type : NEMA L5-30P
- Surge Energy Rating : 2430 J
- Alarm : Battery Mode,Low Battery,Overload,Over-charge,Overheat
- Application/Usage : Server,Storage Device,VoIP,Network Device,Telecommunication,Equipment,Corporate
- Maximum Storage Elevation : 49209.32 ft (14999000 mm)
- Hot Swappable : Yes
- Country of Origin : Philippines
- Display : LCD
- Status Indicators :
LED Indicators
- Power On
- Line Mode
- Battery Mode
- Fault
- Night Mode
- Wiring Fault
- Product Line : Smart App Sinewave

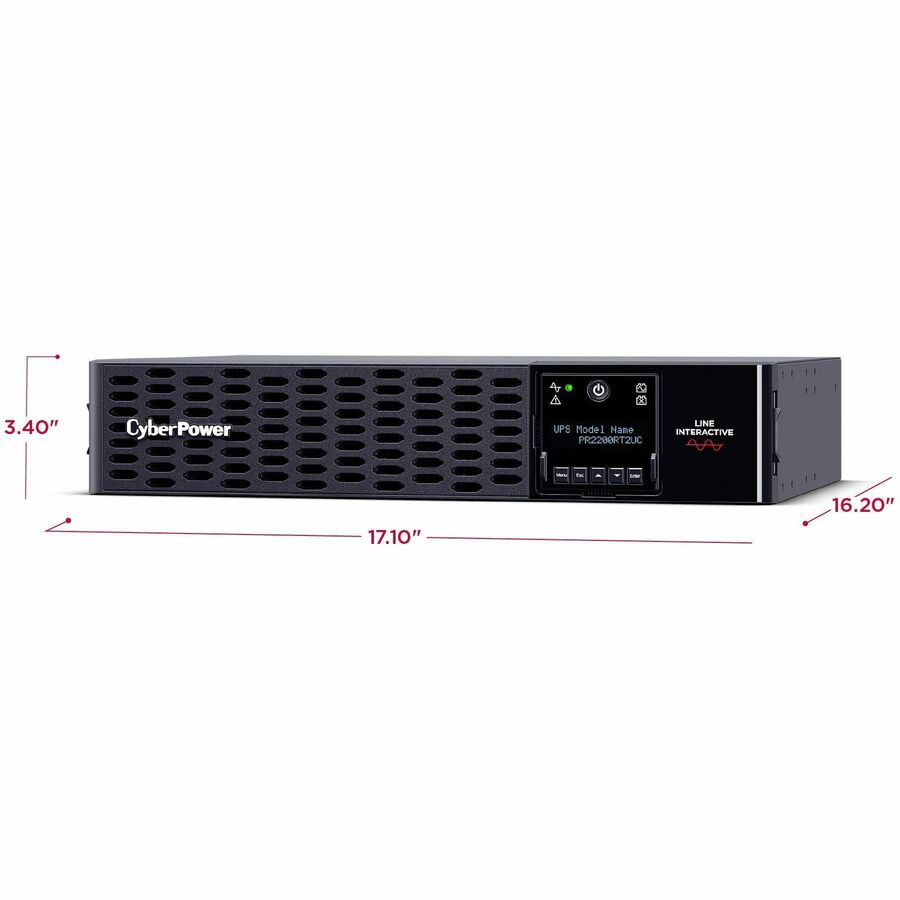

- Length : 20.90" (530.86 mm)
- Manufacturer Website Address : https://www.cyberpowersystems.com/
