Description
What This Product Does

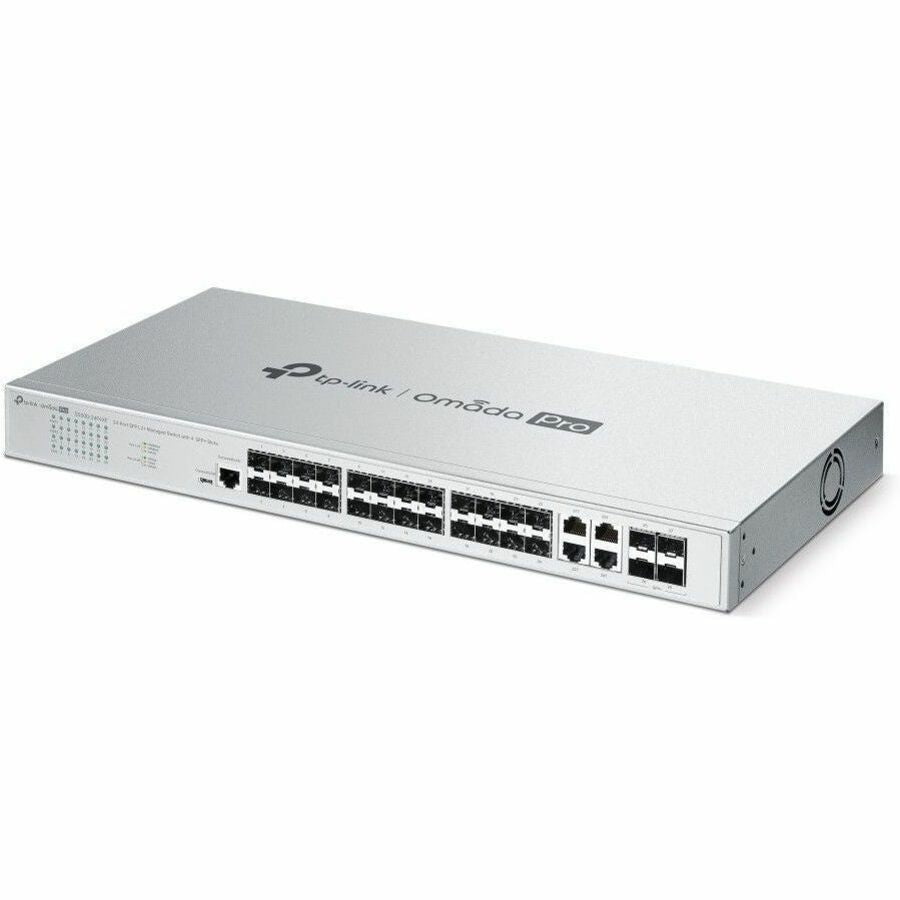

Build and expand your lightning-fast network with Omada Pro S5500-24F4XF-a fully enterprise-level managed switch with 20� gigabit SFP ports, 4� gigabit SFP/RJ45 combo ports, and 4� 10G SFP+ ports. Being ideal for any business network, it meets and surpasses the need for high-speed, reliable, and safe enterprise networks. Two power supplies back each other up and makes an ideal choice for reliable networking architecture. An abundance of L2+ and L3 features including Proxy ARP, Static Routing, OAM, DDM, sFlow, L2PT, and DLDP are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses, and ISPs. Our high-quality security features defend against a range of network threats.
Besides, integration into the Omada Pro system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP) and Intelligent Anomaly Detection. Moreover, easy-to-use web management interfaces, along with CLI, SNMP, RMON, and Dual Image mean faster setup and configuration with less downtime.
Secure Networking
Security features include IP-MAC-Port Binding and VLAN Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users' network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Abundant L2 and L3 features
S5500-24F4XF supports a complete lineup of L2 and L3 features, including Proxy ARP, Static Routing, OAM, DDM, sFlow, L2PT, DLDP, 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing, an L2+ feature, is a simple way of segmenting the network and internally routing traffic through the switch for improved efficiency.
Advanced QoS
Leveraging IP, MAC, TCP, and UDP identifiers, our QoS feature ensures seamless voice and video transmission-even when bandwidth is in short supply.
ISP Features
DDM, sFlow, ERPS, L2PT, QinQ, L2PT PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links. Ethernet Ring Protection Switching (ERPS) blocks traffic on a single ring link to prevent looping and effectively adds redundancy and up-time protection to any network.
IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discovery guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Can work as layer 3 routing for scalable network design
- Rack mounting enables you to organize wires & secure cables for professional installation
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
