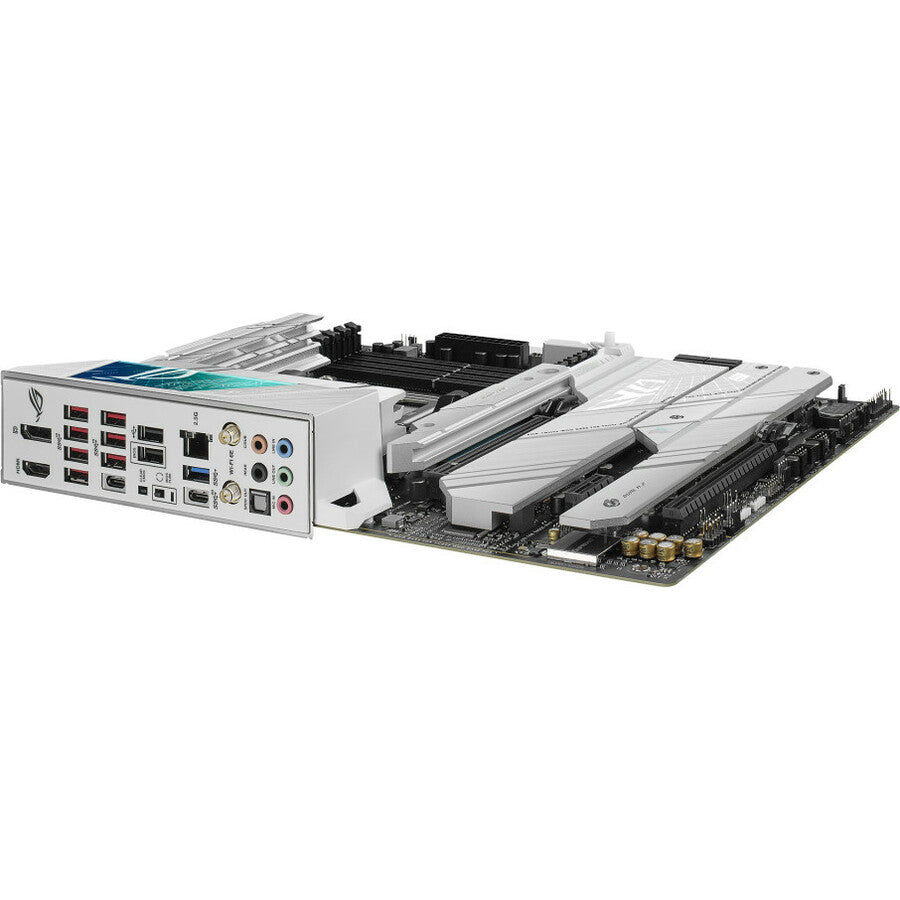

STRIX X670E-A GAMING WIFI

Suit up for the next gen with the stylish ROG Strix X670E-A Gaming WiFi. Its black PCB and white accents neatly contrast silver-colored heatsinks that emphasize premium power delivery for AMD Ryzen™ 7000 Series processors. Exclusive ROG overclocking utilities, full PCIe 5.0 capabilities, and DDR5 support are woven in alongside, adding uniquely tailored performance and AM5 essentials to your gaming build.

DIY-FRIENDLY FEATURES | PCIE® SLOT Q-RELEASE

A physical button unlocks the first PCIe slot's security latch with a simple press, greatly simplifying the process of removing a PCIe card from the motherboard when it's time to upgrade to a new GPU or add-in card.

M.2 Q-LATCH

The innovative Q-Latch makes it easy to install or remove an SSD from an M.2 slot. The design employs a simple locking mechanism to secure the drive, eliminating the need for a traditional screw.

CLR CMOS BUTTON

The Clr CMOS button quickly resets BIOS settings to factory default. It can also be used to reboot the PC if incorrect BIOS settings have been selected.

BIOS FLASHBACK™

BIOS FlashBack™ is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.

Q-LED

Four onboard LEDs indicate power status and identify problems with CPU, memory, graphics card, or boot device for quick diagnosis.

ALL-ROUND PERFORMANCE

Robust power delivery, innovative overclocking tools, and comprehensive cooling controls are core fundamentals of the ROG Strix X670E-A, giving you everything necessary to cruise and flex with AMD Ryzen™ 7000 in your build.

PCIE 5.0

Blazing fast storage is at your command with two PCIE 5.0 M.2 slots and two PCIE 4.0 M.2 slots. Push speeds even further, create a mirrored backup, or both; NVMe and SATA RAID configurations (0/1/10) are available through AMD RAID Xpert2. PCIe 5.0 support also extends to the top x16 extension slot, which includes SafeSlot to support heavy graphics cards and Q-release for easy upgrades.

LEADING CONNECTIVITIY

The ROG Strix X670E-A Gaming WiFi delivers a plethora of internal and external connectivity for low-latency networking and ultrafast data transfers. Those perks are joined by an advanced audio solution that allows you to pick out the smallest cues and home in on your opponents.

• Compatible Ryzen 5 processor lets you perform all your computational tasks at a swift pace
• DDR5 SDRAM slot for convenient installation of memory
• RAID supported levels provide data reliability and fault tolerance
• Enjoy the freedom of Wi-Fi and connect devices faster
• HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
• DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
• ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
• With 2 USB 2.0 ports, connect devices for a quick data movement

• Number of SATA Interfaces : 4
• Controller Type : Serial ATA/600
• Chipset Model : X670
• Total Number of USB Ports : 12
• S/PDIF : Yes
• Onboard Video : CPU Dependent Video
• Audio Channels : 7.1
• Total Number of Onboard USB Ports : 7
• HDMI Version : 2.1
• Number of Onboard USB 3.2 Ports : 3
• Processor Socket : Socket AM5
• Manufacturer : ASUS Computer International
• RAID Levels : 0,1,10
• 2.5Gigabit Ethernet : Yes
• Wireless LAN Standard : IEEE 802.11 a/b/g/n/ac/ax
• Environmental Certification : RoHS
• Environmentally Friendly : Yes
• Number of USB 3.2 Gen 2 Type-C Ports : 1
• Number of PCI Express x16 Slots : 2
• Memory Form Factor : DIMM,UDIMM
• Limited Warranty : 3 Year
• Total Number of PCI Express Slots : 3
• Number of PCI Express x1 Slots : 1
• Product Type : Gaming Desktop Motherboard
• Number of Total Expansion Slots : 3
• HDMI : Yes
• Chipset Manufacturer : AMD
• Wireless LAN : Yes
• Bluetooth : Yes
• Processor Supported : Ryzen 5,Ryzen 7,Ryzen 9
• Memory Speed Supported : 6400 MHz,6200 MHz,6000 MHz,5800 MHz,5600 MHz,5400 MHz,5200 MHz,5000 MHz,4800 MHz
• Number of M.2 Interfaces : 4
• Number of USB 2.0 Ports : 2
• Maximum Memory Supported : 128 GB
• RAID Supported : Yes
• Form Factor : ATX
• Memory Technology : DDR5 SDRAM
• Package Contents :
  • Strix X670E-F GAMING WIFI Gaming Desktop Motherboard
  • 2 x SATA 6Gb/s Cables
  • 1 x Thermal pad for M.2
  • 1 x ASUS Wi-Fi Moving Antennas
  • 1 x Cable Ties Pack
  • 1 x M.2 Q-Latch package for M.2 backplate
  • 1 x M.2 Q-Latch package
  • 1 x ROG key chain
  • 1 x ROG Strix stickers
  • 1 x ROG Strix Thank You card
  • 2 x Rubber Packages for M.2
  • 1 x Rubber Package for M.2 backplate
  • 1 x User Guide
• Manufacturer Website Address : http://www.asus.com
• DisplayPort : Yes
• PCI Express Standard : PCI Express 3.0,PCI Express 4.0,PCI Express 5.0
• Product Model : X670E-A GAMING WIFI
• Bluetooth Standard : Bluetooth 5.2
• Number of Memory Slots : 4
• Number of USB 3.2 Gen 2 Type-A Ports : 7
• Total Processor Supported : 1
• Number of USB 3.2 Ports : 1
• Number of Network (RJ-45) Ports : 1
• Number of USB 3.2 Gen 1 Type-A Ports : 1
• Product Line : Strix
• Number of Onboard USB 2.0 Ports : 4
