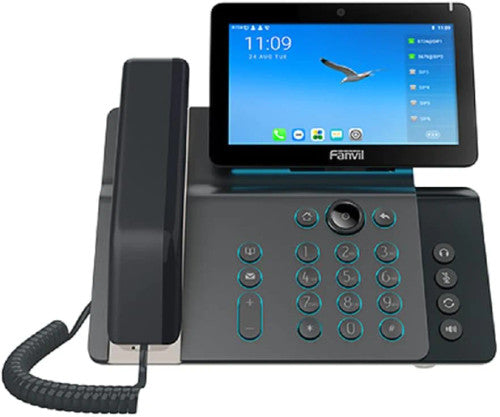

Fanvil Flagship V67 Smart Video Phone (V67)

The V67 Video Phone runs on the Android 9.0 OS and has built-in applications such as File, Calendar and more. It also allows the ability for users to add third party applications. The V67 supports HD Voice and HD Video so that your video conferencing meetings are as life-like as possible.

Highlights
–¡√ Antibacterial material of the handset and keypad surface effectively inhibits
more than 99.5% of bacteria growth
–¡√ 7” adjustable touch screen ( 0° to 40 °) for different lighting environments
–¡√ A cool lighting keypad, can be set as status indicators
–¡√ A built-in 5 Mega-pixel 1080P camera with a privacy cover
–¡√ Support 10-party audio conferencing (including 2-party video calls) and 3-party
video conferencing
–¡√ Android 9.0 operating system, meeting the customization needs of industry
applications and secondary development
–¡√ Available to link with security products, can be easily customized into various
security solutions for reducing investment
–¡√ Built-in 2.4GHz/5G WiFi and Bluetooth 4.2, realizing more flexible connectivity
–¡√ Two installation methods of desktop stand and wall mountable
–¡√ Up to 116 DSS keys, every DSS key can be set as Line/BLF/ Speed Dial Key, etc

Generic
 20 SIP Lines
 HD Voice
 Support HD Video call(720P/1080P)
 PoE Enabled
 7-inch (1024x600) color touch screen
 Handset / Hands-free / Headset mode
 Intelligent DSS Keys(Virtual buttons)
 Desktop stand / wall-mounted (need an additional wall hanging parts)
 Optional External Power Supply

Phone Features
 Local Phonebook (2000 entries)
 Remote Phonebook (XML/LDAP, 2000 entries)
 Call logs (In/out/missed, 1000 entries)
 Blocked List/Allowed List
 Screen saver
 Voice Message Waiting Indication (VMWI)
 Programmable DSS/Soft keys
 Network Time Synchronization
 Built-in Bluetooth 4.2: Support Bluetooth headset/ Pairing mobile devices
 Built-in Wi-Fi
 2.4GHz, 802.11 b/g/n
 5GHz, 802.11 a/n/ac
 Miracast
 Support Recording
 Action URL / Active URI
 uaCSTA
 Audio/Video Recording
 SIP Hotspot
 Multicast
 Action Plan
 Group listening

Call Features
 Call out / Answer / Reject
 Mute / Unmute (Microphone)
 Call Hold / Resume
 Call Waiting
 Intercom
 Caller ID Display
 Speed Dial
 Anonymous Call (Hide Caller ID)
 Call Forwarding (Always/Busy/No Answer)
 Call Transfer (Attended/Unattended)
 Call Parking/Pick-up (Depending on server)
 Redial
 Three-way video conferencing
 Ten-way audio/video mixed conferencing(Up to 2 video call)
 Do-Not-Disturb
 Auto-Answering
 Voice Message (With server)
 Hot Line
 Hotdesking
 BLF

Video
 Video decoding: H.264
 Video call resolution: CIF/VGA/4CIF/720P/1080P
 Image format: JPEG/PNG/BMP
 Video format: MP4
 Bandwidth selection: 64kbps~4Mbps
 Frame rate selection: 5~30fps
 Video from remote site can be displayed in full screen
 Internal HD camera:
 5 Mega Pixel, 1080P @ 30fps
 Mechanical shutter for privacy
 Field of view (FOV): 82°
 Video Preview

Audio
 HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz
Frequency Response), HAC handset
 Wideband ADC/DAC 16KHz Sampling
 Narrowband Codec: G.711a/u, G.729AB, iLBC
 Wideband Codec: G.722, Opus
 Full-duplex Acoustic Echo Canceller (AEC)
 Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) / Automatic Gain Control (AGC)
 Packet Loss Concealment (PLC)
 Dynamic Adaptive Jitter Buffer
 DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO)

Network
 Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass
 IP Mode:IPv4
 IP Configuration: Static / DHCP
 Network Access Control: 802.1x
 VPN: OpenVPN (Requires third-party app support)
 VLAN
 LLDP
 CDP
 QoS

Protocols
 SIP2.0 over UDP/TCP/TLS
 RTP/RTCP/SRTP
 STUN
 DHCP
 LLDP
 PPPoE
 802.1x
 OpenVPN (Requires third-party app support)
 SNTP
 FTP/TFTP
 HTTP/HTTPS
 TR-069
 AES128 & AES256

Deployment & Management
 Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
 Supports the third party communication APP
 Web Management Portal
 Web-based Packet Dump
 Configuration Export / Import
 Phonebook Import/Export
 Firmware Upgrade
 Syslog

Physical Specifications
 LCD:7 inch (1024x600) color touch screen
 RGB LEDs of keys (Support Colorful Light Effect)
 Keypad: 27 keys, including:
* 5 Function keys (Contact, MWI, Mute, Headset, Redial)
* 4 Navigation keys, 1 OK key
* 1 Return key, 1 Home key
* 12 Standard Phone Digits keys
* 2 Volume Control keys, Up/Down
* 1 Hands-free key
 HD Handset (RJ9) x1
 Standard RJ9 Handset Wire x1
 1.5M CAT.5E Ethernet Cable x1
 Desk Stand x1
 RJ9 Port x2: Handset x1, Headset x1
 RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
 USB2.0 Port x1: Standard A, Connect with Flash Driver&USB headset
 Security lock port x1
 Power: DC12V/1.5A or PoE
 Working Temperature: 0~45„ƒ
 Working Humidity: 10~95%
 Installation:
 Desktop Stand
 Wall-mounted (need an additional wall hanging parts)
 Color: Gunmetal
 Device Dimensions:245.4x252.5x63mm
 Gift Box Dimensions: 357x258x71 mm
 Outer CTN Dimensions: 534x380x377 mm (10 PCS) The
