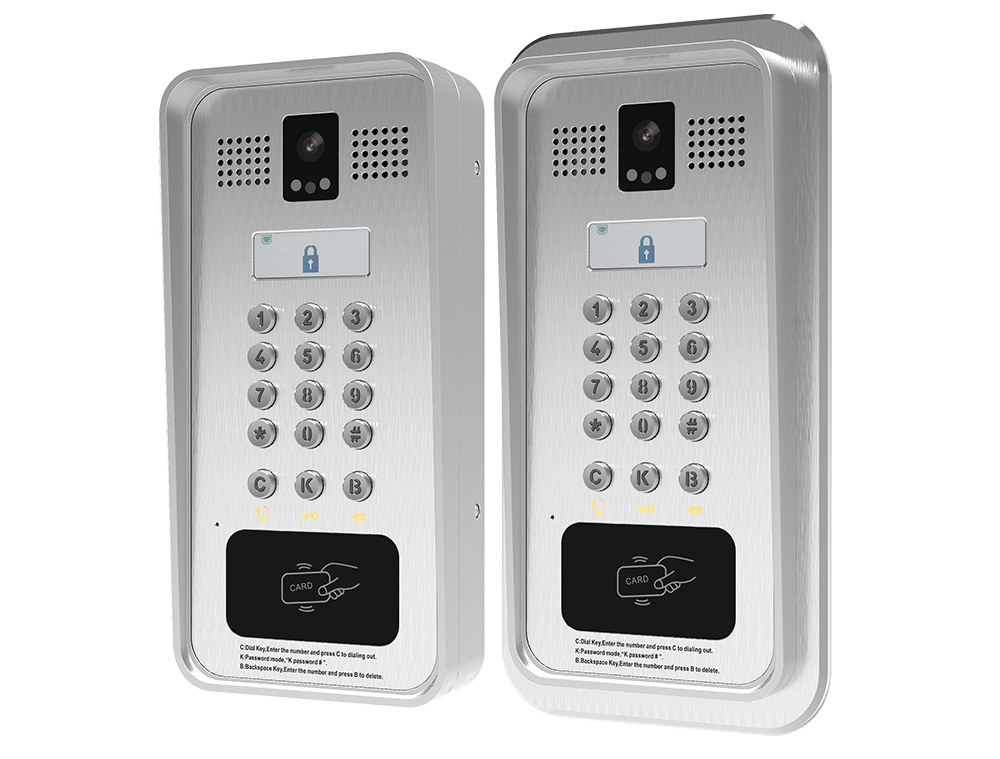

Fanvil i33VF Embedded-Mount SIP Video Door Phone (i33VF)

The Fanvil I33VF is an all one one access control device that doubles as an intercom and broadcasting solution. The I33VF is designed for flush-mount installations. Please note rear-access must be available for installation. It features infrared night vision, supports 2 SIP lines and allows for access control via call, code, or RFID/IC card and indoor switch.

Fanvil i33VF Key Features

• Built-in HD camera with infrared night vision, adopt H.264 codec
• HD voice speech quality with built-in 3W speaker and Acoustic Echo Canceller (AEC)
• Protection level: IP65 and IK10
• -40°C to 70°C wide range temperature adaptability
• Support online management and upgrade
• Compatible with major platforms: Aterisk, Broadsoft, 3CX, Metaswitch, Elastix, etc.
• 2 SIP Lines, support SIP 2.0 (RFC3261) and related RFC
• Full-duplex handsfree
• Default auto answer
• Industrial Standard Certifications: IP65&IK10, CE/FCC
• Unlock door method: DTMF, password, RFID/IC card, indoor switch, WEB page
• Video code: H.264
• Support 2000 Remote access list
• Support 2000 RFID/IC cards
• Support 200,000 door open records

Different Ways to Unlock the Door
Support to open the door with local password,
RFID/IC cards and remote DTMF.

Number Keypad and Clear Backlight Display
·Users can use 12 standard number keys and 3 function keys
(C:Call/ K:Password Mode/ B:Backspace) to dial or enter password
to open the door.
·A 128X48 pixel lattice screen will simultaneously display the room
number of the owner when the visitor calls on i33V/i33VF. If the room
number is wrong, press “B” to clear, re-enter the correct number, and
then press “C” to call the owner to open the door remotely.

Support HD Video and Two Video Streams
With the HD camera with infrared night vision, i33V/i33VF can easily identify the visitors even at night.
It also supports two video streams in which the main code stream works for high-quality video on
monitoring and the subcode stream for smooth SIP video calls.

HD Audio
Support HD audio with built-in 3W speaker, Opus, Acoustic Echo
Canceller (AEC) and nice background noise reduction.

Multi-Protection Design
Featuring the waterproof and dustproof grade IP65, the anti-collision
standard IK10 and the wide temperature range from -40℃ to 70℃,
i33V/i33VF can be applied in different kinds of outdoor environment.

24H Video Surveillance
Connecting with VMS video management system via ONVIF protocol,
i33V/i33VF could be used for 24H video monitoring of the door.

Support External Door Magnetic Detector and Wiegand Card Reader
It can be connected to 2 door magnetic detectors which will make an alarm if the door can not be closed after the timeout.
It can also connect to a Wiegand card reader to control the door, which is used in the places with
high security requirement, such as prisons and banks.

Physical Specifications - LCD Pixel: 128x48 dots - LCD Dimension: 64x30.5x5.2 mm - Keypad: 15 keys(with backlight),including 12 number keys 3 function keys (Detail/Password Mode/Backspace) - 1 RJ45 port, 10/100M adaptive - 1Wiegandport - 1 audio output interface - 1 recording output interface - 2 relays: MAX DC30V / 2A, AC125V / 0.5A for door opener - Active switching output: 12V / 500mA DC(only 1 relay support) - 2 indoor switch - 2 door magnetic detection - 1 tamper alarm switch Temperature controller power:12V/1A(external PSU) - RFID reader: ID (EM4100,125KHz) &IC(MIFARE ONE,13.56MHz) - Power: DC12V/1A or PoE - Housing material: aluminum alloy shell - Protection level:IP65 and IK10 - Installation: Wall-mounting(i33V); Embedded in the door (i33VF) - Working temperature: -40 ~ 70 °C - Storage temperature: -40 ~ 70 °C - Relative humidity: 10% - 90% - Equipment Dimension: 295x142x62mm - Packing Dimension: 370x194x111mm - Outer CTN Dimension: 413x360x392mm(6 PCS) - Equipment weight: i33V : 2281g i33VF: 2193g
