Haut-parleur à klaxon Algo 8196 IP PoE+

AlgoSKU: 8196

Prix:
Prix réduit$805.99
Stock:
En ré-approvisionnement

Récupération disponible à DeployDepot.ca

Habituellement prête en 24 heures

Estimer la livraison

Description

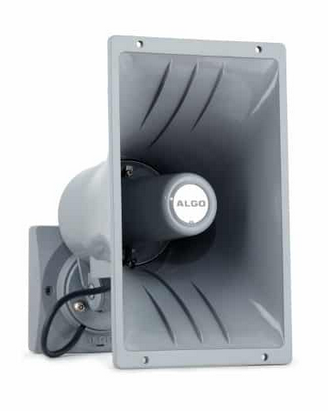

Algo 8196 IP PoE+ Horn Speaker

IP Horn Speaker with Algo Satellite Speaker Technology for Highly Intelligibility IP Paging, Emergency Alerting & Loud Ringing at Reduced Cost
  • The 8196 IP PoE+ Horn Speaker is a SIP compliant and multicast-capable PoE+ network audio device for public address and notification. For expanded coverage, up to three satellite speakers may be connected to the 8196 speaker sharing the 16W of available audio power.
  • FEATURES

  • Satellite speaker technology; capable to power and supervise satellite speakers.
  • PoE and PoE+ (Power over Ethernet).
  • Supports SIP, Multicast, Polycom Group Page, InformaCast, Revolution
  • Ambient noise responsive.
  • Talkback capable speaker.
  • Multicast scalable.
  • IP66 and outdoor rated.
  • Wideband and fullband audio codec support enables high intelligibility voice paging
  • Configuration via user friendly web interface or auto-provisioning.
  • Customize WAV files for emergency notification / alerting and telephone loud ringing.
  • Ideal for expanded coverage.

Power PoE / PoE+ 48 V PoE IEEE 802.3af/at Max 25.5 W - Idle nominal 2.5 W

SIP Extensions: 50 Page & 10 Alerting/Ring extensions with multicast scalability Transport Protocols: UDP, RTP, TCP Security: TLS, MTLS, SRTP

Multicast Compatibility Multicast: RTP Multicast (Send & Receive 50 zones), Third Party Multicast: PolycomTM Group Page, SinglewireTM InformaCast, Syn-AppsTM Revolution

API API: RESTful API

Digital IO Relay Input Normally open or normally closed dry contact supervision. Compatible with Algo 1202 and 1203 Accessories.

Satellite Speakers Quantity: Up to 3 x 1196 Satellite Ceiling Speaker Speaker Connections: Patch cable 4 Pair UTP 24 AWG RJ45 plug terminated T568A or T568B “Straight-Through”. Maximum recommended patch cable length 50 feet (13m) between each speaker. Supervision: Auto-detection and monitoring of up to three satellite speakers Configuration: Via host 8196 IP Speaker web interface

Audio Audio Codecs: G.711 A-law, G.711 u-law, G.722, Opus 48 kHz Driver Response: 350 – 8,300 Hz (- 10 dB) Driver Sensitivity: 108 dBA 1m/1W (1kHz) Max Audio Power: 16 Watts (shared equally between 8196 and up to 3 x 1196) Dispersion Angle: 80 degH x 50 degV (2 kHz -6 dB) Audio Memory: 1 GB Microphone: Omni-directional, talkback and ambient noise monitoring Audio Controls: Volume, AGC, Latency, LF Cut Anti-Feedback Delay: Cache to memory and release

Network Network: IPv4, IPv6, DHCP, VLAN, MDNS Secure SIP: TLS, MTLS, SRTP Link Layer: LLDP, CDP QoS: DSCP (SIP, RTP, RTCP) Web Interface: HTTP, HTTPS Provisioning: TFTP, FTP, HTTP, HTTPS DHCP Options 66, 150, 160 Reboot via SIP Check-sync NAT: STUN, TURN, CRLF Keep Alive, SIP Outbound Address Resolution: DNS, SRV Record Supervision: SNMP V1.3, RTCP, Algo 8300 Redundancy: Secondary & Tertiary SIP Servers

Environmental & Mechanical Satellite Speaker Connector: 1 x RJ45 output connector Environmental: -40 to 122 deg F (-40 to + 50 degC). Designed to meet IP66 requirements. Suitable for outdoor and wet environments when properly installed. Horn & Enclosure UV stabilized outdoor rated plastic with stainless steel mounting hardware. Horn Mouth Dimensions 11” x 6.6” (28cm x 16.8cm) Mounting: Wall, ceiling or double gang electrical box. Pole mount bracket available. Aim Adjustment: Three axis Weight: 6 lb (2.7 Kg)

Weight: 6 lb (2.7 Kg) Compliance IEC 62368-1, IEEE 802.3-2018, RoHS, CE, FCC Class A, CISPR 32 Class A, CISPR 24, CSA/UL (USA & Canada
