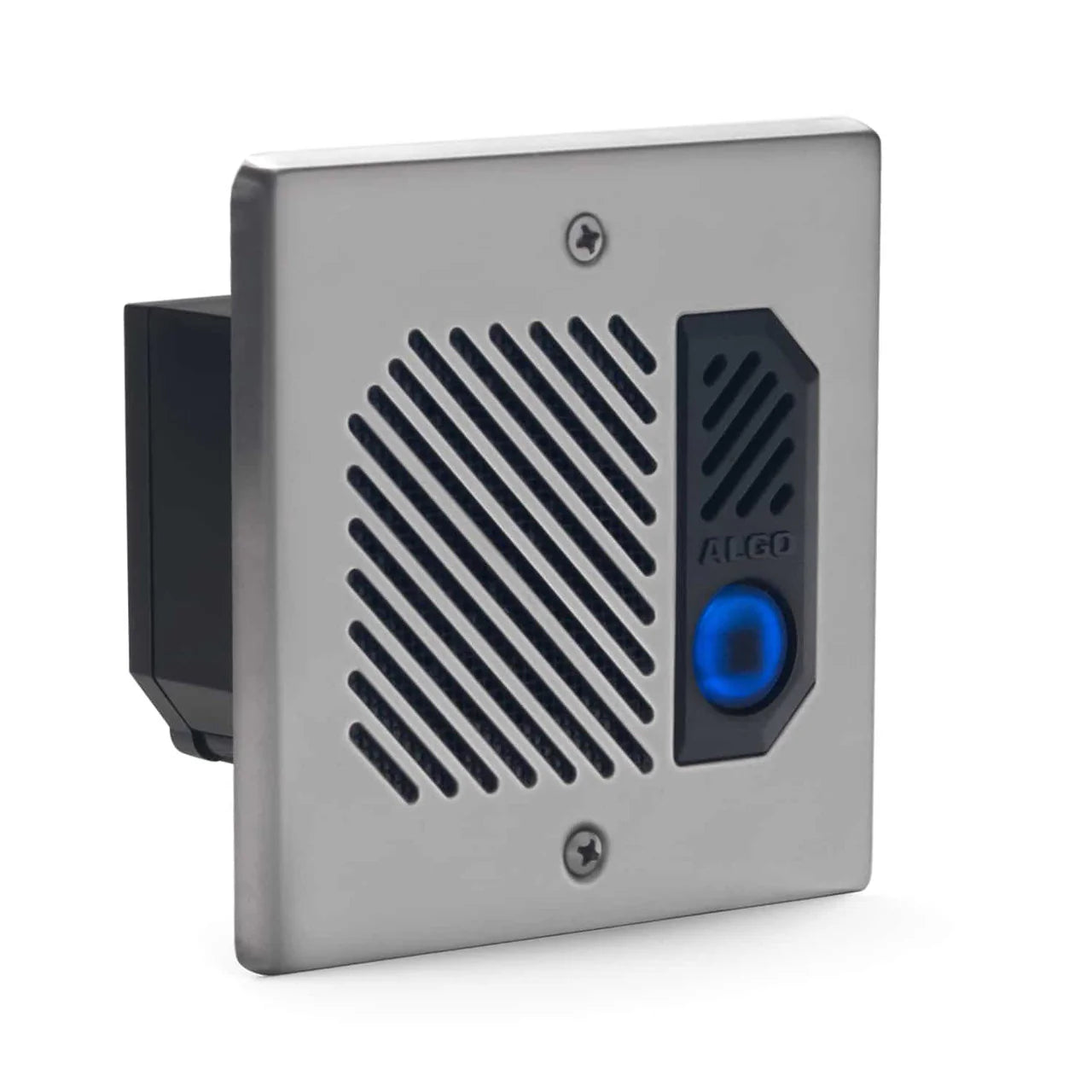

Algo 8201 SIP PoE Intercom For Door & Gate Entrances (8201)
IP Intercom For Door & Gate Entrances, Access Points & Room Intercom Applications
The 8201 SIP PoE Intercom is an IP doorphone for hands-free visitor communication at a secure entrance door or gate, access point and room intercom applications. This IP intercom / doorphone is outdoor rated, and is also a fully compliant 3rd party SIP endpoint. As a result, the 8201 is compatible with most hosted / cloud and premise-based VoIP telephone systems.
- Secure SIP using TLS and SRTP.
- Wideband HD voice for high intelligibility speech.
- Initiates or accepts intercom calls.
- Outdoor rated – conformal coated electronics.
- Backlit tactile silicon rubber call button.
- Seamless relay activation via telephone keypad for secure door or gate entry.
- One piece solution alternative to the popular 8028 SIP Doorphone.
- Configuration via user friendly web interface or auto-provisioning.
- PoE (IEEE 802.3af).
- Ideal for door / gate entry, in addition to controlling access points to elevators, secure areas such as a day care, hospital ward, lab or data center. The 8201 is also popular as a room intercom applications (e.g., classroom, interview and medical examination rooms).
The 8201 SIP PoE Intercom is UL/CSA, FCC and CE certified. A surface mount bracket is included for wall mounting, however, the intercom station can be flush mounted into a double gang box.
Power |
| Power Input: PoE (IEEE 802.3af Class 0) 48V, 12.95W |
| Max Power: 6W |
| Idle Power: 2W |
SIP |
| 1 Intercom Extension |
| SIP Signalling/Transport Protocols: UDP, TCP, TLS, RTP, SRTP |
Multicast & Third-Party Compatibility |
| Receive only RTP Multicast up to 50 Zones), |
| Receive only Polycom Group Page |
Configuration & Provisioning |
| Configuration: Web interface or provisioning server |
| Web Interface: HTTP, HTTPS |
| Provisioning: TFTP, FTP, HTTP, HTTPS |
| DHCP Options 66, 150, 160 |
| Reboot via SIP ‘check-sync’ |
| Supervision: Compatible with any third party SNMP monitoring software or the Algo 8300 Controller |
Networking |
| Networking: IPv4, DHCP, VLAN |
| Link Layer: LLDP, CDP |
| QoS: DSCP (SIP, RTP, RTCP) |
| NAT: STUN, TURN, CRLF Keep Alive, SIP Outbound |
| Address Resolution: DNS, SRV Record |
| Redundancy: Secondary and tertiary SIP server |
| Time: NTP Server (up to four) |
Audio |
| Microphone: Single Wideband |
| Audio Codecs: G.711 u-law, G.711 A-law, G.722 Wideband |
Input/Output |
| Built-in Call Button: Backlit tactile silicon rubber |
| Door Control Relay: Max 30V 50mA (common, normally open, normally closed dry contact, telephone keypad activated) |
| Door Sensor Terminal (Relay Input): Dry contact (normally open, normally closed) |
Environmental & Mechanical |
| Environmental: -40 to +50° C ( -40 to +122° F) |
| Rated for Outdoor Use (appropriate gaskets may be required) |
| Dimensions (Product): 4.5” x 4.5” x 1.65” (11.5 cm x 11.5 cm x 4.2 cm) |
| Weight (Product): 0.5 lbs (0.2 kg) |
| Weight (Shipping): 1.0 lbs (0.5 kg) |
Compliance |
| RoHS, CE, FCC Class A, CISPR 22 Class A, CISPR 24, CSA/UL (USA & Canada), EN60950 |
