Description

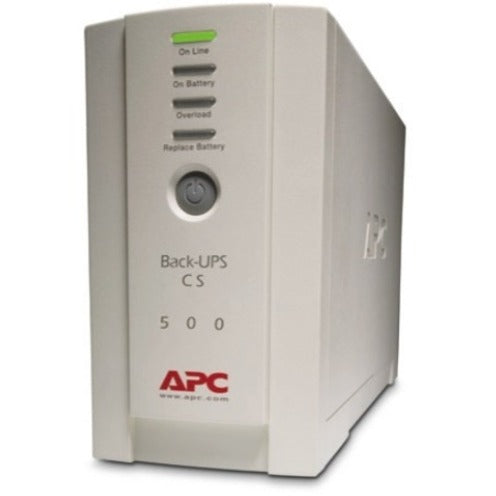

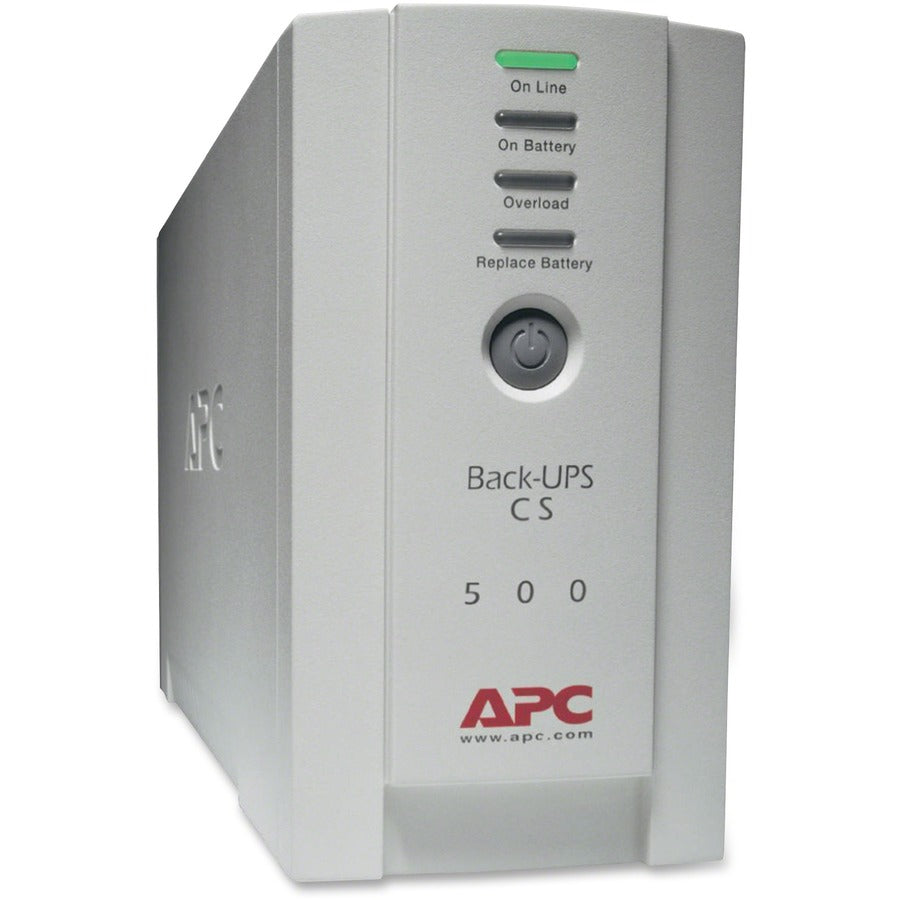

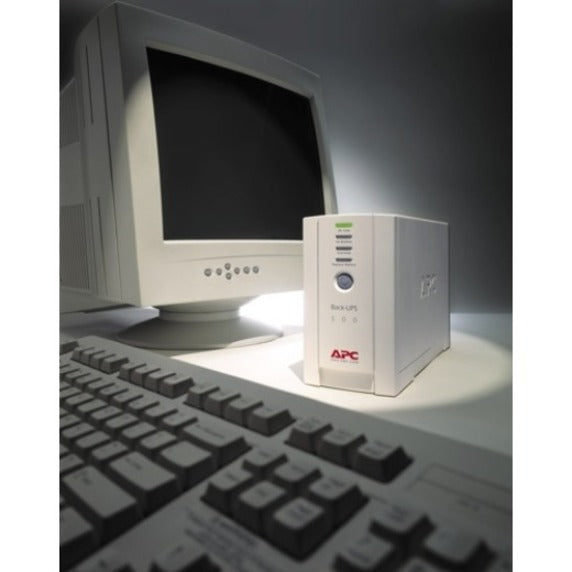

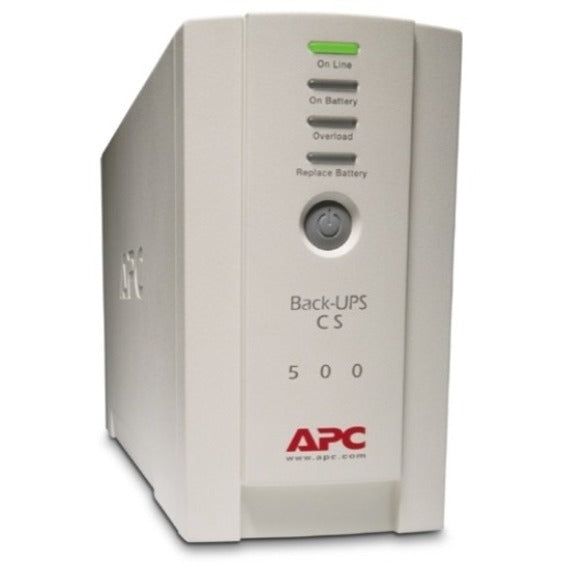

Protect your electronics with this 6-outlet, 120-volt battery backup system. 300-watt back-UPS features a surge energy rating of 480 joules. Serial connection lets you use your PC to access additional power protection and management features for your uninterruptible power supply (UPS) through a serial port. Disconnected battery notification warns you when a battery is not available to provide backup power. Cold-start capability provides temporary battery power when the utility power is out. Dataline surge protection protects connected equipment from power surges on the data lines. Hot-swappable batteries ensure clean, uninterrupted power to your protected equipment while the batteries are being replaced. Wiring fault indicator informs you of potentially dangerous wiring problems in the wall circuit.
- Experience higher efficiency with lower energy cost
- Up to 3 minute runtime on full load to preserve critical data from power shortage interruptions
- Energy Star : Yes
- Product Series : CS
- Product Line : Back-UPS
- Manufacturer : Schneider Electric SA
- Product Type : Line-interactive UPS
- Limited Warranty : 3 Year
- Country of Origin : Philippines
- Packaged Quantity : 1 Each
- Input Voltage : 110 V AC
- Output Voltage : 120 V AC
- Manufacturer Website Address : http://www.schneider-electric.com
- Typical Battery Recharge Time : 8 Hour
- Backup/Run Time (Full Load) : 3 Minute
- Plug/Connector Type : NEMA 5-15P
- Load Capacity : 500 VA
- Receptacle Type : NEMA 5-15R

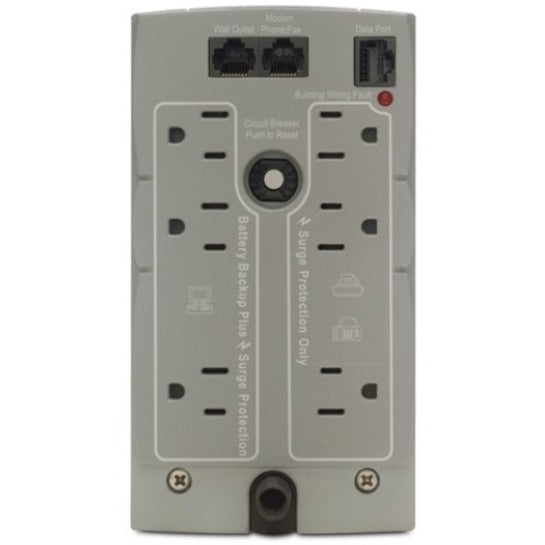

- Receptacle Detail : 3 x NEMA 5-15R
- Serial Port : Yes
- Sound Emission (A-Weighted) : 45 dB(A)
- Form Factor : Tower
- Package Contents :
- BK500 120V Backup System
- CD with software
- Cord management straps
- USB cable
- User manual
- Thermal Dissipation : 24 BTU/h
- Battery Chemistry : Lead Acid
- Maximum Operating Temperature : 113°F (45°C)
- Backup/Run Time (Half Load) : 15 Minute
- Battery Characteristics : Spill-proof, Maintenance-free
- USB : Yes
- Product Color : Beige
- Additional Warranty Information :
3 years warranty
- Waveform Type : Stepped Sine Wave
- Surge Energy Rating : 480 J
- Dataline Protection : RJ-11
- Alarm : On Battery,Low Battery,Overload
- Status Indicators : LED status display with On Line, On Battery, Replace Battery, Site wiring fault and Overload Indicators
- Number of Battery & Surge Outlets : 6
