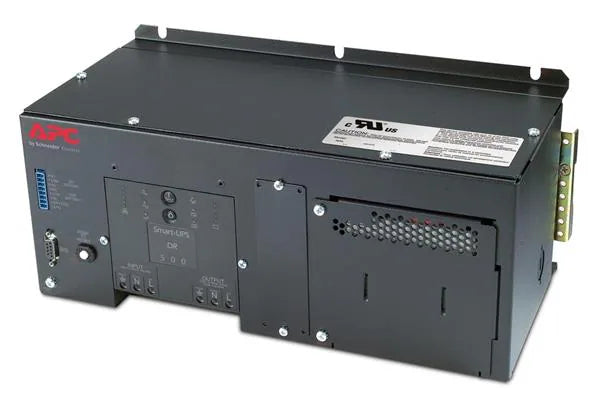

APC by Schneider Electric 500VA Panel Mount UPS SUA500PDR-H

Industrial UPS

Proven Industrial UPS power protection for control applications and harsh environments.

Continuity of process control is critical across a wide range of Industrial segments: Water/Waste Water, Biotech / Pharmaceutical, Transportation, Chemical, Food & Beverage, Semiconductor, Automotive, Renewable Energy. Equipment utilized in these segments is often subjected to harsh environments including wide temperature ranges or air characteristics with elevated moisture and salt content. APC offers a range of UPS solutions for industrial control applications including communication accessories for dry contact I/O, Modbus and network management. During a power event, whether the requirement is safe shutdown or maintaining data integrity, the APC industrial UPS solution provides reliable protection.

More from the Manufacturer

• Includes: CD with software, Documentation CD, Installation guide, Smart UPS signalling RS-232 cable
• Proven Industrial UPS power protection for control applications and harsh environments.

. .

• Transfer Time : 0 ns
• Input Voltage : 120 V AC
• Output Voltage : 120 V AC
• Manufacturer Website Address : http://www.schneider-electric.com
• Environmentally Friendly : Yes
• Typical Battery Recharge Time : 2 Hour
• Backup/Run Time (Full Load) : 8.10 Minute
• Plug/Connector Type : Hard Wire 3 wire (1PH+N+G)
• Load Capacity : 500 VA/325 W
• Manufacturer : Schneider Electric SA
• Product Type : Line-interactive UPS
• Limited Warranty : 2 Year
• Receptacle Type : Hard Wire 3-wire (H N + G)
• Receptacle Detail : 1 x Hard Wire 3-wire (H N + G)
• Country of Origin : Philippines
• Form Factor : Tower
• Package Contents :
• 500VA Panel Mount UPS
• CD with software
• Documentation CD
• Installation guide
• Smart UPS signalling RS-232 cable
• Battery Chemistry : Lead Acid
• Input Voltage Range : 82 V AC - 144 V AC
• Backup/Run Time (Half Load) : 24.40 Minute
• Waveform Type : Sine Wave
• Replaceable Battery : Yes
• Application/Usage : Industry,Transportation,Mission Critical Equipment,Pharmaceutical,Chemical,Automotive
• Hot Swappable : Yes
• Network Management : DB9 RS-232/SmartSlot
• Serial Port : Yes
• Sound Emission (A-Weighted) : 55 dB(A)
• Maximum Operating Elevation : 9842.52 ft (3000000 mm)
• Number of Batteries : 1
• Thermal Dissipation : 90 BTU/h
• Maximum Operating Temperature : 122°F (50°C)
• Battery Characteristics : Maintenance-free, Sealed, Leak-proof
• Storage Temperature : 23°F (-5°C) - 131°F (55°C)
• Battery Energy : 432 kJ
• EPO Port : Yes
• Input Frequency : 60 Hz
• Surge Energy Rating : 540 J
• Alarm : On Battery,Low Battery,Overload,Configurable Delay
• Storage Relative Humidity : 0% - 95%
• Maximum Storage Elevation : 49212.60 ft (15000000 mm)
• Status Indicators : LED Status Display:

  • On Line
  • On Battery
  • Replace Battery
  • Overload
• Number of Battery & Surge Outlets : 1
• Environmental Certification : REACH,RoHS
