Description

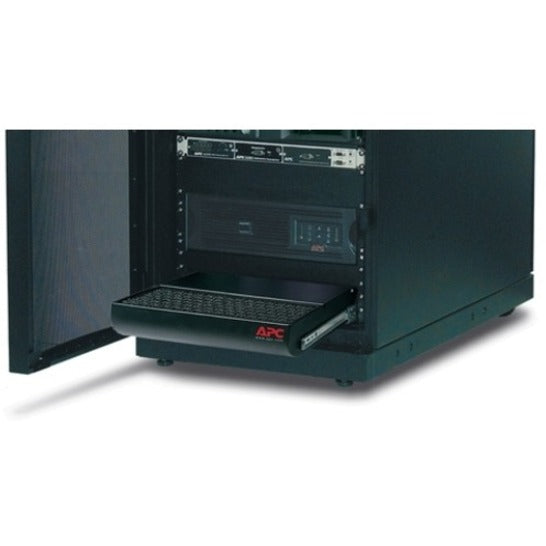

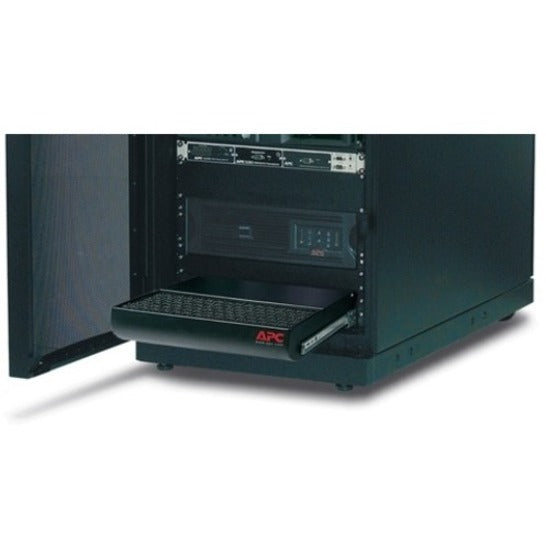

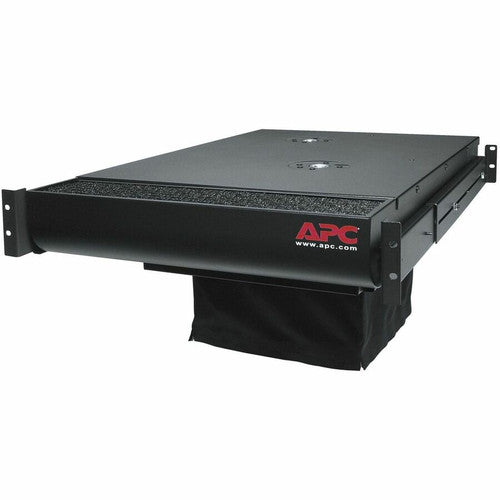

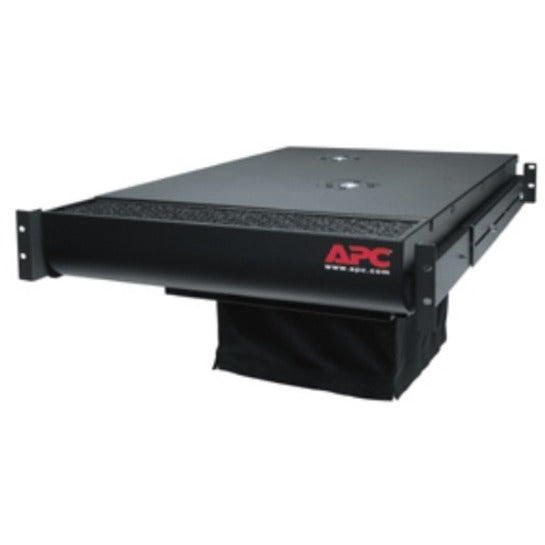

The Rack Air Distribution Unit is a 2U fan unit that connects into the raised floor and pulls supply air directly into the enclosure. This prevents the conditioned air from mixing with warmer room air before reaching the equipment. This minimizes temperature differences between the top and bottom of the enclosure, while also preventing hot exhaust air recirculation to the inlet of the enclosure. The product is recommended for rack enclosures with loads greater than 1.5kW and can provide airflow for loads up to 3.5kW. It is also ideal for enclosures in raised floor environments where underfloor air distribution is inadequate.
. .- Input Voltage : 120 V AC
- Input Current : 2 A
- Package Contents :
- ACF001 Airflow Cooling System
- Rack Mounting brackets
- User Manual
- Manufacturer Website Address : http://www.schneider-electric.com
- Power Consumption : 240 W
- Maximum Air Flow : 237.39 L/s
- Compatible Rack Height : 2U
- Cooling Power Consumption : 3.50 kW
- Manufacturer : Schneider Electric SA
- Product Type : Airflow Cooling System
- Limited Warranty : 2 Year
- Product Model : ACF001
- Environmentally Friendly : Yes
- Product Color : Black
- Additional Warranty Information : 2 years repair or replace
