Description

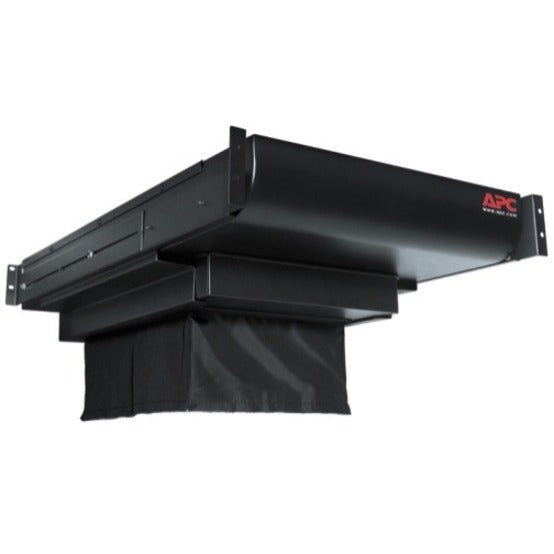

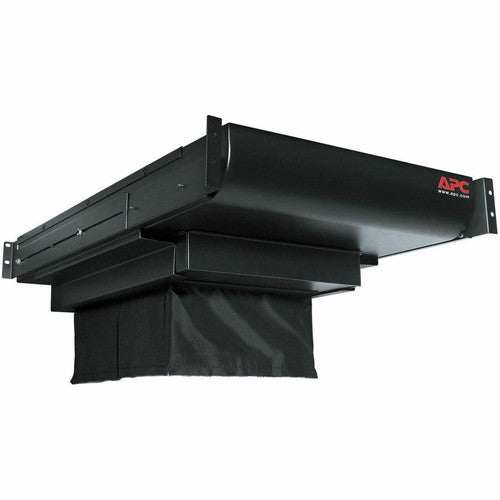

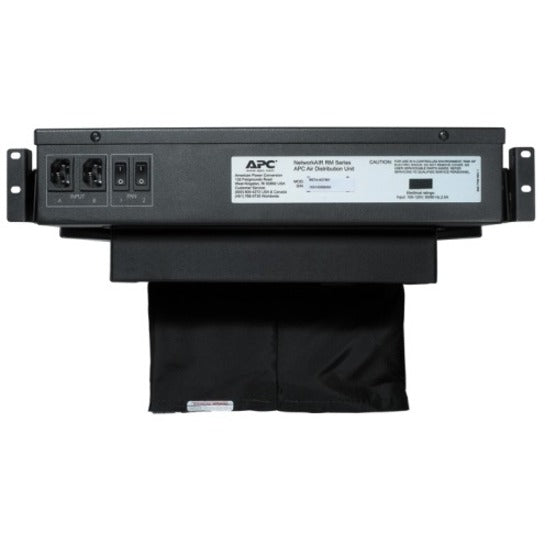

The Rack Air Distribution Unit is a 2U fan unit that connects into the raised floor and pulls supply air directly into the enclosure. This prevents the conditioned air from mixing with warmer room air before reaching the equipment. This minimizes temperature differences between the top and bottom of the enclosure, while also preventing hot exhaust air recirculation to the inlet of the enclosure. The product is recommended for rack enclosures with loads greater than 1.5kW and can provide airflow for loads up to 3.5kW. It is also ideal for enclosures in raised floor environments where underfloor air distribution is inadequate.
. .- Application/Usage : IT
- Package Contents :
- ACF002 Rack Air Distribution System
- Rack Mounting Brackets
- User Manual
- Manufacturer Website Address : http://www.schneider-electric.com
- Power Consumption : 230 W
- Maximum Air Flow : 198.22 L/s
- Compatible Rack Height : 2U
- Form Factor : Rack-mountable
- Manufacturer : Schneider Electric SA
- Product Type : Airflow Cooling System
- Product Model : ACF002
- Cooler Type : Air Cooler
- Environmentally Friendly : Yes
- Product Color : Black
- Additional Warranty Information : 1 year (parts only)
- Input Voltage : 120 V
