Description
APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering. Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.
. .- Management :
Protocols:
- Web
- SNMP
- Telnet
- Input Voltage : 230 V AC
- Mount Type : Rack-mountable
- PDU Type : Metered-by-Outlet
- Output Voltage : 208 V AC
- Manufacturer Website Address : http://www.schneider-electric.com
- Input Voltage Range : 200 V AC - 230 V AC
- Environmentally Friendly : Yes
- Plug/Connector Type : NEMA L6-20P
- Manufacturer : Schneider Electric SA
- Product Type : PDU
- Limited Warranty : 2 Year
- Receptacle Type : IEC 60320 C19,IEC 60320 C13
- Environmental Certification : REACH,RoHS
- Package Contents :
- Metered-by-Outlet Rack PDU
- CAN port terminator
- Installation guide

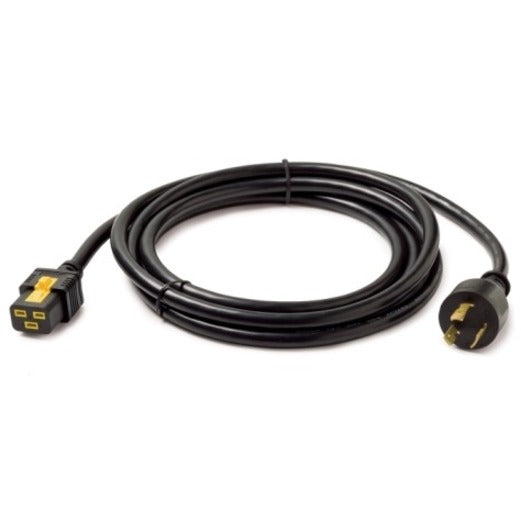

- Locking input power cord
- Rack mounting brackets
- Safety guide
- Serial configuration cable
- Form Factor : Tower
- Receptacle Detail : 21 x IEC 60320 C13,3 x IEC 60320 C19
