Description

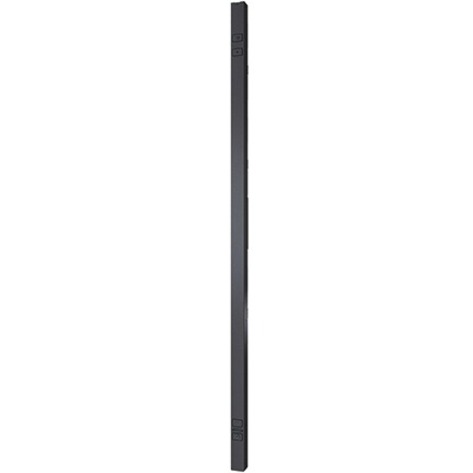

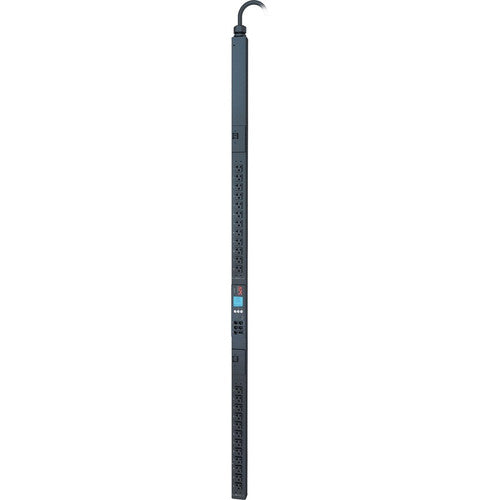

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
- PDU provides power control as remote controlled relay & load monitoring
- Monitor load level efficiently with PDU meter
- Mount Type : Rack-mountable
- Product Line : Metered Rack
- Environmentally Friendly : Yes
- Manufacturer : Schneider Electric SA
- Product Type : PDU
- Input Current : 30 A
- Protection Type : Overload Protection
- PDU Type : Metered
- Power Rating (VA) : 2.88 kVA
- Manufacturer Website Address : http://www.schneider-electric.com
- Plug/Connector Detail : 1 x NEMA L5-30P
- Plug/Connector Type : NEMA L5-30P
- Receptacle Type : NEMA 5-20R
- Receptacle Detail : 24 x NEMA 5-20R
- Package Contents :
- Metered Rack PDU
- Installation guide
- Rack mounting brackets
- Safety guide
- Serial configuration cable
- Environmental Certification : RoHS
- Output Voltage : 100 V AC
