Description

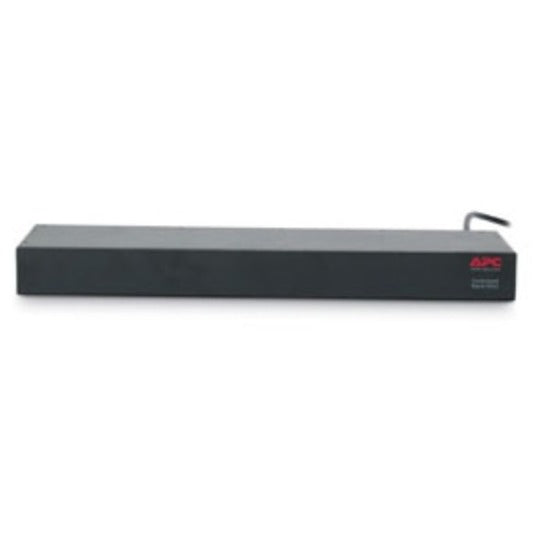

The APC by Schneider Electric Switched Rack Power Distribution Unit (PDU) distributes power to devices in the rack. It can be monitored through Web, Telnet, SNMP, SSH, StruxureWare Data Center Expert® interfaces.
Outlets: The outlets connect the Rack PDU to equipment in your rack or enclosure. Each outletallows independent control of the connected equipment and the Rack PDU firmware also provides Outlet User accounts. The PDU has eight IEC-320-C13 outlets.
Power cord: The Rack PDU has an IEC-320-C20 inlet on the front of the unit to connect to the power cord. The power cord connects the Rack PDU to one power source. The cord connects to the front of the Rack PDU for easier mounting and user access. The 8 foot (2.4 meter) cord terminates with a C20 plug.
Digital display: The digital display shows the aggregate current being used by th
- PDU allows power to be more efficiently distributed and controlled
- With switched PDU, remotely monitor, connect or disconnect data center loads
- Manufacturer : Schneider Electric SA
- Product Type : PDU
- Input Current : 20 A
- Mount Type : Rack-mountable
- PDU Type : Switched
- Manufacturer Website Address : http://www.schneider-electric.com
- Package Contents :
- Rack PDU, Switched, 1U, 16A, 208/230V, (8)C13
- Installation guide
- Rack mounting brackets
- User manual
- Environmentally Friendly : Yes
- Rack Height : 1U
- Limited Warranty : 2 Year
- Output Voltage : 208 V AC,230 V AC
