Description
Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction. . .
- Energy Star : Yes
- Rack Height : 2U
- Product Line : Smart-UPS
- Output Voltage : 120 V AC
- Manufacturer Website Address : http://www.schneider-electric.com
- Environmentally Friendly : Yes
- Typical Battery Recharge Time : 3 Hour
- Load Capacity : 2.20 kVA/1.80 kW
- Manufacturer : Schneider Electric SA
- Receptacle Type : NEMA 5-20R,NEMA L5-20R
- Receptacle Detail : 6 x NEMA 5-20R,1 x NEMA L5-20R
- Form Factor : Rack-mountable
- Package Contents :

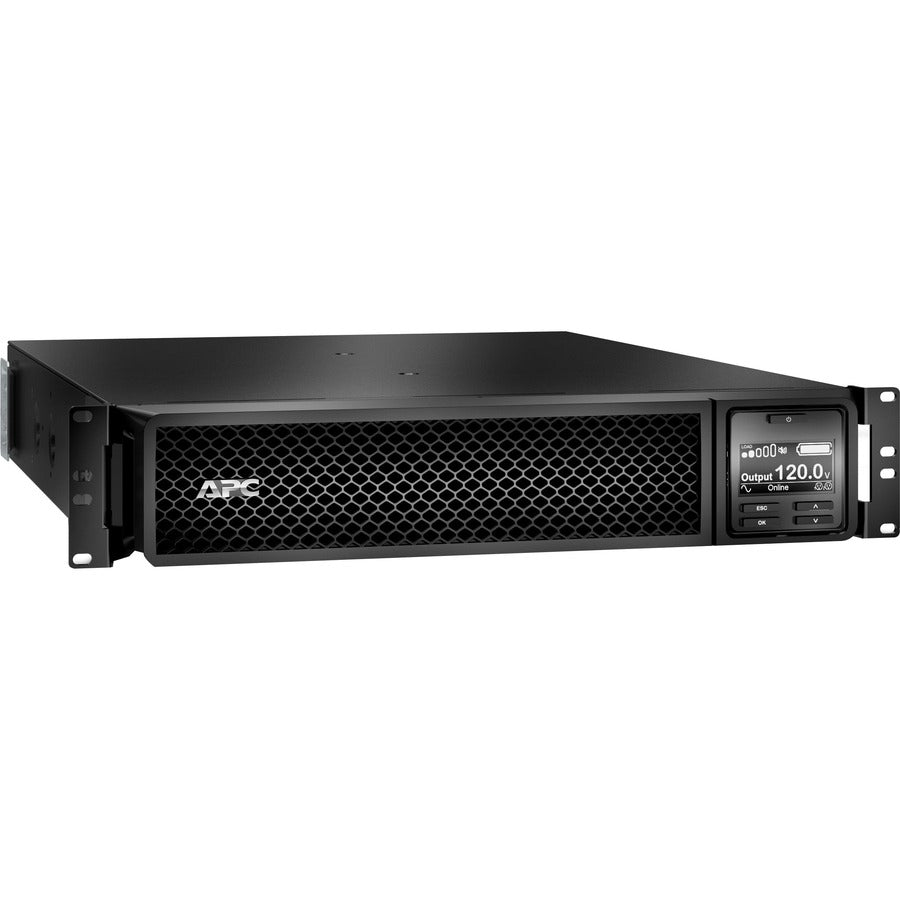

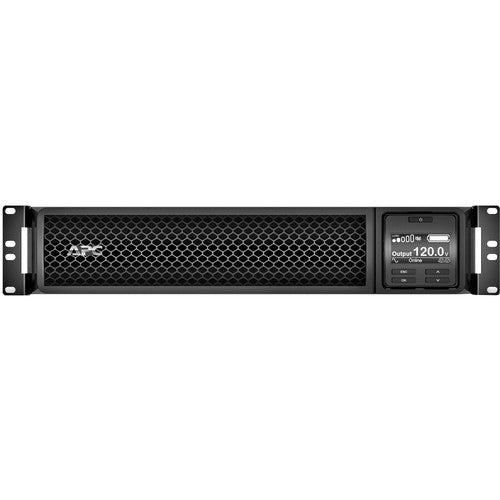

- Smart-UPS SRT 2200VA RM 120V
- CD with software
- Documentation CD
- Installation guide
- Rack mounting brackets
- Rack mounting hardware
- Rack mounting support rails
- USB cable
- Warranty card
- Product Type : Double Conversion Online UPS
- Waveform Type : Sine Wave
- Battery Chemistry : Lead Acid
- Product Color : Black
- Battery Life : 5 Year
- Replaceable Battery : Yes
- Application/Usage : Server,Network Workstation
- Hot Swappable : Yes
- Country of Origin : Philippines
- DC System Voltage : 72 V DC
- Network Management : SmartSlot
- Sound Emission (A-Weighted) : 55 dB(A)
- Maximum Operating Elevation : 10000 ft (3048000 mm)
- Number of Batteries : 1
- Thermal Dissipation : 535 BTU/h
- Maximum Operating Temperature : 104°F (40°C)
- Storage Temperature : -4°F (-20°C) - 122°F (50°C)
- Battery Energy : 1101.6 kJ
- EPO Port : Yes
- Input Frequency : 70 Hz
- Surge Energy Rating : 340 J
- Storage Relative Humidity : 0% - 95%
- Maximum Storage Elevation : 50000 ft (15240000 mm)
- Status Indicators : LCD Display
- Number of Battery & Surge Outlets : 7
- Input Voltage : 120 V
- Environmental Certification : RoHS
- Additional Warranty Information : 3 years repair or replace (excluding battery) and 2 years for battery
- Cord Length : 6 ft
