Description
APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power cycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing time delays allow users to define the order in which to power up or down attached equipment to avoid circuit overload. Current metering provides real-time remote monitoring of connected loads with user-defined alarms to warn of potential circuit overloads. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, Command Line Interface, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency. New AP8000 series Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles.
- Provide circuit protection and easy configuration for trouble-free access
- With switched PDU, remotely monitor, connect or disconnect data center loads
- Product Series : AP8000
- Product Line : Switched Rack
- Environmentally Friendly : Yes
- Manufacturer : Schneider Electric SA
- Product Type : PDU
- Limited Warranty : 2 Year

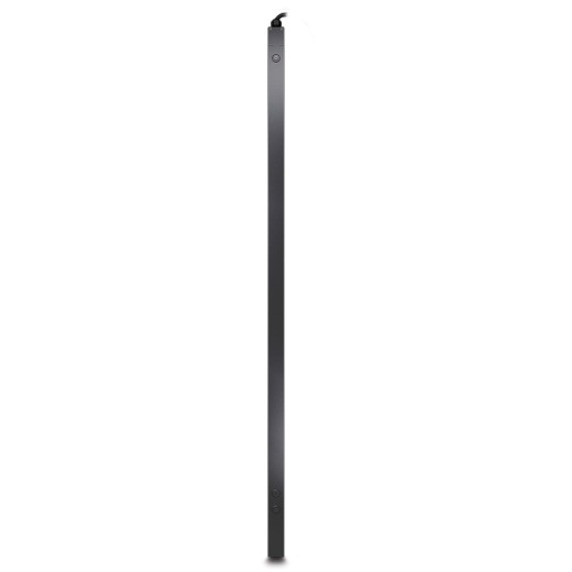

- Product Model : AP8661
- Mount Type : Rack-mountable
- Management :
Protocols:
- Web
- SNMP
- Telnet
- PDU Type : Switched
- Output Voltage : 208 V AC
- Manufacturer Website Address : http://www.schneider-electric.com
- Plug/Connector Type : NEMA L21-20P
- Power Rating (Watt) : 5.70 kW
- Receptacle Type : IEC 60320 C19,IEC 60320 C13
- Receptacle Detail : 3 x IEC 60320 C19,21 x IEC 60320 C13
- Package Contents :
- Switched Rack AP8000 24-Outlets 5.7kW PDU
- CAN port terminator
- Installation guide
- Rack mounting brackets
- Safety guide
- Serial configuration cable
- Country of Origin : Philippines
- Environmental Certification : RoHS
- Input Voltage : 208 V AC
- Additional Warranty Information : 2 years repair or replace
- Cord Length : 6 ft
- Rack Height : 0U
