Description
Engineered to deliver the highest level of business continuity possible, the Symmetra LX uses a modular, redundant architecture that can scale power and run-time as demand increases or when higher levels of availability are required. Advancements in this next generation design greatly decrease foot print or U-space needed in an equipment rack, increase speed and ease of deployment and reduce repair time. With built-in network manageability and a comprehensive portfolio available from 4-16 kVA N+1, the on-line Symmetra LX is the choice to protect high-performance IT and telecom equipment in computer rooms and small data centers.
. .- Product Series : LX
- Rack Height : 19U
- Product Line : Symmetra
- Manufacturer Website Address : http://www.schneider-electric.com
- Backup/Run Time (Full Load) : 6 Minute
- Plug/Connector Type : Hard Wire 4-wire
- Load Capacity : 12 kVA
- Manufacturer : Schneider Electric SA
- Waveform Type : Sine Wave
- Backup/Run Time (Half Load) : 17.10 Minute
- Network Management : SNMP Manageable
- Package Contents :

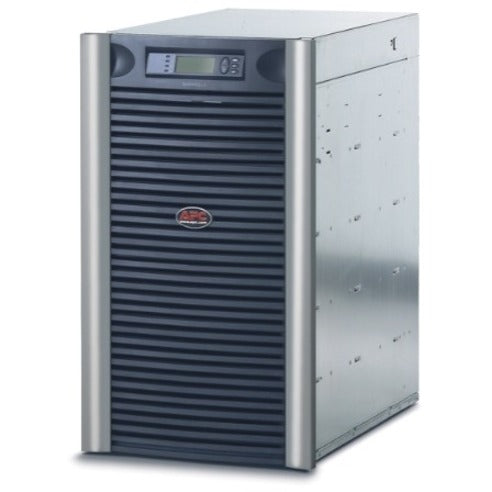

- Symmetra LX 12kVA Rackmountable UPS
- CD with software
- Documentation CD
- Installation guide
- Rack mounting support rails
- Temperature probe
- User manual

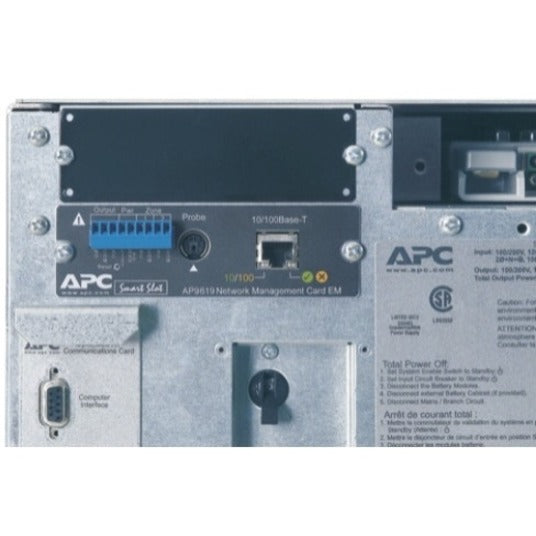

- Web/SNMP management card
- Product Type : Double Conversion Online UPS
- Battery Chemistry : Lead Acid
- Environmentally Friendly : Yes
- Form Factor : Rack-mountable
- Thermal Dissipation : 4995 BTU/h
- Maximum Operating Temperature : 104°F (40°C)
- Battery Characteristics : Spill-proof/Maintenance-free
- Output Frequency : 60 Hz
- Input Frequency : 65 Hz
- Overload Protection : Yes
- Environmental Certification : RoHS
- Receptacle Detail : 8 x NEMA L5-20R,4 x NEMA L14-30R
- Receptacle Type : NEMA L5-20R,NEMA L14-30R
- Number of Battery & Surge Outlets : 13
- Product Color : Silver
- Input Voltage : 208 V AC
- Output Voltage : 120 V AC
- Additional Warranty Information : 2 years repair or replace
- Typical Battery Recharge Time : 3 Hour
