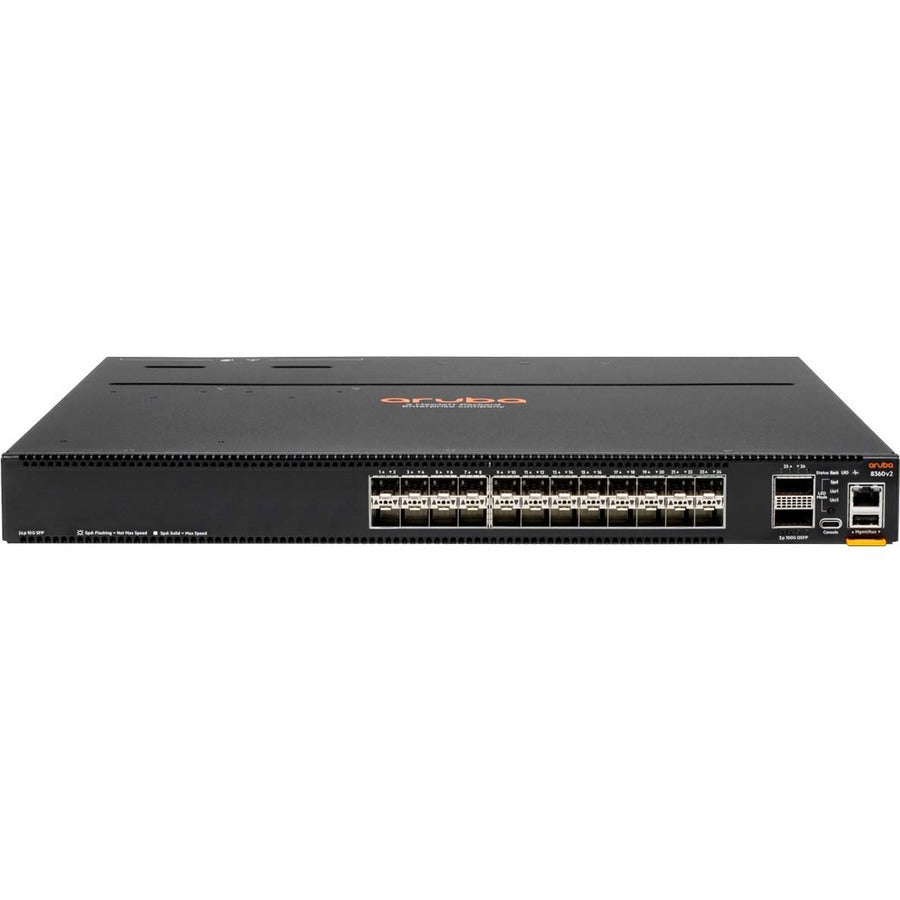

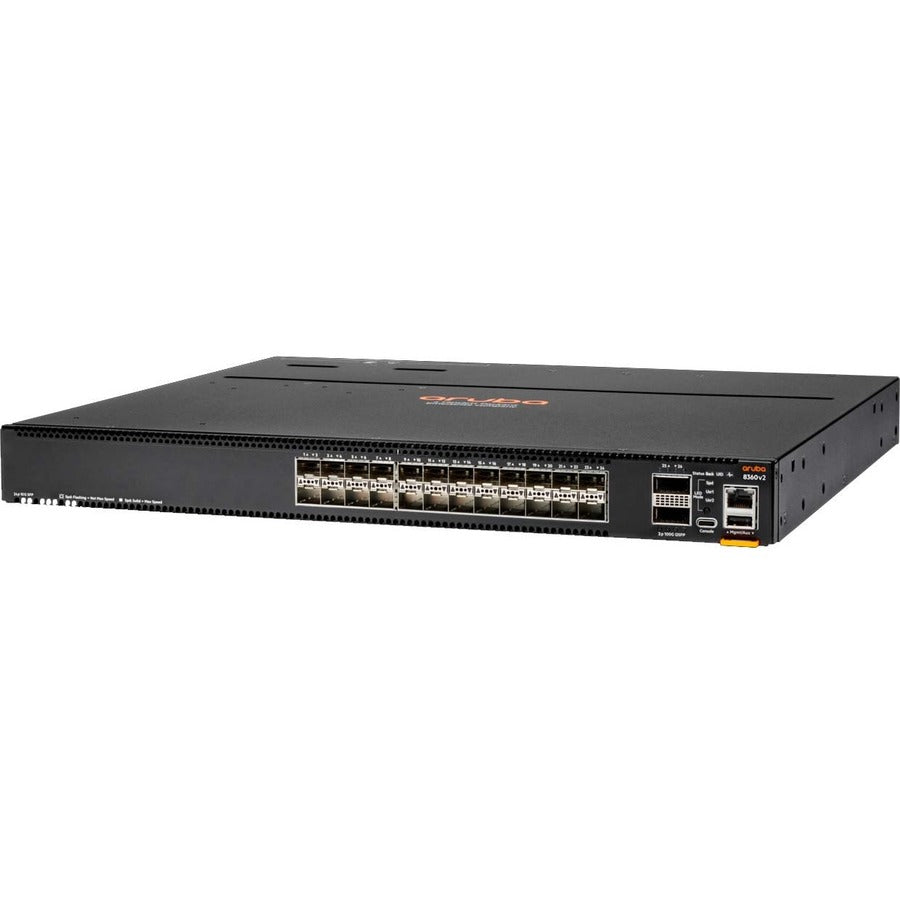

Aruba 8360v2- 24XF2C Ethernet Switch JL710C#B2B

Aruba CX 8360 Switch Series

The Aruba CX 8360-48Y6C v2 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT era. These switches serve the needs of the next-generation core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. They provide up to 4.8Tbps of capacity, with line-rate Gigabit Ethernet interfaces including support for Smart Rate (1/2.5, 5 Gbps), 10Gbps, 25Gbps, 40Gbps, 50Gbps, and 100Gbps.

The 8360-48Y6C v2 series includes industry-leading line rate ports with 1/10/25/50GbE (SFP/SFP+/SFP28) and 40/100 GbE (QSFP+/QSFP28) connectivity in a compact 1U form factor. 4x10Gbps and 4x25Gbps break out from 40/100G ports offer advanced flexibility in connectivity and aggregation. These switches deliver a fantastic investment for customers wanting to migrate from older 1GbE/10GbE to faster 25GbE, or from 10GbE/40GbE uplinks to 50/100GbE ports.

In addition, the switch supports low- density MACsec ports enabling secure connectivity at 10GbE and 25GbE over unsecured domains.

• Cascade to other network devices through the uplink port to expand your local area network
• Can work as layer 3 routing for scalable network design
• Rack mounting enables you to organize wires & secure cables for professional installation
• Managed switch provides a reliable foundation for your network
• 100 Gigabit Ethernet provides high bandwidth performance, ease of use and reliability for your network backbone
• Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components

. .

• Power Source : Power Supply
• Product Series : CX 8360
• Modular : Yes
• Form Factor : Rack-mountable
• Package Contents :
  • 8360v2- 24XF2C Ethernet Switch
  • 2 x PSU
  • 5 x Fans
  • 2 x Post Rack Kit
• Manufacturer Website Address : http://www.hpe.com
• Number of Power Supplies Supported : 2
• Uplink Port : Yes
• Manufacturer : Hewlett Packard Enterprise
• Product Model : 8360v2- 24XF2C
• Compatible Rack Unit : 1U
• Manageable : Yes
• Network Technology : 10GBase-X,100GBase-X
• Redundant Power Supply Supported : Yes
• Ethernet Technology : 10 Gigabit Ethernet,100 Gigabit Ethernet
• TAA Compliant : Yes
• Layer Supported : 3
• Port/Expansion Slot Details : 24 x 10 Gigabit Ethernet Expansion Slot,2 x 100 Gigabit Ethernet Expansion Slot
• Limited Warranty : Lifetime
• Product Type : Ethernet Switch
• Number of Total Expansion Slots : 2
• Networking Standards : IEEE 802.1Qbb,IEEE 802.3ad,IEEE 802.1ab,IEEE 802.1Q,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.1ae,IEEE 802.1AEbn,IEEE 802.1AEbw,IEEE 802.1ak,IEEE 802.1AX,IEEE 802.1t,IEEE 802.1v,IEEE 802.3ae,IEEE 802.3an,IEEE 802.3ba,IEEE 802.3by,IEEE 802.3cc,IEEE 802.3z
• Power Consumption : 375 W
• Media Type Supported : Optical Fiber
• Expansion Slot Type : QSFP28
