Description

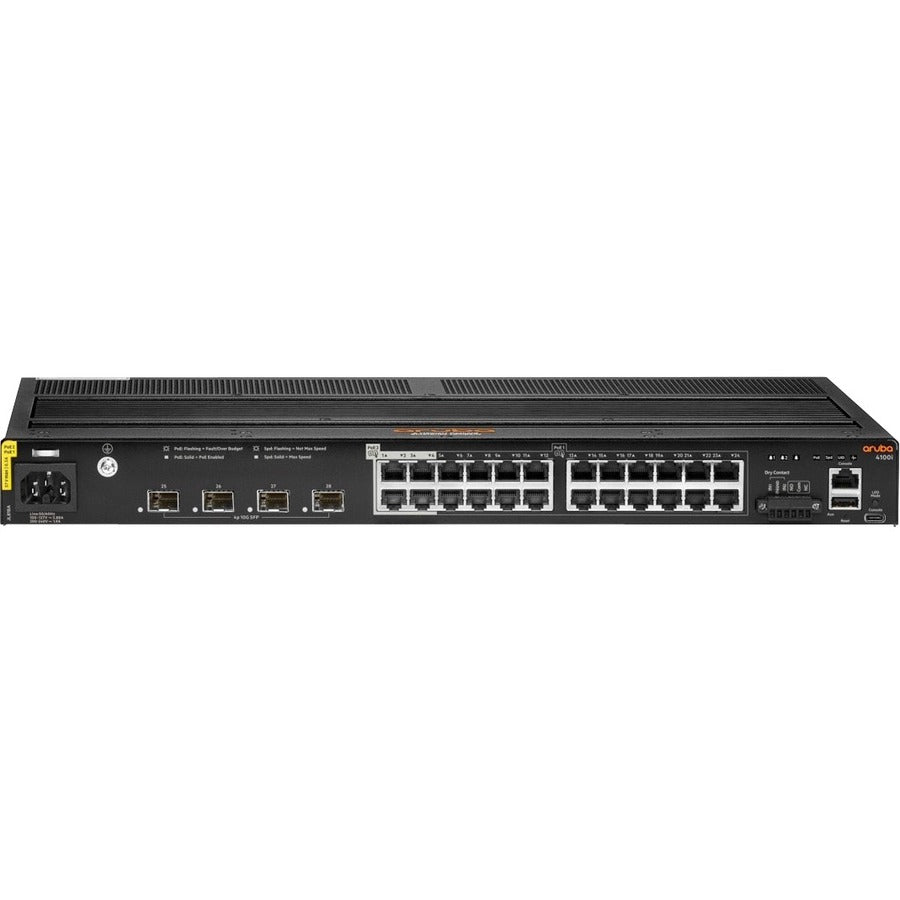

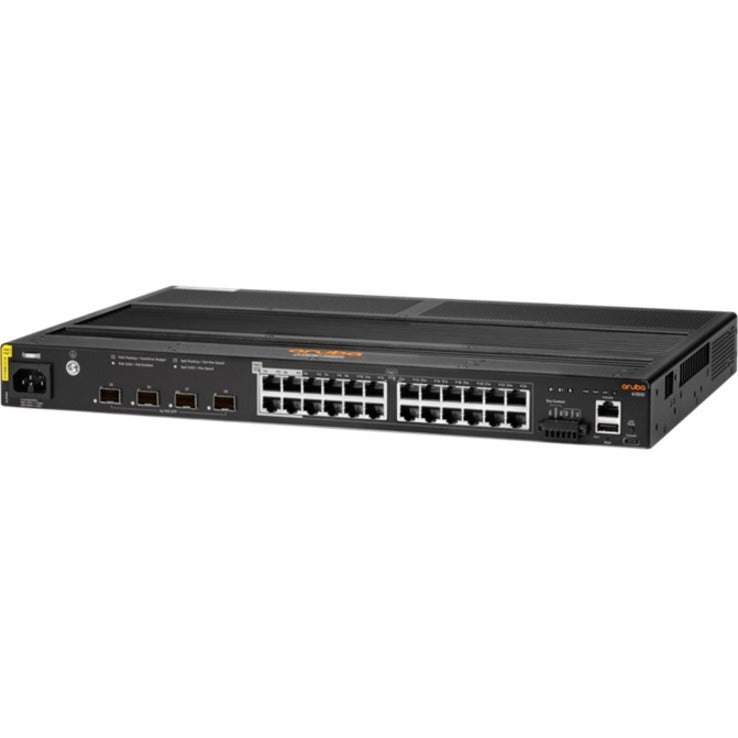

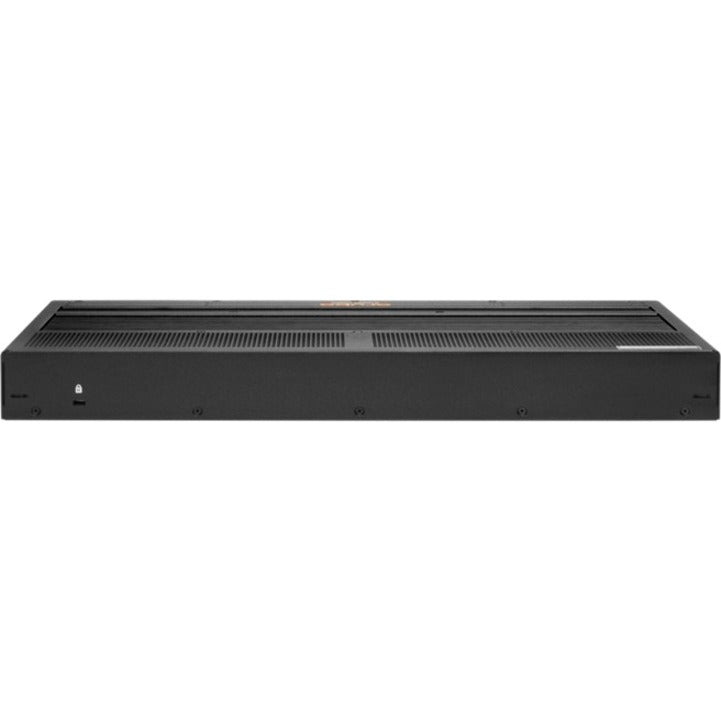

Aruba CX 4100i Switch Series
The Aruba CX 4100i Switch Series is a modern family of ruggedized Ethernet switches ideal for connecting IoT, access points, and user devices in harsh environments. Created for high performance, reliable, and secure access, the Aruba CX 4100i switches provide versatile deployment options for enterprise networks extending beyond carpeted areas to challenging outdoor and industrial spaces.
Based on the programmable AOS-CX operating system used across the Aruba CX portfolio for a more efficient operator experience, this IP30 ruggedized series operates in extended temperatures, provides protection for sub-station applications with IEC 61850-3 and IEEE 1613 compliance, and has high tolerances for railway applications.
This Layer 2 access switch has convenient built-in high speed uplinks, supports combination of 30W and 60W PoE with up to a 360W power budget, and relies on passive cooling for the fan less 12 port DIN rail mount model and fan less 24 port 1U rack mount model. With enhanced access security, traffic prioritization, and IPv6 support, the Aruba CX 4100i also simplifies ownership and brings peace of mind with no switch software licensing requirements.
As part of Aruba's Edge Services Platform (ESP), Aruba CX switches play a foundational role in the Unified Infrastructure. Automation, embedded analytics, high availability, and secure segmentation are designed into CX switches with Aruba Central delivering a unified, single view of the network that maximizes operational efficiency across enterprise networks. Aruba Dynamic Segmentation extends Aruba's foundational wireless role-based policy capability to Aruba wired switches. What this means is that the same security, user experience and simplified IT management can be enjoyed throughout the network. Regardless of how users and IoT devices connect, consistent policies are enforced across wired and wireless networks, keeping traffic secure and separate.
- Cascade to other network devices through the uplink port to expand your local area network
- Features 24 networking ports to establish large network
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Supports layer 3 switching for enhanced performance and usability
- Rack mounting enables you to organize wires & secure cables for professional installation
- Management capability provides control over setup and configuration of your network
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Power Source : Power Supply
- Product Series : CX 4100i
- Modular : Yes
- PoE (RJ-45) Port : Yes
- Form Factor : Rack-mountable,DIN Rail Mountable
- Package Contents :
- CX 4100i Ethernet Switch
- Cable Management Kit
- 2-post Rack Mounting Kit
- Manufacturer Website Address : http://www.hpe.com
- Uplink Port : Yes
- Number of Power Supplies Installed : 1
- Manufacturer : Hewlett Packard Enterprise
- Compatible Rack Unit : 1U
- Manageable : Yes
- Network Technology : 10/100/1000Base-T,10GBase-X
- Ethernet Technology : Gigabit Ethernet,10 Gigabit Ethernet
- Environmentally Friendly : Yes
- Layer Supported : 3
- PoE Budget : 240 W
- Port/Expansion Slot Details : 4 x Gigabit Ethernet Hi PoE,20 x Gigabit Ethernet PoE+,4 x 10 Gigabit Ethernet Expansion Slot
- Limited Warranty : 5 Year
- Network (RJ-45) : Yes
- Plug/Connector Type : C15
- Product Type : Ethernet Switch
- Number of Total Expansion Slots : 4
- Networking Standards : IEEE 802.1x,IEEE 802.3bt,IEEE 802.3az,IEEE 802.3ad,IEEE 802.1s,IEEE 802.1D,IEEE 802.1w,IEEE 802.1p,IEEE 802.1ab,IEEE 802.1Q,IEEE 802.3af,IEEE 802.3at,IEEE 802.3,IEEE 802.3ab,IEEE 802.3x
- Total Number of Network Ports : 24
- Media Type Supported : Twisted Pair,Optical Fiber
- Expansion Slot Type : SFP+
- Number of SFP+ Slots : 4
- Power Consumption : 62 W
- Product Model : 4100i 24-port 1GbE
