Description

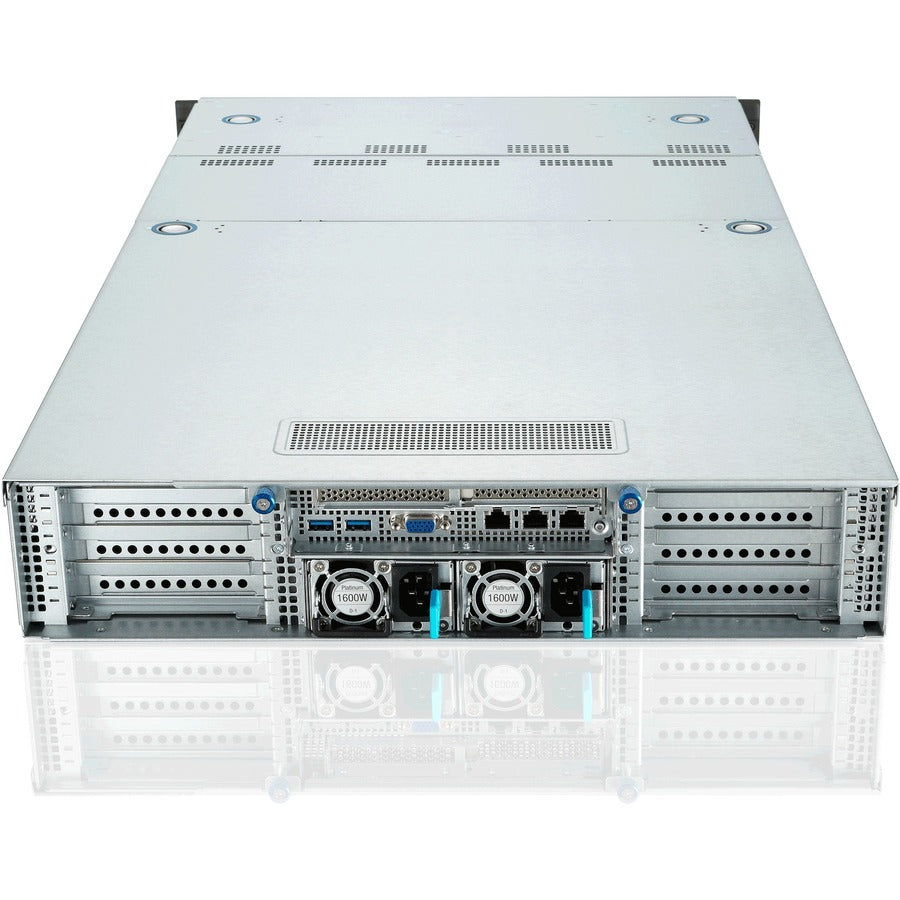

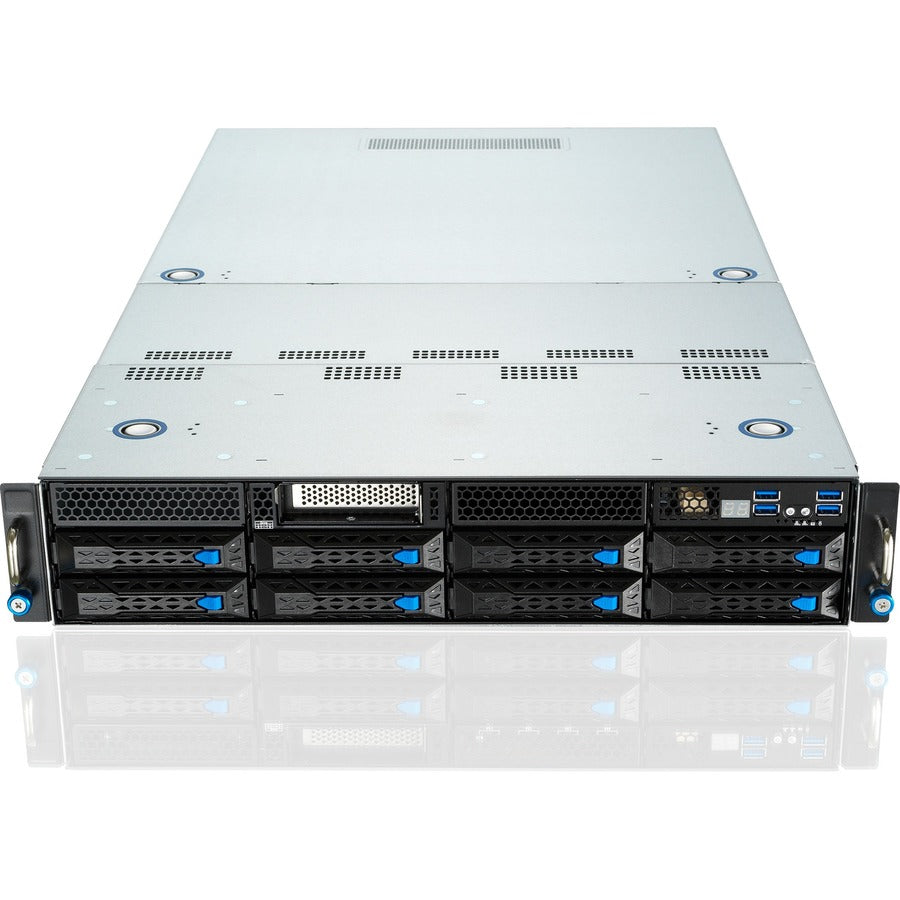

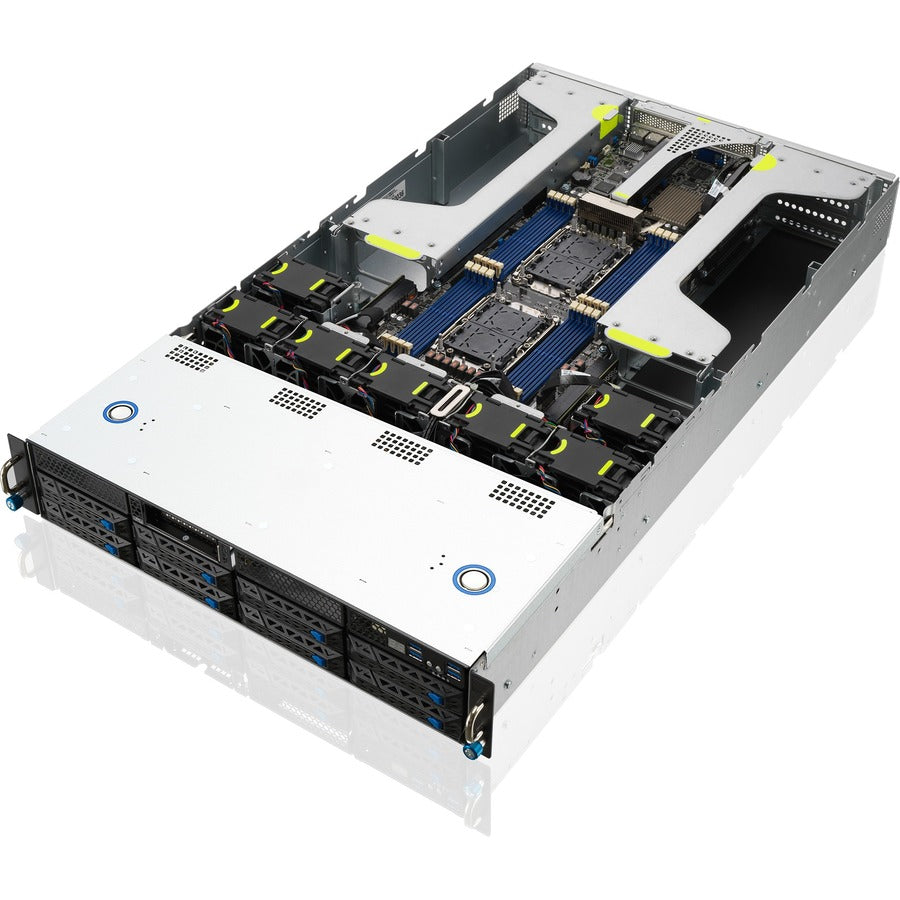

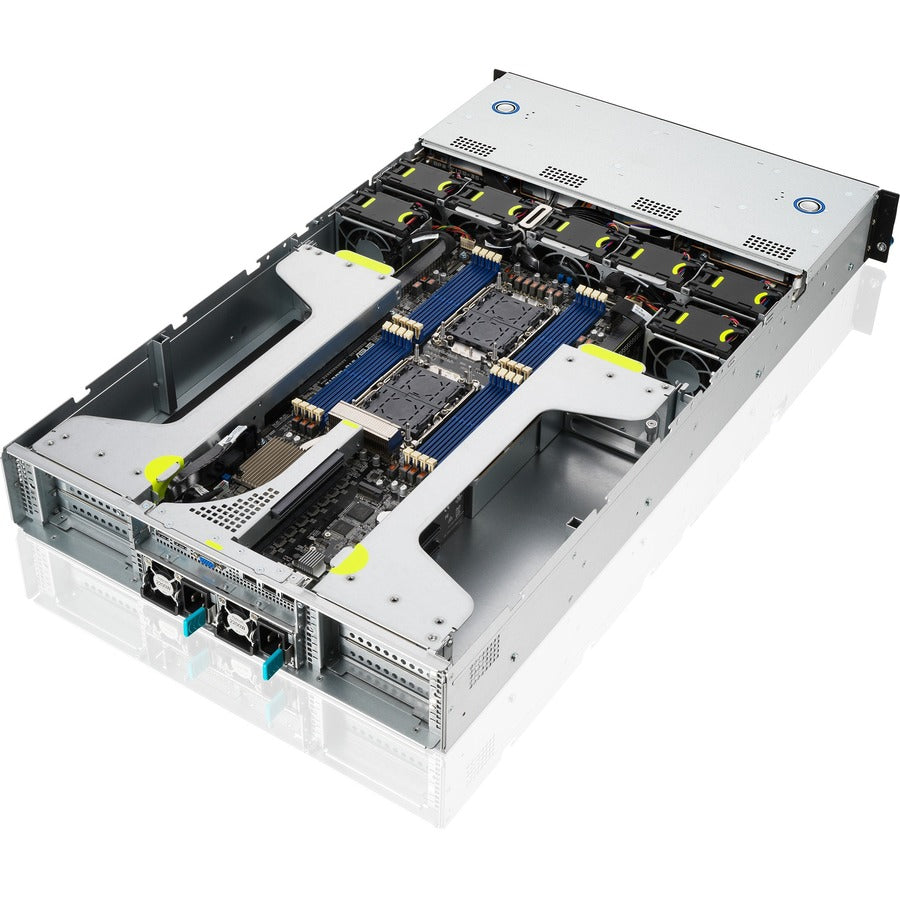

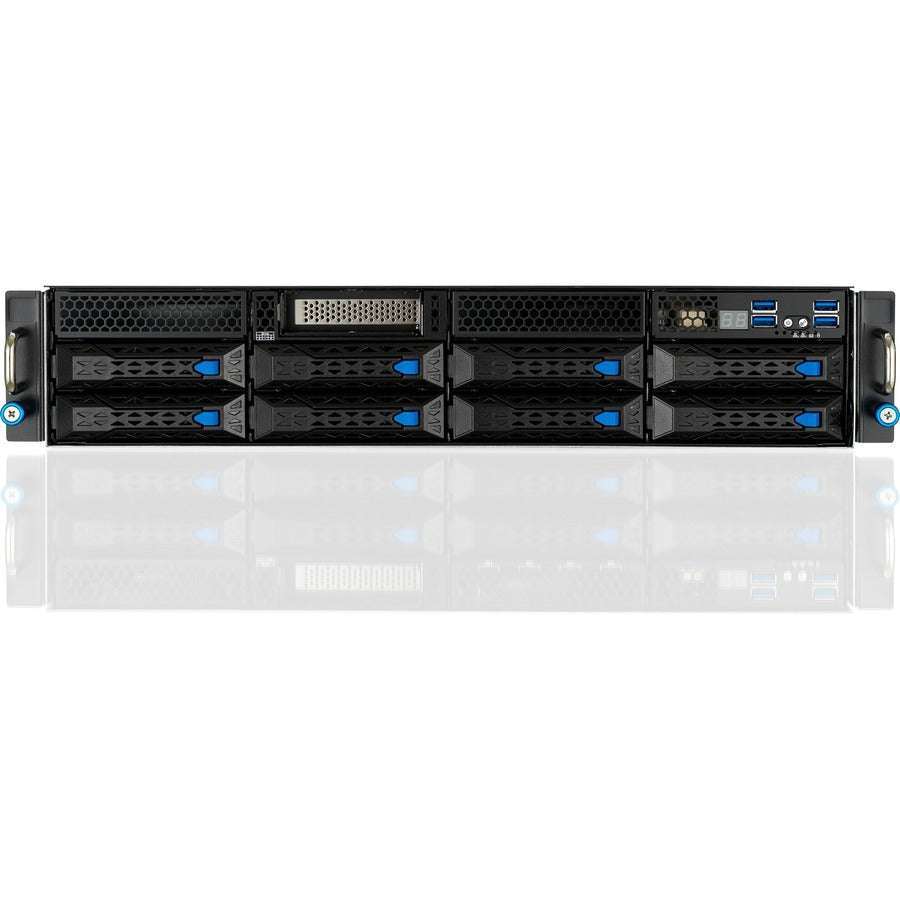

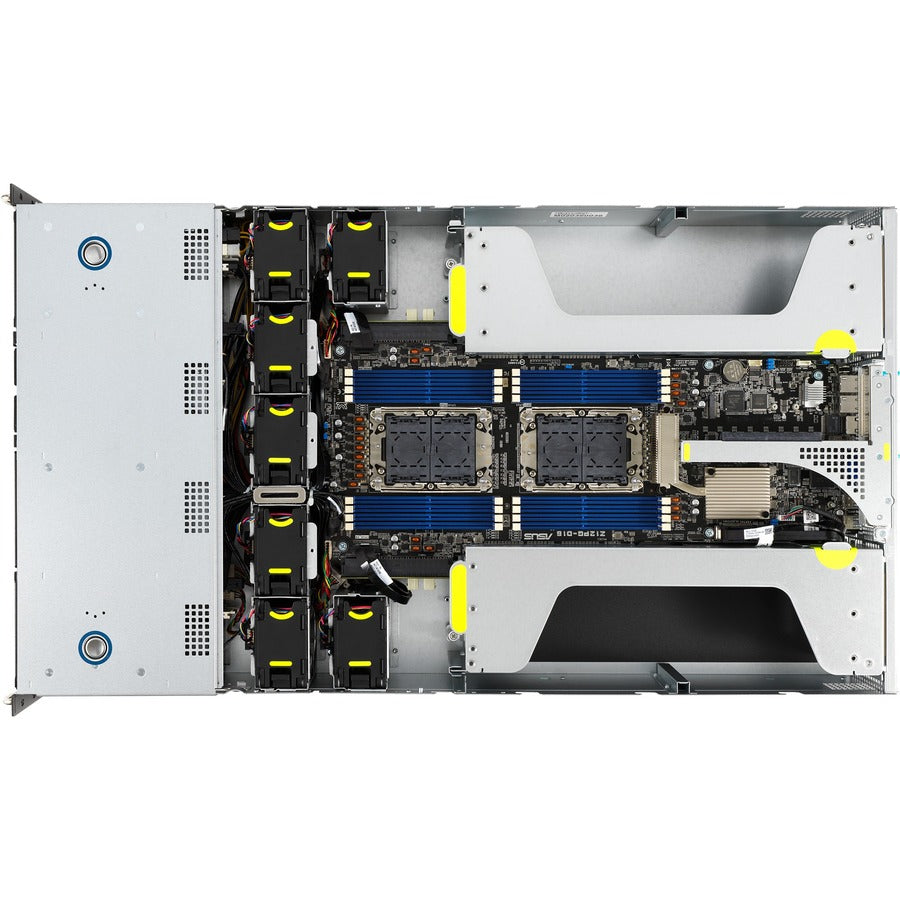

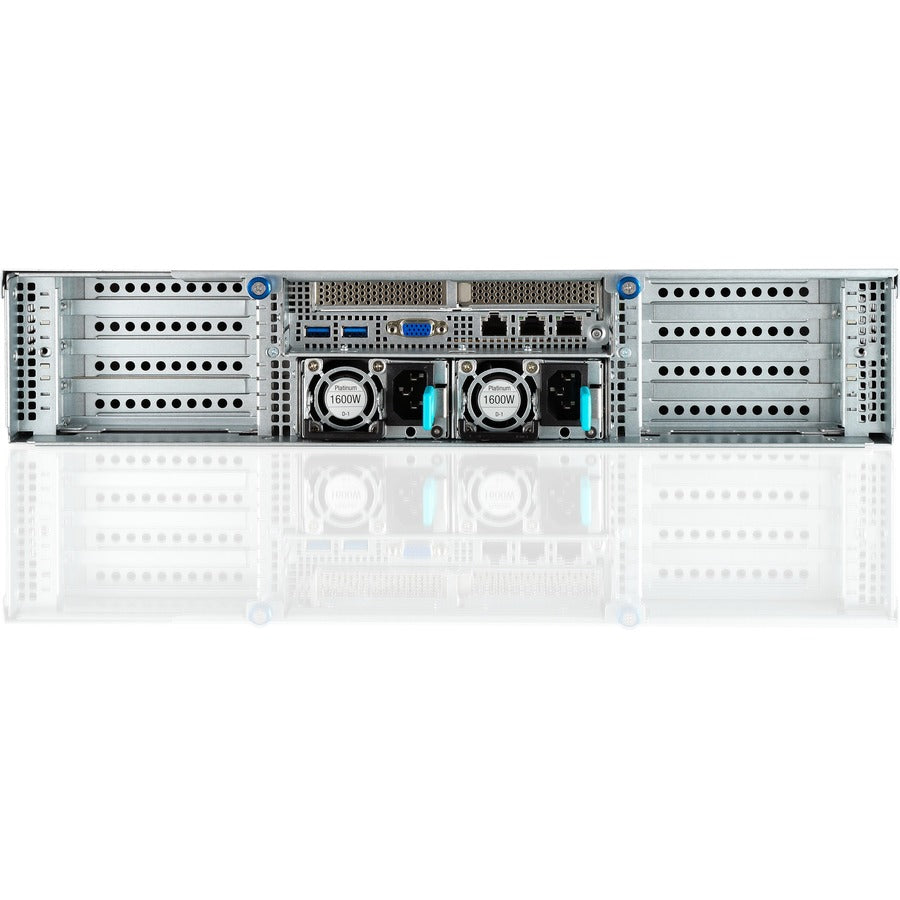

ESC4000-E10 | 2U GPU server powered by dual-socket 3rd Gen Intel Xeon Scalable processors that supports up to 16 DIMM, four dual-slot GPU, 4 M.2, eight NVMe (by SKU), total eleven PCIe 4.0 slots, one OCP 3.0 (by SKU) and ASUS ASMB10-iKVM.
Key Features
- Powered by dual-socket 3rd Gen Intel Scalable processors, with 16 DIMMs and support for a maximum TDP of up to 205 watts per socket
- GPU-optimized design allows four dual-slot GPUs for AI workloads
- Up to eight all-flash NVMe and eight SATA/SAS drives on front panel to enable extensive storage and high-throughput performance
- Up to eleven PCIe® 4.0 slots to enable higher bandwidth and improved data-transfer rates
- Flexible air- solution to achieve lower power-usage effectiveness (PUE) and optimized TCO for data centers
- Onboard ASUS ASMB10-iKVM for out-of-band management with ASPEED AST2600 controller
- Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
- High power efficiency with redundant 2200W or 1600W 80 Plus® Platinum power supplies
- Two hot-plug, hot-swap fans design for fully redundancy protection and thermal efficiency
3rd Gen Intel® Xeon® Scalable Processors
The latest 3rd Gen Intel® Xeon® Scalable Processors feature core counts from 8 to 40 cores and an array of frequency and power supports, and deliver up to 40% better performance compared to the previous generations. With built-in security features, this new platform delivers outstanding performance in security including encryption, authentication and data integrity across the breadth of standards that are prevalent in networking, enterprise and the cloud.
PCIe 4.0 Ready
PCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS ESC4000-E10 servers are PCIe 4.0 ready to support a diverse array of graphics, storage and networking - enabling flexible scalability for demanding or increasing workloads.
GPU and FPGA support
ESC4000-E10 features a powerful GPU architecture that supports up to four double-slot or eight single-slot GPUs* in a 2U chassis, including NVIDIA® A100 or Quadro®, plus features NVIDIA NVLink® Bridge to enable scaling of performance in order to meet the demands of AI and high-performance computing, and to securely run workloads in virtualization environments.
ESC4000-E10 is also a Xilinx Alveo-qualified server to provide optimized acceleration for workloads across cloud and on-premises data centers, and for hybrid cloud environments in financial computing, machine learning, computational storage, and data search and analytics.
- Perform computational tasks effectively accrediting the Xeon Bronze processor
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- Up to 10x faster than standard Ethernet connectivity and provides high-performance uplinks
- Featuring 6 USB ports to connect USB-compatible devices
- With Serial ATA interface get superb reliability and high-speed data transfer
