Description
Intel® B660 (LGA 1700) ATX motherboard with 8 power stages, PCIe 4.0 slots, three M.2 slots, Realtek 2.5Gb Ethernet, DisplayPort, HDMI®, D-Sub, rear USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C®, Aura Sync
- Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors
- Ultrafast connectivity: PCIe 4.0 slots, three M.2 slots, rear USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C®, Realtek 2.5Gb Ethernet and Thunderbolt™ 4 support
- Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B660 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS Prime series. The Prime B660 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Intelligent Control l All-Around Energy Efficiency
The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode - a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
Search Function
Quickly and easily find the option or setting you need.
ASUS User Profile
Port configuration settings between different BIOS versions or share them with friends.
COOLING
Prime B660 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

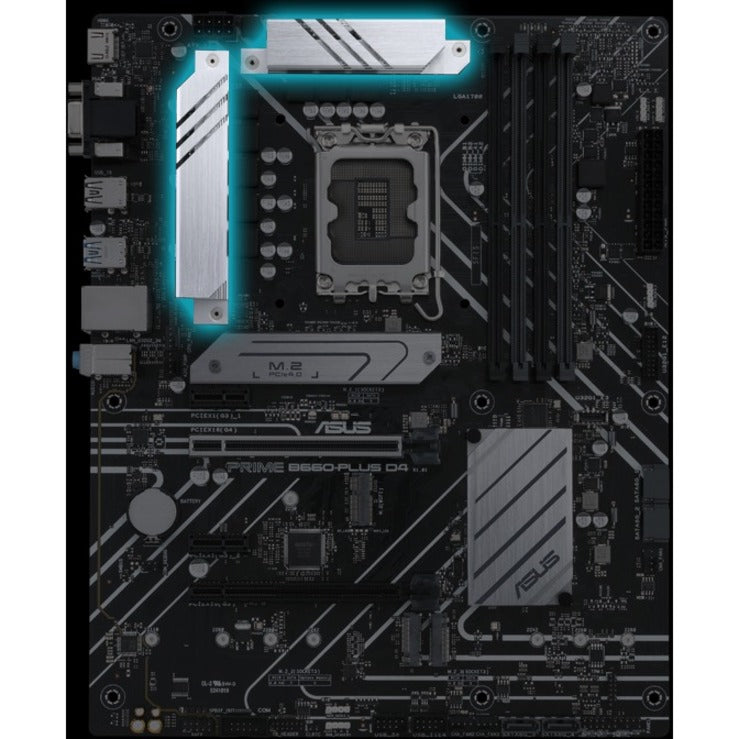

Heatsinks l M.2 Heatsink
M.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws.
Cooler by Design
Prime B660 series feature comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.

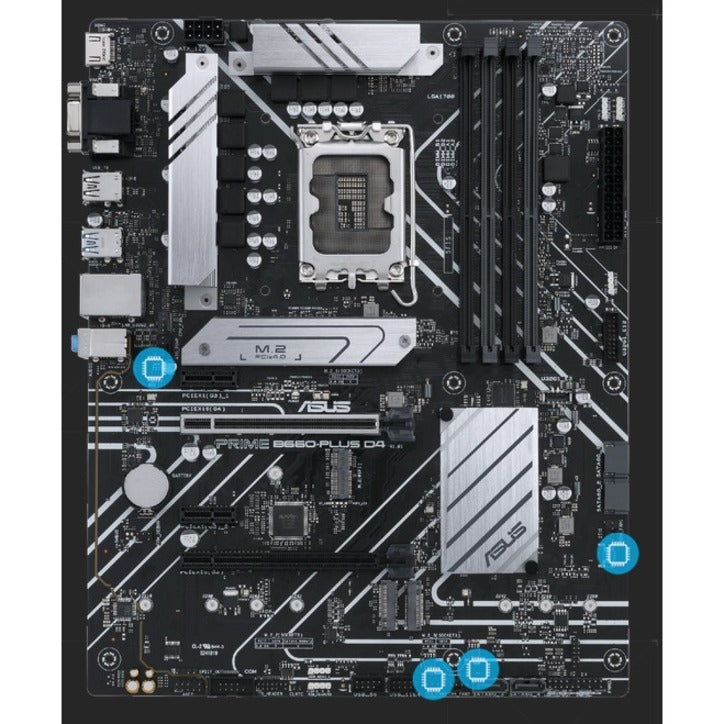

Multiple Temperature Sources
Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.
PERFORMANCE
Prime B660 series are built to handle the additional cores and increased bandwidth of 12th Generation Intel® processors. ASUS B660 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
- Experience responsive performance, power and adaptability with the compatible Intel Celeron processor
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- RAID supported levels provide data reliability and fault tolerance
- HDMI interface connects the top of the line PCs, Blu-ray players, and cutting edge Gaming Controllers
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX desktop motherboard
- 2 USB 2.0 ports offer the impressive data transfer speed of up to 60 Mb/sec
- Chipset Manufacturer : Intel
- Number of SATA Interfaces : 4
- Processor Supported : Pentium Gold,Celeron,Core i5,Core i9,Core i3,Core i7
- Memory Speed Supported : 3866 MHz,5066 MHz,5000 MHz,4800 MHz,4600 MHz,4400 MHz,4266 MHz,4000 MHz,3733 MHz,3600 MHz,3466 MHz,3400 MHz,3333 MHz,3200 MHz,3000 MHz,2933 MHz,2800 MHz,2666 MHz,2400 MHz,2133 MHz
- Number of M.2 Interfaces : 3
- Controller Type : Serial ATA/600
- Chipset Model : B660
- Number of USB 2.0 Ports : 2
- Maximum Memory Supported : 128 GB
- Intel Optane Memory Ready : Yes
- Total Number of USB Ports : 6
- Number of USB 3.2 Gen 1 Ports : 1
- RAID Supported : Yes
- Form Factor : ATX
- Memory Technology : DDR4 SDRAM
- Onboard Video : CPU Dependent Video
- Manufacturer Website Address : http://www.asus.com
- Audio Channels : 7.1
- Total Number of Onboard USB Ports : 7
- Number of Onboard USB 3.2 Ports : 3
- DisplayPort : Yes
- Processor Socket : Socket LGA-1700
- Manufacturer : ASUS Computer International
- Product Model : B660-PLUS D4
- RAID Levels : 0,1,5,10
- 2.5Gigabit Ethernet : Yes
- Environmental Certification : RoHS
- Environmentally Friendly : Yes
- Number of Memory Slots : 4
- Processor Generation Supported : 12th Gen
- Number of PCI Express x16 Slots : 2
- Memory Form Factor : DIMM,UDIMM
- Total Number of PCI Express Slots : 4
- Number of PCI Express x1 Slots : 2
- Number of USB 3.2 Gen 2 Type-A Ports : 2
- VGA : Yes
- Product Type : Desktop Motherboard
- Total Processor Supported : 1
- Number of Total Expansion Slots : 4
- Number of USB 3.2 Ports : 1
- HDMI : Yes
- Intel RST : Yes
- Number of Network (RJ-45) Ports : 1
- Product Line : PRIME
- Number of Onboard USB 2.0 Ports : 4
