Description

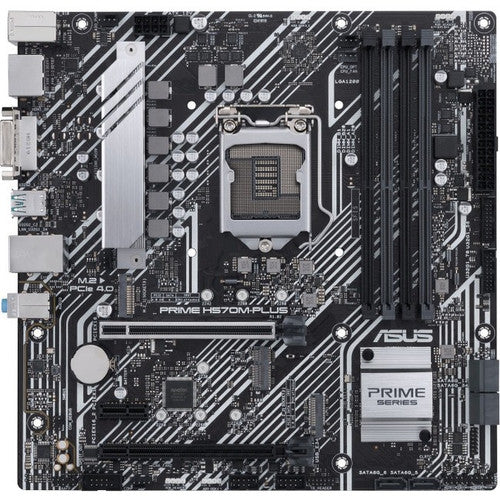

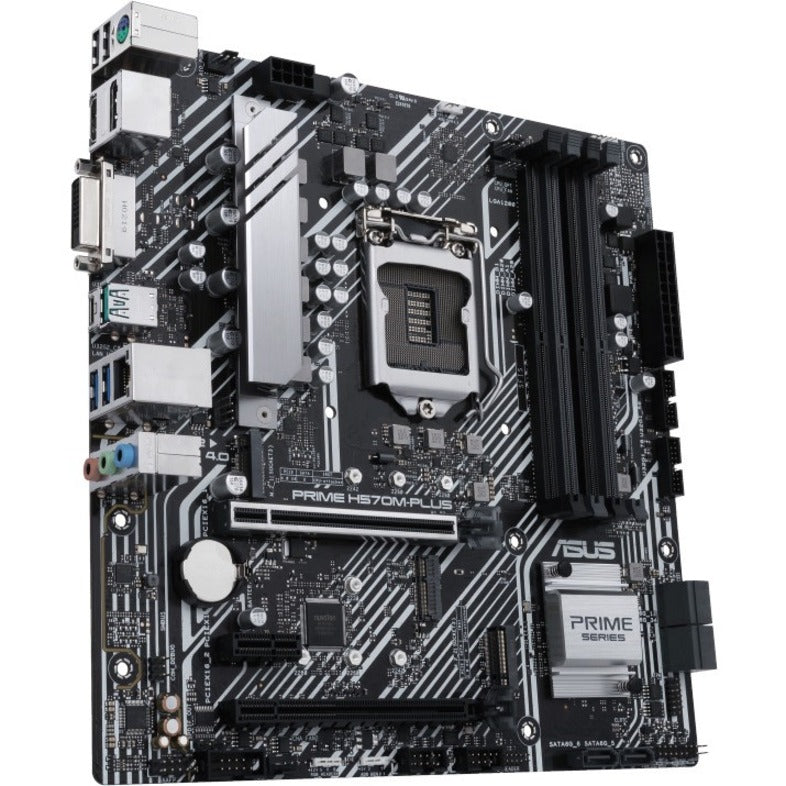

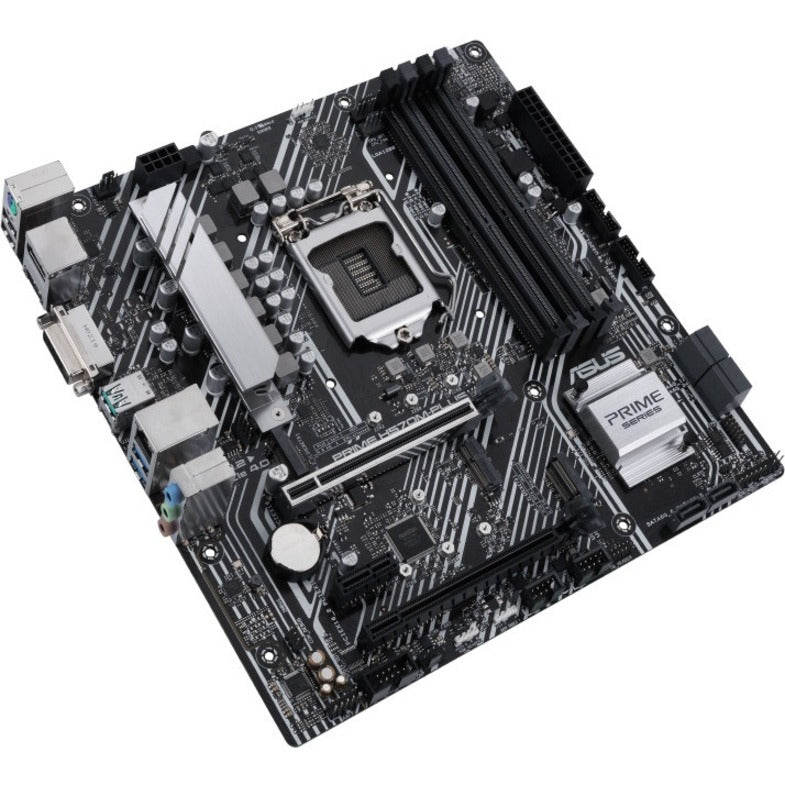

Intel® H570 (LGA 1200) micro ATX motherboard with PCIe® 4.0, 8 power stages, DisplayPort™, HDMI®, DVI, SATA 6 Gbps, USB 3.2 Gen 2 Type-C®, Intel® 1 Gb Ethernet, Thunderbolt™ 4 header support, and Aura Sync RGB lighting
- Intel® LGA 1200 socket: Ready for 11th and 10th gen Intel® Core™ processors
- Enhanced power solution: 8 power stages, alloy chokes and durable capacitors for stable power delivery
- Comprehensive cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
- Ultrafast connectivity: PCIe® 4.0, Dual M.2, Intel® 1 Gb Ethernet, USB 3.2 Gen 2 Type-C® and Thunderbolt™ 4 header support
- Experience responsive performance, power and adaptability with the compatible Intel Celeron processor
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation

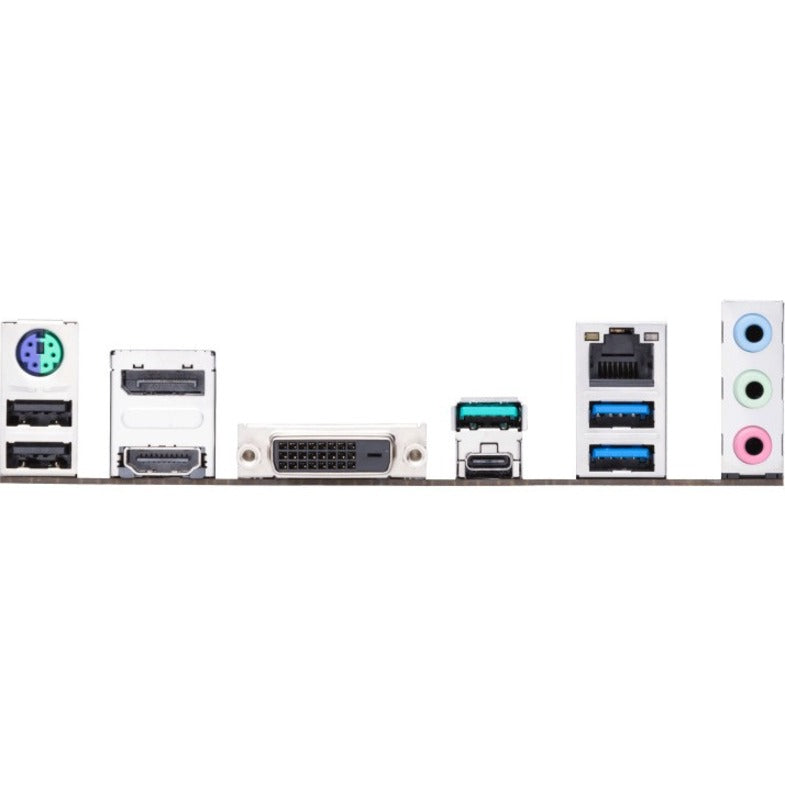

- HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Micro ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
- With 2 USB 2.0 ports, connect devices for a quick data movement
- Memory Technology : DDR4 SDRAM
- Number of USB 3.2 Gen 2 Type-A Ports : 1
- DisplayPort : Yes
- Manufacturer Website Address : http://www.asus.com
- Number of Onboard USB 2.0 Ports : 4
- Country of Origin : Switzerland
- Chipset Manufacturer : Intel
- Maximum Memory Supported : 128 GB
- Controller Type : Serial ATA/600
- DVI : Yes
- Memory Speed Supported : 2133 MHz
- Processor Supported : Core i3
- Number of SATA Interfaces : 6

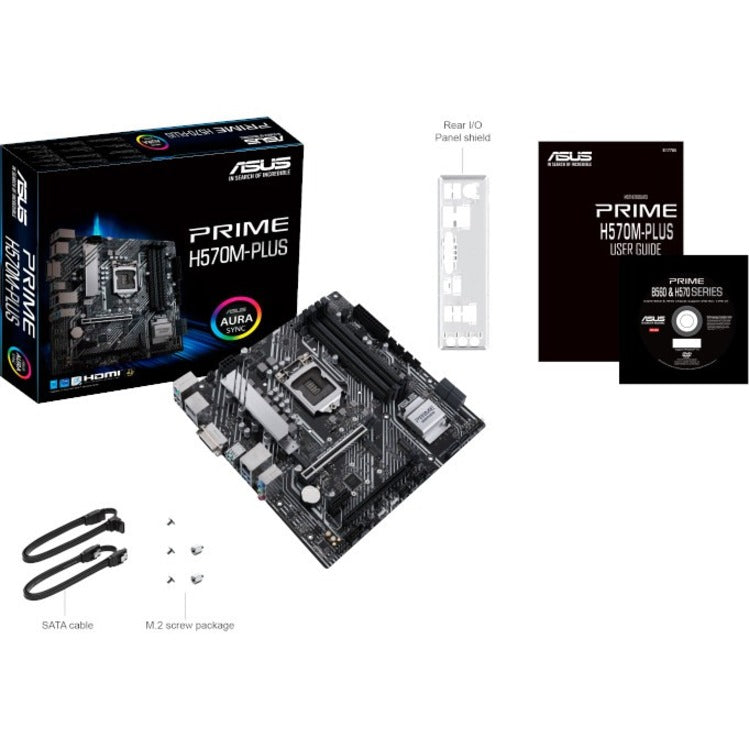

- Package Contents :
- Prime H570M-PLUS/CSM Desktop Motherboard
- 2 x SATA 6Gb/s Cables
- 1 x M.2 Rubber Package
- 1 x I/O Shield
- 1 x M.2 SSD Screw Package
- 1 x M.2 Key E Screw Package
- 1 x Support DVD
- 1 x User Manual
- Product Line : Prime
- Intel Optane Memory Ready : Yes
- Environmentally Friendly : Yes
- Number of USB 3.2 Gen 1 Ports : 2
- Number of Total Expansion Slots : 3
- Environmental Certification : RoHS
- Number of Onboard USB 3.2 Ports : 4
- Form Factor : Micro ATX
- Number of USB 3.2 Ports : 1
- Number of PCI Express x1 Slots : 1
- Manufacturer : ASUS Computer International
- Total Processor Supported : 1
- Product Type : Desktop Motherboard
- Gigabit Ethernet : Yes
- Limited Warranty : 3 Year
- Product Model : H570M-PLUS/CSM
- Number of Network (RJ-45) Ports : 1
- Number of Memory Slots : 4
- Memory Form Factor : UDIMM
- HDMI : Yes
- Total Number of PCI Express Slots : 3
- Processor Socket : Socket LGA-1200
- Number of M.2 Interfaces : 2
- Onboard Video : CPU Dependent Video
- Number of USB 2.0 Ports : 2
- Number of PCI Express x16 Slots : 2
- Audio Channels : 7.1
- Total Number of USB Ports : 6
- Total Number of Onboard USB Ports : 8
