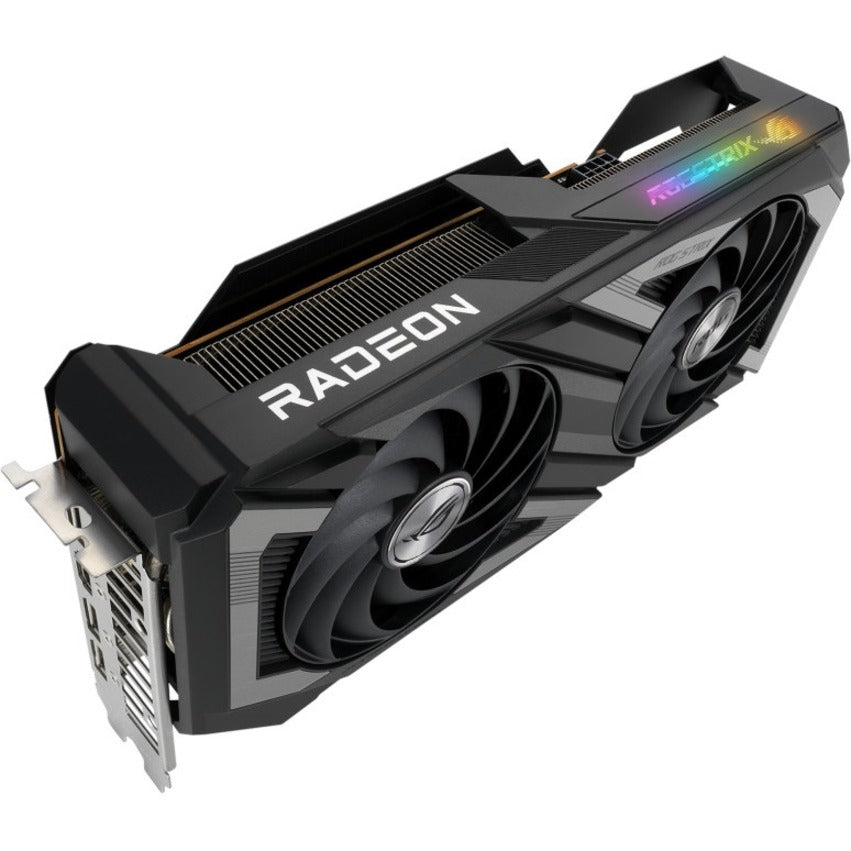

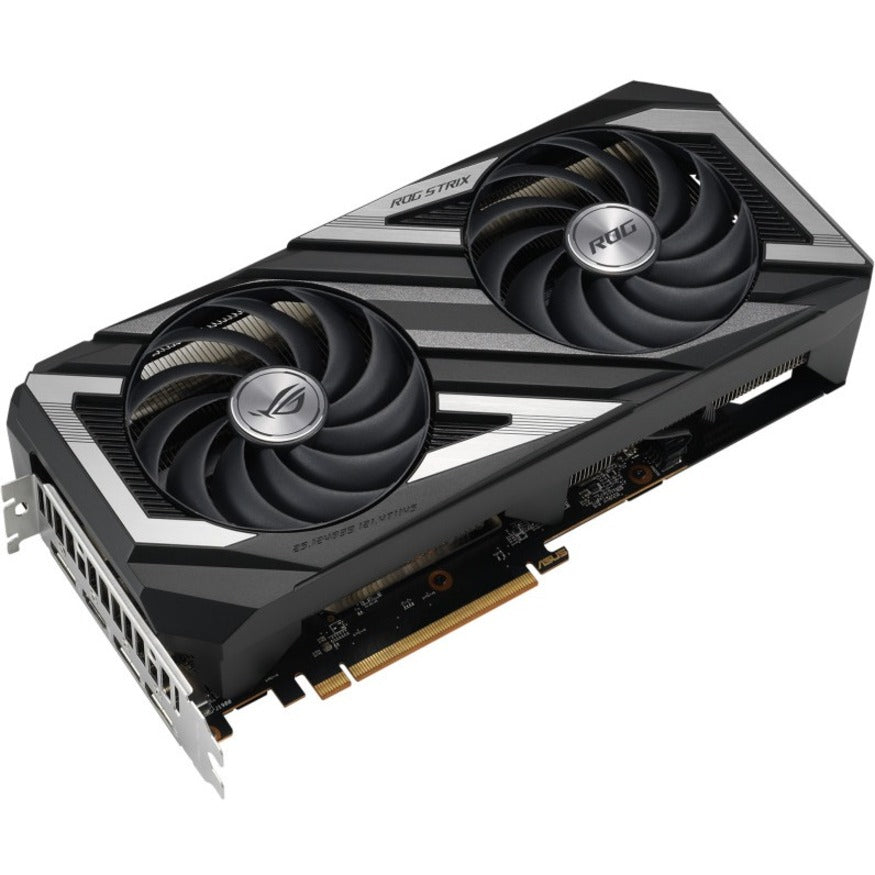

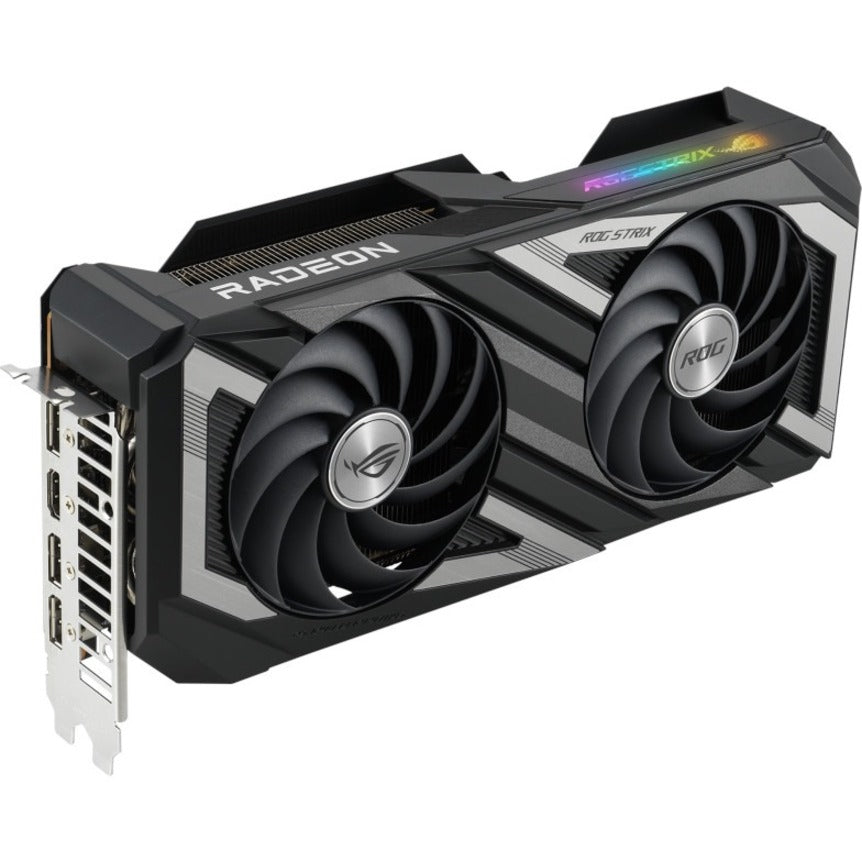

ROG Strix Radeon™ RX 6650 XT OC Edition 8GB GDDR6
ROG Strix Radeon™ RX 6650 XT OC Edition 8GB GDDR6 is a cooling and power-performance juggernaut.
- OC mode: Up to 2694 MHz (Boost Clock)/up to 2543 MHz (Game Clock)
- Gaming mode: Up to 2694 MHz (Boost Clock)/up to 2523 MHz (Game Clock)
- Axial-tech Fan Design features a smaller fan hub that facilitates longer blades and a half-width barrier ring to increase airflow through the cooling array.
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
- Super Alloy Power II includes premium alloy chokes, solid polymer capacitors, and an array of high-current power stages.
- Dual BIOS switch lets you toggle between Quiet and Performance BIOS profiles sans software.
- Auto-Extreme Technology uses automation to enhance reliability.

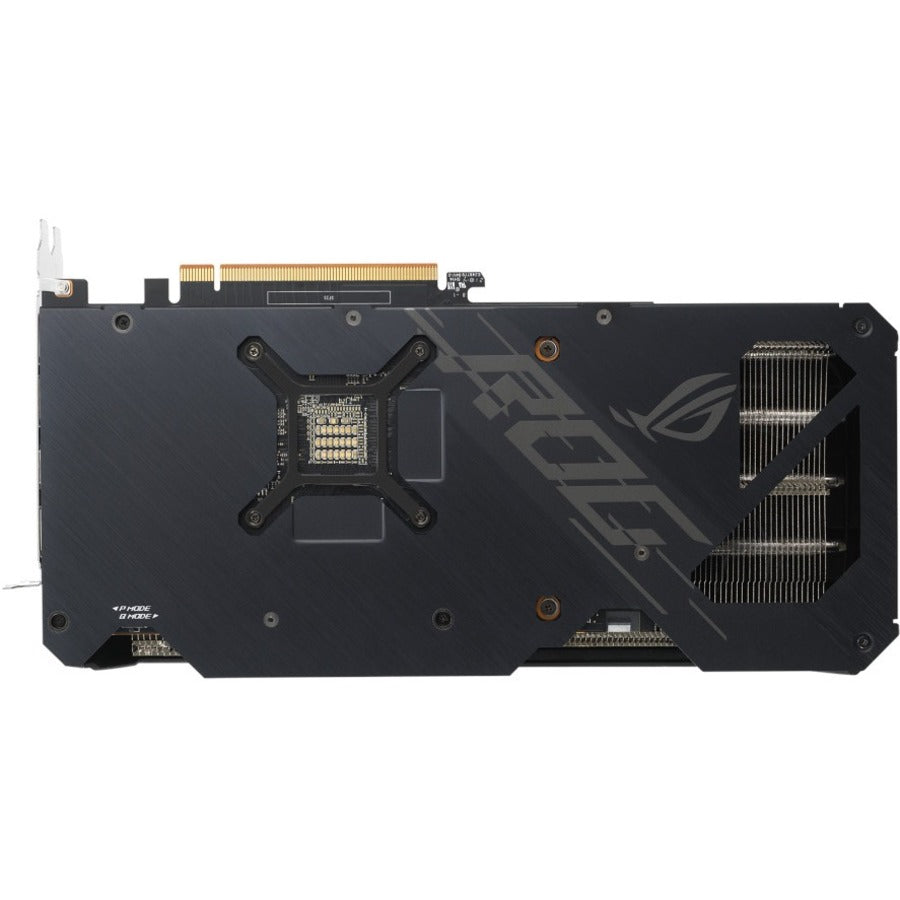

- A vented backplate prevents hot air from recirculating through the cooling array.
TAKE FLIGHT
The ROG Strix Radeon™ RX 6650 XT amps Full HD frame rates to meet the demands of the latest high-speed displays. Dual Axial-tech fans efficiently blast air through a large heatsink to keep the GPU chilled, and top-shelf capacitors, chokes, and MOSFETs deliver the perfect amount of clean power. A host of creature comforts, including a Dual BIOS switch, 0dB mode, and metal backplate up the ante to make this beast the ideal choice for your next gaming rig.

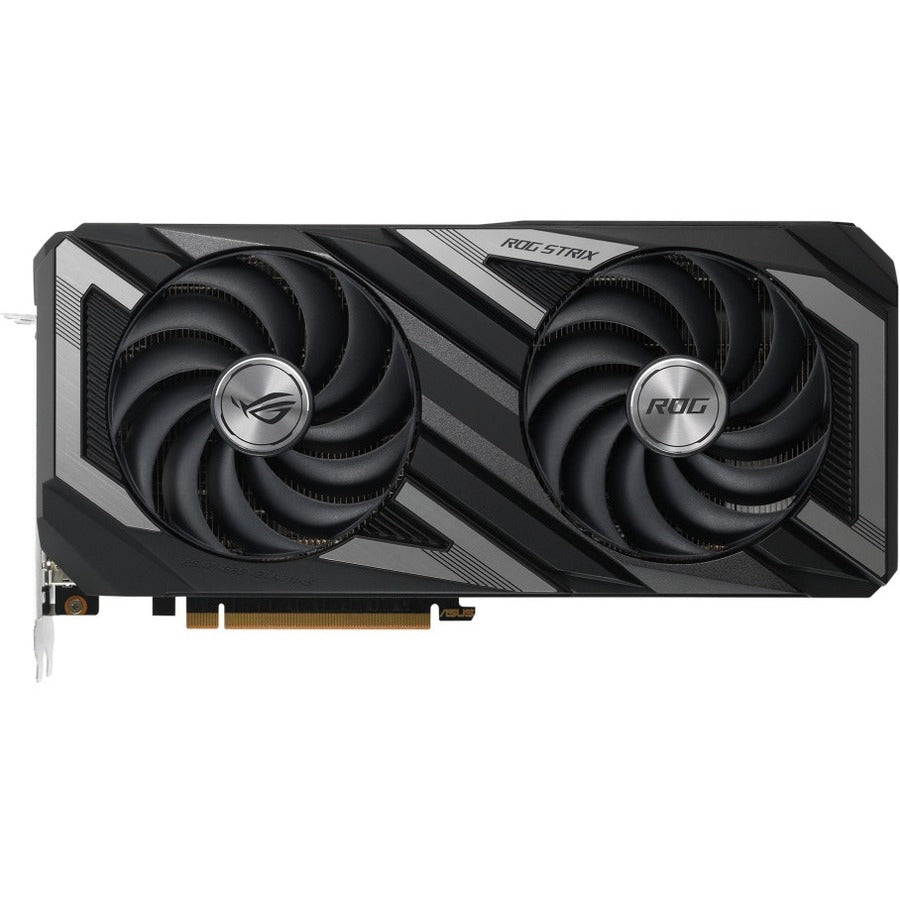

FANS | DYNAMIC DUO

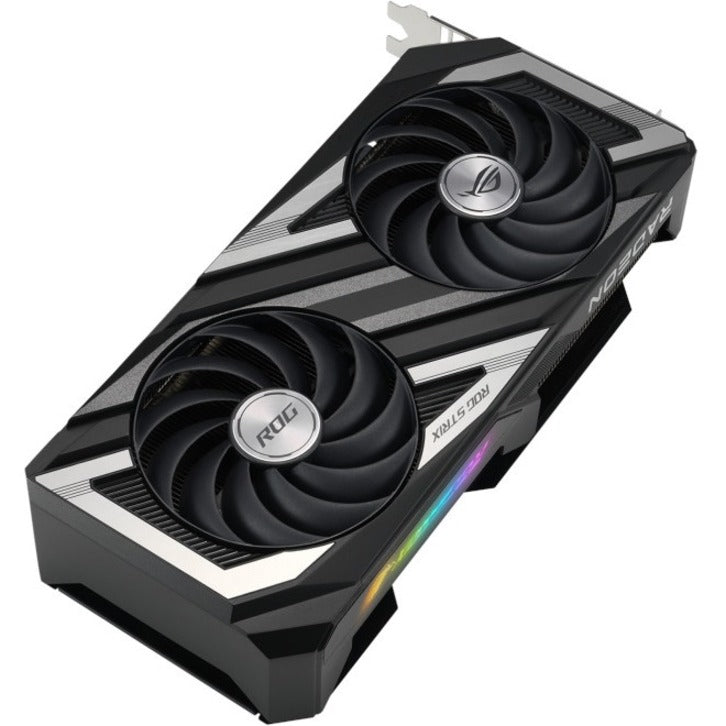

Both Axial-tech fans feature half-width barrier rings to increase airflow through the cooling array.
FANS | QUIET CUNNING
Fans start spinning when the GPU temperature hits 60 Celsius and shut off when temps drop below 52 Celsius, helping to reduce noise when the system is idling or under light load.

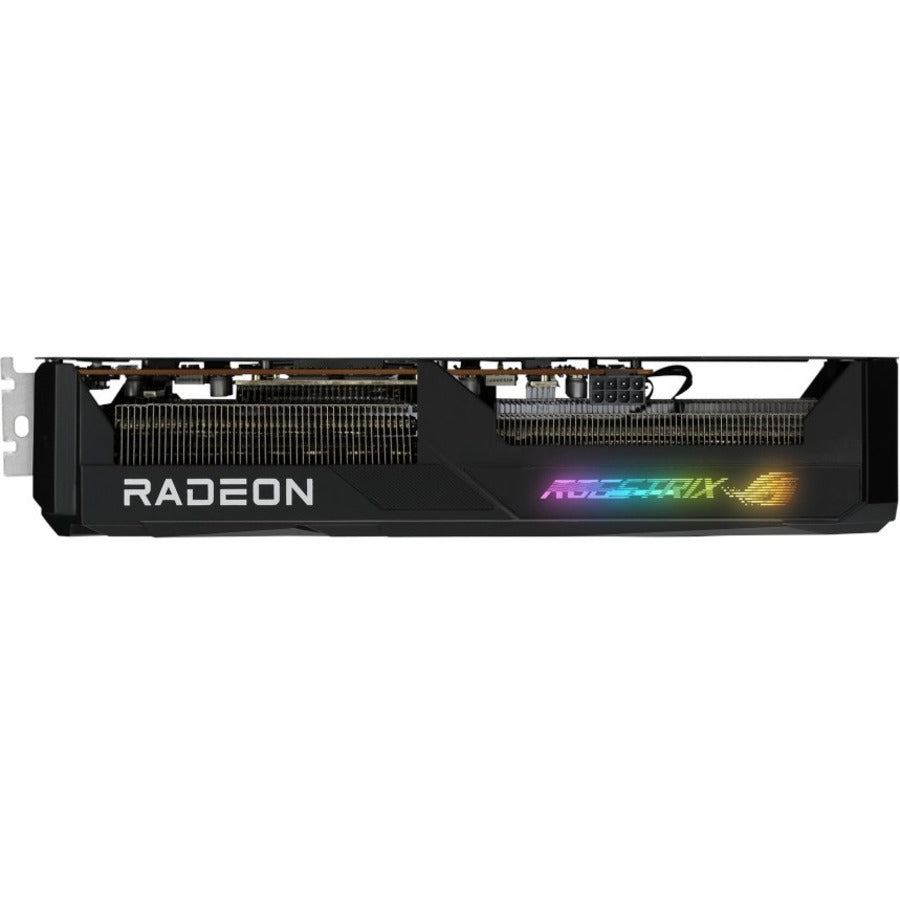

HEATSINK | 2.9-SLOT DESIGN

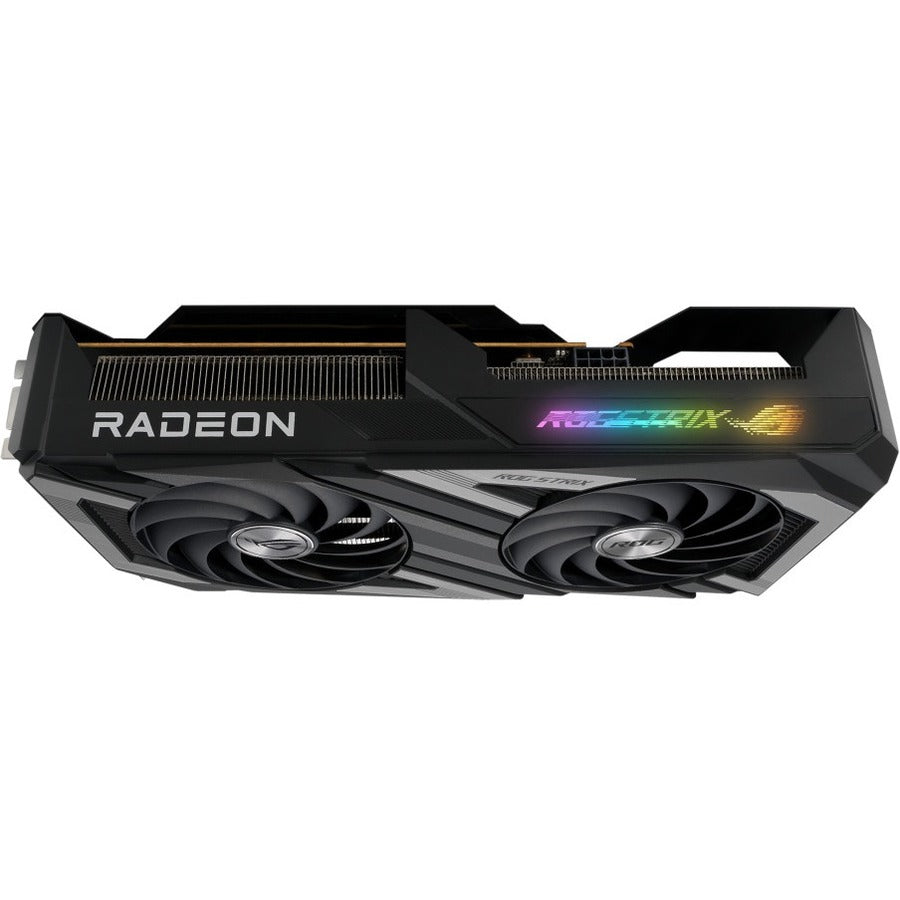

The heat spreader draws heat up into heatpipes that carry it through a fin stack that fills most of the card's large, 2.9-slot footprint.
PCB | PREMIUM COMPONENTS
Premium alloy chokes, solid polymer capacitors, and an array of high-current power stages handle power delivery with ease. The Super Alloy Power II parts are soldered to the PCB using our advanced Auto-Extreme automated manufacturing process. Precise joints and the elimination of human error ensures each graphics card meets our rigorous specifications.
DESIGN | FIERCE SHROUD
A striking shroud with metal accents mirrors the design aesthetic of ROG and ROG Strix motherboards. Textured accents in a greyscale colorway blend seamlessly into subtle builds or make a striking impact while the card is vertically mounted and lit by chassis LEDs.
- CrossFire™ multi-GPU technology lets you integrate 2 or more discrete GPUs or even up to 4 and delivers supreme performance
- AMD Radeon™ RX 6650 XT delivers supreme video graphics with stunning visual
- Loaded with a power-efficient fan to dissipate heat and as a result, you get enduring usability
- Chipset Manufacturer : AMD
- Cooler Type : Fan Cooler
- Multi-GPU Technology : CrossFire
- Number of HDMI Outputs : 1
- Chipset Model : RX 6650 XT
- Maximum Digital Display Resolution : 7680 x 4320
- Platform Supported : PC
- Number of Monitors Supported : 4
- Power Supply Wattage : 650 W
- Form Factor : Plug-in Card
- Memory Technology : GDDR6
- Package Contents :
- Strix Radeon RX 6650 XT OC Edition 8GB GDDR6 Graphic Card
- 1 x ROG Velcro Hook & Loop
- 1 x Collection Card
- 1 x Speedsetup Manual
- Manufacturer Website Address : http://www.asus.com
- DisplayPort : Yes
- Manufacturer : ASUS Computer International
- API Supported : OpenGL 4.6,DirectX 12 Ultimate,Vulkan
- Product Model : ROG-STRIX-RX6650XT-O8G-GAMING
- Power Connector : 1x 8-pin
- Slot Space Required : Triple
- Game Clock : 2.54 GHz
- Standard Memory : 8 GB
- Environmental Certification : RoHS
- Environmentally Friendly : Yes
- Chipset Series : RX 6000

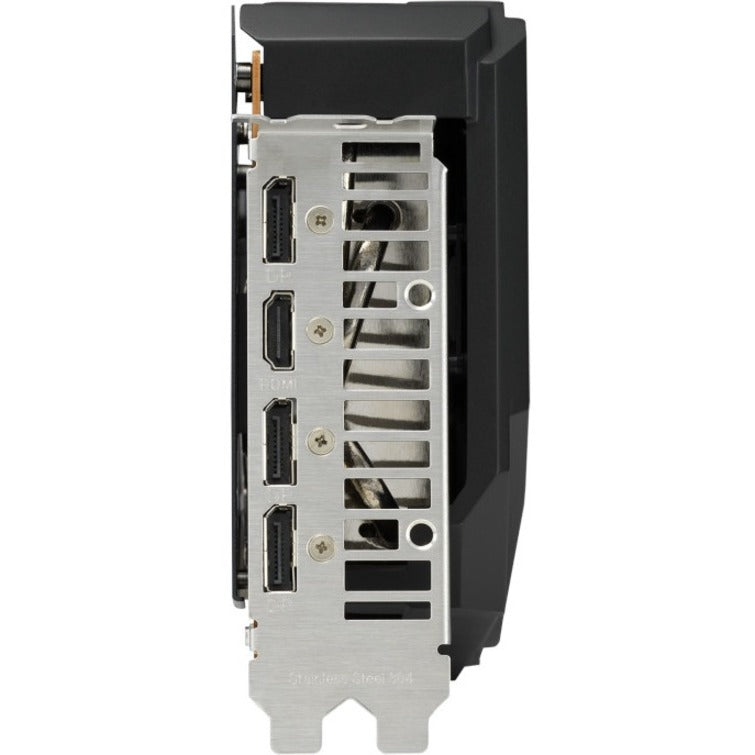

- Number of DisplayPort Outputs : 3
- GPU Boost Clock : 2.69 GHz
- Limited Warranty : 36 Month
- Chipset Line : Radeon
- Host Interface : PCI Express 4.0
- Product Type : Graphic Card
- Length : 11.06" (281 mm)
- Bus Width : 128 bit
- HDMI : Yes
- Product Line : Strix
