Description
Intel® Z690 ATX motherboard with 20+1 power stages, DDR5, Five M.2, USB 3.2 Gen 2x2 front-panel connector, Dual Thunderbolt™ 4, PCIe® 5.0, Onboard WiFi 6E and Aura Sync RGB lighting
- Socket LGA 1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors
- Intelligent Control: ASUS-exclusive tools including AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise-Cancelation for easy configuration
- Robust Power Solution: 20+1 teamed power stages rated for 90 A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
- Optimized Thermal Design: Large VRM heatsinks plus integrated aluminum I/O cover, high-conductivity thermal pad, triple M.2 heatsinks and two M.2 backplates, plus ROG Water-Cooling Zone and ROG Hyper M.2 card with heatsinks.
- High-Performance Networking: Onboard WiFi 6E, Intel® 2.5 Gb Ethernet, and ASUS LANGaurd.
- Fastest Gaming Connectivity: PCIe® 5.0, dual Gen 4 M.2 onboard, ROG Hyper M.2 card with Gen 5 M.2 support, USB 3.2 Gen 2x2 front-panel connector, dual Thunderbolt™ 4 (USB Type-C® ports).
- Industry-Leading Audio: ROG SupremeFX ALC4082 with ESS® ES9018Q2C DAC for pinpoint positioning and dynamics
- Unmatched Personalization: I/O cover with Polymo Lighting, ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers
- DIY-Friendly Design: Pre-mounted I/O shield, PCIe Slot Q-Release, BIOS FlashBack™, Q-Code, FlexKey, Q-Connector, M.2 Q-Latch, SafeSlot, ROG Hyper M.2 card and ROG Graphics Card Holder
- Renowned Software: Bundled 1year AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86

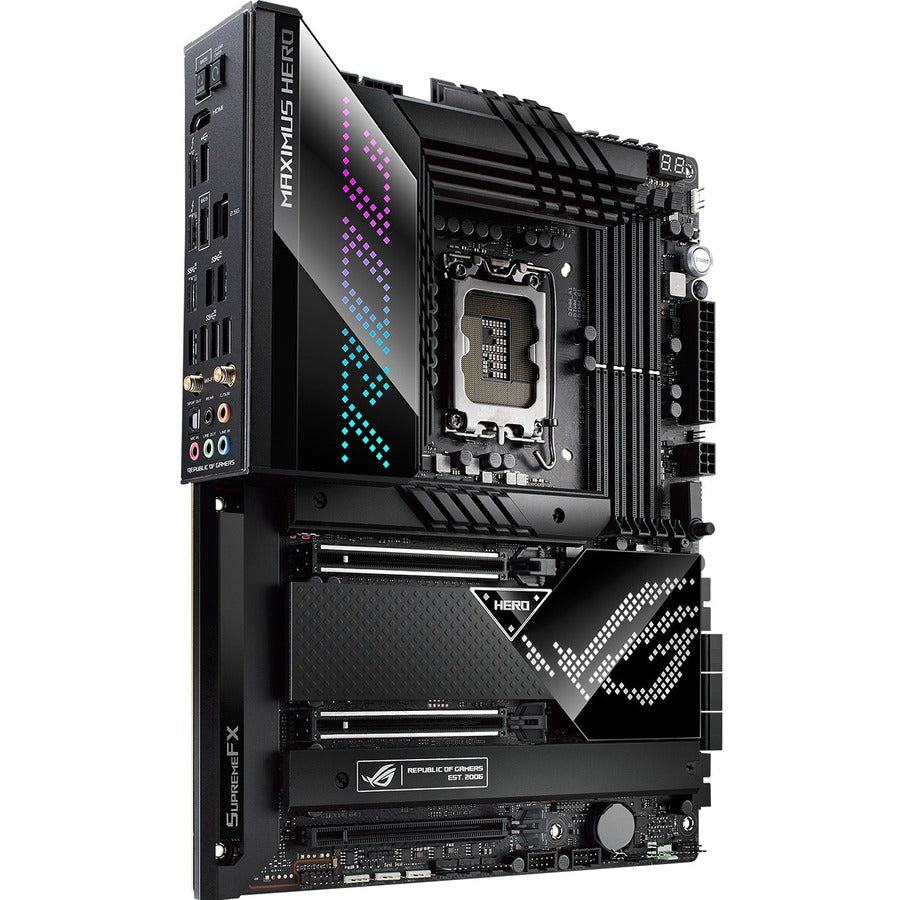

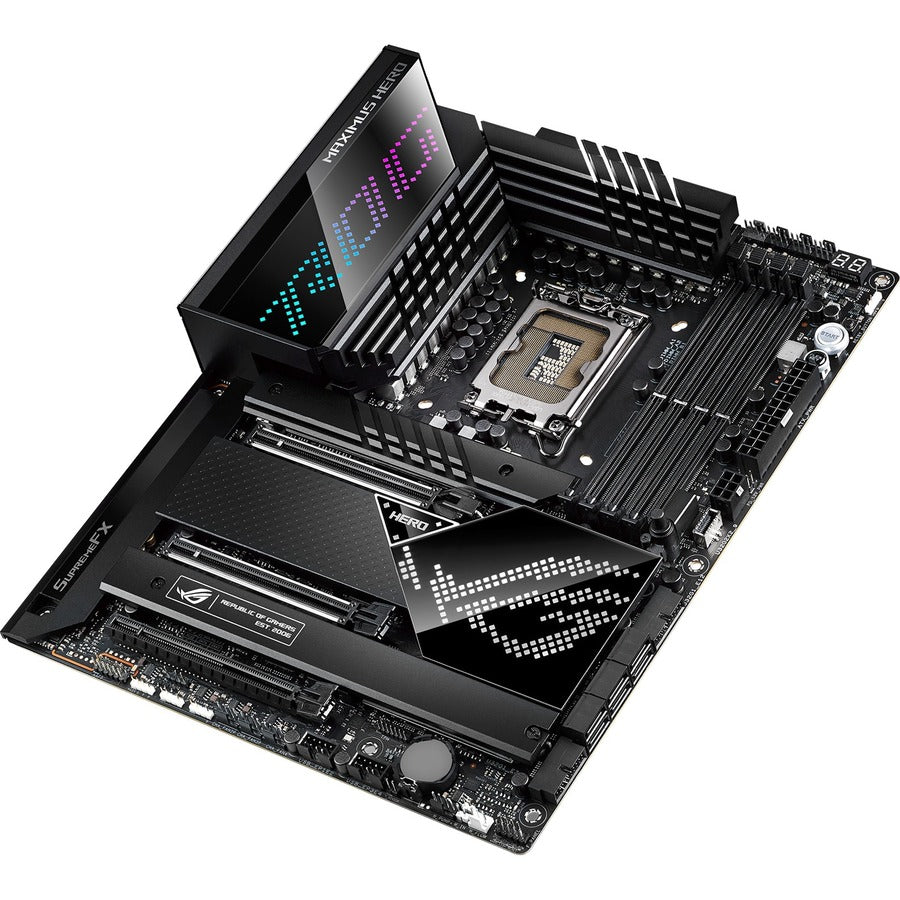

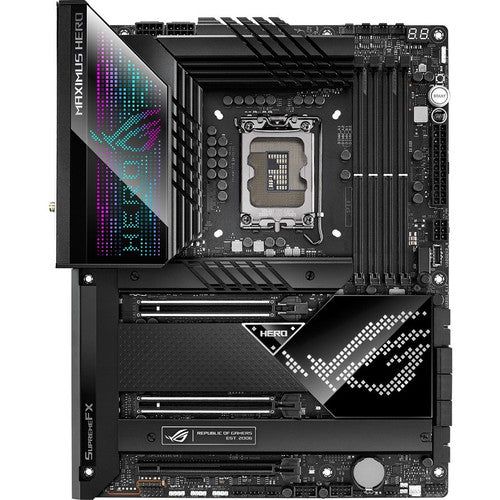

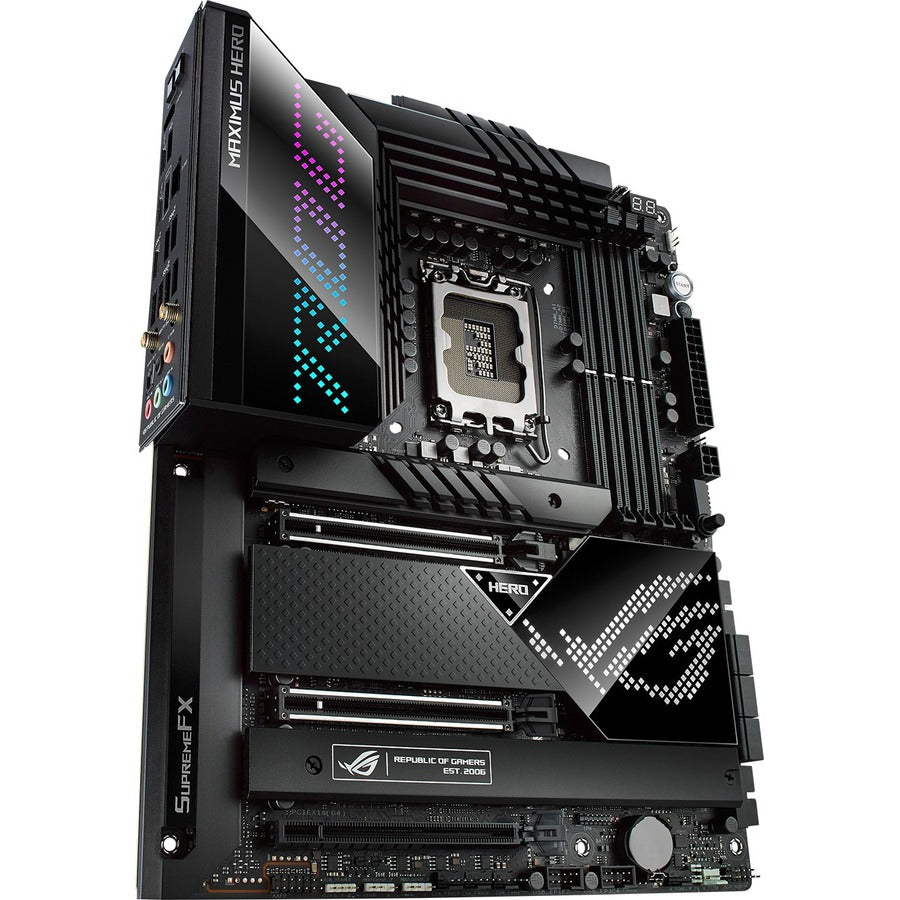

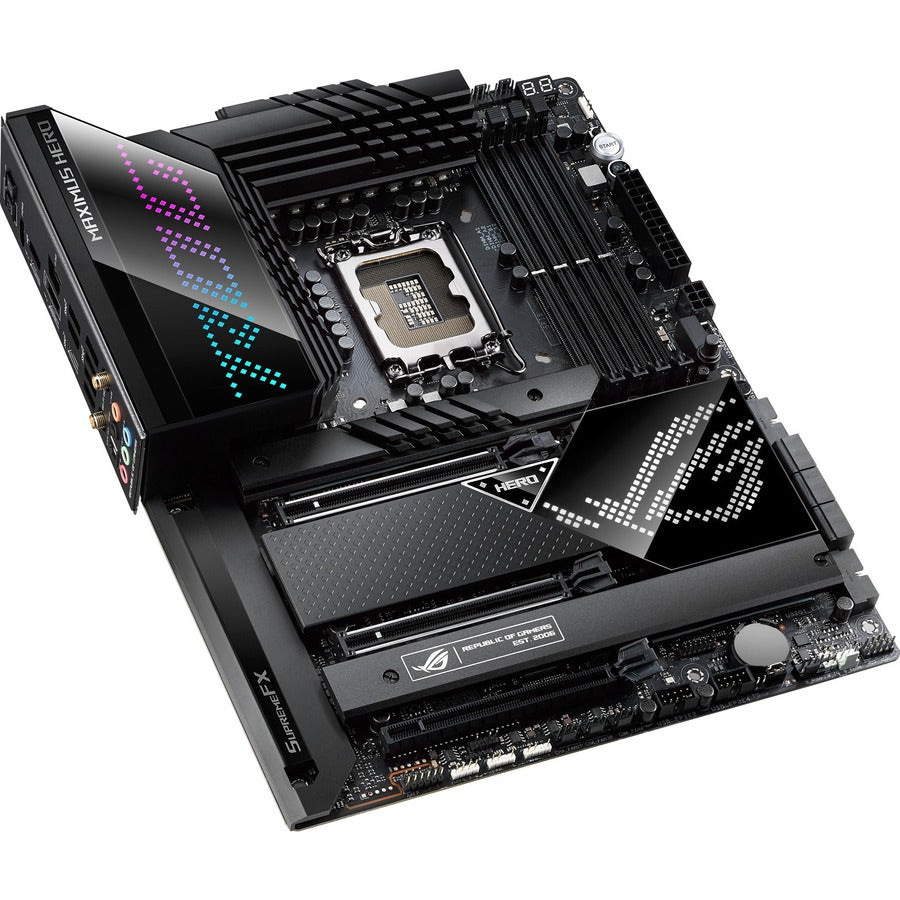

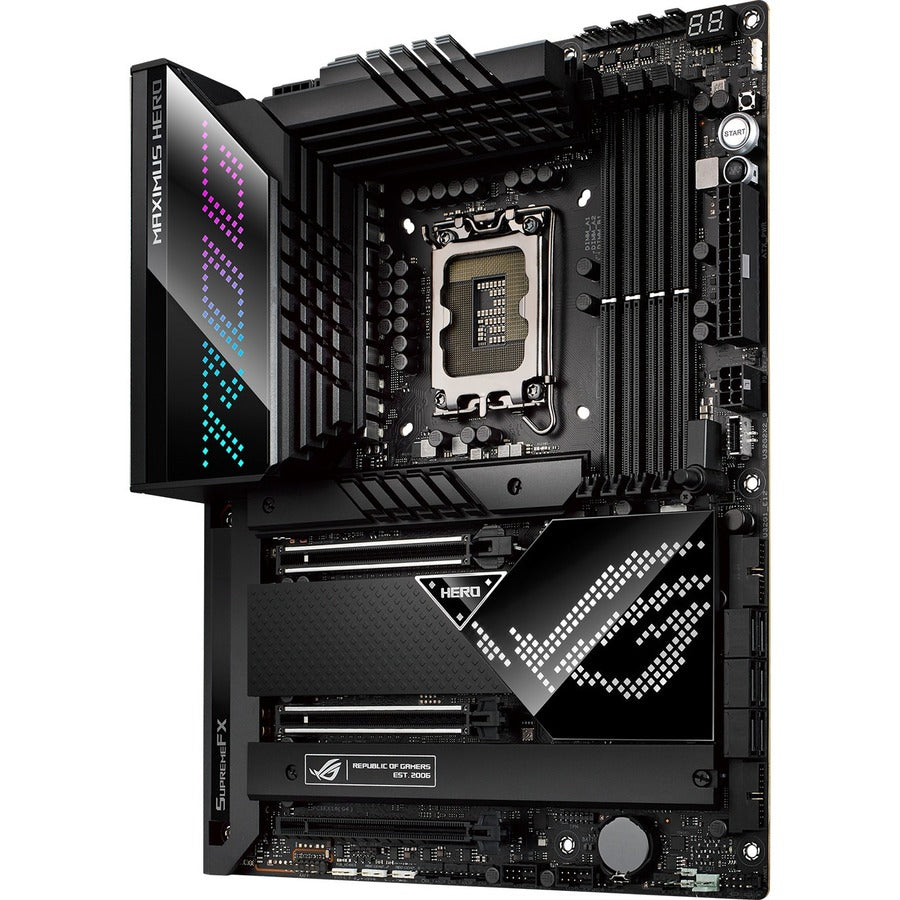

ROG MAXIMUS Z690 HERO
The ROG Maximus Z690 Hero is a quintessential strand of the Republic of Gamers DNA, replete with high-octane components to satisfy users who seek an introduction to the enthusiast-grade Maximus line. Its arsenal of cooling, power delivery and connectivity stands ready to handle whatever the latest 12th Gen Intel® Core™ processors throw at it. And with its new animated Polymo lighting display on the I/O cover that dazzles with vibrant RGB logos and patterns, the ROG Maximus Z690 Hero has the looks to match its leverage.
INTELLIGENT MOTHERBOARD
Intelligent software solutions help ensure that your system performs at its best. The latest ASUS AI-powered enhancements span four pillars of performance, including overclocking, cooling, networking and onboard audio, making advanced tweaks and optimization accessible to new recruits and savvy PC DIY veterans alike.
- Experience responsive performance, power and adaptability with the compatible Intel Celeron processor
- DDR5 SDRAM slot for convenient installation of memory
- RAID supported levels provide data reliability and fault tolerance
- Enjoy the freedom of Wi-Fi and connect devices faster
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
- With 2 USB 2.0 ports, connect devices for a quick data movement
- Chipset Manufacturer : Intel
- Wireless LAN : Yes
- Number of SATA Interfaces : 6
- Bluetooth : Yes
- Processor Supported : Pentium Gold,Celeron,Core i5,Core i7,Core i9
- Memory Speed Supported : 6400 MHz,6200 MHz,6000 MHz,5800 MHz,5600 MHz,5400 MHz,5200 MHz,5000 MHz,4800 MHz
- Number of M.2 Interfaces : 3
- Controller Type : Serial ATA/600
- Chipset Model : Z690
- Number of Thunderbolt 4 Ports : 2
- Number of USB 2.0 Ports : 2
- Maximum Memory Supported : 128 GB
- Intel Optane Memory Ready : Yes
- Total Number of USB Ports : 9
- S/PDIF : Yes
- RAID Supported : Yes
- Form Factor : ATX
- Memory Technology : DDR5 SDRAM
- Onboard Video : CPU Dependent Video
- Package Contents :
- Maximus Z690 Hero Desktop Motherboard
- 1 x ARGB RGB Extension Cable
- 1 x RGB Extension Cable
- 4 x SATA 6Gb/s Cables
- 1 x ROG Hyper M.2 Card with Heatsink
- 2 x M.2 Screw Packages for ROG Hyper M.2 Card

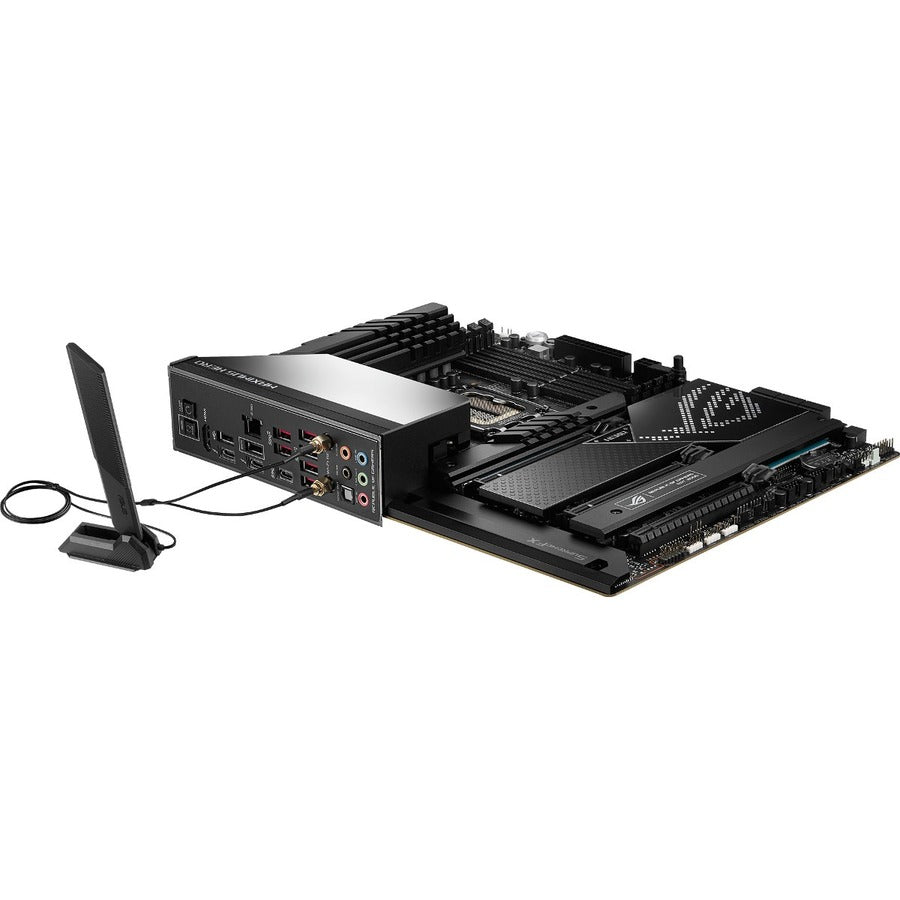

- 1 x ASUS Wi-Fi Moving Antennas
- 1 x M.2 Q-Latch Package
- 2 x M.2 Q-Latch Packages for M.2 Backplate
- 1 x M.2 Rubber Package
- 1 x Q-Connector
- 1 x ROG Graphics Card Holder
- 1 x ROG Stickers
- 1 x ROG Key Chain
- 1 x ROG Thank You Card
- 1 x USB Drive with Utilities and Drivers
- 1 x User Guide
- Manufacturer Website Address : http://www.asus.com
- Audio Channels : 7.1
- Total Number of Onboard USB Ports : 9
- Number of Onboard USB 3.2 Ports : 5
- Processor Socket : Socket LGA-1700
- Manufacturer : ASUS Computer International
- RAID Levels : 0,1,5,10
- 2.5Gigabit Ethernet : Yes
- Wireless LAN Standard : IEEE 802.11 a/b/g/n/ac/ax
- Environmental Certification : RoHS
- Environmentally Friendly : Yes
- Number of Memory Slots : 4
- Processor Generation Supported : 12th Gen
- Number of PCI Express x16 Slots : 3
- Memory Form Factor : DIMM,UDIMM
- Limited Warranty : 3 Year
- Total Number of PCI Express Slots : 3
- Number of USB 3.2 Gen 2 Type-A Ports : 6
- Product Type : Desktop Motherboard
- Total Processor Supported : 1
- Number of Total Expansion Slots : 3
- Number of USB 3.2 Ports : 1
- HDMI : Yes
- Intel RST : Yes
- Number of Network (RJ-45) Ports : 1
- Product Line : Maximus Z690 Hero
- Number of Onboard USB 2.0 Ports : 4
