Description

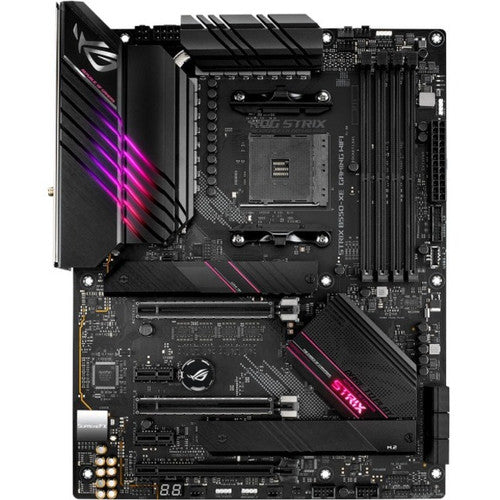

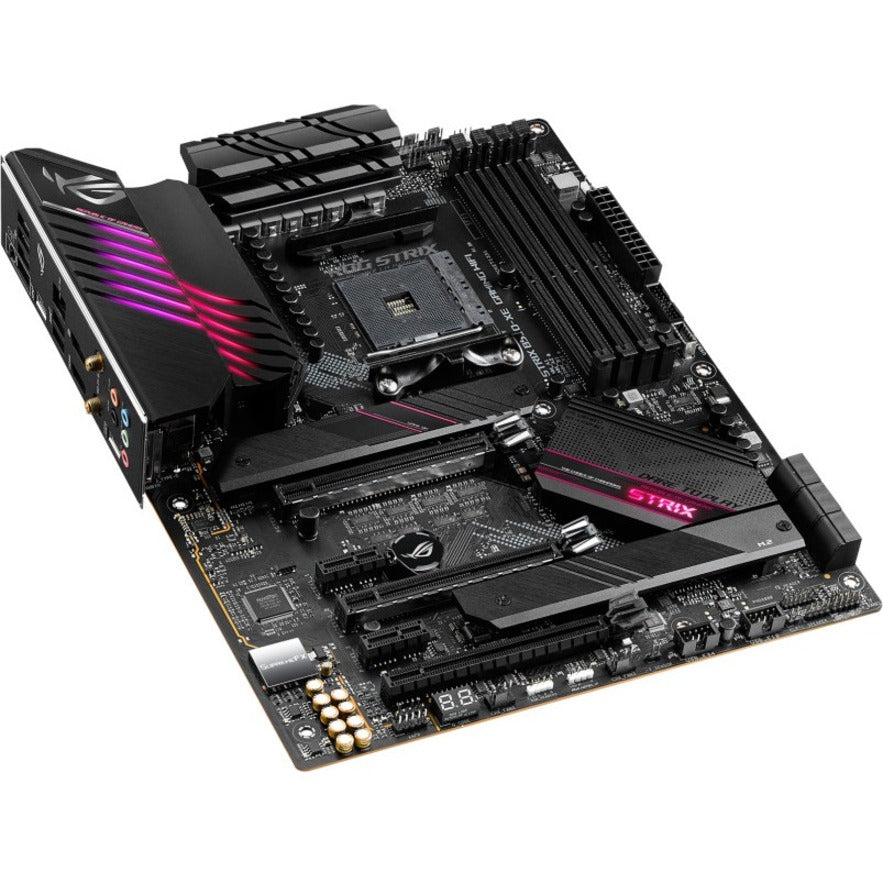

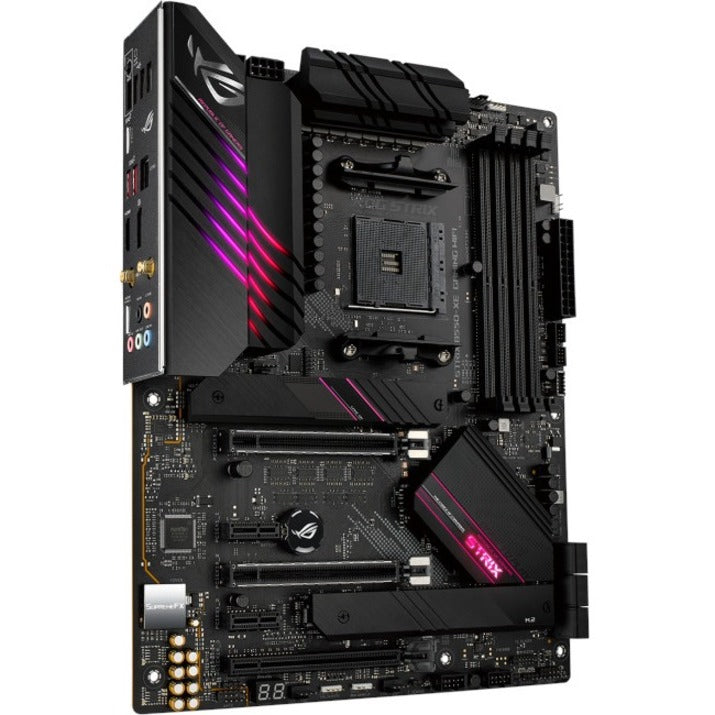

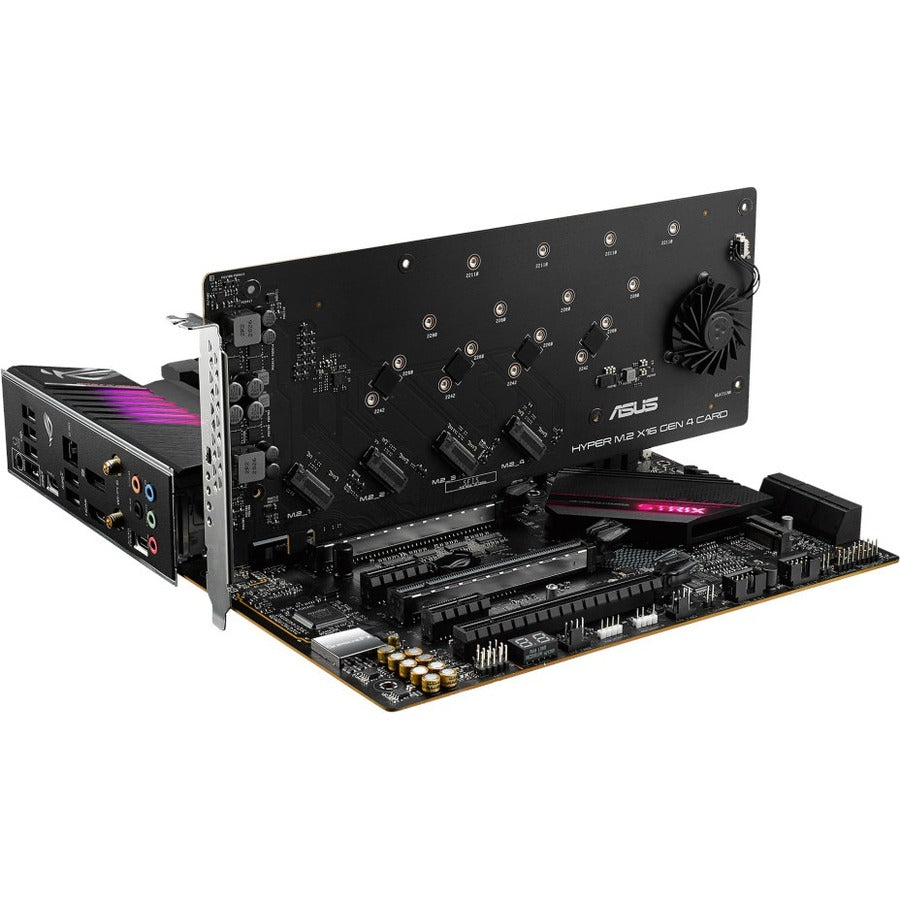

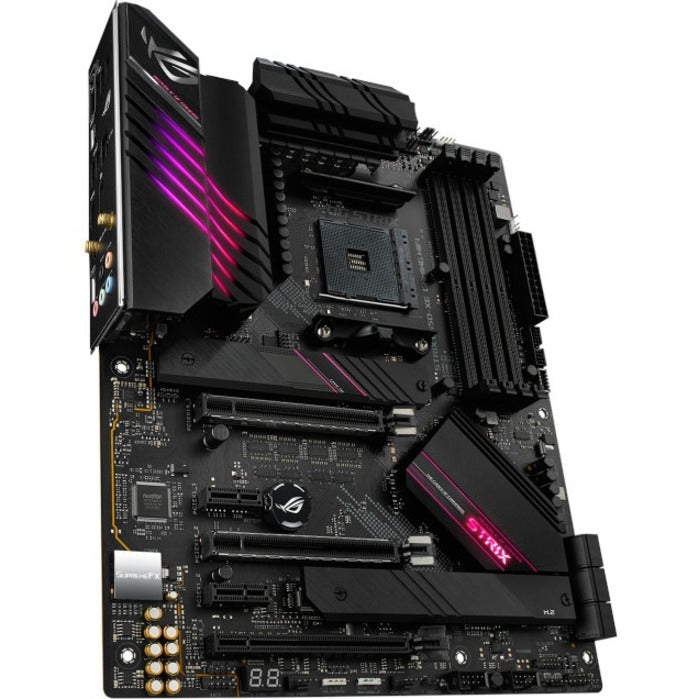

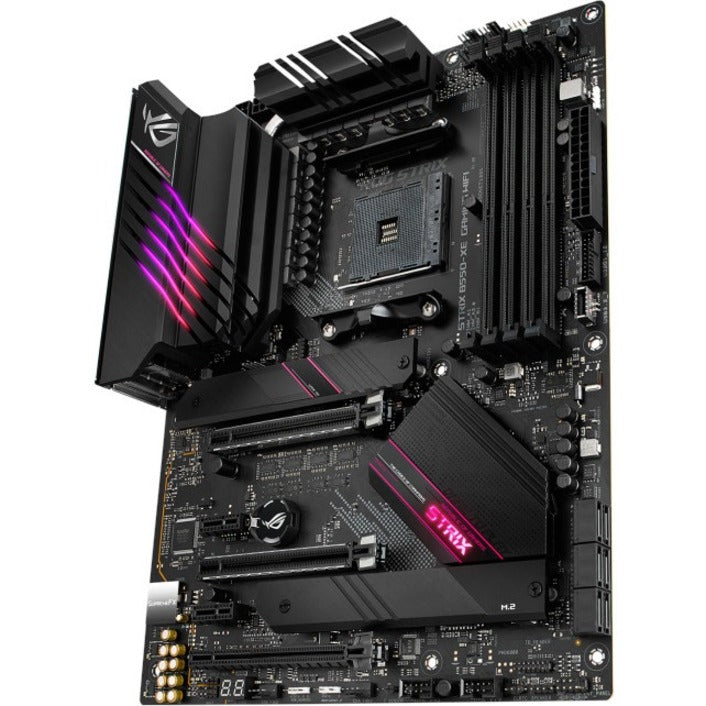

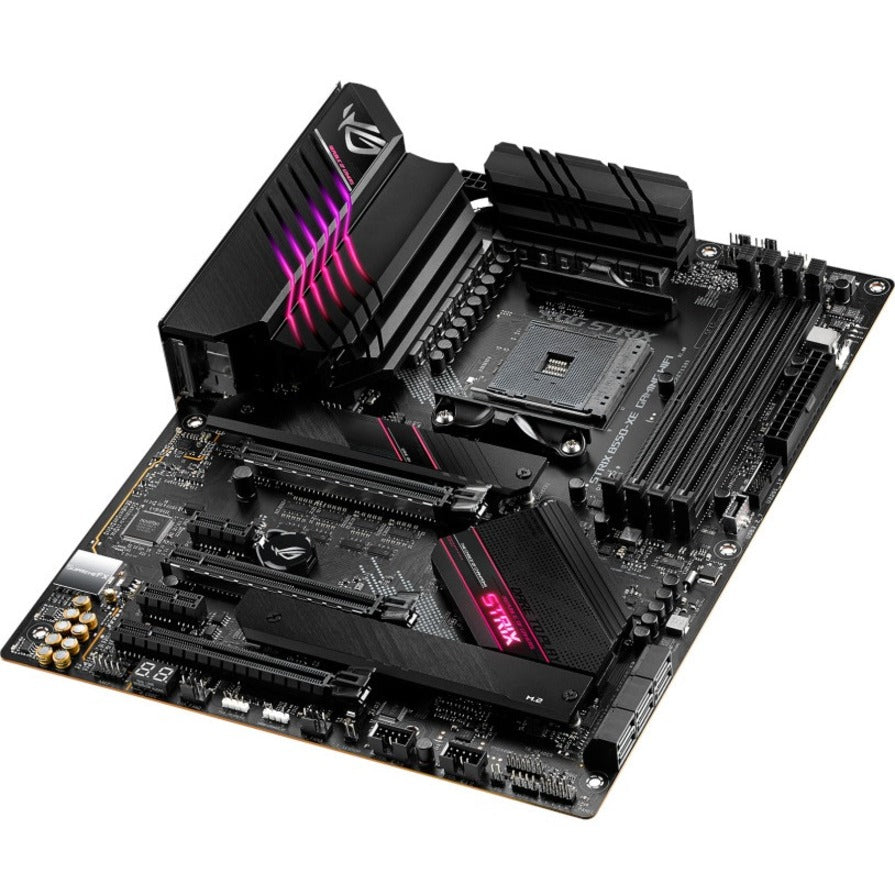

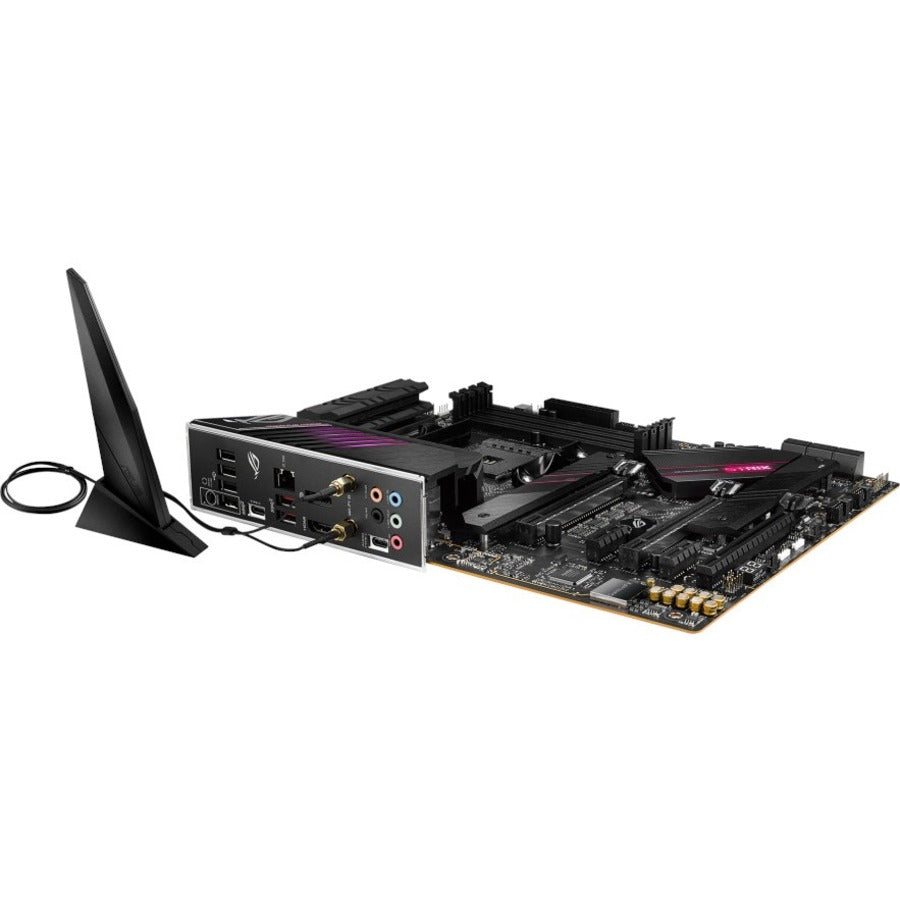

AMD B550 Ryzen AM4 ATX Gaming motherboard with PCIe® 4.0, 16 power stages, Intel® 2.5 Gb Ethernet, WiFi 6 (802.11ax), two onboard M.2 slots and four additional M.2 slots on the bundled ASUS Hyper M.2 x16 Gen 4 Card, SATA 6 Gbps, USB 3.2 Gen 2 and Aura Sync RGB lighting
- AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Best gaming connectivity: PCIe® 4.0-ready, two onboard M.2 slots and four additional M.2 slots on the bundled ASUS Hyper M.2 x16 Gen 4 Card, USB 3.2 Gen 2 Type-C® plus HDMI™ 2.1 and DisplayPort™ 1.2 output
- Robust power solution: 14+2 power stages with ProCool power connector, high-quality alloy chokes and durable capacitors
- Comprehensive cooling: Actively cooled VRM heatsinks with L-shaped heatpipe and integrated aluminum I/O cover, plus dedicated M.2 heatsinks
- Superfast networking: Onboard WiFi 6 (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
- Intuitive software: Easy-to-use UEFI BIOS and ASUS AI Networking make it easy to configure gaming builds
- DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-Code and FlexKey
- Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB headers and addressable Gen 2 RGB headers
- Industry-leading Gaming Audio: Audio USB Type-C®, AI Noise-Canceling Microphone, SupremeFX S1220A codec, DTS® Sound Unbound™ and Sonic Studio III for immersive audio
ROG Strix B550 Gaming series motherboards offer a feature-set usually found in the higher-end ROG Strix X570 Gaming series, including the latest PCI Express® 4.0 interface. The flagship of the B550 motherboard range, ROG Strix B550-XE Gaming WIFI, offers robust power delivery and effective cooling, making it well-equipped to handle the popular 3rd Gen AMD Ryzen™ and the latest AMD Ryzen™ 5000 (Zen 3 architecture) processors.
Unleash Unlimited Performance
ROG Strix B550-XE Gaming WIFI provides robust power delivery and comprehensive cooling to handle the latest Ryzen processors. It also supports faster memory and superfast high-capacity storage, providing everything you need to create a PC that's ready to play in the big leagues.
PCIe 4.0-Ready
ROG Strix B550-XE Gaming WIFI features two onboard M.2 slots, one of which supports the latest PCIe 4.0 standard to provide maximum storage flexibility and the fastest data speeds available via the latest AMD Ryzen processors. Both M.2 slots support up to the type 22110 socket and NVM Express® RAID for a performance boost.
Advance Your Gaming Immersion
ROG Strix B550-XE Gaming WIFI provides the latest connectivity options for supersmooth networking and blisteringly fast file transfers. Audio enhancements give you a massive advantage, allowing you to pick up on the subtlest of cues for a completely immersive gaming experience.
WiFi 6 (802.11 ax)
Onboard WiFi 6 (802.11ax) supports ultrafast wireless-networking speeds, improved capacity and better performance in dense wireless environments, providing exceptional online gaming experiences. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.
Intel 2.5 Gb Ethernet
Onboard 2.5 Gb Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, lag-free gaming, and high-res video streaming.
- Compatible Ryzen 3 processor lets you perform all your computational tasks at a swift pace
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- RAID supported levels provide data reliability and fault tolerance
- IEEE 802.11ax wireless standard support lets you connect to the internet and have instant access to social media, music, movies, and online games
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX desktop motherboard
- With 5 USB 2.0 ports, transfer several documents without error
- Memory Technology : DDR4 SDRAM
- Bluetooth : Yes
- DisplayPort : Yes
- Manufacturer Website Address : http://www.asus.com
- 2.5Gigabit Ethernet : Yes
- Number of Onboard USB 2.0 Ports : 4
- Chipset Manufacturer : AMD
- Maximum Memory Supported : 128 GB
- Controller Type : Serial ATA/600
- Wireless LAN : Yes
- RAID Supported : Yes
- Memory Speed Supported : 5100 MHz
- Processor Supported : Ryzen 9 PRO
- Number of SATA Interfaces : 6
- Product Line : Strix
- Wireless LAN Standard : IEEE 802.11ax
- RAID Levels : 1
- Number of Total Expansion Slots : 5
- Number of Onboard USB 3.2 Ports : 3
- Form Factor : ATX
- Number of USB 3.2 Ports : 3
- Number of PCI Express x1 Slots : 2
- Manufacturer : ASUS Computer International
- Total Processor Supported : 1
- Product Type : Desktop Motherboard
- Product Model : B550-XE GAMING WIFI
- Number of Network (RJ-45) Ports : 1
- Number of Memory Slots : 4
- Memory Form Factor : UDIMM
- HDMI : Yes
- Total Number of PCI Express Slots : 5
- Processor Socket : Socket AM4
- Number of M.2 Interfaces : 2
- Onboard Video : CPU Dependent Video
- Number of USB 2.0 Ports : 5
- Number of PCI Express x16 Slots : 3
- Audio Channels : 7.1
- Total Number of USB Ports : 8
- Total Number of Onboard USB Ports : 7
