Description

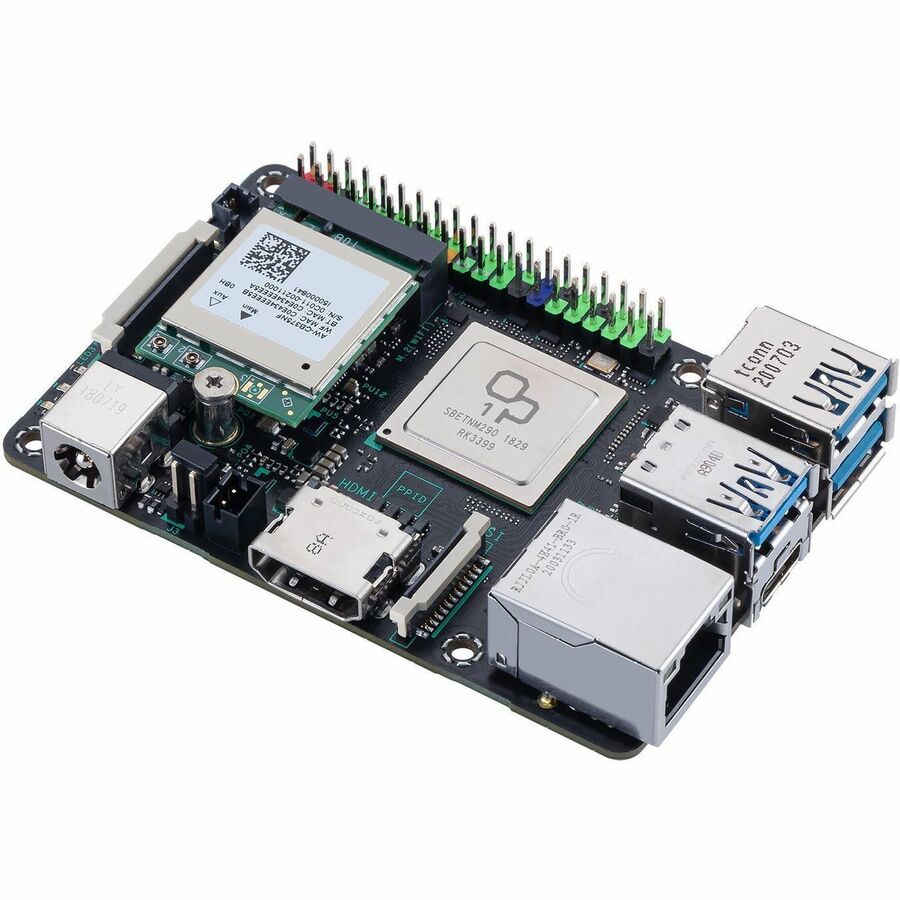

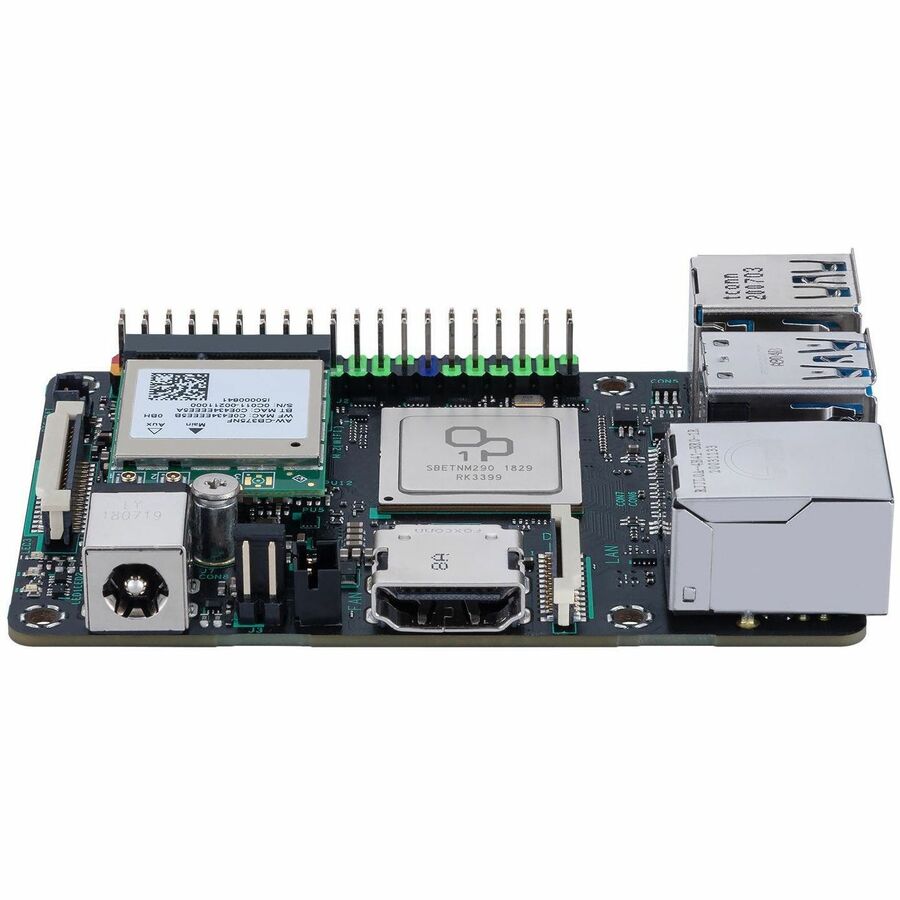

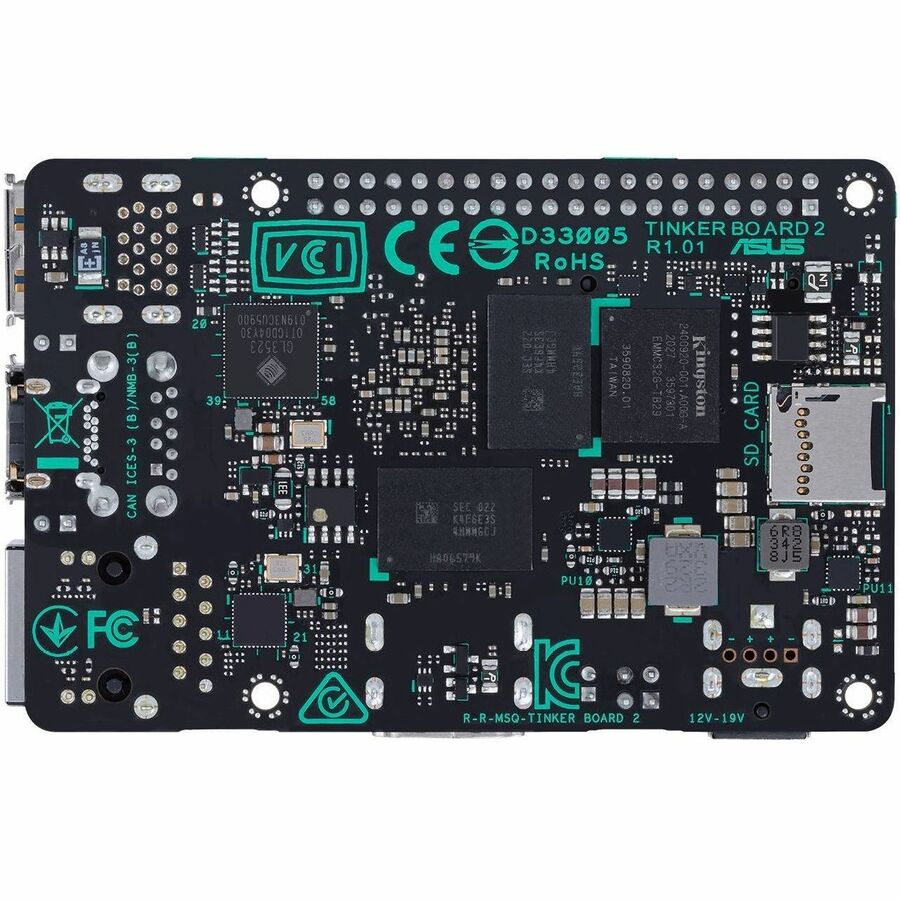

Tinker Board 2 | An Arm-based Single Board Computer (SBC), uses Arm big.LITTLE™ technology's 64-bits processor, offers enhanced computing performance with low power consumption.
- Outstanding performance for IoT devices: Powered by 6-core Rockchip RK3399 system on a chip (SoC) with the new 64-bit Armv8 architecture, plus multi-core Mali-T860.
- Easy setup tool: Intuitive software for performance tweaking, with simple three-step initial configuration.
- Pro-grade admin: ASUS IoT Cloud Console for data management and analysis, plus support for firmware over-the-air (FOTA) roll-out.
- Android 12 support: Benefit from better 3D computing performance, support for the Android Neural Networks API 1.2 and Adiantum encryption with 5X-better efficiency.
ULTIMATE PERFORMANCE FOR IOT DEVICES | Enhanced CPU performance
Powered by Arm® 6-core system on a chip (SoC), with the new 64-bit Armv8 architecture - the Rockchip RK3399 - Tinker Board 2 offers significantly improved performance versus compared to other popular SBC boards. It also features Arm big.LITTLE technology, which is a heterogeneous processing architecture that pairs two very different processors together in a single SoC. The big.LITTLE software automates task allocation, ensuring the right CPU core for each process. The upshot is that Tinker Board 2 delivers up to nearly twice the performance of the original Tinker Board, and is significantly faster than many competing SBCs.
Enhanced GPU performance
The GPU bundled with Tinker board 2 is Mali-T860, a multi - core GPU that is the highest performance model built on Arm's Midgard architecture. Specifically, Mali-T860 is designed for complex graphics use cases, and offers full support for OpenGL ES 3.0/3.1, OpenVG 1.1, OpenCL and other frameworks for next-generation and legacy 2D/3D graphics applications. Compared to the original Tinker Board, Tinker Board 2's Mali-T860 GPU accelerates graphics performance by up to 28%.
DUAL-DISPLAY SUPPORT
Tinker Board 2 supports dual displays at up to 4K UHD resolution, so it's equipped for compelling visual output. It also has three popular display interfaces built in, including HDMI, DisplayPort over USB-C and DSI, for superb flexibility.
WI-FI AND BLUETOOTH
Next-level 802.11ac Wi-Fi with 2x2 dual-band 2.4/5 GHz antennas deliver transfer speeds that are up to 10X faster than previous Wi-Fi standards. Tinker Board 2 also has the latest Bluetooth 5.0 technology built in, so you'll enjoy speeds that are up to 2X transmit speeds and with up to 4X-greater range. Integrated Bluetooth also opens up the convenience and freedom of wireless connectivity with a wide range of devices, including speakers, headphones and game controllers.
RICH CONNECTIVITY: USB 3.2 GEN 1
Tinker Board 2 has three USB 3.2 Gen 1 Type-A ports and one USB 3.2 Gen 1 Type-C (USB-C) port, for data-transfer speeds that are up to 10X faster than USB 2.0 - plus the convenience of any-way-up connectivity. Tinker Board 2's USB 3.2 Type-A ports delivers up to 0.9A of power, while the USB-C connector supplied up to 1.5A, for charging speeds that are considerably faster than older USB 2.0 ports. The USB 3.2 Gen 1 Type-C supports OTG functionality and DisplayPort Alt Mode for DP alt mode to connection of an external displays.
EXPANDABILITY FOR EMBEDDED SOLUTIONS | RTC battery header
Enables real-time clock (RTC) functions for scheduling of startup and shutdown, timers and other related functions. Also enables ability for the system clock to keep time when mains power is lost or otherwise unavailable
