Description

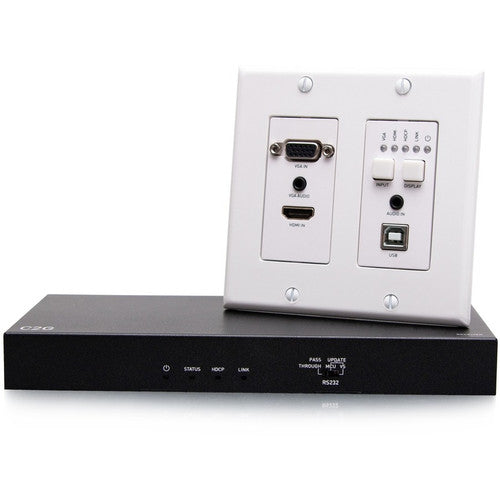

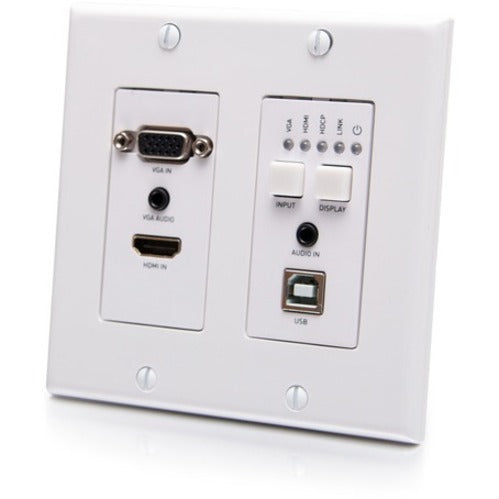

The HDMI HDBaseT + VGA, 3.5mm, and USB-B to A over Cat Extender Dual Gang Wall Plate Transmitter to Box Receiver - 4K 60Hz allows a 4K HDMI source to be extended up to 130ft to a 4K display using a single Cat6a Ethernet cable. This is an ideal solution where USB must be extended alongside HDMI video and audio to interactive whiteboards and displays in conference rooms, classrooms, lecture halls, and many other installation needs that are far beyond the length limitations of standard HDMI cabling.
The transmitter extends HDMI, VGA, Stereo Audio, and high speed USB 2.0 signals over a single Cat5e, Cat6 or Cat6a network patch cable. Extend 4K HDMI up to 115 feet and 1080p VGA up to 230 feet using a Cat5e or Cat6 cable. For longer 4K distances, extend 4K HDMI up to 130 feet using a Cat6a cable.
This HDMI HDBaseT Extender is HDCP 2.2 compliant, making sure that the connection between the source and display is secure. Automatic switching is supported by the transmitter, connecting to the last active source. One-way analog audio pass through is supported from the transmitter to the receiver. High-speed USB 2.0 pass through is supported over HDBaseT up to 230ft for KVM control of devices such as USB cameras, keyboards, mice, etc. With PoH support, the receiver can send power to the wall plate transmitter, so no additional power adapter is required, allowing for greater flexibility in installations. Support this HDBaseT system that is already deployed in the field by upgrading firmware through the Micro-USB port on front panel of the wall plate transmitter, and upgrade the firmware through the RS232 port on rear panel of the receiver.
The transmitter extends HDMI, VGA, Stereo Audio, and high speed USB 2.0 signals over a single Cat5e, Cat6 or Cat6a network patch cable. Extend 4K HDMI up to 115 feet and 1080p VGA up to 230 feet using a Cat5e or Cat6 cable. For longer 4K distances, extend 4K HDMI up to 130 feet using a Cat6a cable.
This HDMI HDBaseT Extender is HDCP 2.2 compliant, making sure that the connection between the source and display is secure. Automatic switching is supported by the transmitter, connecting to the last active source. One-way analog audio pass through is supported from the transmitter to the receiver. High-speed USB 2.0 pass through is supported over HDBaseT up to 230ft for KVM control of devices such as USB cameras, keyboards, mice, etc. With PoH support, the receiver can send power to the wall plate transmitter, so no additional power adapter is required, allowing for greater flexibility in installations. Support this HDBaseT system that is already deployed in the field by upgrading firmware through the Micro-USB port on front panel of the wall plate transmitter, and upgrade the firmware through the RS232 port on rear panel of the receiver.
- Extend 4K at 60Hz (4:2:0) up to 130ft and 1080p at 60Hz up to 230ft with Cat 6a cable
- Extend 4K at 60Hz (4:2:0) up to 115ft and 1080p at 60Hz up to 200ft with Cat 5e/6 cable
- HDCP 2.2 compliant, to create a secure connection between the source and display
- HDBaseT Chipset VS210, for simpler HDBaseT installations
- The Transmitter supports automatic switching, following the last-in-first-out rule
- One-way analog audio pass through from wall-plate transmitter to receiver
- Supports USB 2.0 pass through over HDBT up to 230ft, connecting up to 4 USB devices to the receiver
- Supports CEC switch command sent by wall-plate
- One-way Power over HDBaseT (PoH), so that the wall plate can be powered by receiver
- The transmitter supports firmware upgrade and device control via the Micro USB port
- Number of VGA Inputs : 1
- Supported Video Modes : 1080p
- Number of HDMI Outputs : 1
- Maximum Operating Distance : 230 ft (70104 mm)
- Number of Input Devices Supported : 2
- Transmitter Depth : 4.16" (105.60 mm)
- Number of Output Devices Supported : 1
- Form Factor : Wall Plate
- Transmitter Weight (Approximate) : 300 g
- Package Contents :
- 1 x Transmitter Unit
- 1 x Receiver Unit
- Manufacturer Website Address : http://www.cablestogo.ca
- Number of USB Ports : 7
- Receiver Width : 8.27" (210 mm)
- HDMI Out : Yes
- Twisted Pair Cable Standard : Category 7
- Manufacturer : C2G
- Receiver Weight (Approximate) : 460 g
- Transmitter Height : 1.51" (38.40 mm)
- Environmental Certification : WEEE
- Environmentally Friendly : Yes
- Receiver Height : 0.98" (25 mm)
- USB : Yes
- HDMI In : Yes
- Product Color : Black
- Receiver Depth : 3.55" (90.20 mm)
- VGA In : Yes
- Network (RJ-45) : Yes
- Number of HDMI Inputs : 1
- Product Type : Video Extender Transmitter/Receiver
- Graphics Modes : 4K
- Transmitter Width : 3.50" (89 mm)
- Media Type Supported : Twisted Pair
- Country of Origin : China
- Number of Network (RJ-45) Ports : 2
- Connectivity Technology : Wired
