Description
CyberPower PDU24005 provides output from a UPS unit, generator, or utility power to multiple connected devices in IT environments. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded connected equipment. If the selected power source exceeds the desired thresholds or fails, the ATS PDU will automatically switch to the other power source within 10 ms (Source Failure Detection Time: 2-3 ms. Power Source Transfer Time: 2-7 ms) to ensure continuous operation.
The unit comes with a hot-swappable multifunction readout that displays real-time vitals including current, input voltage, power consumption levels in amps and watts. The digital LCD display is also color configurable, allowing easy maintenance and monitoring of the ATS PDU. Users can change LCD's colors to easily categorize devices between multiple machines in server room and IT environments. The firmware can also be conveniently upgraded via the USB port, ensuring the latest features and updates are available for users.
The product can be connected to a PC through the serial port to perform local control of the ATS PDU.
- Real-time Local Monitoring
- Quick Transfer Time (Total ? 10 ms)
- Digital Real-time Load Display
- Hot-swappable LCD Design
- Firmware Upgrade via USB
- Adjustable Mounting Brackets
- IEC Receptacle Locking
- Dual Inputs
- Industrial-grade Metal Housing
- User Configurable Color LCD
- LED Status Indicator
- User-upgradeable Firmware
- Cord Retention Tray
- PDU Type : Metered Auto Transfer Switch
- Product Series : ATS
- Limited Warranty : 2 Year
- Input Current : 16 A
- Locking Receptacles : Cord Retention Tray,IEC 60320 C13,IEC 60320 C19
- Form Factor : Hot-swappable
- Package Contents :
- ATS PDU24005 10-Outlets PDU
- User's Manual
- Cord Retention Tray
- Mounting Brackets
- Cable Ties
- Screw Kit
- Power Cord
- Serial Cable
- Network (RJ-45) : Yes
- Protection Type : Overload Protection,Circuit Breaker

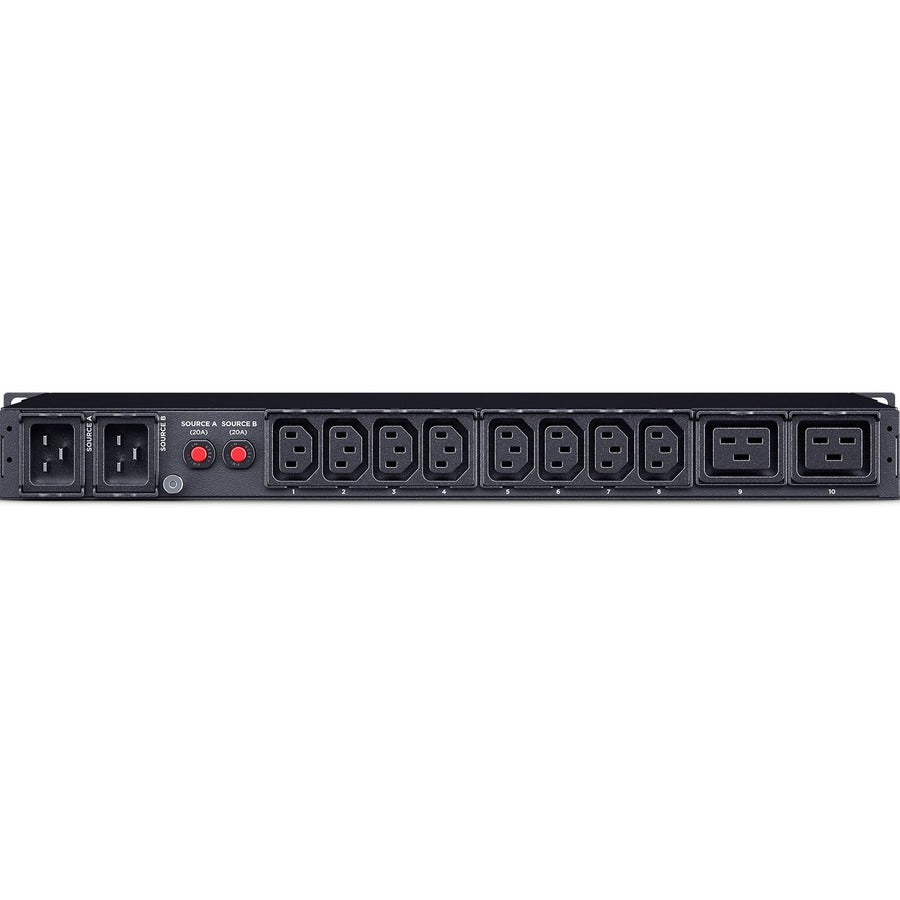

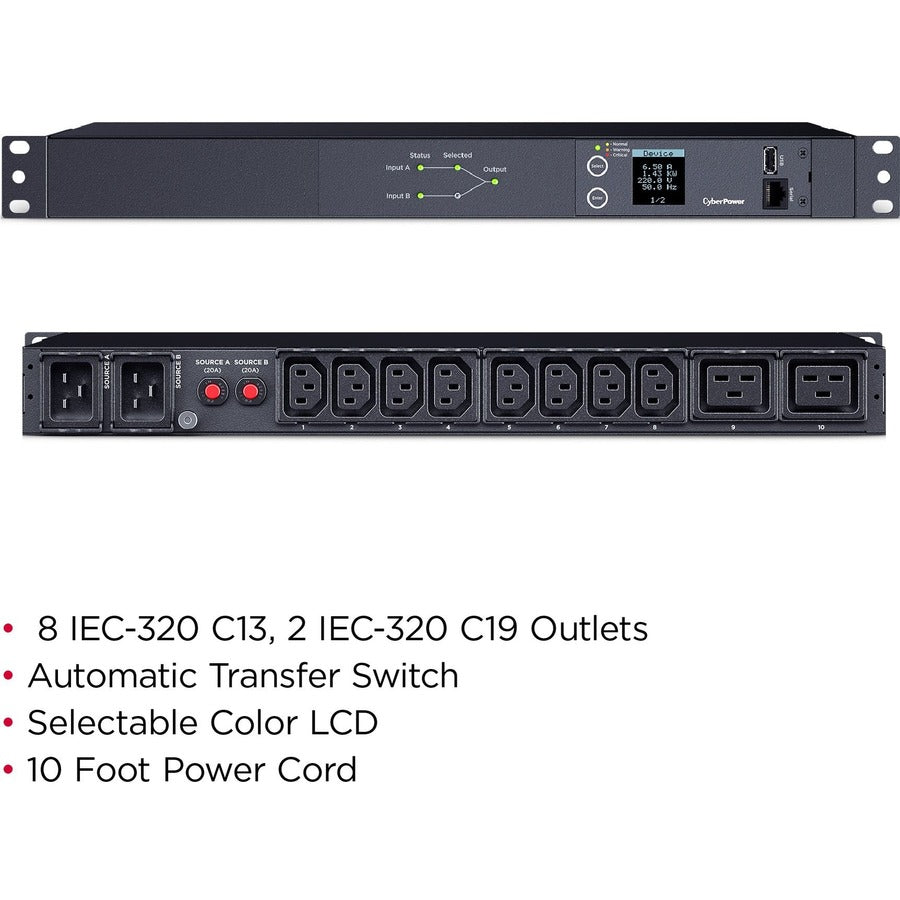

- Receptacle Detail : 8 x IEC 60320 C13,2 x IEC 60320 C19
- Phase : Single Phase
- Plug/Connector Detail : 2 x IEC 60320 C20
- Mount Type : Rack-mountable
- Manufacturer : CyberPower Systems, Inc
- Product Model : PDU24005
- Input Voltage Range : 200 V AC - 240 V AC
- Rack Height : 1U
- Receptacle Type : IEC 60320 C13,IEC 60320 C19
- Environmentally Friendly : Yes
- Product Color : Black
- Input Voltage : 230 V AC
- Plug/Connector Type : IEC 60320 C20
- Product Type : PDU
- Mounting Orientation : Horizontal
- Manufacturer Website Address : https://www.cyberpowersystems.com/
