Description

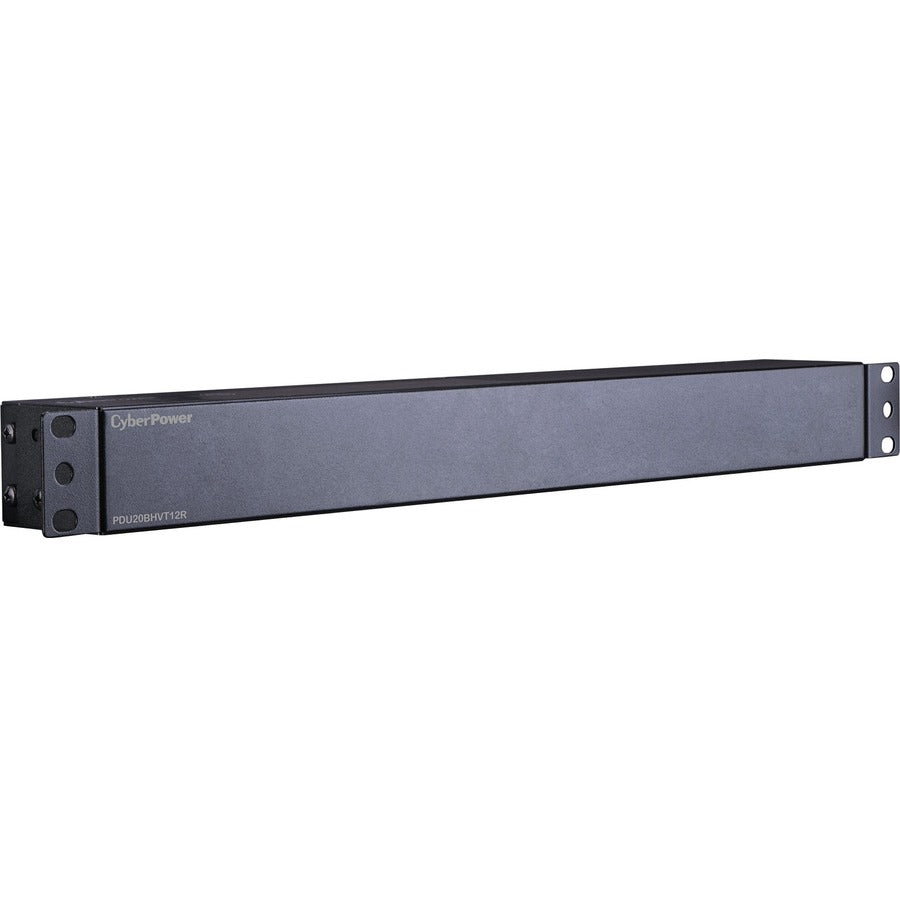

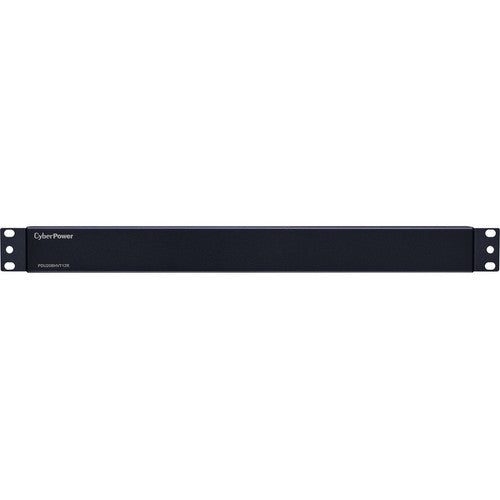

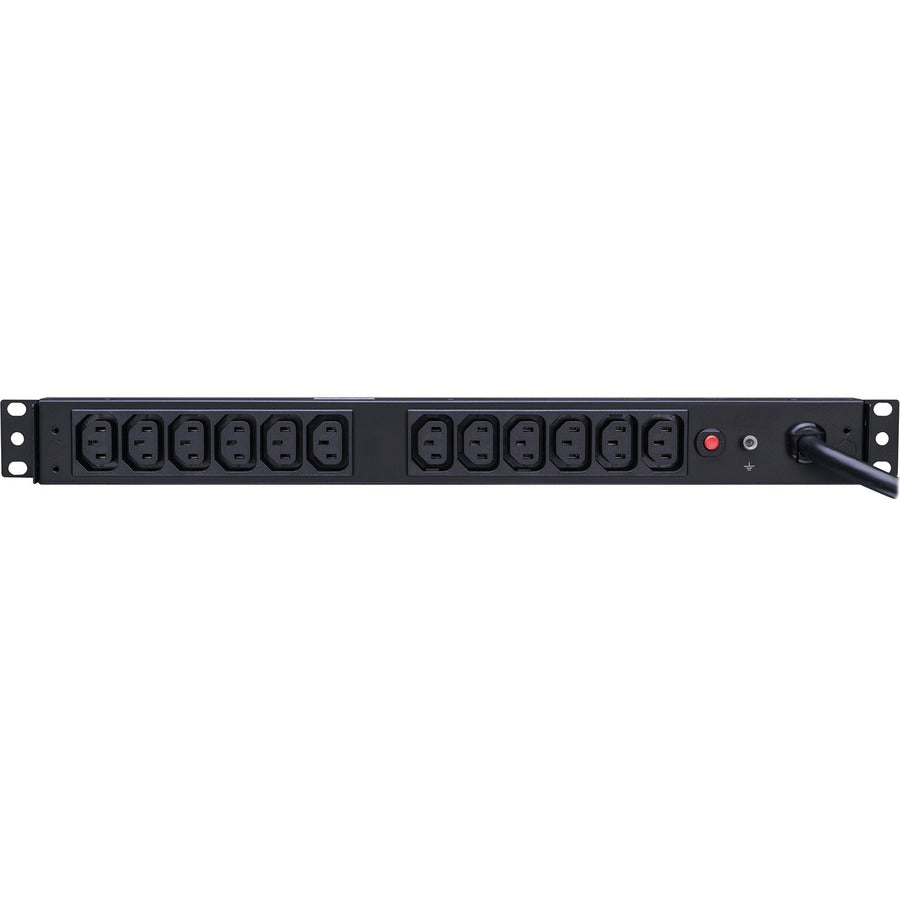

The CyberPower PDU20BHVT12R, a 12-outlet (rear) rackmount basic power distribution unit (PDU), provides 208V/230V 20A output. It distributes power to 12 IEC-320 C13 receptacles from a single NEMA L6-20P twist lock plug with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU20BHVT12R has rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray, and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.
Power DistributionDelivers AC power to servers, equipment, and connected devices via a power distribution unit.
Switch-Free Design
Safeguards against accidental power shutdown.
Network-Grade Plugs and Outlets
Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.
Long Input Power Cord
Reaches distant power sources, allowing the PDU to be placed where it's needed.
Twist Lock Plug
Secures an outlet by twisting and locking into place to prevent accidental disconnection.
Cord Retention Tray
Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.
Configurable Mounting Brackets
Allow for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount).
Durable Metal Housing
Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.
Limited Lifetime Warranty
Covers defects in materials and workmanship in the product under normal use and conditions. See warranty for details.
What's In The Box
PDU, Cord Retention Tray, User Manual, Screw Kit, Cord Clip Kit, Horizontal Mounting Brackets, Vertical Mounting Brackets, Product Registration Card
- 1U Rack Mount - Rugged industrial-grade metal housing
- 200/230V AC - 50/60Hz - 20-amp electrical capacity with circuit breaker
- 12 IEC-320 C13 output receptacles
- Basic PDU
- Energy Star : No
- Product Series : Basic PDU
- Phase : Single Phase
- Input Voltage : 230 V AC
- Rack Height : 1U
- Output Voltage Range : 200 V AC - 230 V AC
- Protection Type : Overload Protection
- PDU Type : Basic
- Mount Type : Rack-mountable
- Package Contents :
- Basic PDU20BHVT12R 12-Outlets PDU
- Cord Retention Tray
- User Manual
- Screw Kit
- Cord Clip Kit
- Horizontal Mounting Brackets
- Vertical Mounting Brackets
- Product Registration Card
- Manufacturer Website Address : http://www.cyberpowersystems.com
- Mounting Orientation : Vertical
- Input Voltage Range : 200 V AC - 230 V AC
- Environmentally Friendly : Yes
- Plug/Connector Type : NEMA L6-20P
- Environmental Certification : RoHS
- Manufacturer : CyberPower Systems, Inc
- Product Type : PDU
- Receptacle Type : IEC 60320 C13
- Limited Warranty : Lifetime
- Receptacle Detail : 12 x IEC 60320 C13
- Product Model : PDU20BHVT12R
- Energy Star : No
- Rack Height : 1U
- Mounting Orientation : Vertical
- Environmentally Friendly : Yes
- Environmental Certification : RoHS
- Manufacturer : CyberPower Systems, Inc
- Product Type : PDU
- Limited Warranty : Lifetime
- Product Model : PDU20BHVT12R
- Product Series : Basic PDU
- Input Voltage : 230 V AC
- Phase : Single Phase
- Output Voltage Range : 200 V AC - 230 V AC
- Protection Type : Overload Protection
- Mount Type : Rack-mountable
- PDU Type : Basic
- Package Contents :
- Basic PDU20BHVT12R 12-Outlets PDU
- Cord Retention Tray
- User Manual
- Screw Kit
- Cord Clip Kit
- Horizontal Mounting Brackets
- Vertical Mounting Brackets
- Product Registration Card
- Manufacturer Website Address : http://www.cyberpowersystems.com
- Input Voltage Range : 200 V AC - 230 V AC
- Plug/Connector Type : NEMA L6-20P
- Receptacle Type : IEC 60320 C13
- Receptacle Detail : 12 x IEC 60320 C13
