Description

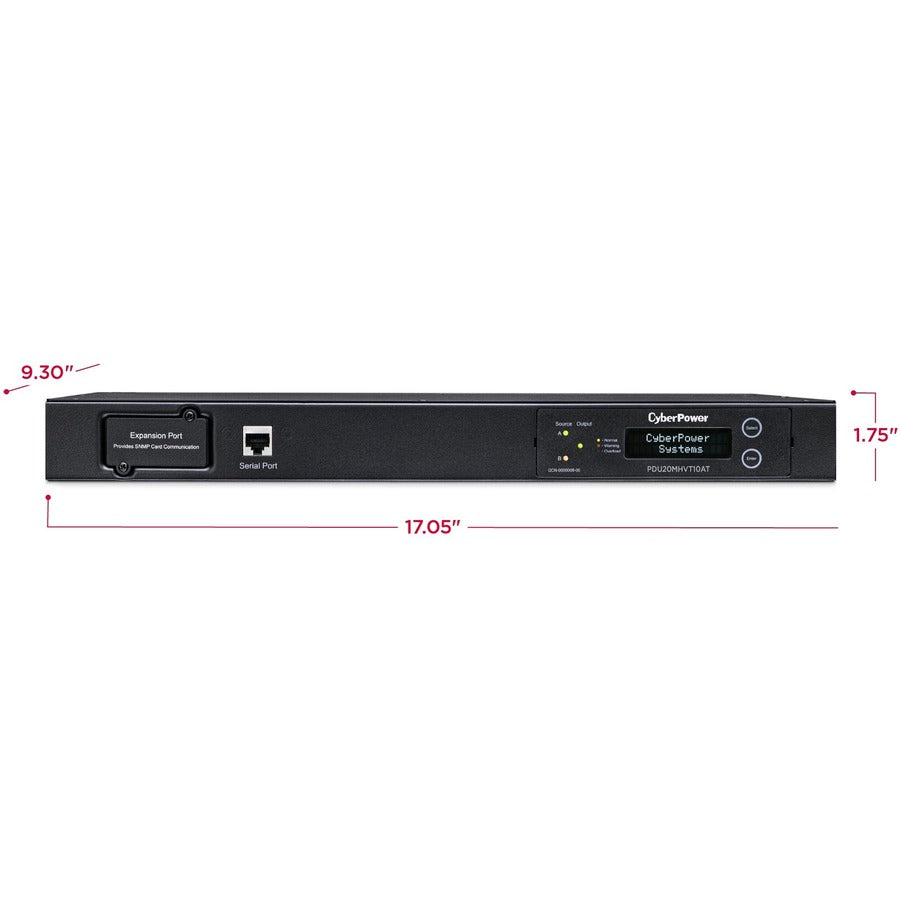

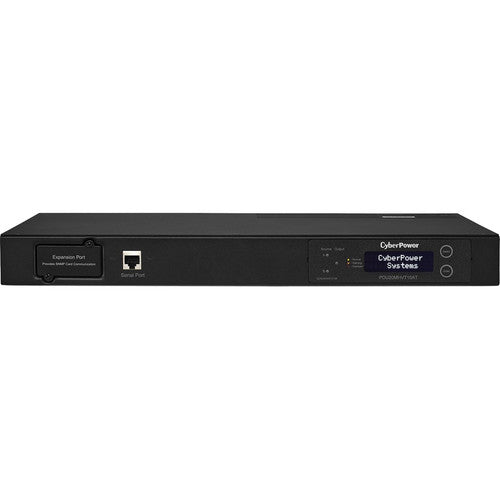

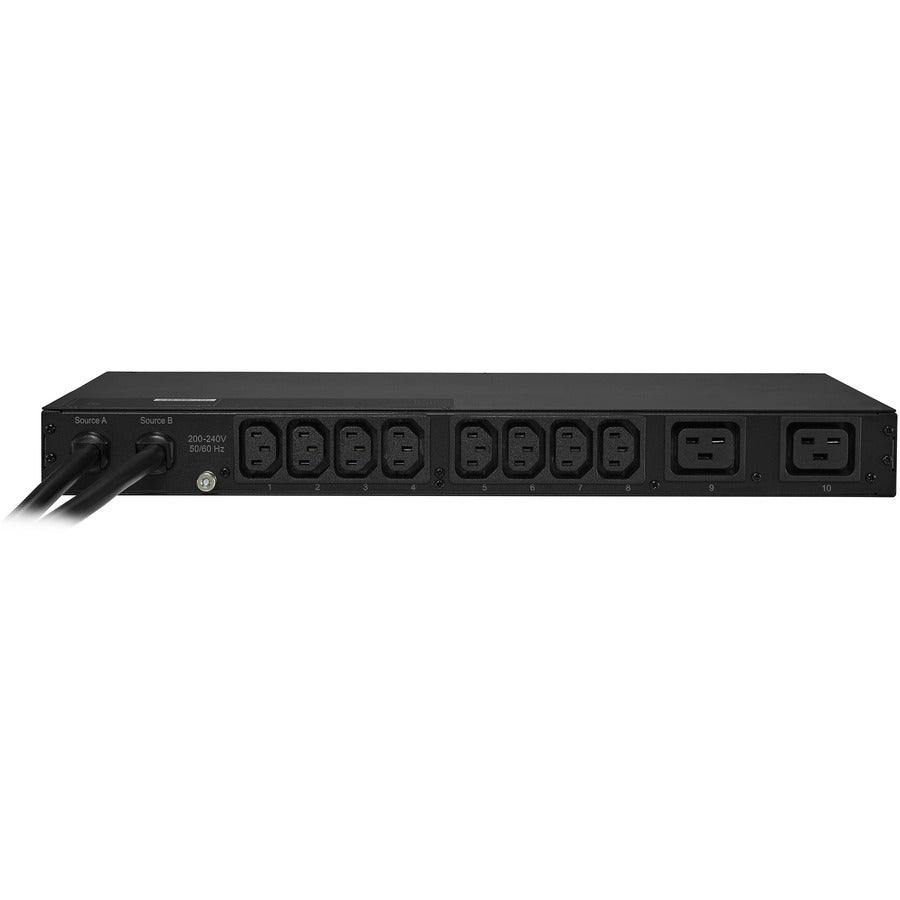

The CyberPower PDU20MHVT10AT, a 10-outlet 1U rack mount metered auto transfer switch (ATS) PDU, provides 200-240V / 20A output. The PDU distributes power to 10 IEC-320 8-C13 / 2-C14 receptacles from redundant L5-20P plugs. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded equipment. If there is a power failure or an under/over voltage, the PDU will switch to the secondary power source to insure continuous operation.
The LCD provides local monitoring of the PDU. Electrical current is displayed in amps and the LCD can be toggled to display input/output voltage, power usage (kW), and hardware/LCD firmware versions.
The PDU20MHVT10AT includes a SNMP/HTTP card slot for adding an RMCARD202/RMCARD203 (sold separately).
The unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted horizontally, includes a cord retention tray and is UL60950_1 & FCC Class A certified. A three-year warranty is standard.
The LCD provides local monitoring of the PDU. Electrical current is displayed in amps and the LCD can be toggled to display input/output voltage, power usage (kW), and hardware/LCD firmware versions.
The PDU20MHVT10AT includes a SNMP/HTTP card slot for adding an RMCARD202/RMCARD203 (sold separately).
The unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted horizontally, includes a cord retention tray and is UL60950_1 & FCC Class A certified. A three-year warranty is standard.
- 1U Rugged, industrial-grade metal housing.
- SNMP/HTTP option slot for real-time monitoring and event logging of the ATS PDU. RMCARD202 & RMCARD203 sold separately.
- Digital Display (Load, Voltage, and KW) for on-site monitoring of total PDU load
- Metered Automatic Transfer Switching (ATS) to provide a redundant input power option
- 200V - 240V 20A ATS PDU with 8 IEC-320 C13 Outlets and 2 IEC-320 C19 Outlets. Dual NEMA L6-20P Input Plugs for Redundancy
- Product Series : Metered ATS PDU
- Input Voltage : 230 V AC
- Management :
- HTTP
- TCP/IP
- UDP
- DHCP
- SNMP
- SNMPv3
- IPv4
- IPv6
- NTP
- SMTP
- Rack Height : 1U
- Protection Type : Over Voltage
- Input Current : 20 A
- Mount Type : Rack-mountable
- Package Contents :
- PDU20MHVT10AT Metered ATS PDU 200-240V 20A 1U 10-Outlets (2) L6-20
- Mounting Brackets (1 Set)
- Cord Retention Tray
- Cord Organizers
- User Manual
- Manufacturer Website Address : http://www.cyberpowersystems.com
- Output Voltage : 230 V AC
- Mounting Orientation : Horizontal
- Plug/Connector Detail : 2 x NEMA L6-20P
- Environmentally Friendly : Yes
- Plug/Connector Type : NEMA L6-20P
- Environmental Certification : RoHS
- Manufacturer : CyberPower Systems, Inc
- Product Type : PDU
- Receptacle Type : IEC 60320 C19
- Limited Warranty : 3 Year
- Receptacle Detail : 2 x IEC 60320 C19
- Product Model : PDU20MHVT10AT
- Network (RJ-45) : Yes
- Country of Origin : China
- Rack Height : 1U
- Mounting Orientation : Horizontal
- Environmentally Friendly : Yes
- Environmental Certification : RoHS
- Manufacturer : CyberPower Systems, Inc
- Product Type : PDU
- Limited Warranty : 3 Year
- Product Model : PDU20MHVT10AT
- Protection Type : Over Voltage
- Receptacle Type : IEC 60320 C19
- Receptacle Detail : 2 x IEC 60320 C19
- Product Series : Metered ATS PDU
- Management :
- HTTP
- TCP/IP
- UDP
- DHCP
- SNMP
- SNMPv3
- IPv4
- IPv6
- NTP
- SMTP
- Input Voltage : 230 V AC
- Input Current : 20 A
- Mount Type : Rack-mountable
- Package Contents :
- PDU20MHVT10AT Metered ATS PDU 200-240V 20A 1U 10-Outlets (2) L6-20
- Mounting Brackets (1 Set)
- Cord Retention Tray
- Cord Organizers
- User Manual
- Output Voltage : 230 V AC
- Manufacturer Website Address : http://www.cyberpowersystems.com
- Plug/Connector Detail : 2 x NEMA L6-20P
- Plug/Connector Type : NEMA L6-20P
- Network (RJ-45) : Yes
- Country of Origin : China
