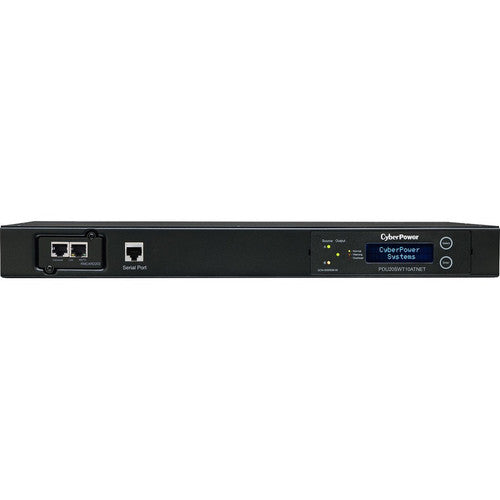

CyberPower PDU20SWT10ATNET PDU ATS commuté 120 V 20 A 1U 10 prises (2) L5-20P PDU20SWT10ATNET

The CyberPower PDU20SWT10ATNET, 10-outlet 1U rack mount switched auto transfer switch (ATS) PDU, provides 100-120V / 20A output. The PDU distributes power to 10 NEMA 5-20R receptacles from redundant NEMA L5-20P plugs. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded equipment. If there is a power failure or an under/over voltage, the PDU will switch to the secondary power source to insure continuous operation.

The PDU includes a RMCARD203 SNMP card. With the SNMP card and an IP address on the network interface, users have real-time monitoring and outlet control of the ATS PDU including event notifications.

The LCD provides local monitoring of voltage and amperage of the PDU and on/off control of the outlets.

The unit has a rugged, industrial-grade metal housing and 10-foot AC power cords. It can be mounted horizontally, includes a cord retention tray and is UL60950_1 & FCC Class A certified. A three-year warranty is standard.

• 120V 20A Switched ATS PDU with 10 NEMA 5-20R outlets and dual NEMA L5-20P 20A 120V twist-lock input connections
• Switched Automatic Transfer Switching (ATS) PDU to provide a redundant input power option
• Digital Display (Load, Voltage, and KW) for on-site monitoring of total PDU load
• SNMP/HTTP Network Interface for real-time outlet control, monitoring and event logging of the Switched ATS PDU

• 120V 20A Switched ATS PDU with 10 NEMA 5-20R outlets and dual NEMA L5-20P 20A 120V twist-lock input connections
• Switched Automatic Transfer Switching (ATS) PDU to provide a redundant input power option
• Digital Display (Load, Voltage, and KW) for on-site monitoring of total PDU load
• SNMP/HTTP Network Interface for real-time outlet control, monitoring and event logging of the Switched ATS PDU

• Energy Star : No
• Product Series : Switched ATS PDU
• Input Voltage : 120 V AC
• Management :
  • Automatic Transfer Switch (ATS)
  • SNMP/HTTP
• Rack Height : 1U
• Input Current : 20 A
• PDU Type : Switched
• Mount Type : Rack-mountable
• Package Contents :
  • PDU20SWT10ATNET Switched ATS PDU 120V 20A 1U 10-Outlets (2) L5-20P
  • RMCARD203 SNMP Card
  • 1 x Mounting Brackets Set
  • Cord Retention Tray
  • Cord Organizers
  • User Manual
• Manufacturer Website Address : http://www.cyberpowersystems.com
• Output Voltage : 120 V AC
• Plug/Connector Detail : 2 x NEMA L5-20P
• Environmentally Friendly : Yes
• Plug/Connector Type : NEMA L5-20P
• Environmental Certification : RoHS
• Manufacturer : CyberPower Systems, Inc
• Product Type : PDU
• Receptacle Type : NEMA 5-20R
• Limited Warranty : 3 Year
• Receptacle Detail : 10 x NEMA 5-20R
• Product Model : PDU20SWT10ATNET
• Length : 9.30" (236.22 mm)
• Country of Origin : China

. .

• Energy Star : No
• Rack Height : 1U
• Environmentally Friendly : Yes
• Environmental Certification : RoHS
• Manufacturer : CyberPower Systems, Inc
• Product Type : PDU
• Limited Warranty : 3 Year
• Product Model : PDU20SWT10ATNET
• Length : 9.30" (236.22 mm)
• Country of Origin : China
• Product Series : Switched ATS PDU
• Management :
  • Automatic Transfer Switch (ATS)
  • SNMP/HTTP
• Input Voltage : 120 V AC
• Input Current : 20 A
• Mount Type : Rack-mountable
• PDU Type : Switched
• Package Contents :
  • PDU20SWT10ATNET Switched ATS PDU 120V 20A 1U 10-Outlets (2) L5-20P
  • RMCARD203 SNMP Card
  • 1 x Mounting Brackets Set
  • Cord Retention Tray
  • Cord Organizers
  • User Manual
• Output Voltage : 120 V AC
• Manufacturer Website Address : http://www.cyberpowersystems.com
• Plug/Connector Detail : 2 x NEMA L5-20P
• Plug/Connector Type : NEMA L5-20P
• Receptacle Type : NEMA 5-20R
• Receptacle Detail : 10 x NEMA 5-20R
