Description

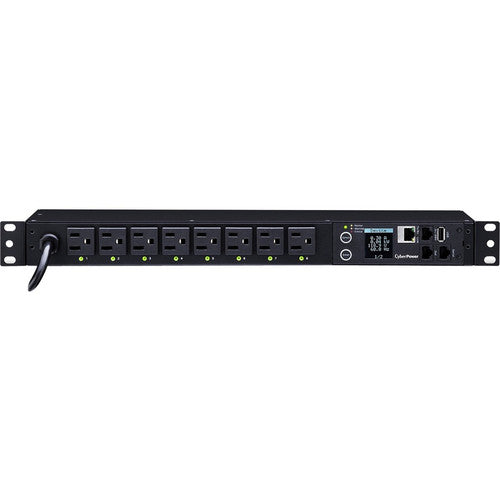

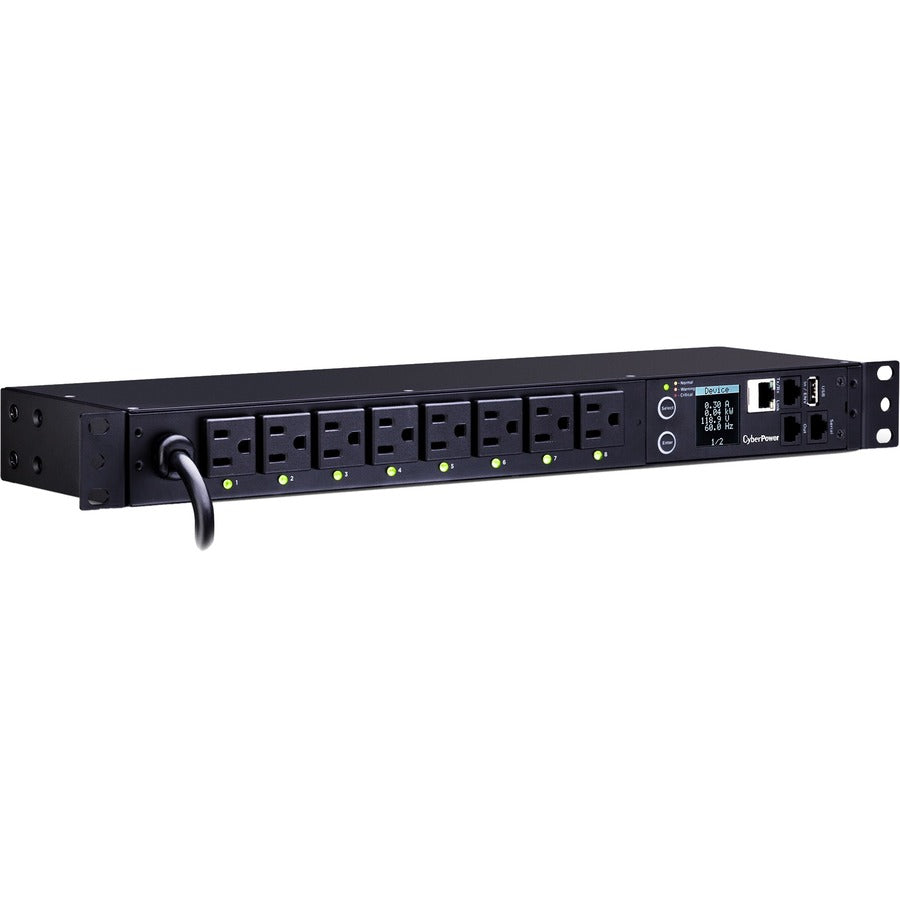

Streamline capacity planning and power management with the CyberPower PDU81001 switched, metered-by-outlet PDU. Ideal for data centers and network closets, this unit provides outlet-level power monitoring in real time, along with individual outlet control for remote reboots, automated load shedding, controlled power-cycling and more.
The PDU81001 supports inputs between 100-120V and includes eight (8) NEMA 5-15R outlets. Other features include a rack mount design (1U), built-in web interface (RJ-45 ethernet connection), interactive digital display and power event notifications. The CyberPower PDU81001 is protected by a three-year limited warranty.
- Provides active metering of each outlet, each circuit and PDU as a whole
- Allows for local and remote on/off switching control of individual outlets
- Provides immediate alerts about power events via email, SMS or SNMP traps
- Connects to your LAN/WAN via standard RJ45 Ethernet connection
- Includes 3-year limited warranty
- Automatic event notifications: provide immediate updates about power events via email, SMS text, or SNMP Traps.
- Remote and local monitoring: enables offsite and onsite tracking of PDU vitals; provides outlet control for individual and networked clients.
- Input Plug Type: NEMA 5-15P, outlets: 8 NEMA 5-15R, input voltage: 100-120 V, Amps: 15A (Derated to 12A)
- Provides outlet-level power monitoring and individual outlet control for connected equipment.
- Product Series : Switched Metered-by-Outlet PDU
- Input Voltage : 120 V AC
- Management : SNMP
- Rack Height : 1U
- Input Current : 15 A
- Mount Type : Rack-mountable
- Package Contents :
- PDU81001 8-Outlet PDU
- 2 x Short Mounting Brackets
- 2 x Long Mounting Brackets
- 12 x M4x8 Screws
- 6 x M5X12 Screws/Washers
- Cord Retention Tray
- 6 x M3x6 Screws
- 12 x Cable Ties
- RJ45/DB9 Serial Cable
- User's Manual
- Registration & Download Cards
- Manufacturer Website Address : http://www.cyberpowersystems.com
- Environmentally Friendly : Yes
- Environmental Certification : RoHS
- Plug/Connector Type : NEMA 5-15P
- Manufacturer : CyberPower Systems, Inc
- Product Type : PDU
- Receptacle Type : NEMA 5-15R
- Limited Warranty : 3 Year
- Receptacle Detail : 8 x NEMA 5-15R
- Product Model : PDU81001
- Network (RJ-45) : Yes
- Country of Origin : China
- Product Series : Switched Metered-by-Outlet PDU
- Rack Height : 1U
- Management : SNMP
- Input Voltage : 120 V AC
- Input Current : 15 A
- Mount Type : Rack-mountable
- Package Contents :
- PDU81001 8-Outlet PDU
- 2 x Short Mounting Brackets
- 2 x Long Mounting Brackets
- 12 x M4x8 Screws
- 6 x M5X12 Screws/Washers
- Cord Retention Tray
- 6 x M3x6 Screws
- 12 x Cable Ties
- RJ45/DB9 Serial Cable
- User's Manual
- Registration & Download Cards
- Manufacturer Website Address : http://www.cyberpowersystems.com
- Environmentally Friendly : Yes
- Plug/Connector Type : NEMA 5-15P
- Environmental Certification : RoHS
- Manufacturer : CyberPower Systems, Inc
- Product Type : PDU
- Limited Warranty : 3 Year
- Receptacle Type : NEMA 5-15R
- Product Model : PDU81001
- Receptacle Detail : 8 x NEMA 5-15R
- Network (RJ-45) : Yes
- Country of Origin : China
