Description

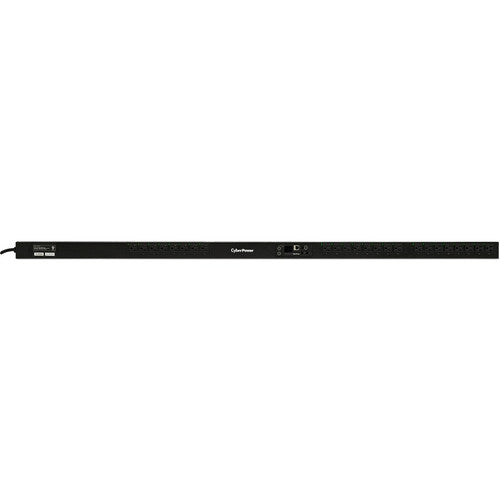

Streamline capacity planning and power management with the CyberPower PDU81101 switched metered-by-outlet PDU. Ideal for data centers and network closets, this unit provides outlet-level power monitoring in real time, along with individual outlet control for remote reboots, load shedding, controlled power-cycling and more.
The PDU81101 supports inputs between 100-120V and includes eight (24) NEMA 5-20R outlets. Other features include a rack mount design (0U), built-in web interface (RJ-45 ethernet connection), interactive digital display and power event notifications. The CyberPower PDU81101 is protected by a three-year limited warranty.
-
Power Distribution
Delivers AC power to servers, equipment, and connected devices via a power distribution unit.
-
Switch-Free Design
Safeguards against accidental power shut down.
-
Switchable Outlets
Provides local and remote control for individual and multiple outlets. Local control: turn on/turn off outlets and disable unused outlets. Remote control: restart outlets and devices, turn on/turn off, schedule power on/off sequencing, and disable unused outlets.
-
Per Outlet Power Metering
Provides information on the amount of power being drawn from each outlet, each circuit and the PDU as a whole.
-
CyberPower Management Console
A hardware interface built into Monitored and Switched PDUs. Its functionality includes the ability to switch PDU outlets on and off, reboot connected equipment locally or remotely, schedule power cycling of attached equipment, and perform other tasks, such as load monitoring and event logging
-
Remote and Local Monitoring
Enables offsite and onsite tracking of PDU vitals; provides outlet control for individual and networked clients.
-
Automatic Event Notifications
Provide immediate updates about power events via email, SMS text, or SNMP traps.
-
Upgradeable Firmware
Downloadable improvements (firmware updates) to programs that run the PDU.
-
Digital Display
Provides easy-to-read information about amperage, voltage, KW, IP address, and other PDU information.
-
Network-Grade Plugs and Outlets
Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.
-
Long Input Power Cord
Reaches distant power sources, allowing the PDU to be placed where it's needed.
-
Cord Retention Tray
Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.
-
Durable Metal Housing
Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.
-
Three-Year Limited Warranty
Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.
What's In The Box
PDU, 2 Mounting Brackets, 6 M4x5 Screws, 6 M5x12 Screws/Washers, 6 M3x6 screws, Cord Retention Tray, Cable Ties, RJ45/DB9 Cable, User's Manual Registration and Download Cards
- Input Voltage : 120 V AC
- Management :
- IPv4
- TCP/IP
- UDP
- SNMPv1
- HTTP
- NTP
- DNS
- Telnet
- DHCP
- SMTP
- FTP
- IPv6
- SNMPv3
- HTTPs
- SSH
- SSL
- TLS
- LDAP(S)
- RADIUS
- Syslog
- CLI
- Windows AD
- EnergyWise v1.2
- Protection Type : Accidental Power Shutdown
- PDU Type : Switched with Metered-by-Outlet
- Manufacturer Website Address : http://www.cyberpowersystems.com
- Output Voltage : 120 V AC
- Input Voltage Range : 100 V AC - 120 V AC
- Length : 1.89" (48.01 mm)
- Country of Origin : China
- Energy Star : No
- Product Series : Switched Metered-by-Outlet PDU
- Phase : Single Phase
- Rack Height : 0U
- Mount Type : Rack-mountable
- Package Contents :
- PDU81101 24-Outlet PDU
- 2 x Mounting Brackets
- 6 x M4x5 Screws
- 6 x M5x12 Screws/Washers
- 6 x M3x6 Screws
- Cord Retention Tray
- Cable Ties
- RJ45/DB9 Cable
- User's Manual Registration
- Download Cards
- Environmentally Friendly : Yes
- Plug/Connector Type : NEMA L5-20P
- Environmental Certification : RoHS
- Manufacturer : CyberPower Systems, Inc
- Product Type : PDU
- Receptacle Type : NEMA 5-20R
- Limited Warranty : 3 Year
- Receptacle Detail : 24 x NEMA 5-20R
- Product Model : PDU81101
- Network (RJ-45) : Yes
- Energy Star : No
- Rack Height : 0U
- Environmentally Friendly : Yes
- Environmental Certification : RoHS
- Manufacturer : CyberPower Systems, Inc
- Product Type : PDU
- Limited Warranty : 3 Year
- Product Model : PDU81101
- Length : 1.89" (48.01 mm)
- Country of Origin : China
- Management :
- IPv4
- TCP/IP
- UDP
- SNMPv1
- HTTP
- NTP
- DNS
- Telnet
- DHCP
- SMTP
- FTP
- IPv6
- SNMPv3
- HTTPs
- SSH
- SSL
- TLS
- LDAP(S)
- RADIUS
- Syslog
- CLI
- Windows AD
- EnergyWise v1.2
- Input Voltage : 120 V AC
- Protection Type : Accidental Power Shutdown
- PDU Type : Switched with Metered-by-Outlet
- Output Voltage : 120 V AC
- Manufacturer Website Address : http://www.cyberpowersystems.com
- Input Voltage Range : 100 V AC - 120 V AC
- Product Series : Switched Metered-by-Outlet PDU
- Phase : Single Phase
- Mount Type : Rack-mountable
- Package Contents :
- PDU81101 24-Outlet PDU
- 2 x Mounting Brackets
- 6 x M4x5 Screws
- 6 x M5x12 Screws/Washers
- 6 x M3x6 Screws
- Cord Retention Tray
- Cable Ties
- RJ45/DB9 Cable
- User's Manual Registration
- Download Cards
- Plug/Connector Type : NEMA L5-20P
- Receptacle Type : NEMA 5-20R
- Receptacle Detail : 24 x NEMA 5-20R
- Network (RJ-45) : Yes
