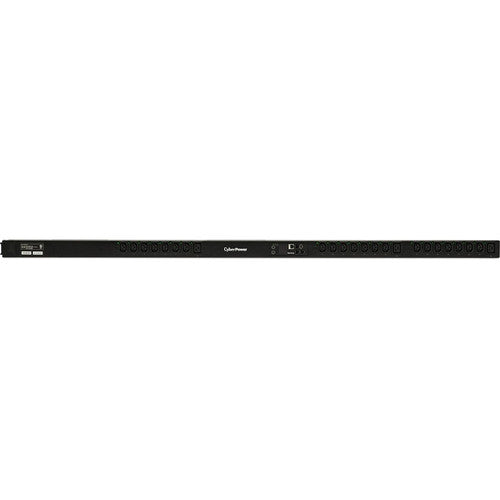

CyberPower PDU81104 PDU 24 prises PDU81104

Streamline capacity planning and power management with the CyberPower PDU81104 switched metered-by-outlet PDU. Ideal for data centers and network closets, this unit provides outlet-level power monitoring in real time, along with individual outlet control for remote reboots, load shedding, controlled power-cycling and more.

The PDU81104 supports inputs between 200-240V and includes 21 C13 and 3 C19 outlets. Other features include a rack mount design (0U), built-in web interface (RJ-45 ethernet connection), interactive digital display and power event notifications. The CyberPower PDU81104 is protected by a three-year limited warranty.

• Power Distribution
  Delivers AC power to servers, equipment, and connected devices via a power distribution unit.


• Switch-Free Design
  Safeguards against accidental power shut down.


• Switchable Outlets
  Provides local and remote control for individual and multiple outlets. Local control: turn on/turn off outlets and disable unused outlets. Remote control: restart outlets and devices, turn on/turn off, schedule power on/off sequencing, and disable unused outlets.


• Per Outlet Power Metering
  Provides information on the amount of power being drawn from each outlet, each circuit and the PDU as a whole.


• CyberPower Management Console
  A hardware interface built into Monitored and Switched PDUs. Its functionality includes the ability to switch PDU outlets on and off, reboot connected equipment locally or remotely, schedule power cycling of attached equipment, and perform other tasks, such as load monitoring and event logging


• Remote and Local Monitoring
  Enables offsite and onsite tracking of PDU vitals; provides outlet control for individual and networked clients.


• Automatic Event Notifications
  Provide immediate updates about power events via email, SMS text, or SNMP traps.


• Upgradeable Firmware
  Downloadable improvements (firmware updates) to programs that run the PDU.


• Digital Display
  Provides easy-to-read information about amperage, voltage, KW, IP address, and other PDU information.


• Network-Grade Plugs and Outlets
  Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.


• Long Input Power Cord
  Reaches distant power sources, allowing the PDU to be placed where it's needed.


• Cord Retention Tray
  Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.


• Durable Metal Housing
  Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.


• Three-Year Limited Warranty
  Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.

What's In The Box

PDU, 2 Mounting Brackets, 6 M4x5 Screws, 6 M5x12 Screws/Washers, 6 M3x6 screws, Cord Retention Tray, Cable Ties, RJ45/DB9 Cable, User's Manual Registration and Download Cards

• Energy Star : No
• Product Series : Switched Metered-by-Outlet PDU
• Phase : Single Phase
• Input Voltage : 230 V AC
• Management :
  • IPv4
  • TCP/IP
  • UDP
  • SNMPv1
  • HTTP
  • NTP
  • DNS
  • Telnet
  • DHCP
  • SMTP
  • FTP
  • IPv6
  • SNMPv3
  • HTTPs
  • SSH
  • SSL
  • TLS
  • LDAP(S)
  • RADIUS
  • Syslog
  • CLI
  • Windows AD
  • EnergyWise v1.2
• Rack Height : 0U
• Protection Type : Accidental Power Shutdown
• Input Current : 20 A
• PDU Type : Switched with Metered-by-Outlet
• Mount Type : Rack-mountable
• Package Contents :
  • PDU81104 24-Outlet PDU
  • 2 x Mounting Brackets
  • 6 x M4x5 Screws
  • 6 x M5x12 Screws/Washers
  • 6 x M3x6 Screws
  • Cord Retention Tray
  • Cable Ties
  • RJ45/DB9 Cable
  • User's Manual Registration
  • Download Cards
• Manufacturer Website Address : http://www.cyberpowersystems.com
• Input Voltage Range : 200 V AC - 240 V AC
• Environmentally Friendly : Yes
• Plug/Connector Type : NEMA L6-20P
• Environmental Certification : RoHS
• Manufacturer : CyberPower Systems, Inc
• Product Type : PDU
• Receptacle Type : IEC 60320 C19
• Limited Warranty : 3 Year
• Receptacle Detail : 3 x IEC 60320 C19
• Product Model : PDU81104
• Network (RJ-45) : Yes
• Country of Origin : China

• Energy Star : No
• Rack Height : 0U
• Environmentally Friendly : Yes
• Environmental Certification : RoHS
• Manufacturer : CyberPower Systems, Inc
• Product Type : PDU
• Limited Warranty : 3 Year
• Product Model : PDU81104
• Country of Origin : China
• Product Series : Switched Metered-by-Outlet PDU
• Management :
  • IPv4
  • TCP/IP
  • UDP
  • SNMPv1
  • HTTP
  • NTP
  • DNS
  • Telnet
  • DHCP
  • SMTP
  • FTP
  • IPv6
  • SNMPv3
  • HTTPs
  • SSH
  • SSL
  • TLS
  • LDAP(S)
  • RADIUS
  • Syslog
  • CLI
  • Windows AD
  • EnergyWise v1.2
• Input Voltage : 230 V AC
• Phase : Single Phase
• Input Current : 20 A
• Protection Type : Accidental Power Shutdown
• Mount Type : Rack-mountable
• PDU Type : Switched with Metered-by-Outlet
• Package Contents :
  • PDU81104 24-Outlet PDU
  • 2 x Mounting Brackets
  • 6 x M4x5 Screws
  • 6 x M5x12 Screws/Washers
  • 6 x M3x6 Screws
  • Cord Retention Tray
  • Cable Ties
  • RJ45/DB9 Cable
  • User's Manual Registration
  • Download Cards
• Manufacturer Website Address : http://www.cyberpowersystems.com
• Input Voltage Range : 200 V AC - 240 V AC
• Plug/Connector Type : NEMA L6-20P
• Receptacle Type : IEC 60320 C19
• Receptacle Detail : 3 x IEC 60320 C19
• Network (RJ-45) : Yes
