Description

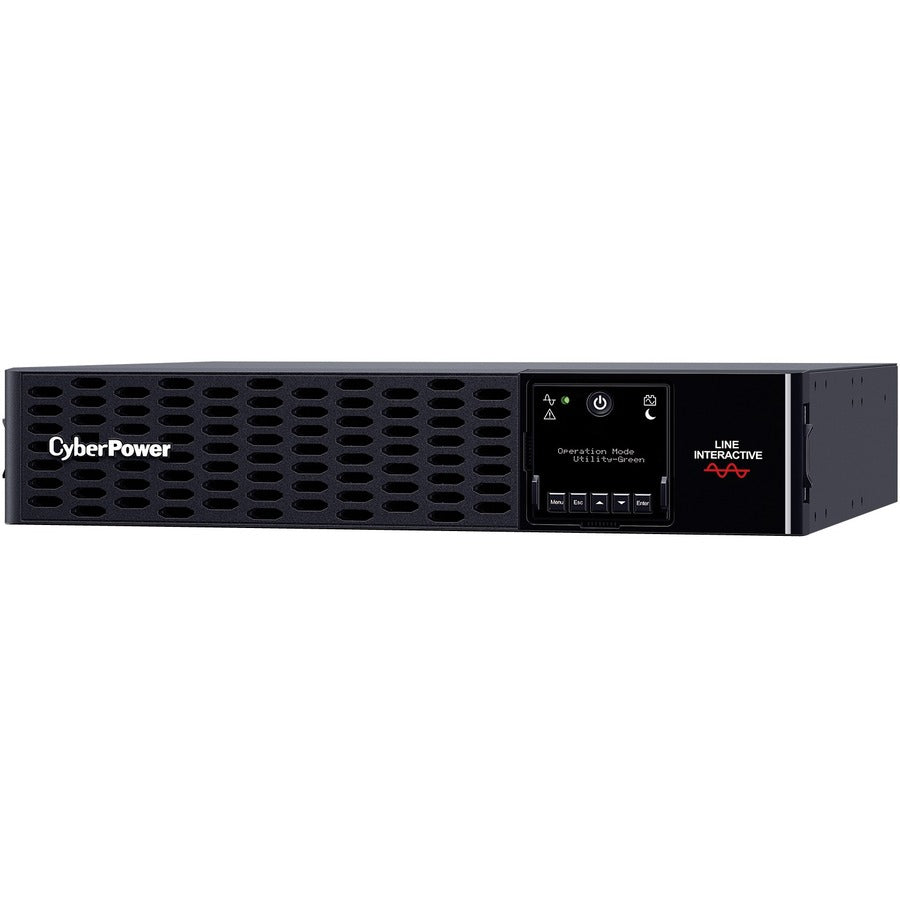

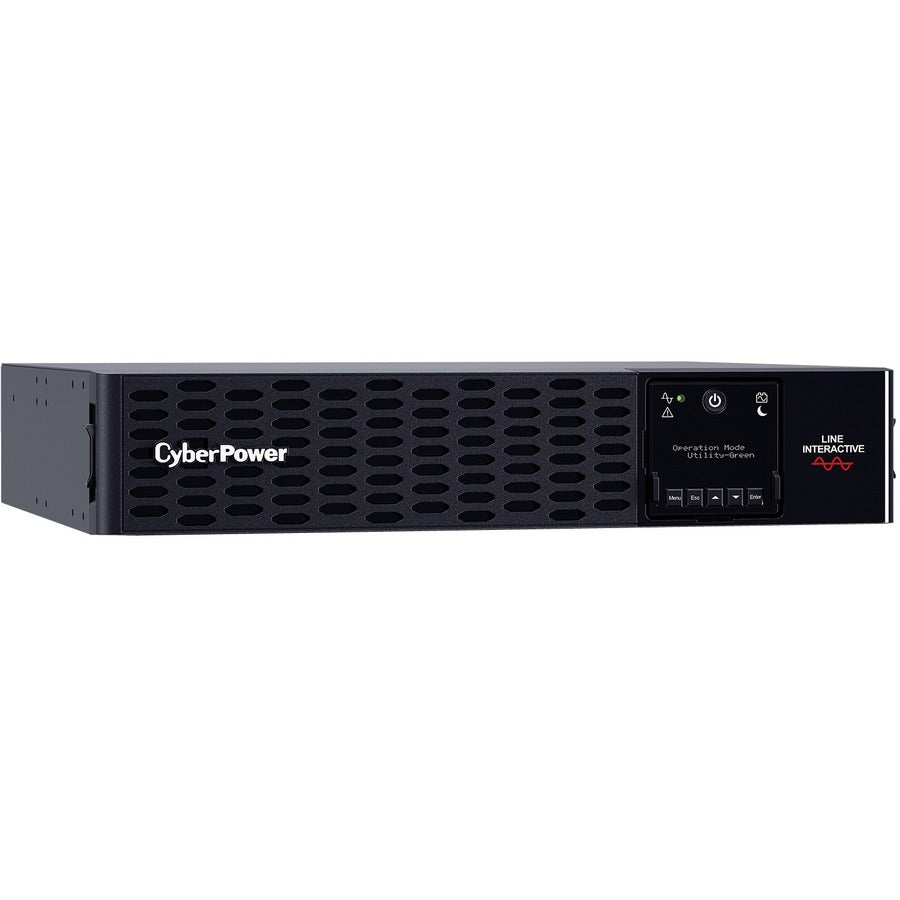

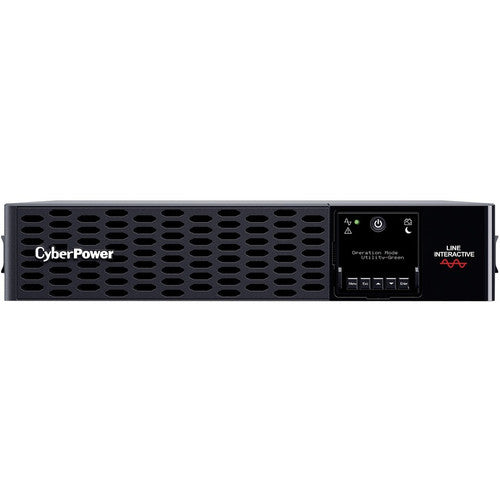

The PR2200RTXL2UN is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment.
The Smart App Sinewave PR2200RTXL2UN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR2200RTXL2UN also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.
This model accepts the BP48VP2U02 Extended Battery Module (EBM) for expanded runtime during power outages and includes pre-installed RMCARD205 network management card for remote management and control via a standard web browser or network management system.
With a ,400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR2200RTXL2UN.
- Capacity: 2200 VA / 2200 W
- Topology: Line Interactive
- Waveform: Sine Wave
- Output: 100-120 VAC ± 5%
- Plug type & cord: NEMA L5-30P, 10 ft. cord
- Outlet types: 8 � NEMA 5-20R
- Communication: USB, Serial, SNMP, Relay, EPO
- Management software: PowerPanel® Business
- Remote management: Yes, pre-installed RMCARD205
- Warranty: 3 year
- Input Voltage : 120 V AC
- AVR : Yes
- Manufacturer Website Address : http://www.cyberpowersystems.com
- Output Voltage : 120 V AC
- Product Condition : New
- Input Voltage Range : 75 V AC - 149 V AC
- Waveform Type : Sine Wave
- Backup/Run Time (Half Load) : 10 Minute
- Network Management : SNMP/HTTP Remote Monitoring
- Country of Origin : Philippines
- Color : Black
- Number of Battery & Surge Outlets : 8
- Replaceable Battery : Yes
- Energy Star : Yes
- Rack Height : 2U
- Battery Chemistry : Lead Acid
- Environmentally Friendly : Yes
- Typical Battery Recharge Time : 3 Hour
- Backup/Run Time (Full Load) : 3.20 Minute
- Plug/Connector Type : NEMA L5-30P
- Environmental Certification : RoHS
- Form Factor : Rack/Tower
- Load Capacity : 2.20 kVA
- Manufacturer : CyberPower Systems, Inc
- Product Type : Line-interactive UPS
- Receptacle Type : NEMA 5-20R
- Limited Warranty : 3 Year
- Receptacle Detail : 8 x NEMA 5-20R
- Product Model : PR2200RTXL2UN
- Energy Star : Yes
- Rack Height : 2U
- Product Condition : New
- Environmentally Friendly : Yes
- Environmental Certification : RoHS
- Manufacturer : CyberPower Systems, Inc
- Product Type : Line-interactive UPS
- Limited Warranty : 3 Year
- Product Model : PR2200RTXL2UN
- Country of Origin : Philippines
- Input Voltage : 120 V AC
- AVR : Yes
- Output Voltage : 120 V AC
- Manufacturer Website Address : http://www.cyberpowersystems.com
- Input Voltage Range : 75 V AC - 149 V AC
- Waveform Type : Sine Wave
- Backup/Run Time (Half Load) : 10 Minute
- Network Management : SNMP/HTTP Remote Monitoring
- Color : Black
- Number of Battery & Surge Outlets : 8
- Replaceable Battery : Yes
- Battery Chemistry : Lead Acid
- Typical Battery Recharge Time : 3 Hour
- Backup/Run Time (Full Load) : 3.20 Minute
- Plug/Connector Type : NEMA L5-30P
- Load Capacity : 2.20 kVA
- Form Factor : Rack/Tower
- Receptacle Type : NEMA 5-20R
- Receptacle Detail : 8 x NEMA 5-20R
