PDU ATS commuté CyberPower PDU44002 PDU 10 prises PDU44002

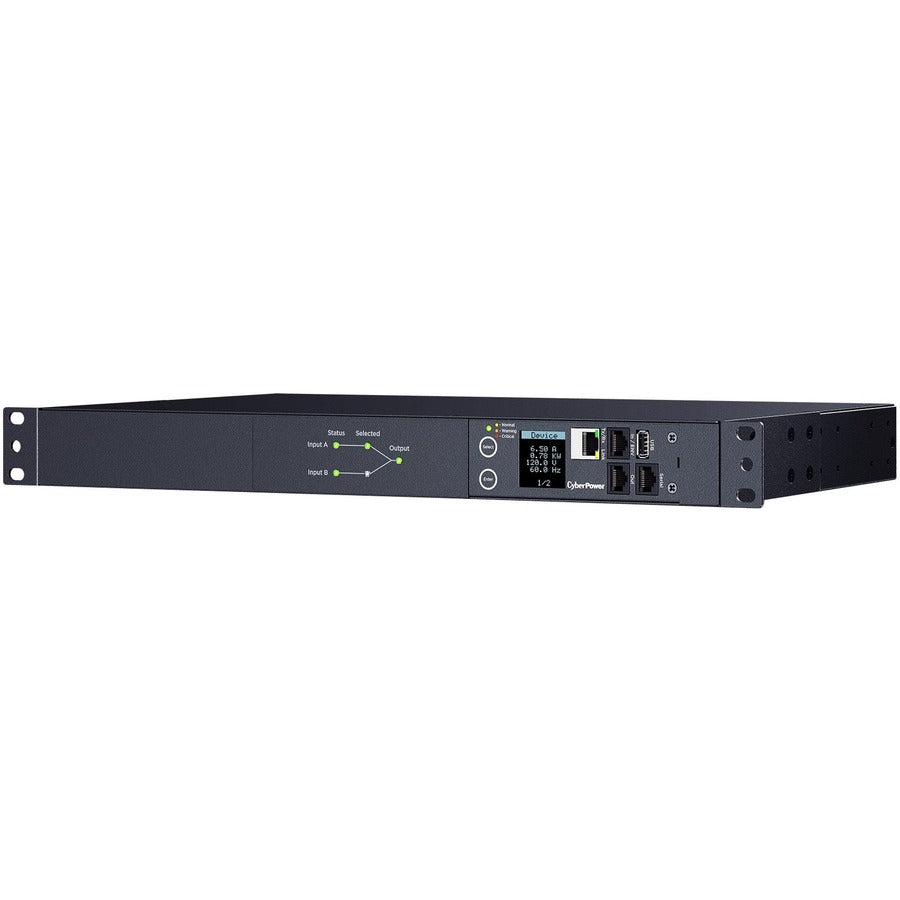

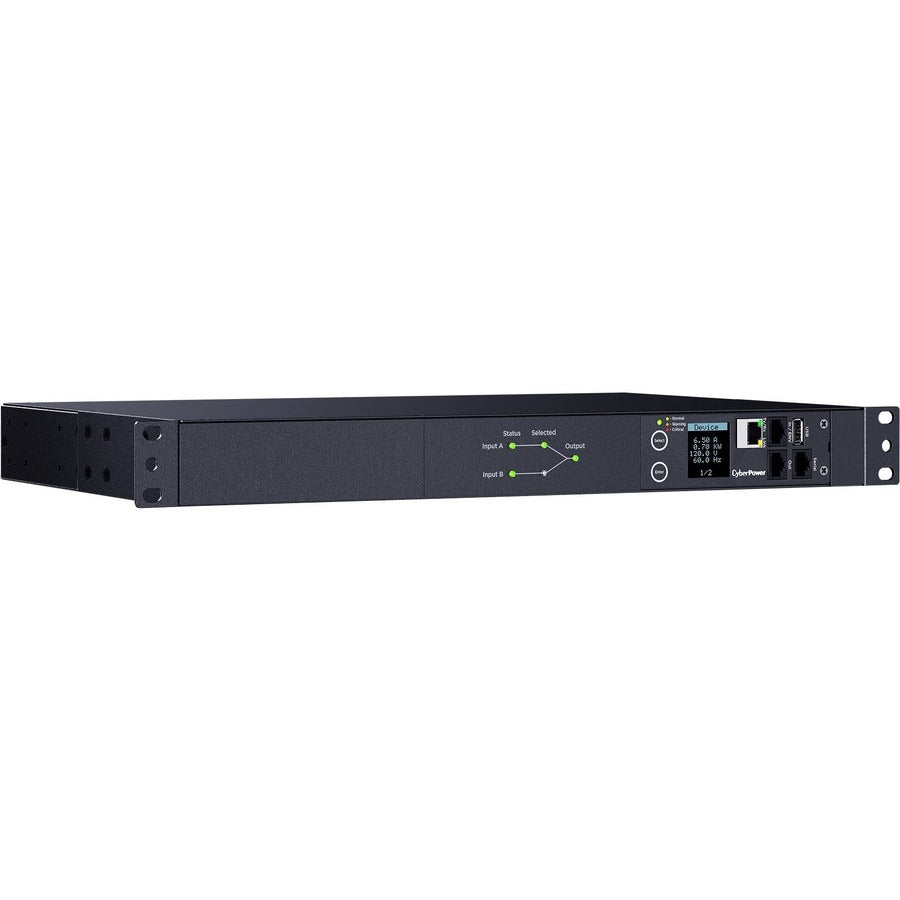

Ensure continued operation of critical devices with the CyberPower PDU44002 Switched ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. Additionally, this unit offers real time remote and local monitoring and outlet management.

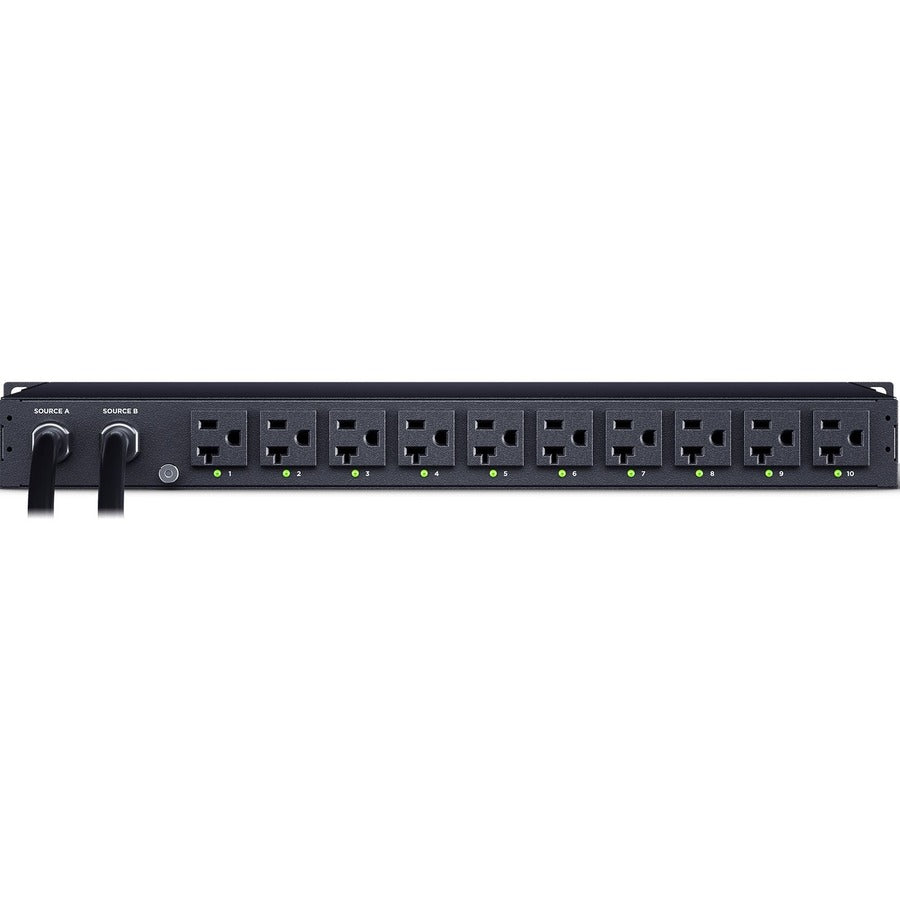

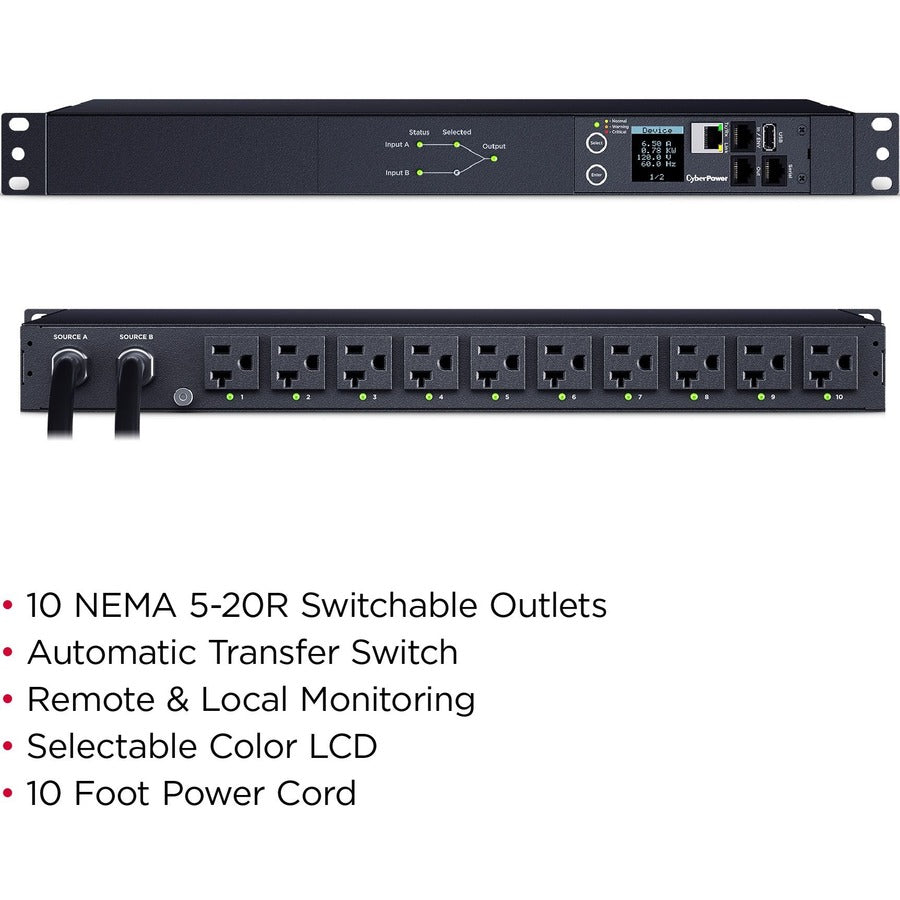

The PDU44002 supports inputs between 100-120V and includes (10) NEMA 5-20R outlets. Dual NEMA L5-20P power cords (L5-20P to non-locking 5-20P adpaters included) are plugged into separate power sources (A and B), and information about each power source is clearly displayed on the front panel LED indicator lights. Other features include an LCD with selectable background color, built-in web interface, and power event notifications. The CyberPower PDU44002 is protected by a three-year limited warranty.

Key features

• Management : IPv4 TCP/IP UDP SNMPv1 HTTP NTP DNS Telnet DHCP SMTP FTP IPv6 SNMPv3 HTTPs SSH SSL TLS LDAP(S) RADIUS Syslog CLI Windows AD
• IPv4
• TCP/IP
• UDP
• SNMPv1
• HTTP
• NTP
• DNS
• Telnet
• DHCP
• SMTP
• FTP
• IPv6
• SNMPv3
• HTTPs
• SSH
• SSL
• TLS
• LDAP(S)
• RADIUS
• Syslog
• CLI
• Windows AD

Specifications

• Automated notifications: Email, SMS Text, and SNMP Trap
• Phase: Single
• Amps: 20A (Derated to 16A)
• Volts: 100-120V
• Frequency: 50/60Hz
• Plug type: 2 x NEMA L5-20P (L5-20P to 5-20P adapter included)
• Outlets: 10 x NEMA 5-20R
• Size: 1U Rackmount
• Warranty: 3 year
• Receptacle Detail: 10 x NEMA 5-20R
• PDU Type: Switched
• Product Series: Switched ATS PDU
• Design: Modular
• Plug/Connector Detail: 2 x NEMA L5-20P
• Package Contents: Switched ATS PDU PDU44002 10-Outlets PDU L5-20P to non-locking 5-20P Adapter
• Mount Type: Rack-mountable
• Manufacturer: CyberPower Systems, Inc
• Product Model: PDU44002
• Input Voltage Range: 100 V AC - 120 V AC
• Rack Height: 1U
• Receptacle Type: NEMA 5-20R
• Environmentally Friendly: Yes
• Product Color: Black
• Input Voltage: 120 V AC
• Limited Warranty: 3 Year
• Network (RJ-45): Yes
• Plug/Connector Type: NEMA L5-20P
• Product Type: PDU
• Output Voltage: 120 V AC
• Output Voltage Range: 100 V AC - 120 V AC
• Mounting Orientation: Horizontal
• Input Current: 20 A
• Country of Origin: China
• Remote Outlet Switching: Yes
