Description

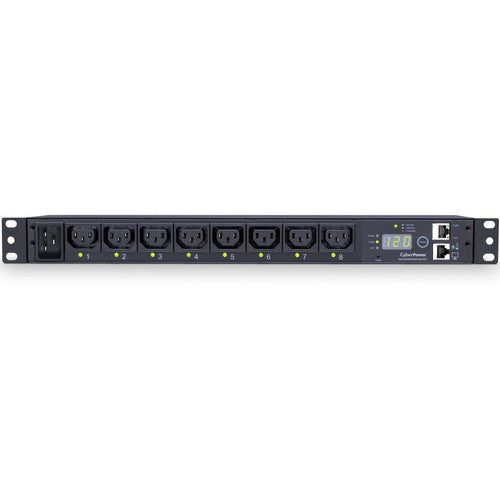

The CyberPower (PDU20SWHVIEC8FNET) 8-outlet 1U rack mount switched power distribution unit (PDU) provides 200-240V 20A output. It distributes power to 8 IEC-320 C13 receptacles from a single IEC-320 C20 plug, with unfiltered electrical pass-through. Outlets can be managed individually over the network, using CyberPower Management Console and the RJ45 Ethernet port for local network connection, or locally using the LCD. The LCD displays the electrical current of connected equipment in amps and can be toggled to display input voltage, power being consumed in watts, and the PDU's IP address. The CyberPower Management Console offers remote management of the unit: monitoring PDU vitals as well as controlling outlets and networked clients.
This unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted horizontally or vertically, includes a cord retention tray and is UL60950_1 & FCC Class A certified. A three-year warranty is standard.
- Input: IEC-320 C20 Plug with 10-ft. power cord
- Controllable Receptacles - 8 IEC-320 C13 (8 Front)
- 208V, 20A Switched PDU with SNMP Network interface
- LED Digital Display (Load, Voltage, KW, and IP Address)
- Energy Star : No
- Product Series : Switched
- Input Voltage : 230 V AC
- Rack Height : 1U
- PDU Type : Switched
- Mount Type : Rack-mountable
- Package Contents :
- Switched PDU RM 1U PDU20SWHVIEC8FNET 20A 8-Outlet
- Mounting Brackets (2 Sets)
- Cord Retention Tray
- Cord Organizers
- User Manual
- Manufacturer Website Address : http://www.cyberpowersystems.com
- Output Voltage : 240 V AC
- Environmentally Friendly : Yes
- Plug/Connector Type : IEC 60320 C20
- Environmental Certification : RoHS
- Manufacturer : CyberPower Systems, Inc
- Product Type : PDU
- Receptacle Type : IEC 60320 C13
- Limited Warranty : 3 Year
- Receptacle Detail : 8 x IEC 60320 C13
- Product Model : PDU20SWHVIEC8FNET
- Network (RJ-45) : Yes
- Length : 4.41" (112.01 mm)
- Energy Star : No
- Product Series : Switched
- Rack Height : 1U
- Mount Type : Rack-mountable
- Environmentally Friendly : Yes
- Environmental Certification : RoHS
- Manufacturer : CyberPower Systems, Inc
- Product Type : PDU
- Limited Warranty : 3 Year
- Product Model : PDU20SWHVIEC8FNET
- Length : 4.41" (112.01 mm)
- Input Voltage : 230 V AC
- PDU Type : Switched
- Package Contents :
- Switched PDU RM 1U PDU20SWHVIEC8FNET 20A 8-Outlet
- Mounting Brackets (2 Sets)
- Cord Retention Tray
- Cord Organizers
- User Manual
- Output Voltage : 240 V AC
- Manufacturer Website Address : http://www.cyberpowersystems.com
- Plug/Connector Type : IEC 60320 C20
- Receptacle Type : IEC 60320 C13
- Receptacle Detail : 8 x IEC 60320 C13
- Network (RJ-45) : Yes
