Description

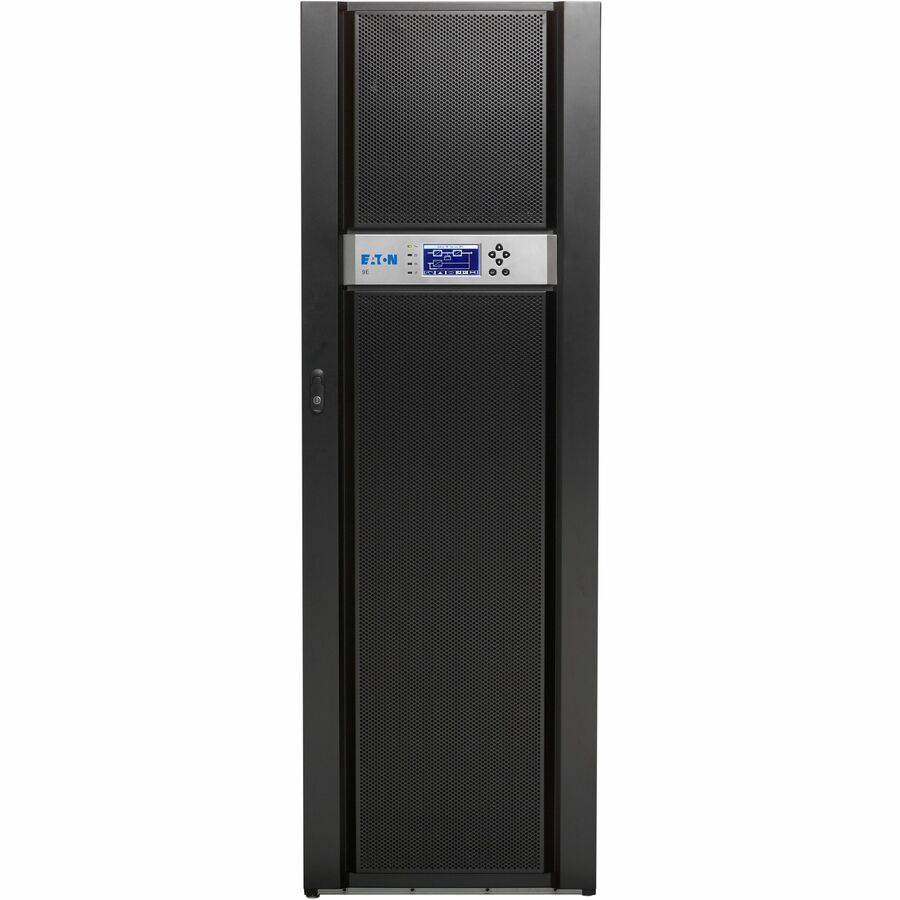

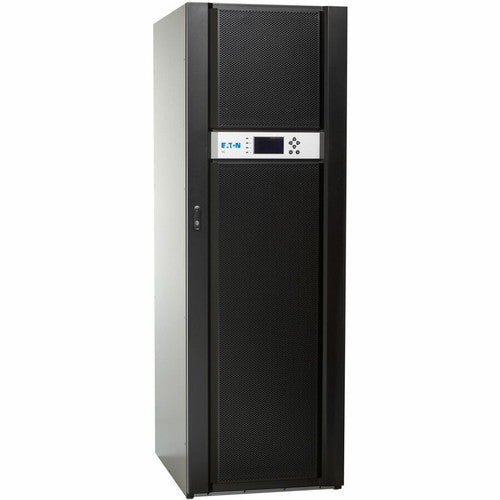

The Eaton® 93E UPS gives IT managers an easy way to manage the power in their data center, without having to worry about cost, space or downtime. Developed specifically for IT managers, the 93E confronts typical data center problems head on. It addresses ROI, energy costs, remote management, and efficiency, giving you more time to focus on other important data center issues.
Lower operating costs through energy-efficient performance
- Delivers up to 98 percent efficiency
- Up to 7 percent more efficient than competitive units
- Qualifies for local utility rebates and incentives
Maximum runtime using internal batteries
- Delivers up to 21 minutes of runtime
- Delivers up to 138 minutes of runtime when paired with Extended Battery Cabinets (EBC)
- Allows you to scale up as you grow
- Provides greater runtime at lower costs
Detachable maintenance bypass options guarantee zero downtime
- Allows you to redirect power during UPS maintenance and servicing
- Reduces repair time and costs
Occupy less floor space with a compact footprint
- Up to 35 percent smaller than similar competitive solutions
- Allows dedication of more floor space to revenue-producing equipment
- Industry-leading runtimes mean fewer accessories
Lowest total cost of ownership
The 93E is the clear choice if you're seeking to maximize your return on investment (ROI). Delivering the lowest TCO of any UPS in its class, the 93E offers a unique blend of energy, space and installation savings. The 93E can decrease your TCO by more than ,85,000 over its 12-year lifespan when compared to current competitive offerings.
Energy-efficient design
The 93E is capable of achieving up to a 98 percent efficiency rating, making it one of the most energy-efficient UPSs in its class - and it still provides maximum load protection. Unlike most high-efficiency UPSs, the 93E:
- Provides surge suppression for the load
- Detects the location of faults (utility or load) and takes the appropriate action
- Switches to double-conversion operation in less than 4 ms
The 93E will save more than ,71,292 in electricity and cooling costs over the life of the product when compared to a 60 kVA UPS operating at 91 percent efficiency.
. .- Receptacle Type : Hardwired
- Network Management : RS-232
- EPO Port : Yes
- Serial Port : Yes
- Input Voltage : 120 V AC,230 V AC
- Product Series : 93E
- Input Frequency : 40 Hz,60 Hz,50 Hz,72 Hz
- Form Factor : Tower
- Manufacturer Website Address : http://www.eaton.com/EatonCom/Markets/NorthAmerica
- Backup/Run Time (Full Load) : 10 Minute
- Overload Protection : Yes
- Battery Capacity : 9000 mAh
- Plug/Connector Type : Hard Wire 4-wire
- Product Type : Double Conversion Online UPS
- Load Capacity : 40 kVA/32 kW
- Replaceable Battery : Yes
- Battery Chemistry : Lead Acid
- Application/Usage : Data Center,Server,Network,Telecommunication,Switch,Medical Equipment,Banking,Infrastructure,Mission Critical Equipment,IT
- Manufacturer : Eaton Corporation
- Maximum Operating Temperature : 86°F (30°C)
- Output Voltage : 208 V AC,220 V AC
- Battery Characteristics : Maintenance-free/Sealed
- Display : LCD
- Status Indicators :
4 x LEDs for notice and alarm
