Description

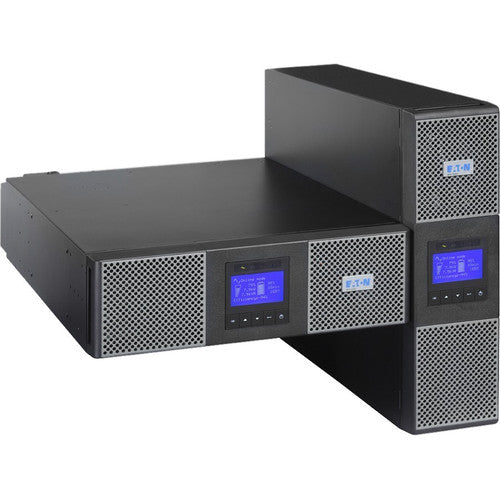

10kVA/9kW Battery Backup for IT Installations and Edge Networks This 9PX split-phase online double-conversion UPS system delivers both 120V and 208V output without the expense or extra weight of a bulky transformer or distribution module. The 9PX10KSP fits into 6U of rack space and provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable IT equipment or destroy data. The 9PX10KSP is superlative power management for education, commercial, financial or healthcare networking components, including Cisco switches and servers. Expandable Internal Battery Backup Keeps You Operational Through Power Outages The field-replaceable, hot-swappable valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing. You can also connect up to four extended battery modules (9PXEBM360SP, sold separately) for hours of extended runtime. Included Gigabit Network Interface Offers 24/7 Remote Access The NETWORK-M2 Gigabit network card enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M2 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. The optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions. NEMA Outlets Protect Your Connected Components One L6-30R and two L14-30R managed outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. The 9PX10KSP also supports hardwired output.
- Optional extended battery modules allow extended runtime to keep equipment powered
- Interactive LCD interface keeps you updated on critical load information in real time
- Exclusive ABM technology with 3-stage charging increases internal battery life by 50%
- Included NETWORK-M2 Gigabit network card enables full remote access and control
- Keeps equipment running during outages to allow time for file saves and safe shutdown
- Receptacle Detail : 1 x NEMA L6-30R,2 x NEMA L14-30R
- Software Included : Intelligent Power Software Suite
- Serial Port : Yes
- Form Factor : Rack/Tower
- Package Contents :
- 9PX 10000VA Tower/Rack Mountable Dual Conversation Online UPS
- 4-post Rail Kit
- Tower Pedastals
- RS-232 Cable
- USB Cable
- Intelligent Power Software Suite CD
- Manufacturer Website Address : http://www.eaton.com/EatonCom/Markets/NorthAmerica
- Load Capacity : 10 kVA/9 kW
- Energy Star : Yes
- Battery Chemistry : Lead Acid
- Manufacturer : Eaton Corporation
- Product Model : 9PX
- Maximum Operating Temperature : 104°F (40°C)
- Rack Height : 6U
- Battery Characteristics : Maintenance-free, Sealed
- Receptacle Type : NEMA L6-30R,NEMA L14-30R,Hardwired
- Environmental Certification : RoHS
- Environmentally Friendly : Yes
- USB : Yes
- Product Color : Black,Silver
- Input Voltage : 127 V AC,240 V AC
- Limited Warranty : 2 Year
- Network (RJ-45) : Yes
- Plug/Connector Type : Hardwired
- Product Type : Double Conversion Online UPS
- Hot Swappable : Yes
- Output Voltage : 127 V AC,240 V AC
- Country of Origin : United States
- Status Indicators : 4 x LEDs
