Description

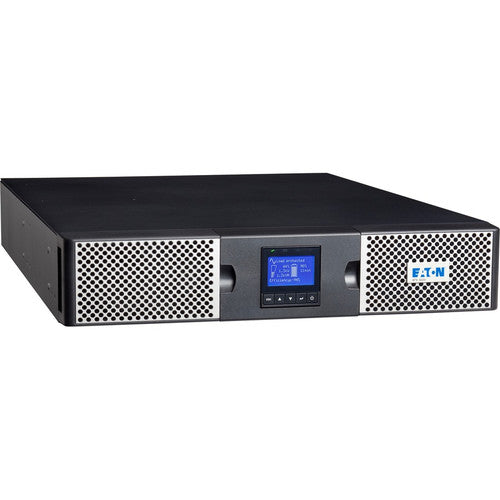

3kVA/2.7kW/120V Battery Backup for IT Installations and Edge Networks This 9PX rack-mount online double-conversion UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable IT equipment or destroy data. The 9PX3000RTN is superlative power management for education, commercial, financial or healthcare networking components, including Cisco switches and servers. Expandable Internal Battery Backup Keeps You Operational Through Power Outages The field-replaceable, hot-swappable valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing. You can also connect up to four extended battery modules (9PXEBM72RT, sold separately) for hours of extended runtime. Included Gigabit Network Interface Offers 24/7 Remote Access The NETWORK-M2 Gigabit network card enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M2 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. The optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions. NEMA Outlets Protect Your Connected Components One L5-30R and six 5-20R managed outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four 5-20R outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads.
- Optional extended battery modules allow extended runtime to keep equipment powered
- Interactive LCD interface keeps you updated on critical load information in real time
- NEMA outlets split into separate switched banks for managed load shedding
- Included NETWORK-M2 Gigabit network card enables full remote access and control
- Keeps equipment running during outages to allow time for file saves and safe shutdown
- Receptacle Type : NEMA L5-30R,NEMA 5-20R
- Receptacle Detail : 1 x NEMA L5-30R,6 x NEMA 5-20R
- Environmental Certification : RoHS,ENERGY STAR 1.0
- Environmentally Friendly : Yes
- Input Voltage : 100 V AC,110 V AC,120 V AC,125 V AC
- Product Series : 9PX
- Transfer Time : 0 ns
- Limited Warranty : 2 Year
- Form Factor : Rack/Tower
- Package Contents :
- 9PX3000RTN 3000VA Tower/Rack Mountable UPS
- Network-M2 Web/SNMP Card
- Safety Manual
- User Manual
- 4-Post Rail Kit
- Tower Pedestals
- RS-232 Serial Cable
- USB Cable
- Intelligent Power Software Suite CD
- Manufacturer Website Address : http://www.eaton.com/EatonCom/Markets/NorthAmerica
- Product Type : Double Conversion Online UPS
- Load Capacity : 3 kVA/2.70 kW
- Energy Star : Yes
- Manufacturer : Eaton Corporation
- Product Model : 9PX3000RTN
- Output Voltage : 100 V AC,110 V AC,120 V AC,125 V AC
- Rack Height : 2U
- Country of Origin : China
