Description

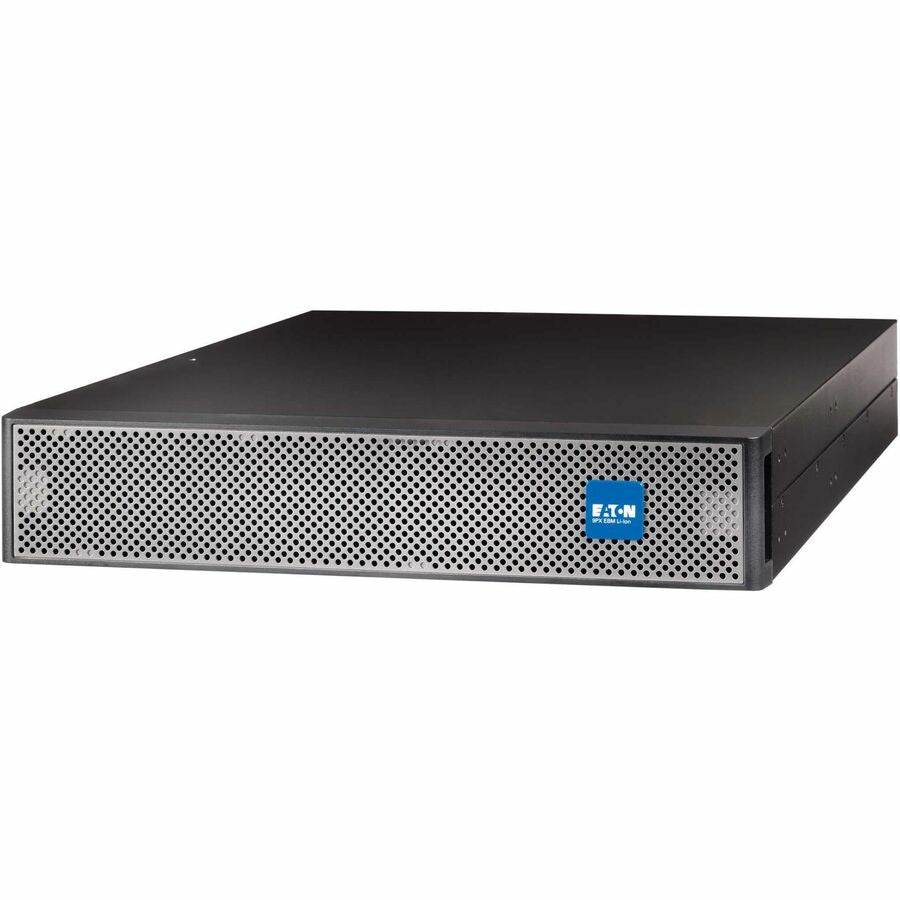

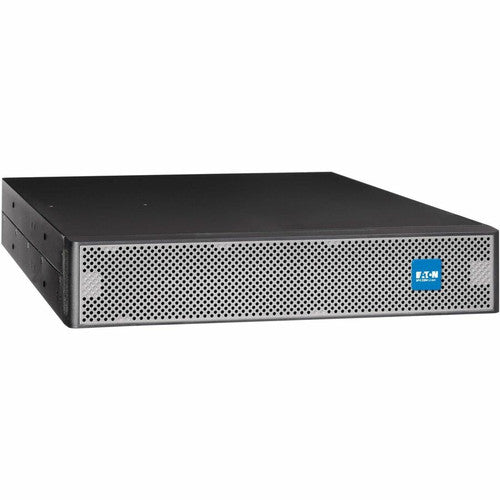

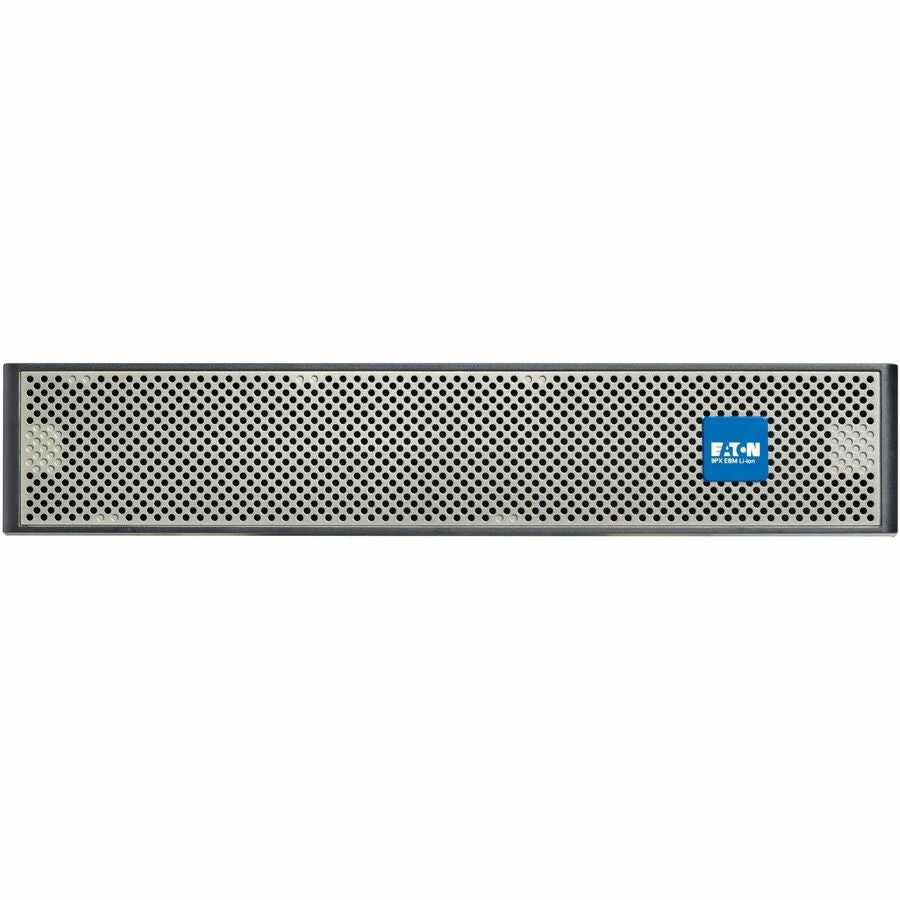

Lithium-ion extended battery module (EBM) provides more runtime for the Eaton 9PX6K-L UPS system.
Features | Backup Battery Module Gives Your Compatible Eaton UPS System Extended Runtime
The 9PXEBM192RT-L offers extended battery runtime when used in conjunction with Eaton's 9PX6K-L UPS system. It can also be daisy-chained for a maximum of four matching battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation.
Supports 2U Rack or Tower Installation
This backup battery pack's multi-use form factor supports mounting in 2U of space in EIA-standard 19- inch open frame racks or enclosures using the included 4-post rail kit and mounting brackets. Tower stands from a compatible UPS support optional upright configuration of the battery pack. For 2-post rack mounting, an optional RK2PC mounting kit (sold separately) is required for each UPS, EBM, PPDM or transformer.
- Connects to expandable 9PX6K-L UPS system for extended runtime
- Daisy-chain connector supports additional battery packs for even longer runtime

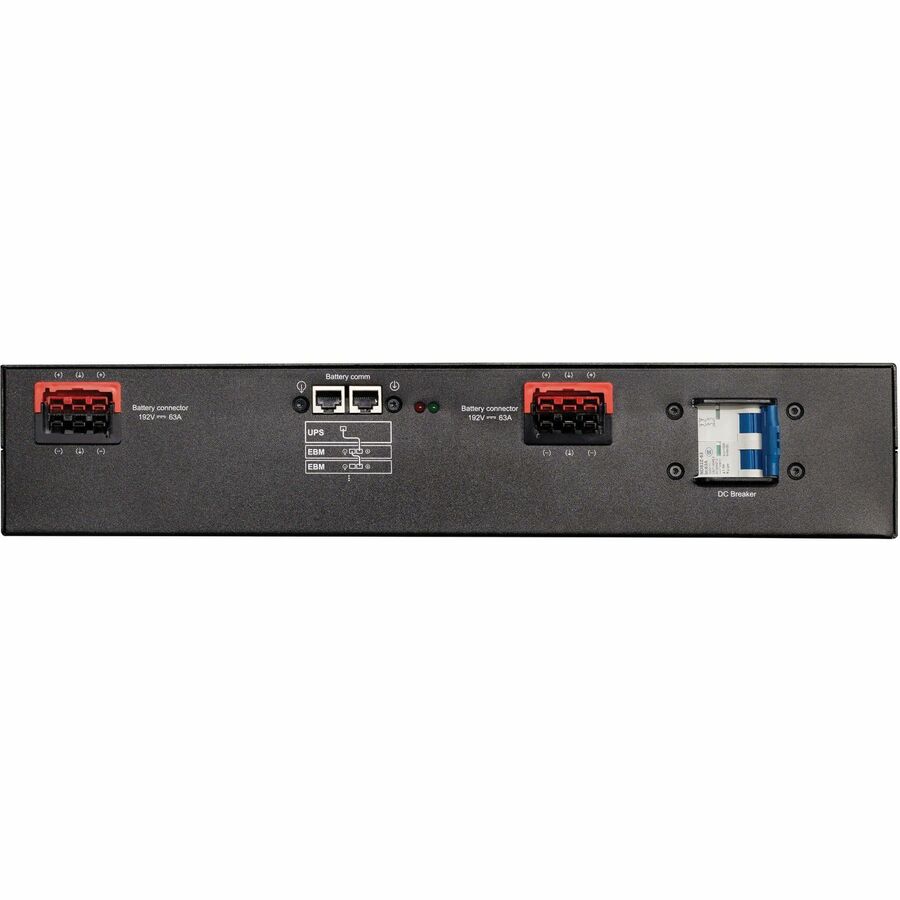

- Includes heavy-gauge cabling with high-current 192V DC connectors
- Supports 2U rack mounting or upright tower installation
- Environmental Certification : RoHS
- Environmentally Friendly : Yes
- Product Series : Extended Battery Modules
- Limited Warranty : 5 Year

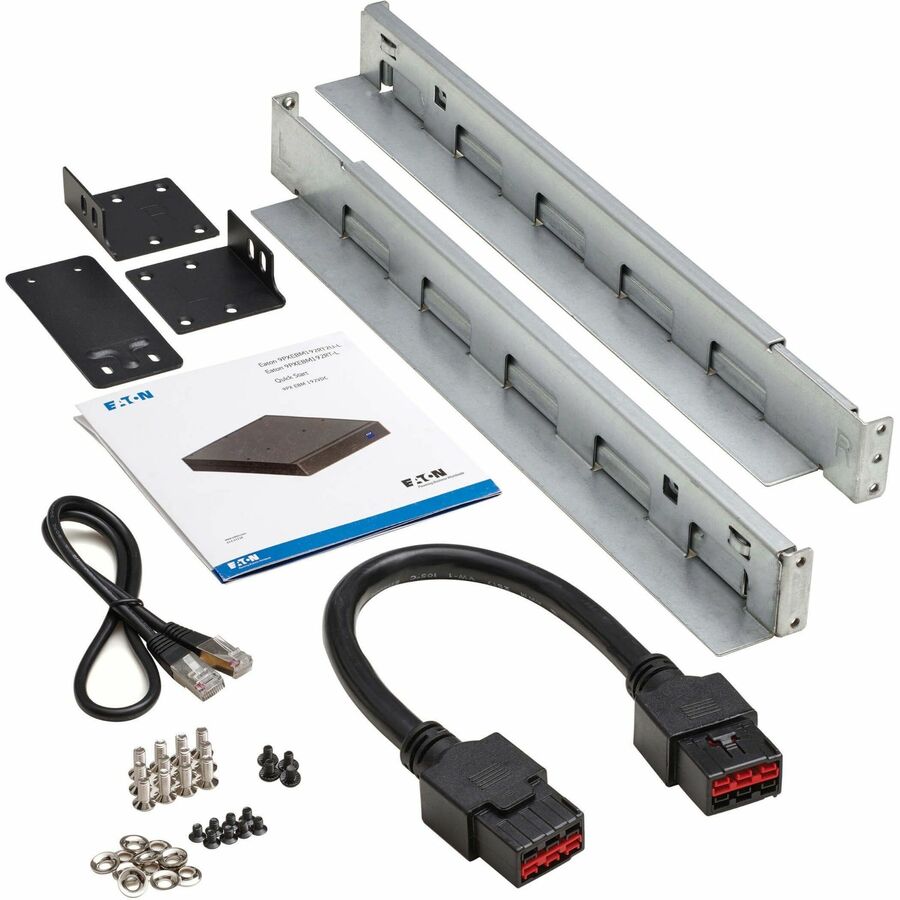

- Package Contents :
- Extended Battery Modules Battery Unit
- External Battery Cable, 1 ft. (0.3 m)
- Rack-Mounting Hardware
- Quick Start Guide
- Manufacturer Website Address : http://www.eaton.com/EatonCom/Markets/NorthAmerica
- Product Type : Battery Unit
- Battery Chemistry : Lithium Ion (Li-Ion)
- Manufacturer : Eaton Corporation
- Product Model : 9PXEBM192RT-L
- Hot Swappable : Yes
- Compatibility :
Eaton 9PX6K-L UPS
- Output Voltage : 192 V DC
