Description
Features | Single-Phase Managed PDU Ideal for Data Center Managers with Large-Scale Distributed IT

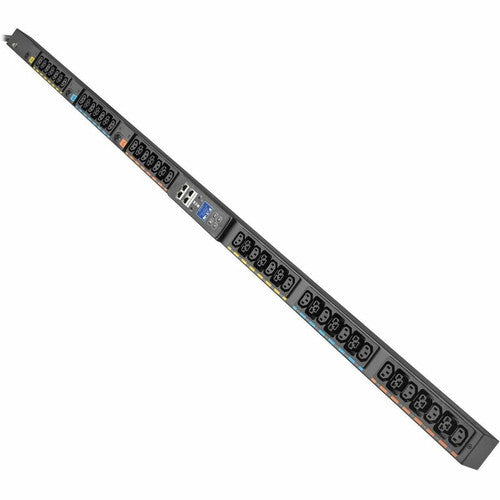

The EVMAL630X G4 Rack PDU is ideal for streamlining PDU procurement and deployment within a 42U rack in an enterprise data center, colocation data center or distributed IT infrastructure. Equipped to meet even the most diverse data center rack power needs, the EVMAL630X delivers versatile, enterprise-quality power distribution.
Market-Leading Cybersecurity Ensures Your Data Is Kept Safe
Chain-of-trust encryption and secure firmware boot capability prevent the EVMAL630X PDU from being a cyberattack vulnerability point on a network. An embedded, hot-swappable gigabit network module (GNM) offers enhanced management and cybersecurity, including zero-trust architecture and zero-touch provisioning. The EVMAL630X is compatible with select Eaton Brightlayer Data Centers suite software solutions that enable extensive automation and remote management to shorten response times to power issues and ensure timely updates for stronger cybersecurity.
Remote Management Saves Time and Money

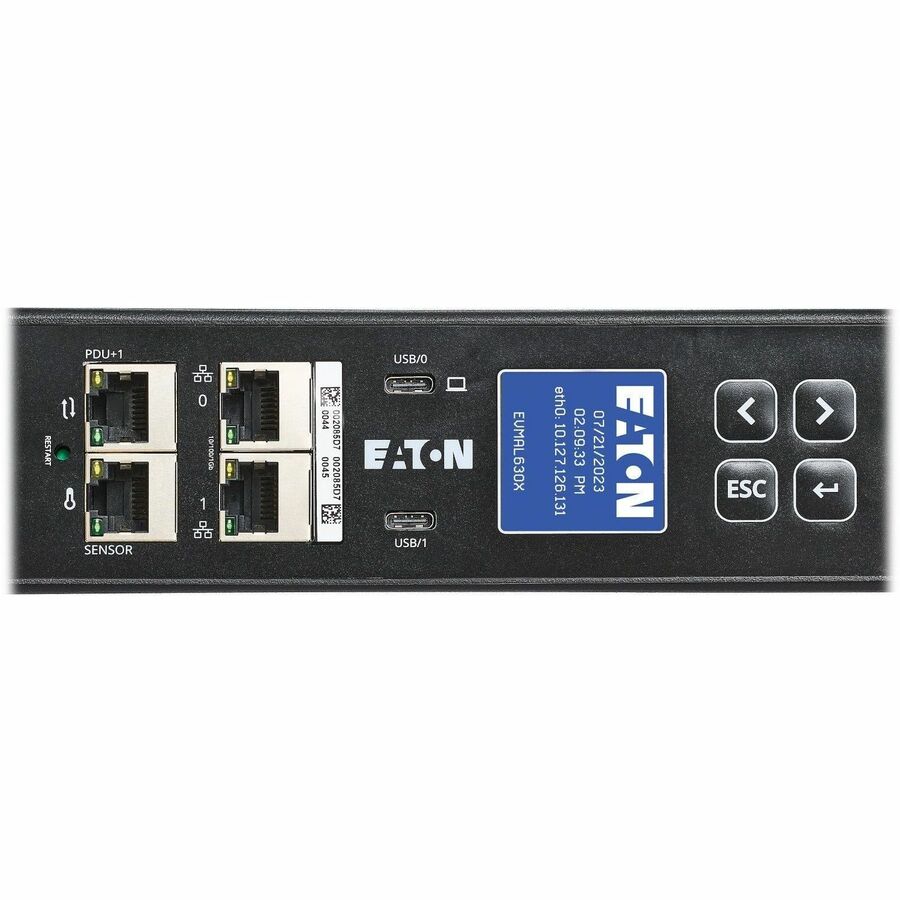

The GNM with multi-color screen supports performance management software for real-time reports, trend charts, dashboards and alerts that are prioritized by severity, as well as remote troubleshooting and automated responses during power events. The EVMAL630X is compatible with optional environmental sensors (sold separately) that provide alerts about temperature, humidity and dry-contact device connections.
42 Outlets Give You Plenty of Power Options

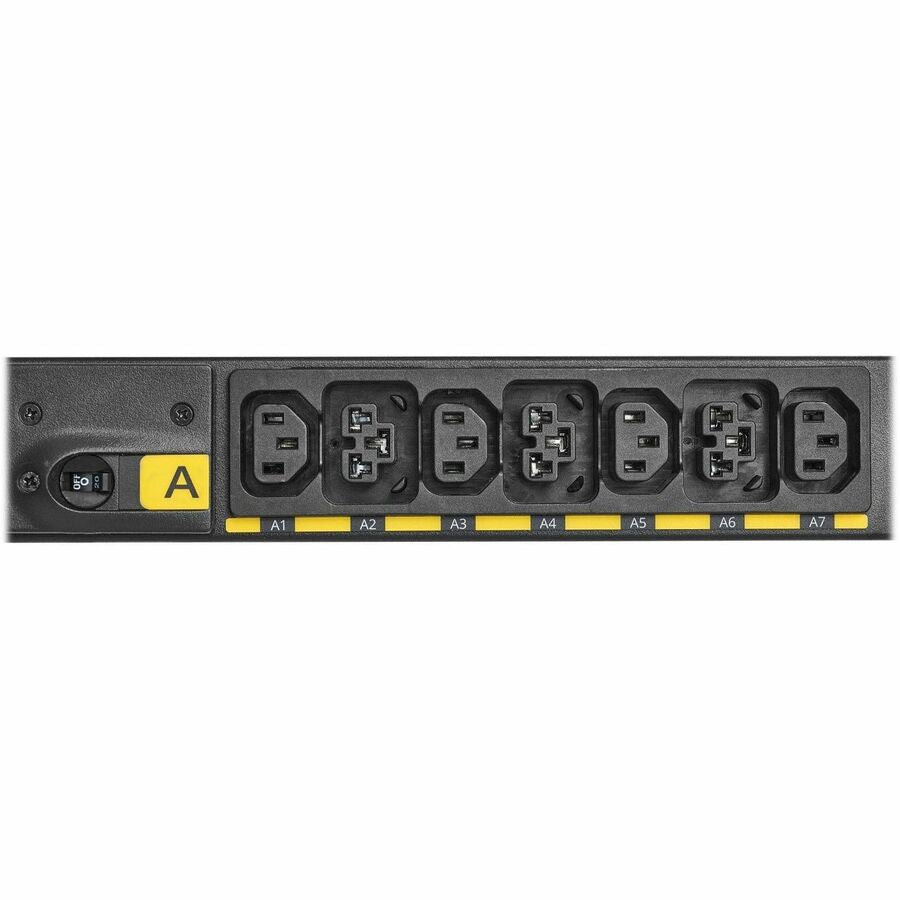

The EVMAL630X features 24 C13 outlets, which accept C14 connectors, and 18 high-retention C39 combo outlets, which accept both C14 and C20 connectors, adding flexibility to deployments and reducing the quantity of PDUs you will need to purchase and install.
Outlet-Level Control Boosts Performance and Efficiency
All 42 outlets provide metering, monitoring and switching for granular power data and precision control of power delivery. The outlets are evenly distributed into six color-coded load banks, each two sections with their own circuit breaker, to improve load balancing and organize connections in a crowded rack.
Convenient Box-to-Rack Installation

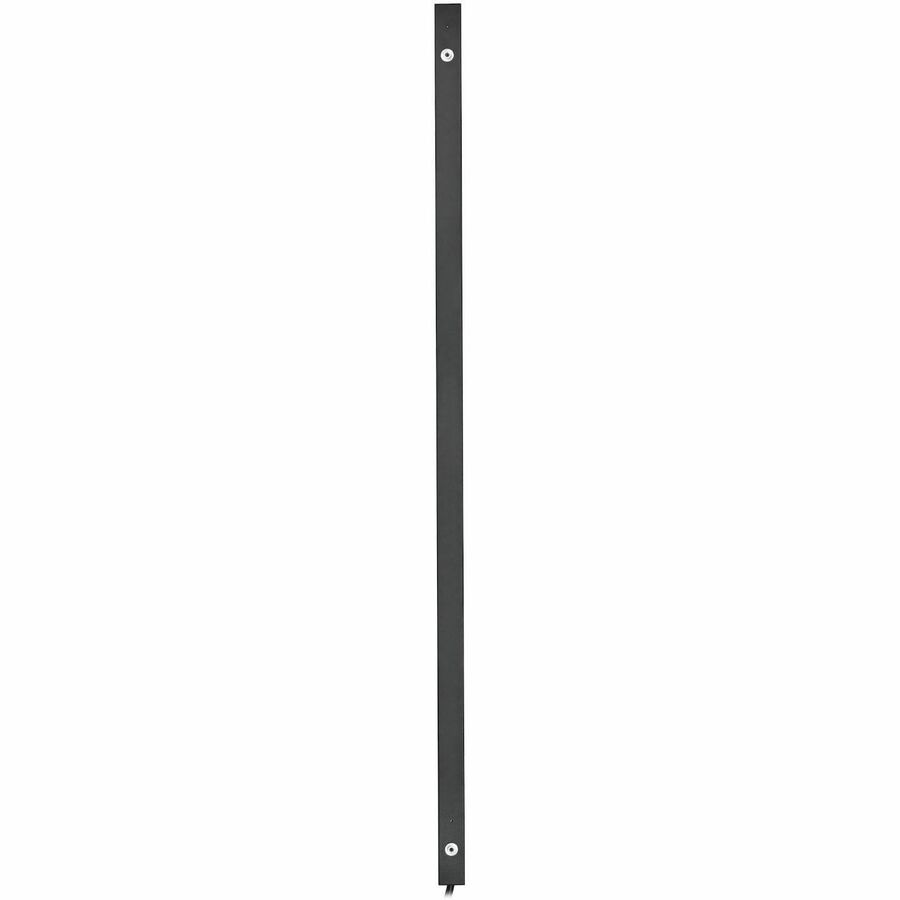

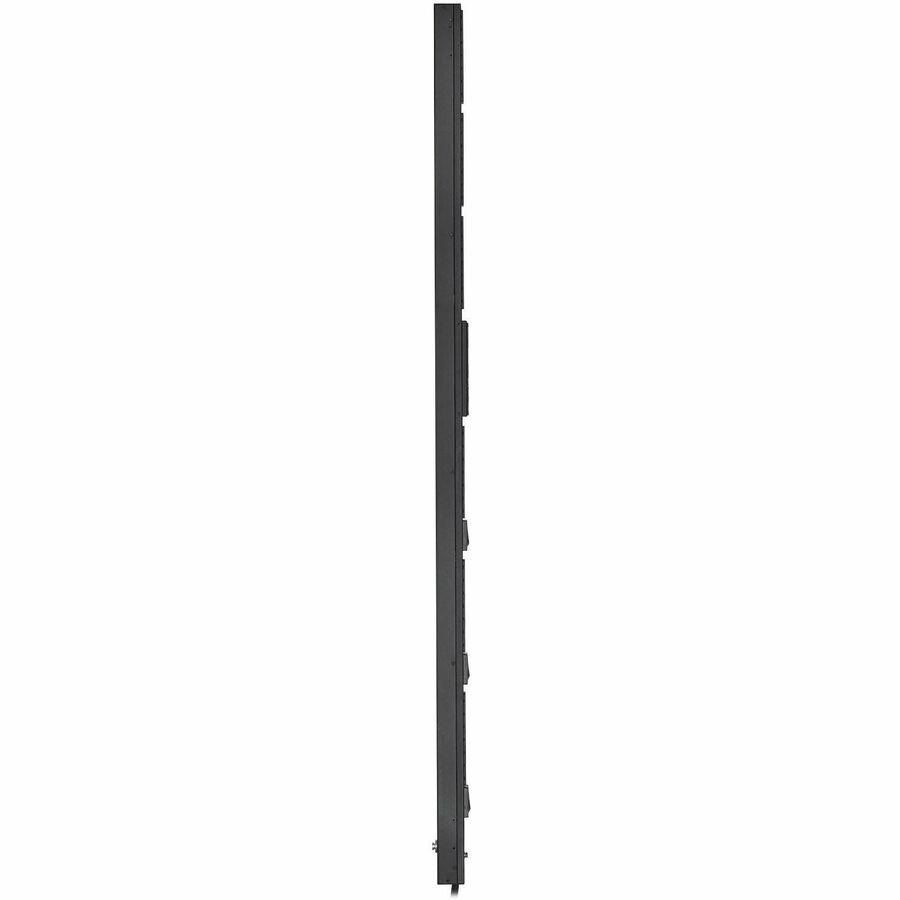

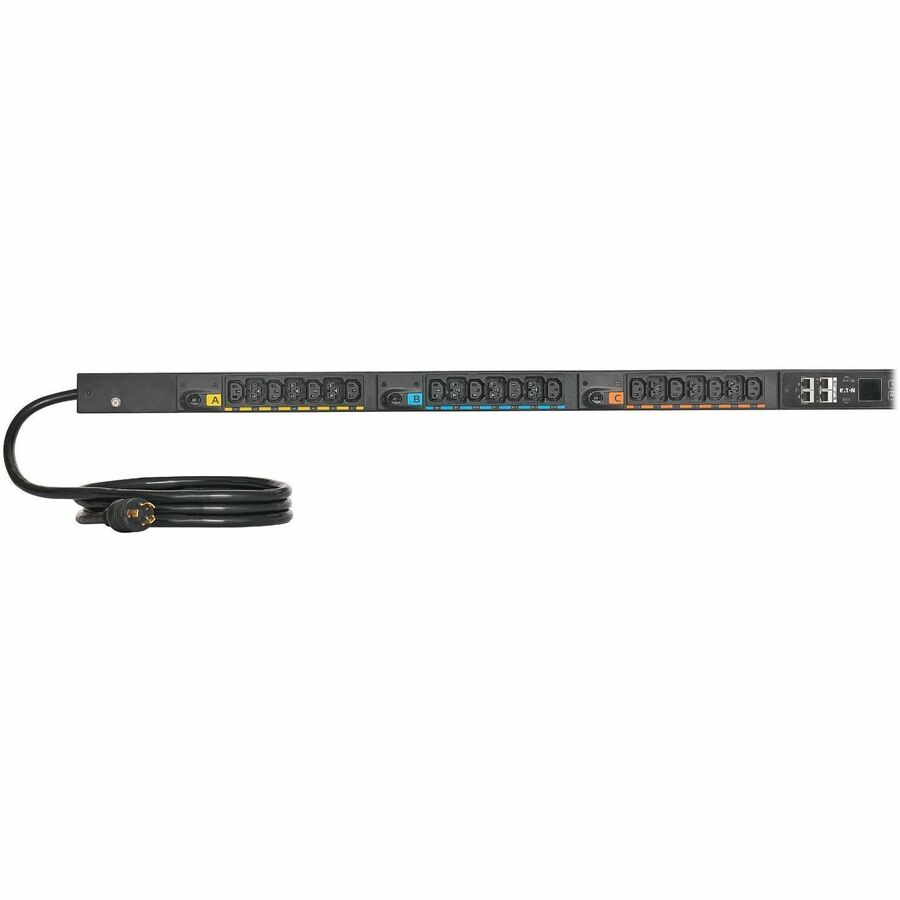

This EVMAL630X PDU features toolless mounting buttons that allow front- or side-facing rack installation, depending on your rack's layout and your power needs. The 10-foot power cord with L6-30 input connects to a compatible AC source. Low-profile circuit breakers are flush with the lightweight aluminum chassis, and the narrow two-inch width saves space within the rack for revenue-generating equipment. You can cascade up to 40 EVMAL630X models with each model maintaining its own individual IP address from a single network connection point.
. .- Receptacle Detail : 24 x IEC 60320 C13,18 x IEC 60320 C39
- Phase : Single Phase
- PDU Type : Managed
- Product Series : G4
- Form Factor : Vertical
- Package Contents :
- G4 EVMAL630X 42-Outlets PDU
- Mounting Buttons
- Manufacturer Website Address : http://www.eaton.com/EatonCom/Markets/NorthAmerica
- Remote Outlet Switching : Yes
- Mount Type : Rack-mountable,Button Mount
- Manufacturer : Eaton Corporation
- Product Model : EVMAL630X
- Features : LCD Display
- Maximum Operating Temperature : 140°F (60°C)
- Rack Height : 0U
- Receptacle Type : IEC 60320 C13,IEC 60320 C39
- Environmental Certification : RoHS
- Environmentally Friendly : Yes
- Power Rating (VA) : 5.80 kVA
- Power Rating (Watt) : 5 kW
- Product Color : Black
- Input Voltage : 230 V AC
- Management :
- SNMP
- Network Management Card
- Limited Warranty : 3 Year
- Minimum Operating Temperature : 32°F (0°C)
- Network (RJ-45) : Yes
- Plug/Connector Type : NEMA L6-30P
- Cord Length : 10 ft
- Product Type : PDU
- Protection Type : Circuit Breaker
- Application/Usage : Data Center,IT Equipment
- Output Voltage : 208 V AC
- Mounting Orientation : Vertical/Toolless
- Input Current : 30 A
