Description

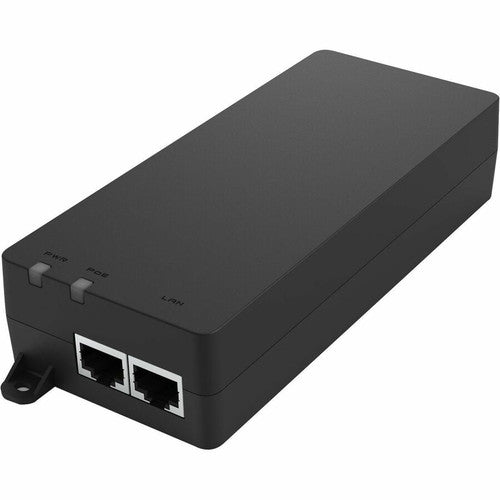

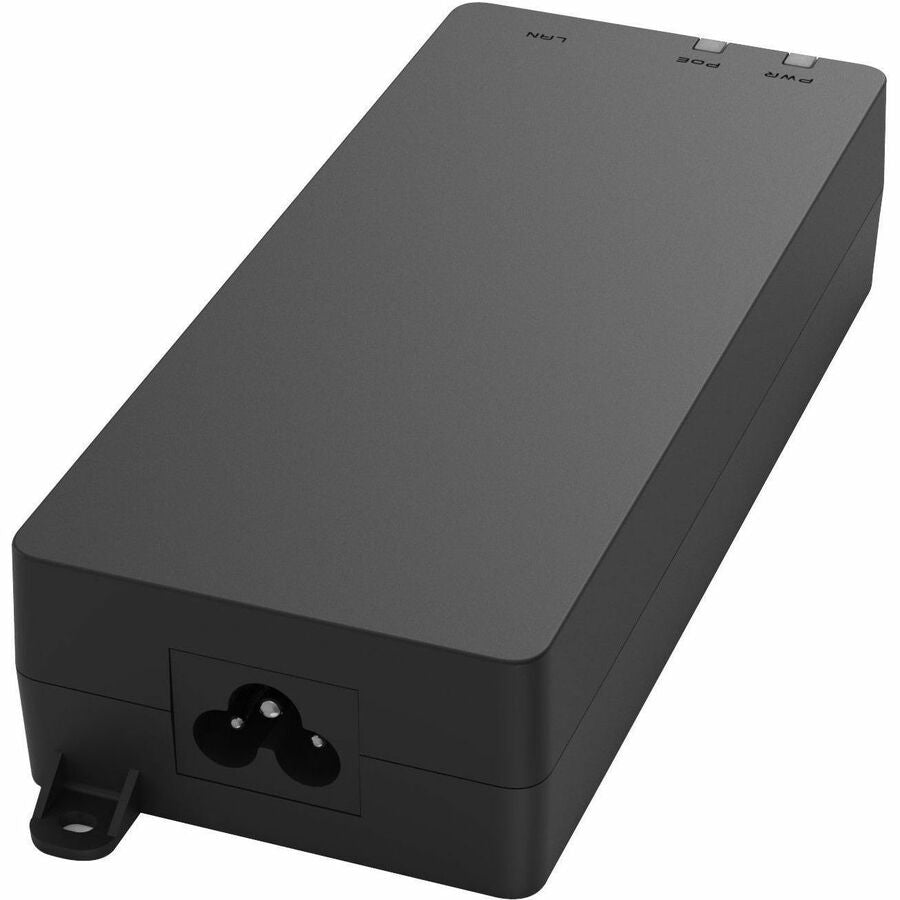

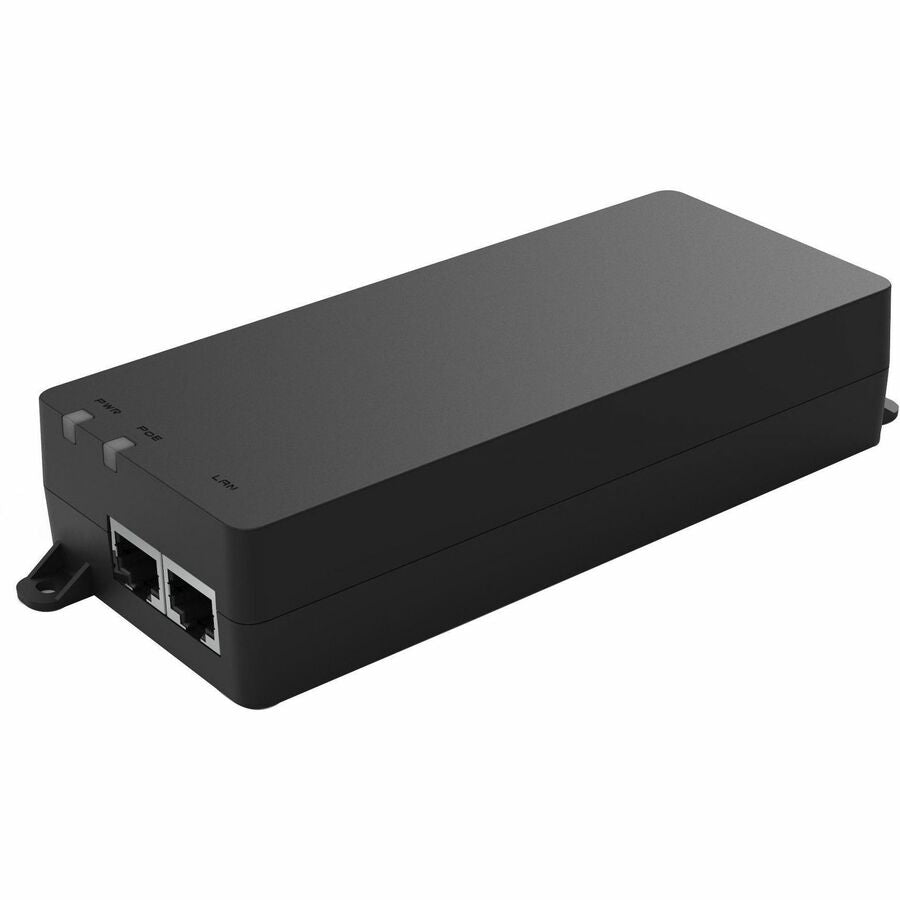

The EnGenius EPA5090XBT PoE Injector delivers 90-watts of power and 10Gb data communication to compatible network devices up to 328 feet (100m) over Cat5e cable. Compact design with IEEE802.3bt compliance offers easy installation while providing built-in power protection to preserve valuable equipment.
- IEEE 802.3bt Type 3 & 4 compliant
- IEEE 802.3af/at backward compatible
- Backward compatible for legacy PoE while future proofing network with up to 10Gb bandwidth
- Supports 10/100/1000 Mbps and 2.5/5/10 Gbps applications
- Output power up to 90W over four pairs with auto-detection on power requirement
- Leverage energy efficient PoE of up to 90W with full power capabilities
- Single-port PoE Midspan Injector flexible design allows for either desktop or surface-mount use
- Fan-less design ideal for silent operation
- Simple plug-and-play installation
- Certifications & Standards :
- IEC 62328-1: 2014
- UL 62328-1
- FCC Subpart 15 Class B
- EN 55032: 2012 / AC: 2013
- EN 55024: 2010
- IEEE 802.3af/at/bt
- Input Voltage : 120 V AC,230 V AC
- Maximum Input Current : 950 mA
- Limited Warranty : 1 Year
- Packaged Quantity : 1
- Output Ports : 1 x 10/100/1000Base-x
- Package Contents :
- EPA5090XBT PoE Injector
- 1 x Quick Installation Guide (Printed on side of Box)
- 1 x Power Cord - 16 inches (40.64cm)
- Manufacturer Website Address : http://www.engeniustech.com
- Product Type : PoE Injector
- Length : 5.90" (149.86 mm)
- Input Ports : 1 x 10/100/1000Base-T
- Protection Type : Surge Protection,Over Current,Over Voltage,Short Circuit
- Manufacturer : EnGenius Technologies, Inc
- Product Model : EPA5090XBT
- Maximum Output Power : 90 W
