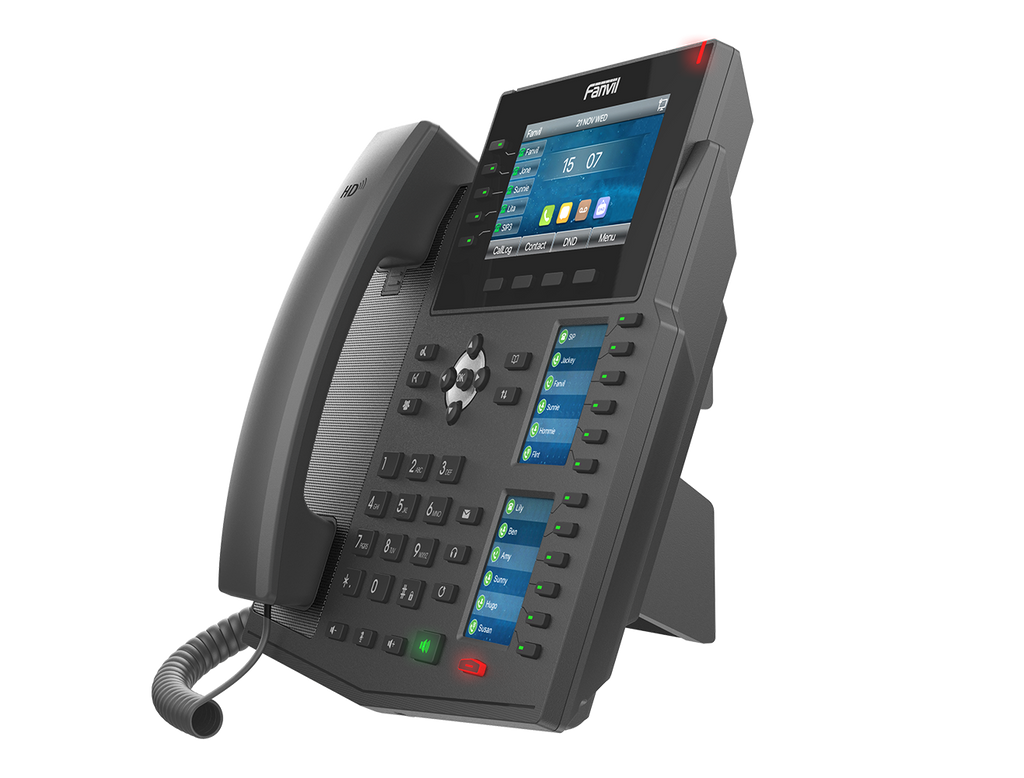

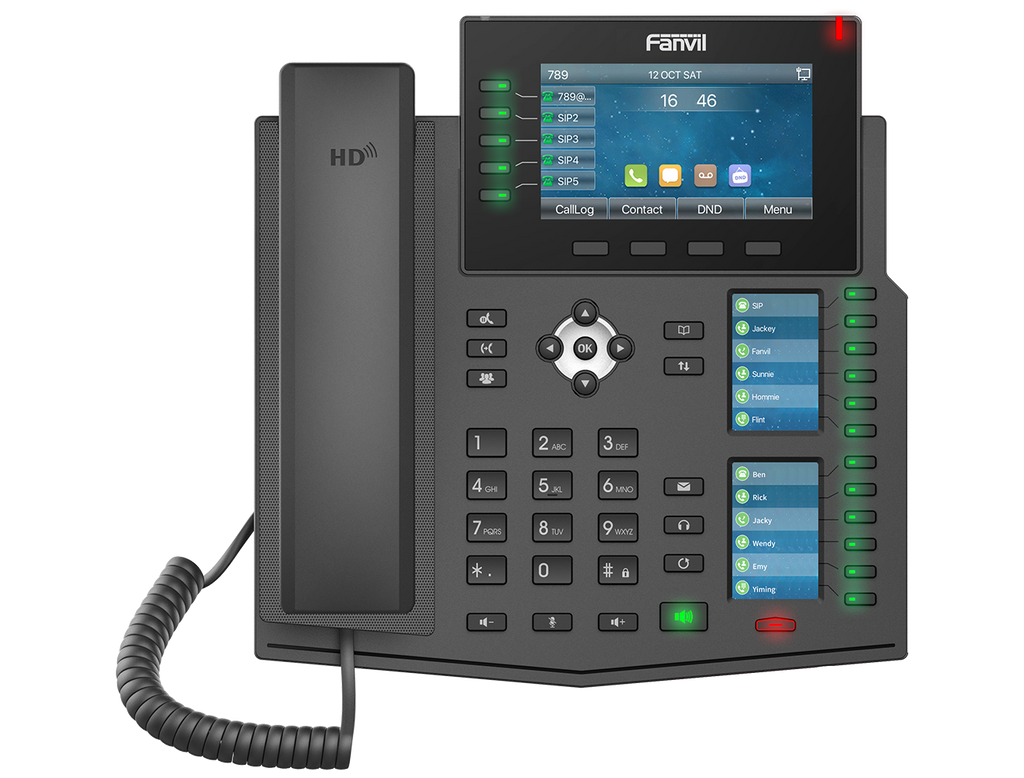

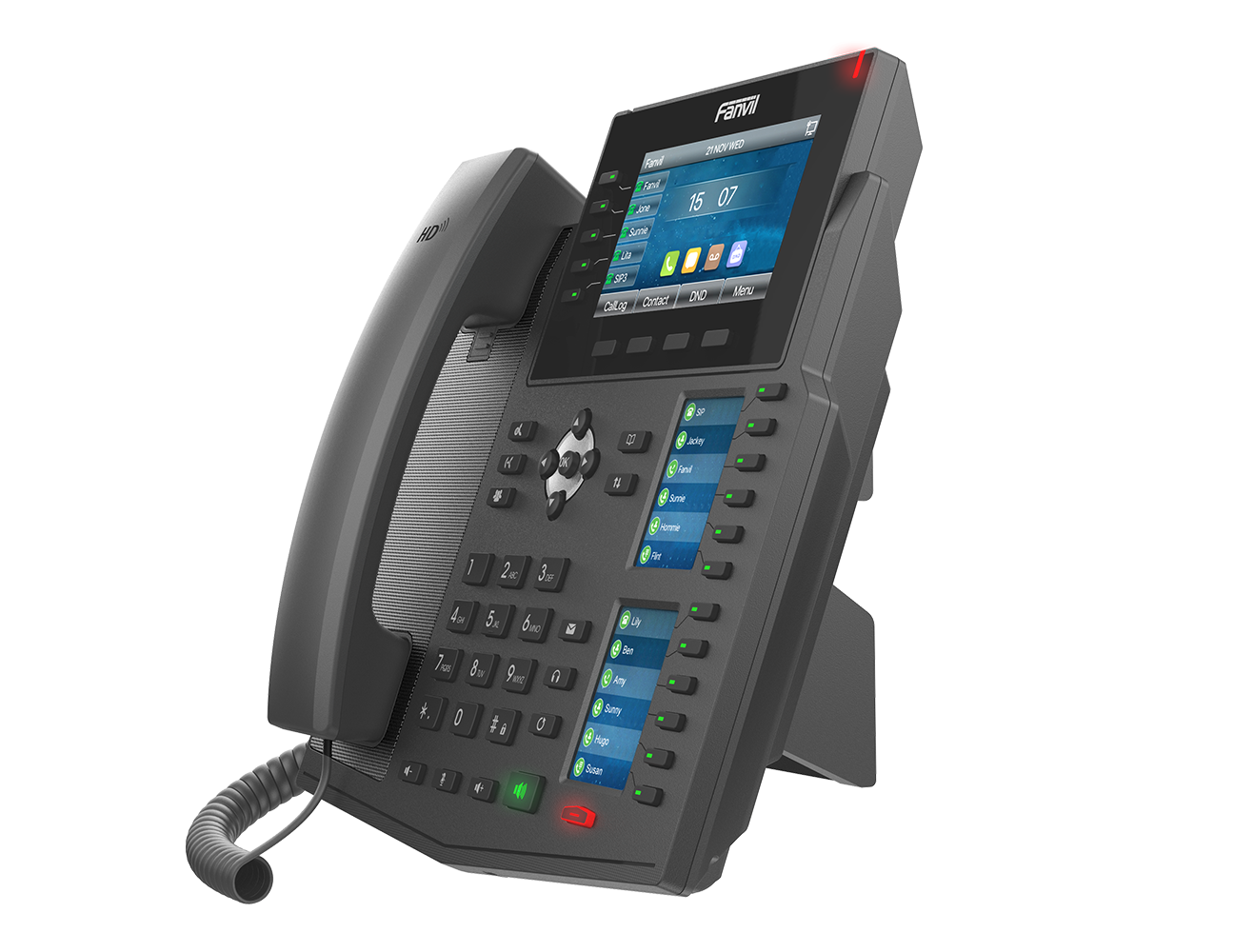

X6U is an enterprise IP Phone featuring 4.3-inch main color screen and two 2.4-inch extended screens, HD voice, gigabit Ethernet, 20 SIP lines, PoE, built-in Bluetooth, 6-way audio conference and other extended features like EHS headset. It provides the high-quality and convenient experience for users.

Fanvil X6U-V2 Executive level IP Phone Features

• 4.3-inch main color screen and two 2.4-inch extended screens for DSS keys
• HD audio on speakerphone and handset
• Support 6-way audio conference
• 5 Line keys on the main screen
• 12 DSS keys on the extended screen, up to 60 DSS keys via 5 pages
• Built-in Bluetooth 4.2, support Bluetooth headset; support WiFi Dongle
• Support EHS wireless headset
• Dual Gigabit ports, integrated PoE
• Stand with 2 adjustable angles of 45

Generic

• 20 SIP Lines
• HD voice
• PoE enabled
• 3 LCDs (Main + DSS)
• Intelligent DSS keys
• Handset / hands-free / headset mode
• Desktop stand / wall-mounted (need an additional wall hanging parts)
• Optional external power supply

Phone Functions

• Local phonebook (2000 entries)
• Remote phonebook (XML/LDAP, 2000 entries)
• Call logs (in/out/missed, 1000 entries)
• Block/Allow List Call Filter
• Screen saver
• Voice message waiting indication (VMWI)
• Programmable DSS/soft keys
• Network time synchronization
• Built-in bluetooth4.2 : support Bluetooth headset/ Bluetooth of mobile device
• Support Wi-Fi Dongle (Via WF20)
• Support Plantronics wireless headset (through Plantronics APD-80 EHS cable)
• Support Jabra wireless headset (through Fanvil EHS20 EHS cable)
• Support recording (through flash drive or server)
• Action URL / Active URI
• uaCSTA

Call Functions

• Call out / answer / reject
• Mute / unmute (microphone)
• Call hold / resume
• Call waiting
• Intercom
• Caller ID display
• Speed dial
• Anonymous call (hide caller ID)
• Call forward (Always/Busy/No Answer)
• Call transfer (Attended/Unattended)
• Call parking/pick-up (depending on server)
• Redial
• Do-Not-Disturb
• Auto-answering
• Voice message (with server)
• 6-way conference
• Hot line
• Hot desking

Audio

• HD voice microphone/speaker (handset/hands-free, 0~7KHzfrequency response)
• HAC handset
• Wideband ADC/DAC 16KHz sampling
• Narrowband codec: G.711a/u, G.729A/B, iLBC
• Wideband codec: G.722, Opus
• Full-duplex Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) /
• Automatic Gain Control (AGC)
• Packet Loss Concealment (PLC)
• Dynamic adaptive jitter buffer
• DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO)
• VQM voice quality monitoring

Network

• Physical: 10/100/1000Mbps ethernet, dual bridged port for PC bypass
• IP Mode:IPv4/IPv6/IPv4&IPv6
• IP Configuration: Static IP / DHCP / PPPoE
• Network Access Control: 802.1x
• VPN: L2TP / OpenVPN
• VLAN
• LLDP
• CDP
• QoS
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• LLDP
• CDP
• PPPoE
• 802.1x
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069
• AES128 & AES256

Deployment & Management

• Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP
• PNP/TR-069
• Web management portal
• Web-based packet dump
• Configuration export / import
• Phonebook import/export
• Firmware upgrade
• Syslog

Physical Specifications

• Main LCD: 4.3-inch (480x272) color screen
• DSS key-mapping LCDx2: 2.4-inch (240x320) color screen
• Keypad: 51 keys, including: 5 Line keys (with LED indicator light), 4 Soft-keys, 8 Function keys (Hold, Call forward, Conference, Phonebook,Call log, MWI, Headset, Redial), 4 Navigation keys, 1 OK key, 12 Standard phone digits keys, 3 Volume control keys (Up/Down/Mute (Microphone), 12 DSS keys (with LED indicator light), 1 Page-switch (PS) key (with LED indicator light), 1 Hands-free key (with LED indicator light)
• HD handset (RJ9) x1
• Standard RJ9 handset cord x1
• 1.5M CAT.5E ethernet cable x1
• Back rack x1
• Status indicator light x1 (Red)
• RJ9 port x2: handset x1, headset x1
• RJ45 port x2: network x1, PC x1 (bridged to network)
• USB2.0 port x1: Standard A, connect with flash driver
• DC port x1: Φ5.5x2.1x10mm
• Safety keyhole x1
• DC power input: DC5V / 2A
• Working temperature: 0~45℃
• Working humidity: 10~95%
• Installation: Desktop stand, Wall-mounted (need an additional wall hanging parts)
• Color: black
• Device dimensions: >Desktop stand (angles 1: 45 degree): 239x199.3x185.8mm > Desktop stand (angles 2: 50 degree): 239x188.5x195.6mm > Wall-mounted: 239x119.2x233.6 mm
• Gift box dimensions: 336x243x84 mm
• Outer CTN dimensions: 506x440x356 mm(10 PCS)
