Mikrotik Dual-Concurrent 2.4/5GHz AP, 802.11ac, Five Ethernet ports, PoE-out on port 5 (RB952Ui-5ac2nD-TC)

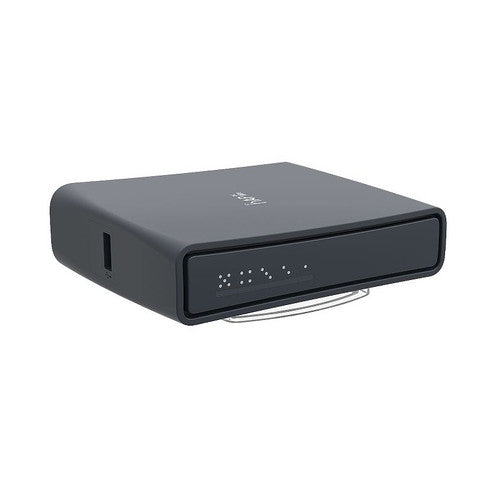

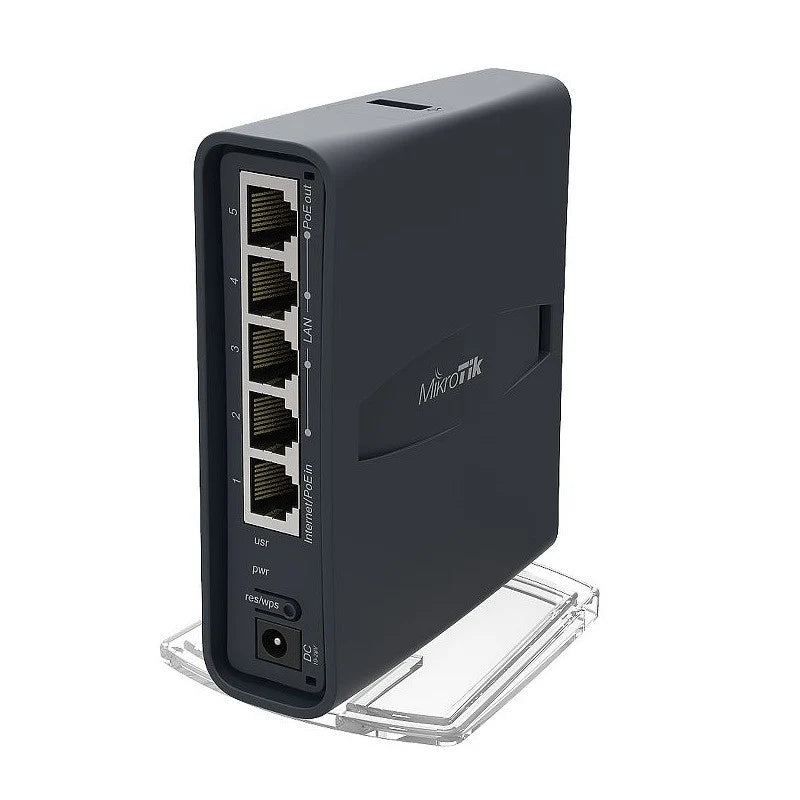

MikroTik hAP ac lite 2.4/5GHz 802.11ac Tower

The hAP ac lite is a Dual-concurrent Access Point, that provides Wifi coverage for 2.4GHz and 5GHz frequencies at the same time. New design universal case allows unit to be positioned either horizontally (desktop) or vertically (tower case). Wall anchored mounting kit is provided.

Unit is equipped with a 650MHz CPU, 64MB RAM, five 10/100Mbps Ethernet ports (PoE output on port #5), dual-chain 802.11b/g/n 2.4GHz wireless, single chain 802.11a/n/ac 5GHz wireless, USB port for 3G/4G modem and a RouterOS L4 license.

The hAP ac lite can be powered from the power jack or with passive PoE from a PoE injector. The power adapter is included. Unit provides PoE output function for port 5 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.

The hAP ac lite is preconfigured, so all you need to do, is plug in the internet cable, the power, and start using the internet by connecting to the MikroTik network.

Features:

Dual chain wireless 2.4GHz
Single chain wireless 5GHz
650MHz CPU
64MB of RAM
Five x 10/100Mbps Ethernet ports
Passive PoE output on port 5
USB port for 3G/4G modem

Specifications:

• CPU Nominal Frequency: 650MHz
• CPU Core Count: 1
• Size of RAM: 64MB
• Storage Type: Flash
• Storage Size: 16MB
• 10/100 Ethernet Ports: 5
• Wireless Bands: 5GHz / 2.4GHz
• Operating Frequency: 5170 - 5250 / 5725 - 5835MHz / 2412 - 2484MHz
• Protocols:
5GHz: 802.11a/n/ac
2.4GHz: 802.11b/g/n
• Chains
5GHz: Single-chain
2.4GHz: Dual-chain
• Antenna Gain:
5GHz: 2dBi
2.4GHz: 1.5dBi
• Wireless Chip Model:
5GHz: QCA9887
2.4GHz: QCA9531
• Antenna Beam Width: 360°
• PoE In: Yes
• PoE Out: Yes (Ether5), 0.5A
• Supported Input Voltage: 8V - 30V
• Extras: USB 2.0 Type A full size port, 1A
• Dimensions: 34 x 119 x 98 mm (1.34 x 4.69 x 3.86 ")
• License Level: 4
• Operating System: RouterOS
• CPU: QCA9531
• Max. Power Consumption: 7W
