Description

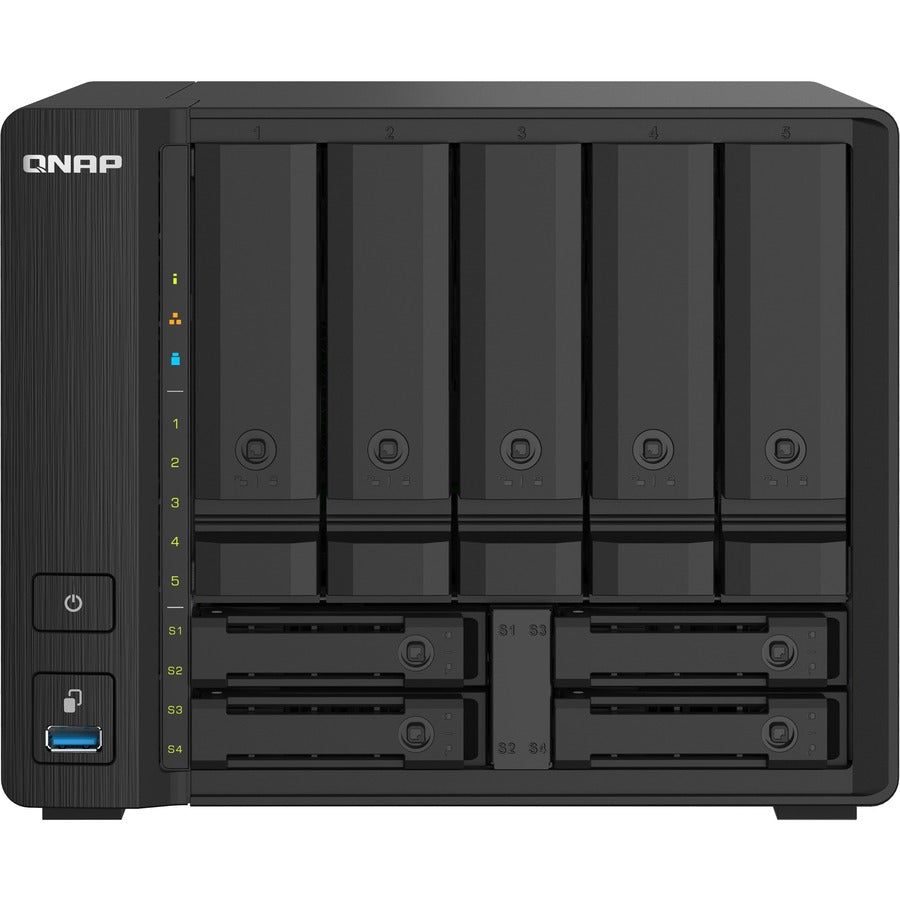

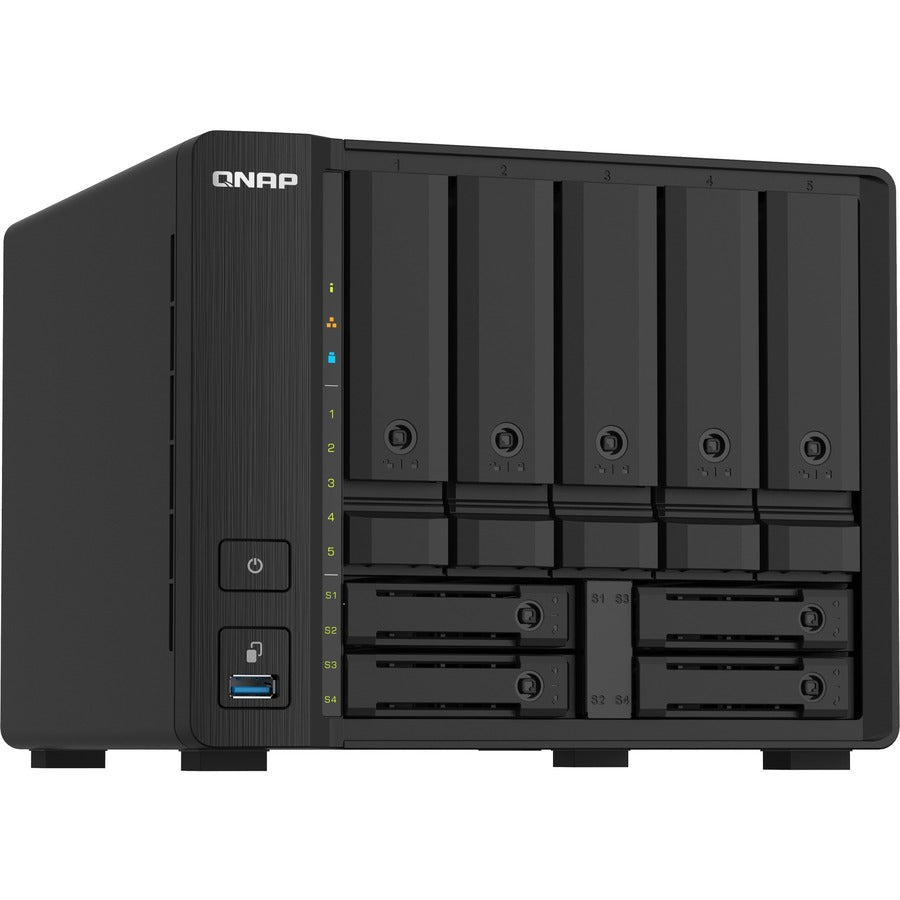

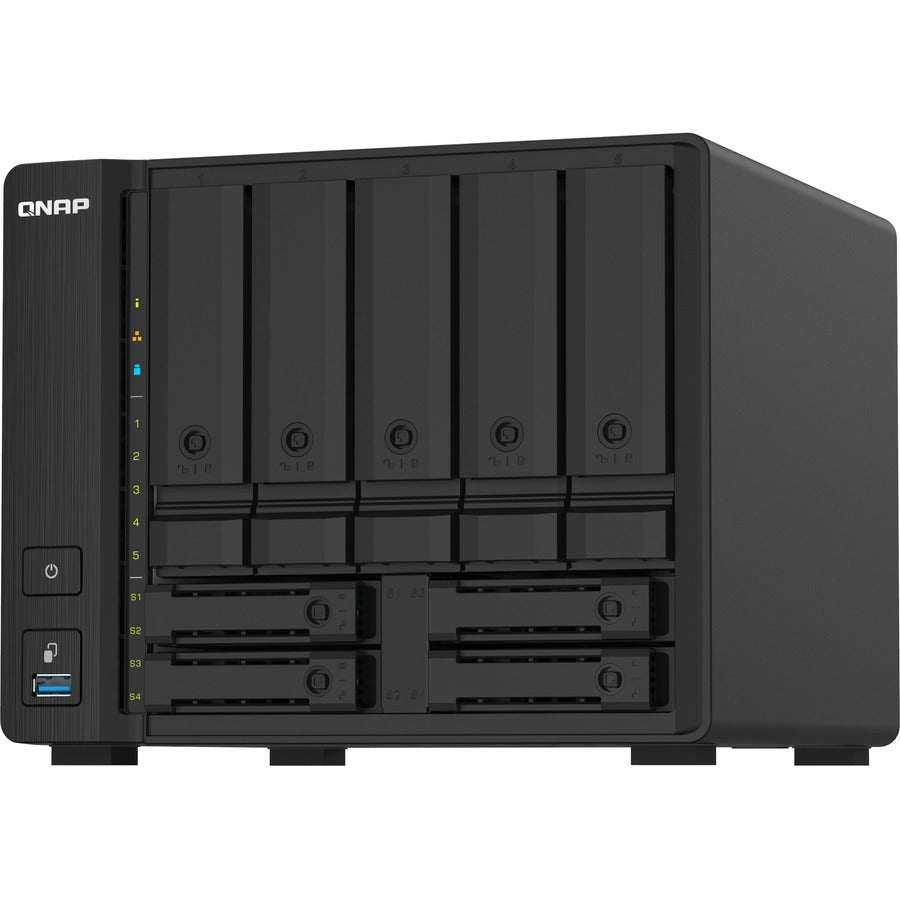

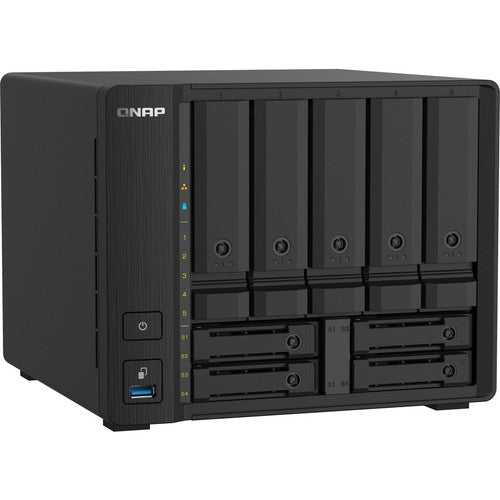

The quad-core 1.7GHz TS-932PX fits nine drive bays into the size of a 5-bay NAS. With five 3.5-inch SATA 6Gb/s drive bays and four 2.5-inch SATA 6Gb/s bays, the TS-932PX provides the ability to create an HDD/SSD hybrid infrastructure to boost application performance. With two 10GbE SFP+ and two 2.5GbE LAN ports, the TS-932PX supports next-generation networks for empowering bandwidth-demanding applications and providing smoother file access and sharing.
-

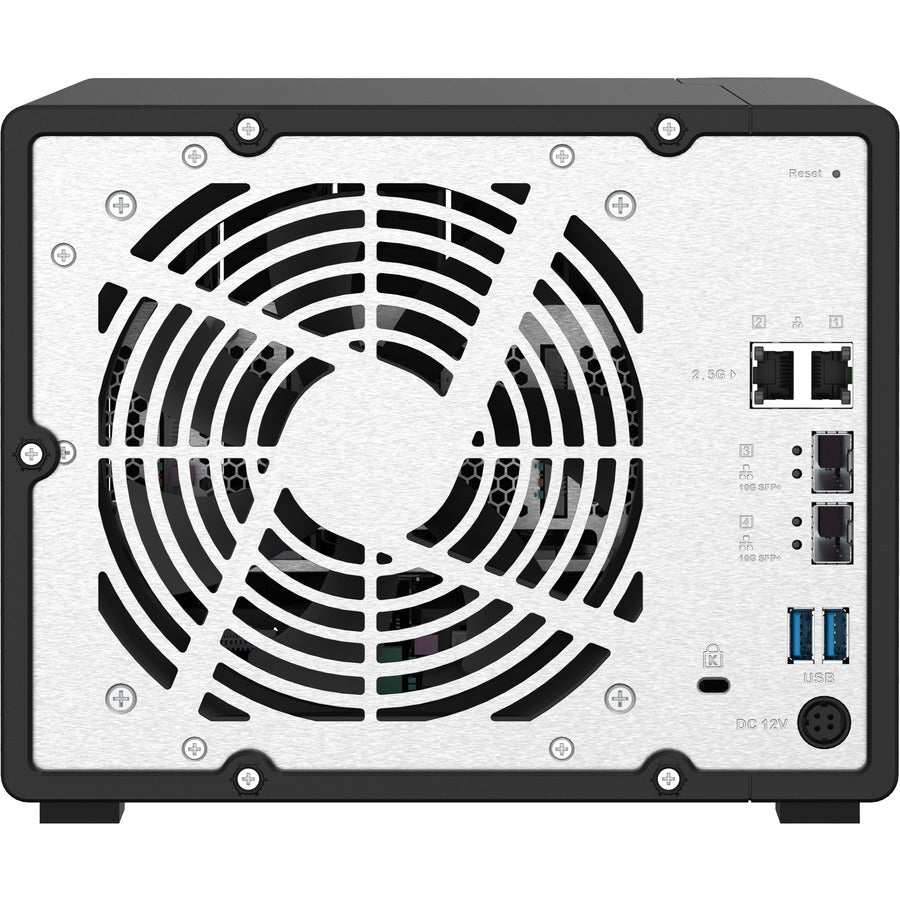

Two 10GbE SFP+ and two 2.5GbE RJ45 network ports empower bandwidth-demanding tasks and accelerate file sharing.
-
HBS provides comprehensive backup and data recovery; QuDedup deduplicates the data at the source to optimize storage and bandwidth usage, while reducing backup times.
-
Snapshots record your system status, allowing you to protect files and data from accidental deletion and malware attacks.
-
Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud.
-
Qtier™ auto-tiering technology and SSD caching enable constant storage optimization.
-
Increase the storage capacity of the TS-932PX with QNAP TR RAID expansion enclosures or TL JBOD.
Energy-efficient Quad-core Processor
Powered by 64-bit quad-core 1.7GHz ARM Cortex-A57 processor and 4 GB DDR4 RAM (expandable to 16 GB), the TS-932PX features is highly energy efficient without impacting system or application performance.
High-speed 10GbE and 2.5GbE connectivity
The TS-932PX includes two 10GbE SFP+ and two 2.5GbE LAN RJ45 ports, providing out-of-the-box support for high-speed networking and supporting Port Trunking and Failover to reinforce your network infrastructure. QNAP also provide many other high-speed networking solutions, including 10GbE/2.5GbE managed/unmanaged switches and network adapters, allowing you to build a budget-friendly high-speed network environment.
Boost NAS performance with 2.5-inch SATA SSDs
SSDs can greatly improve NAS performance without requiring a heavy investment. The TS-932PX supports SSD cache technology, Qtier™ auto-tiering, and SSD over-provisioning, helping you to balance storage performance, storage allocation, and IT expenses.
Protect Important Data with Snapshots
Snapshots fully record the NAS system state and metadata and can be used to quickly restore files to previously-recorded states if they are accidentally deleted/modified or if the system is compromised by ransomware. QNAP snapshots are block-based and only record modified data. Not only does this save storage space, but also reduces the time required to back up and restore data. The TS-932PX supports up to 256 snapshots per NAS and up to 64 snapshots per volume or LUN.
Multi-Point File Backup, Access, and Sync
The TS-932PX supports common file sharing protocols (including SMB/CIFS, AFP and NFS) for Windows®, Mac®, and Linux®/UNIX® devices. Coupled with Qsync (a utility that transforms a QNAP NAS into a secure, high-capacity data center for file synchronization) any file uploaded to the TS-932PX becomes available for all linked devices (such as computers, laptops, and mobile devices). Hybrid Backup Sync helps you easily backup or synchronize data on the TS-932PX to another QNAP NAS, remote server, or cloud storage (including Microsoft One Drive®, Google Drive™, and Dropbox®) for disaster recovery.
- Featuring the Annapurna Labs Alpine Multi-core processor, based totally on ARMv7 architecture and the Cortex-A15 core
- Optimize business network's performance with 10 Gigabit Ethernet connectivity
- RAID technology - data reliability, fault tolerance and improved overall performance
- Memory Technology : DDR4 SDRAM
- Standard Memory : 4 GB
- Manufacturer Website Address : http://www.qnap.com
- Flash Memory Capacity : 512 MB
- Number of Total Expansion Bays : 9
- Country of Origin : Taiwan
- Number of 2.5"/3.5" Bays : 5
- Processor Core : Quad-core (4 Core)
- Processor Manufacturer : Annapurna Labs
- Number of 2.5" Bays : 4
- Controller Type : Serial ATA/600
- RAID Supported : Yes
- Operating System : QTS 4.4.2
- Processor Type : Alpine
- Number of Solid State Drive Supported : 9
- Expansion Slot Type : SFP+
- Number of Solid State Drive Installed : 0
- Package Contents :
- Compact 9-bay NAS with 10GbE SFP+ and 2.5GbE for Smoother File Applications

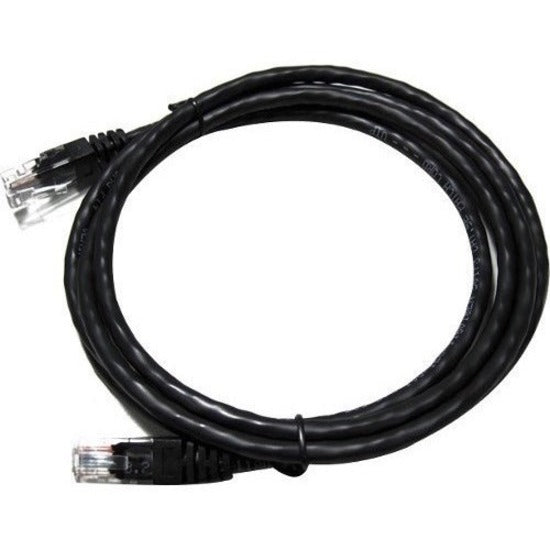

- 1 x Ethernet Cable
- AC Adapter
- 1 x Power Cord
- 32 x Flat Head Screws (for 3.5" HDD)
- 24 x Flat Head Screws (for 2.5" HDD)
- Quick Installation Guide (QIG)
- 2 x Drive Tray Keys
- Protocols : TCP/IP,HTTPS,LDAP,SMTP,L2TP,SFTP,DHCP,SSH,SMSC,IPSec,FTPS,AFP,BitTorrent,DNS,RTSP,FTP,CIFS/SMB,IPv4,WEBDAV,Telnet,SSL,iSCSI,IPMI,SNMP,TLS,HTTP,TFTP,NFS,FXP,UPnP,RSync,DDNS,IPv6,PPTP
- Number of Hard Drives Supported : 5
- Number of USB 3.2 Gen 1 Ports : 3
- Number of Hard Drives Installed : 0
- Number of Total Expansion Slots : 2
- Form Factor : Tower
- Manufacturer : QNAP Systems
- Product Type : SAN/NAS Storage System
- Limited Warranty : 2 Year
- Ethernet Technology : 2.5 Gigabit Ethernet,10 Gigabit Ethernet
- Product Model : TS-932PX-4G
- Number of Network (RJ-45) Ports : 2
- Network (RJ-45) : Yes
- Maximum Power Supply Wattage : 120 W
- Processor Model : AL-324
- Processor Speed : 1.70 GHz
- Total Number of USB Ports : 3
