Description

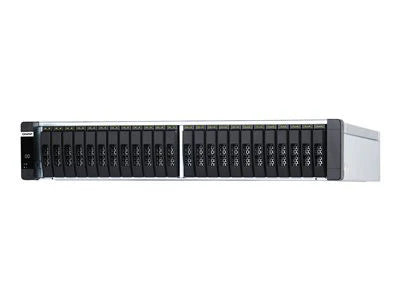

QNAP ES2486DC128G NAS Server (ES2486DC-2142IT-128G)
Intel® Xeon® D-2142IT 8 cores/16 threads 1.9 GHz processor (burst up to 3.0 GHz), 128 GB DDR4 ECC memory (64 GB per controller)
The ES2486dc Enterprise ZFS NAS is QNAP’s first high-availability NAS with all-flash arrays and dual active controllers. Powered by an Intel® Xeon® D-2142IT 8 cores/16 threads processor, the ES2486dc supports up to 24 x 2.5-inch SAS 12Gbps SSDs and provides excellent I/O throughputs. Random write performance for all-flash arrays is further driven by the flash-optimized QES 2.1.1 operating system that comes pre-installed on the ES2486dc. The QES uses ZFS to support logical volume management; block-based inline data deduplication and inline compression reduce I/O and SSD storage consumption, which significantly extends SSD lifespan with higher price-performance ratio for all-flash storage arrays. Coupled with near-limitless snapshots and SnapSync for data protection, the QES-based ES2486dc fulfills demanding business applications, such as mission-critical file servers, virtualization servers, VDI, medium-sized data center, video streaming, surveillance storage, and efficient file backup and recovery.
ES2486dc-2142IT-128G
| CPU | Intel® Xeon® D-2142IT 8-core 1.90 GHz processor (burst up to 3.0 GHz) per controller |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | |
| Encryption Engine | (AES-NI) |
| System Memory | 64 GB RDIMM DDR4 ECC (4 x 16 GB) per controller |
| Maximum Memory | 512 GB (8 x 64GB) |
| Memory Slot | 8 x R-DIMM/LR-DIMM DDR4
IMPORTANT: You can only use one type of dual in-line memory module (DIMM) at a time. Do not use registered DIMM (RDIMM) with load-reduction DIMM (LRDIMM) memory.
|
| Flash Memory | 4GB (Dual boot OS protection) |
| Drive Bay | 24 x 2.5-inch
SAS 12Gb/s, backward-compatible to SAS 6Gb/s
|
| Drive Compatibility | 2.5-inch bays: 2.5-inch SAS/SATA hard disk drives 2.5-inch SAS/SATA solid state drives 1. When installing SATA HDD/SSD, QDA-SA3 adapter is required.
2. The QDA-SA3 adapter is designed for QNAP Enterprise ZFS NAS and allows the use of a SATA 6Gbps drive in a 2.5-inch SAS drive bay |
| Hot-swappable | |
| SSD Cache Acceleration Support |
Read cache only |
| Cache for Copy To Flash (C2F) | 1 per each controller (64GB) |
| Gigabit Ethernet Port (RJ45) | 3 for each controller (one for remote management) |
| 10 Gigabit Ethernet Port | 4 x 10GbE SFP+ for each controller |
| Wake on LAN (WOL) | |
| Jumbo Frame | |
| PCIe Slot | 2 Slot 1: PCIe Gen 3 x8 (CPU) Slot 2: PCIe Gen 3 x8 (CPU) |
| USB 3.2 Gen 1 port | 2 per each controller |
| Form Factor | 2U Rackmount |
| LED Indicators | System Power LED (Green): on/off System Status (Green/ Orange): in operation, system errors, low power, degraded RAID mode, memory failure, fan/power supply failure, system/disk temperature too high, storage pool reaching threshold value, system performing take-over, power supply unit unplugged LCD Status Display (Two-digit number): Status of JBOD connection |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 88.3 × 483 × 545.1 mm |
| Weight (Net) | 27.41 kg |
| Weight (Gross) | 32.83 kg |
| Operating temperature | 0 - 40 °C (32°F - 104°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | Redundant/ Hot Swap Power Vin:90~264VAC;700W |
| Power Consumption: Operating Mode, Typical | 579.59 W
Tested with drives fully populated.
|
| Fan | Hot-swappable fan module (60*60*38mm; 16000RPM/12v/2.8A x 3) |
| Sound Level | 60.9 db(A) |
| System Warning | Buzzer |
| Max. Number of Concurrent Connections (CIFS) | 1500 |
| Safety Standard | FCC Class A (USA only) CE Mark ( EN55022 Class A, EN55024) EN60950 BSMI VCCI CB LVD |
