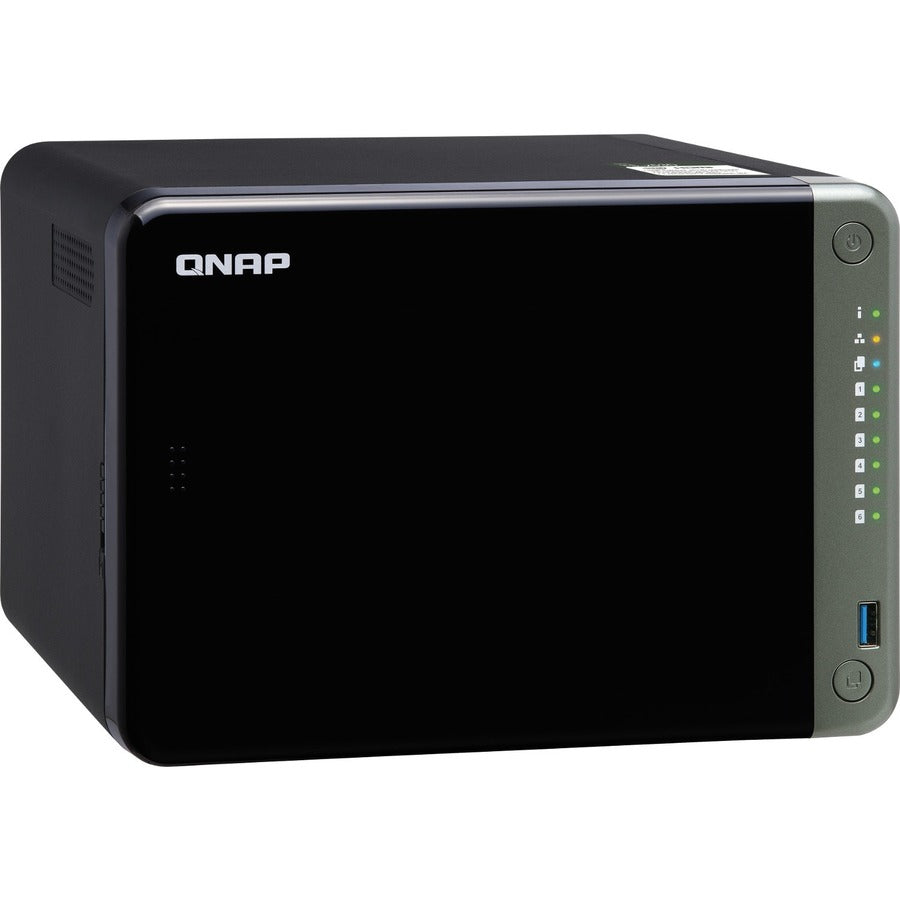

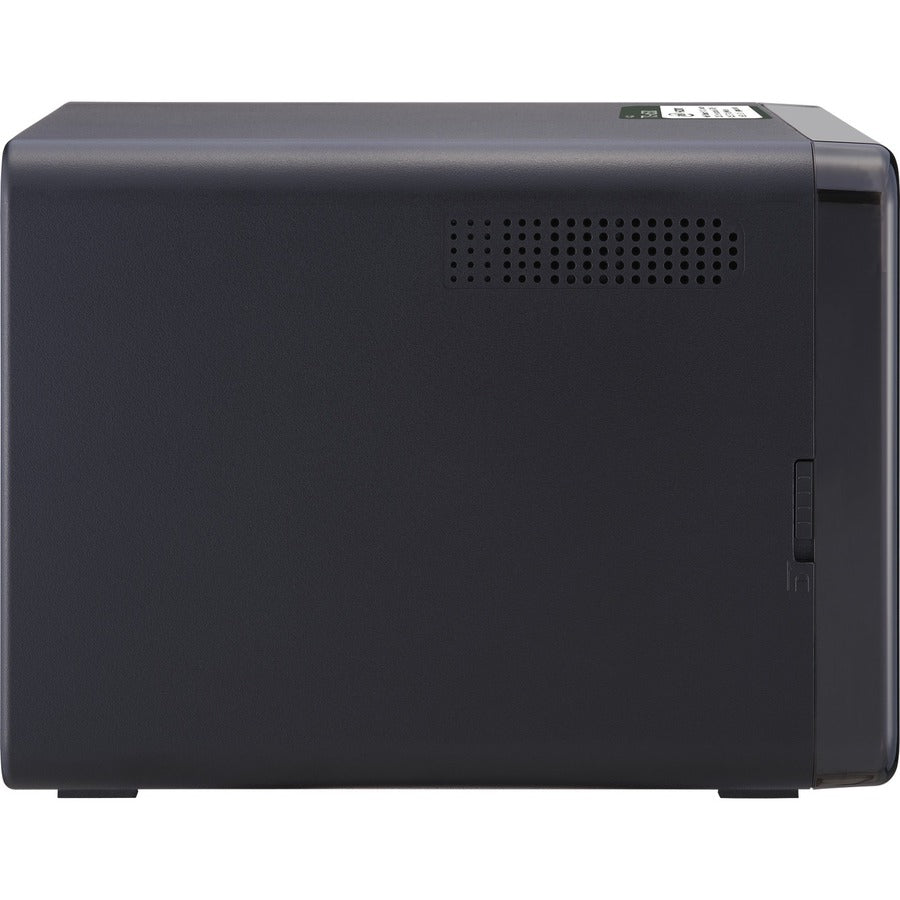

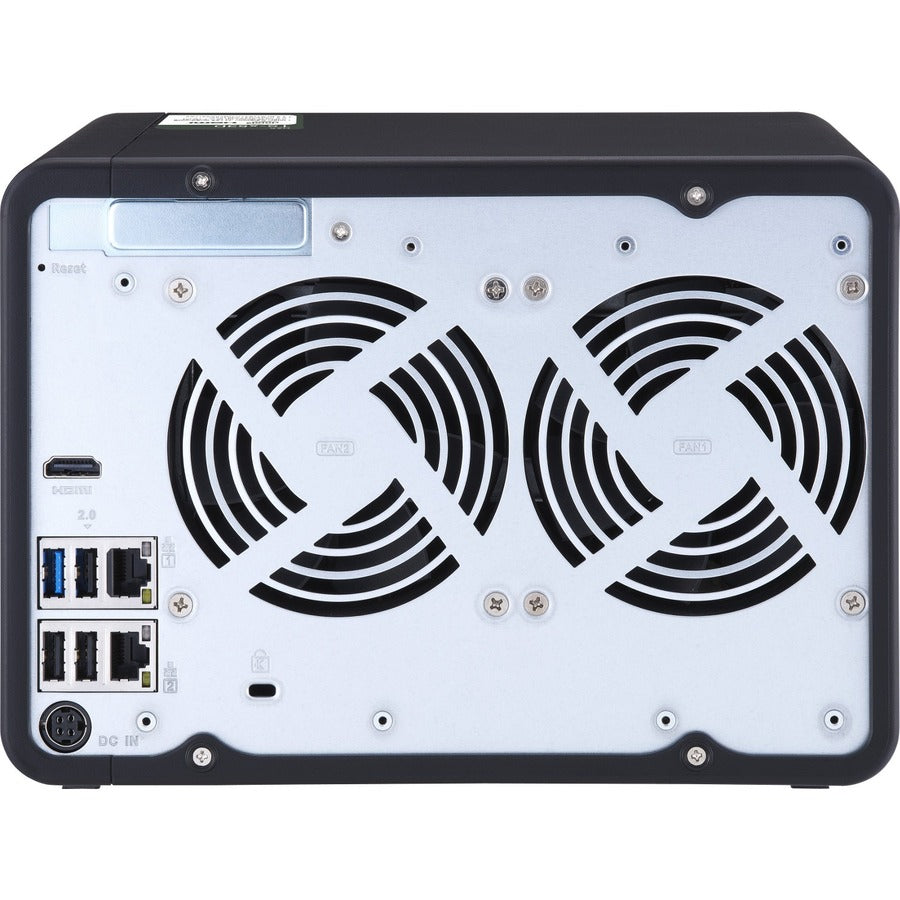

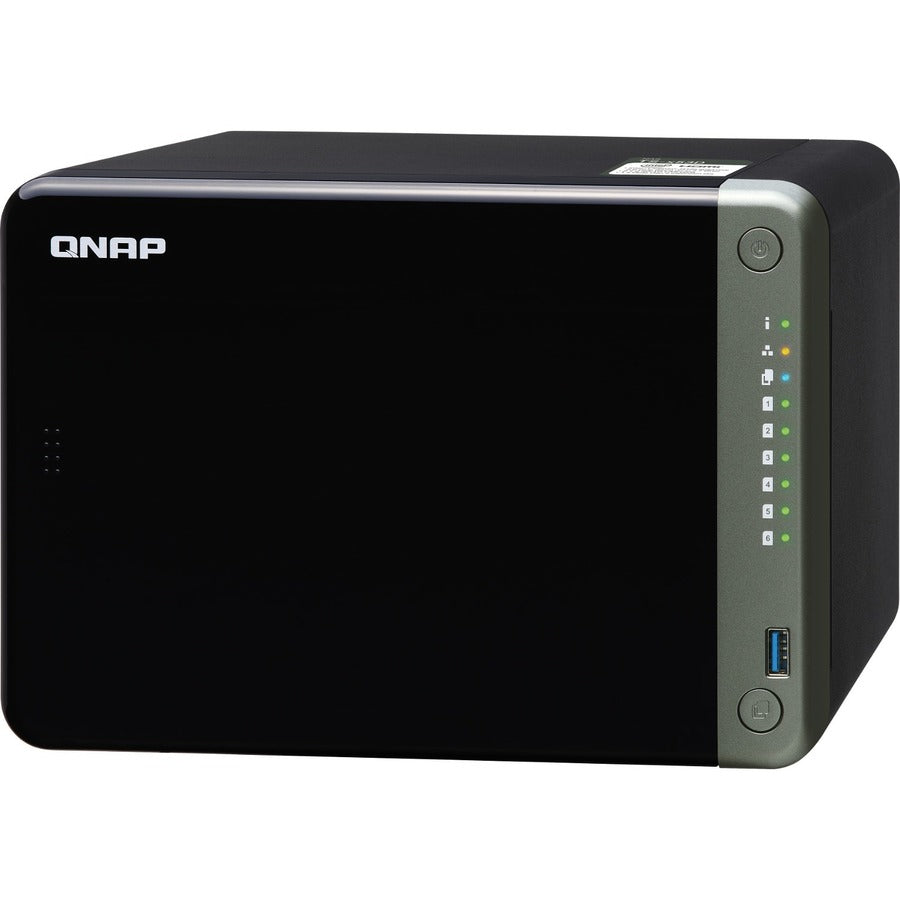

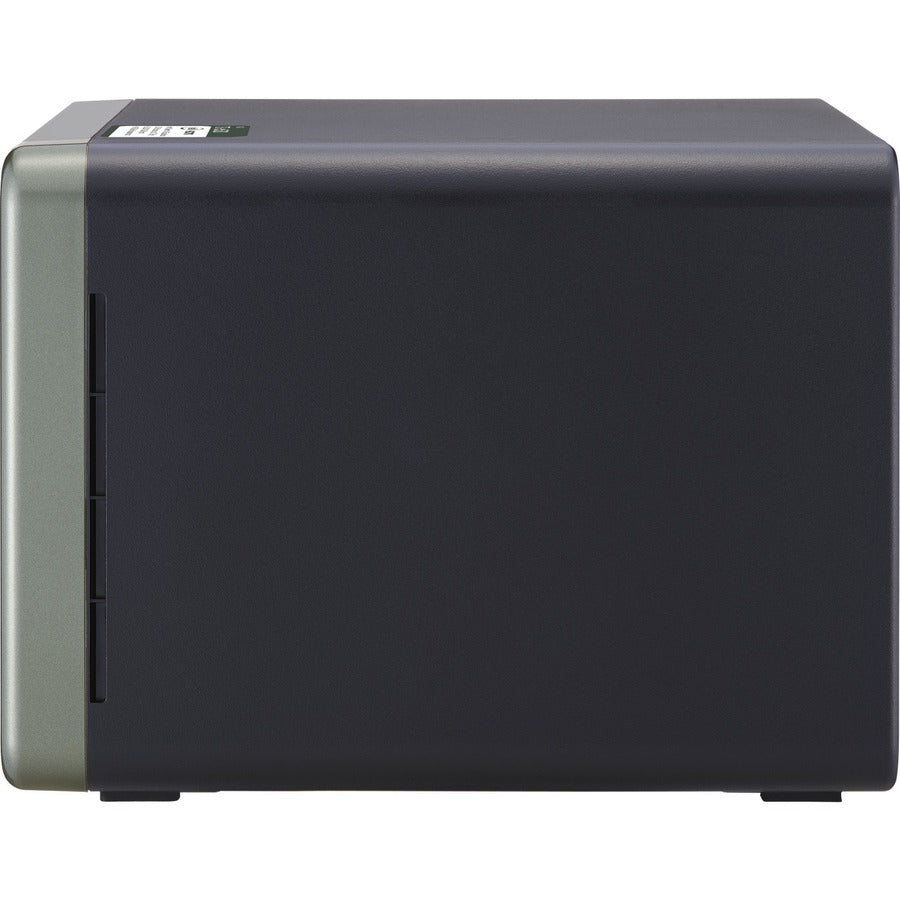

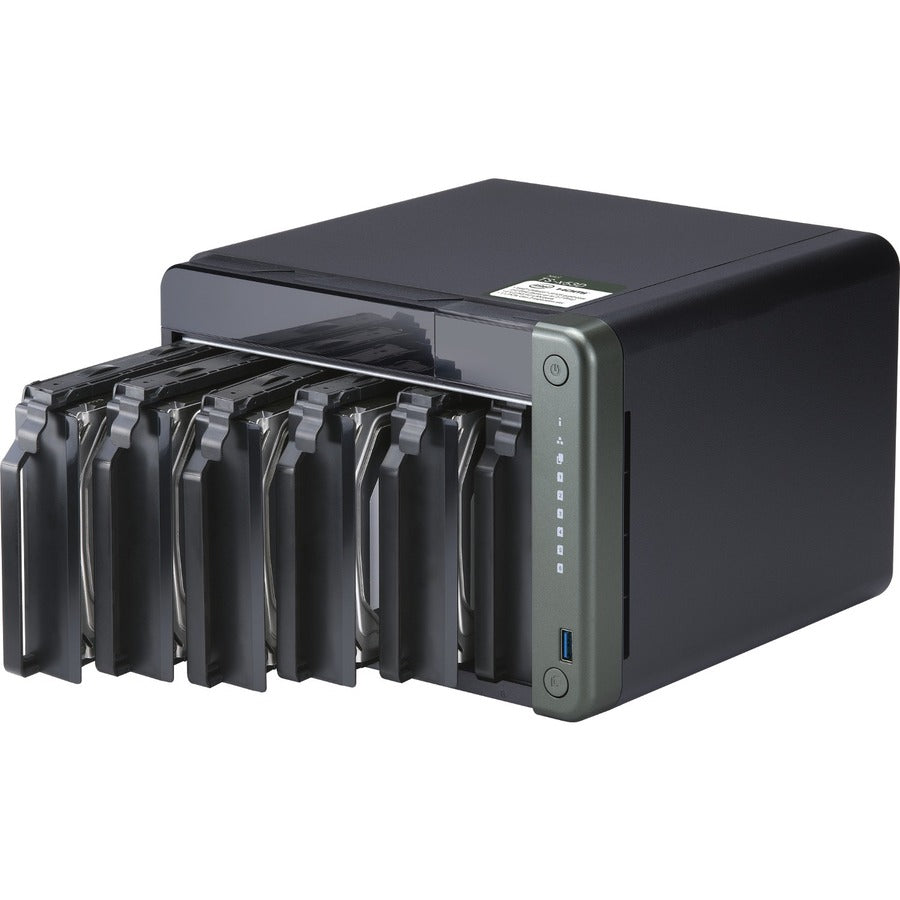

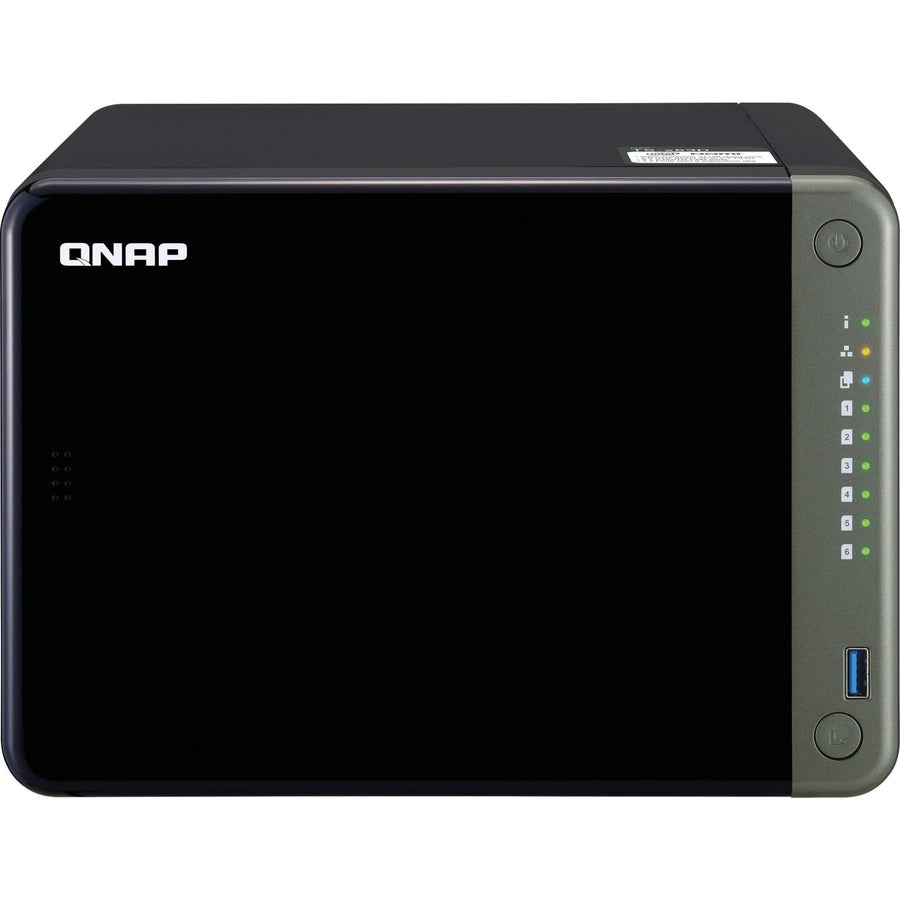

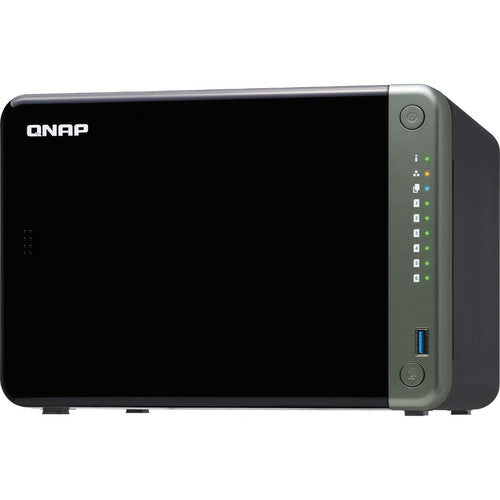

QNAP Professional Quad-core 2.0 GHz NAS with 2.5GbE Connectivity and PCIe Expansion TS-653D-4G-US

Quad-core 2.5GbE NAS for professionals, supporting PCIe expansion for 10 Gbps or M.2 SSDs to accelerate applications

The new-gen Wi-Fi 6 (802.11ax) trend has driven higher bandwidth demands for wired and wireless network connections. By integrating Intel® Celeron® J4125 quad-core 2.0 GHz processor and 2.5GbE connectivity, the TS-653D not only provides modern businesses an excellent NAS solution to upgrade to 2.5GbE environments for productive daily backup/restore tasks, but also provides gamers with ample storage for their vast game collections. Up to 5 Gbps transfer speeds can be made by setting port trunking with the two built-in 2.5GbE ports. The TS-653D also supports PCIe expansion, multi-cloud backup, cloud storage gateways, 4K HDMI output and real-time transcoding, alongside expandable storage capacity and feature-rich apps to perform as a cost-efficient, reliable 2.5GbE NAS.

Dual 2.5GbE ports accelerates file sharing across teams and devices or gaming storage applications.

PCIe expansion allows for a Multi-Gig 10GbE or 5GbE network card, or a QM2 card to add M.2 NVMe or SATA SSDs for caching.

4K media playback and real-time transcoding; directly watch videos on an HDTV via HDMI 2.0 (4K @60Hz) output.

HBS provides comprehensive backup and data recovery; QuDedup deduplicates the data at the source to reduce storage space usage, bandwidth usage, and backup time.

Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud.

Hosts multiple virtual machines and containers to execute different applications in one NAS device.

Upgrade your NAS to 2.5GbE networks

The TS-653D comes with two 2.5GbE RJ45 LAN ports that allow you to use existing CAT5e cables to upgrade network speeds from 1 Gigabit to 2.5 Gigabit. The dual 2.5GbE ports also support Port Trunking for up to 5 Gbps! By using QNAP's N-BASET/Multi-Gig USB 3.2 Gen 1 to 5GbE adapter (Model name QNA-UC5G1T) or 5GbE PCIe expansion card (Model name QXG-5G1T-111C), your laptop or desktop computer can easily connect to 2.5GbE networks with the TS-653D to benefit from higher network speeds.

Virtualization

Satisfies bandwidth-demanding applications such as virtual machines and containers.

Video Streaming

Boosts transfer speeds to improve smooth 4K video streaming and display.

Gaming Storage

Mount an iSCSI LUN from the TS-653D to your computer to store your vast game collections.

Transform your network with a wallet-friendly 2.5GbE switch

Upgrading your network shouldn't break the bank, and 2.5GbE connectivity provides immediately noticeable improvements compared to standard 1GbE. The QSW-1105-5T is an unmanaged switch with five 2.5GbE ports (backwards compatible with 1G/100M) and supports CAT5e cables to connect multiple computers and NAS. The QSW-1105-5T is energy-saving, low-noise, plug-and-use, and supports loop detection and blocking to provide a simple and effective high-speed network environment.

Quad-core 2.0 GHz (burst up to 2.7 GHz) with up to 8 GB memory

The TS-653D is powered by an Intel® Celeron® J4125 quad-core 2.0 GHz processor (bursts up to 2.7 GHz), features up to 8 GB DDR4 memory, and supports SATA 6 Gb/s drives. The support of Intel® AES-NI encryption engine boosts encryption performance while also maintaining the security of your NAS data. You can flexibly install SSDs for cache acceleration to maximize network and storage performance for data-intensive applications.

• Experience responsive performance, power, adaptability and fun with Intel Celeron 2 ghz processor
• RAID technology - data reliability, fault tolerance and improved overall performance

. .

• Memory Technology : DDR4 SDRAM
• Standard Memory : 4 GB
• Manufacturer Website Address : http://www.qnap.com
• Flash Memory Capacity : 4 GB
• Number of Total Expansion Bays : 6
• Number of 2.5"/3.5" Bays : 6
• Processor Core : Quad-core (4 Core)
• Processor Manufacturer : Intel
• Product Series : TS-x53D
• Controller Type : Serial ATA/600
• RAID Supported : Yes
• Operating System : QTS 4.4.2
• Processor Type : Celeron
• Number of Solid State Drive Supported : 6
• Expansion Slot Type : PCI Express 2.0 x4
• Number of Solid State Drive Installed : 0
• Package Contents :
  • Professional Quad-core 2.0 GHz NAS with 2.5GbE Connectivity and PCIe Expansion
  • 2 x Ethernet Cables
  • 1 x Power Cord
  • Flat Head Screw (for 3.5" HDD)
  • Flat Head Screw (for 2.5" HDD)
  • AC Adapter
  • Quick installation guide (QIG)
• Protocols : TCP/IP,IPv4,IPv6,DHCP,DDNS,NAT,STP,HTTP,TLS,WEBDAV,SSL,SSH,Telnet,FTP,CIFS/SMB,AFP,iSCSI,SNMP,LDAP,UPnP,SFTP,TFTP,FXP,MTP,PPTP,L2TP,IPSec,DLNA,SMTP,BitTorrent
• RAID Levels : 0, 1, 5, 6, JBOD
• Number of Hard Drives Supported : 6
• Number of USB 3.2 Gen 1 Ports : 2
• Number of Hard Drives Installed : 0
• Number of Total Expansion Slots : 1
• Form Factor : Tower
• Manufacturer : QNAP Systems
• Product Type : SAN/NAS Storage System
• Limited Warranty : 2 Year
• Ethernet Technology : 2.5 Gigabit Ethernet
• Product Model : TS-653D-4G
• Network (RJ-45) : Yes
• Maximum Power Supply Wattage : 120 W
• HDMI : Yes
• Processor Model : J4125
• Processor Speed : 2 GHz
• Number of USB 2.0 Ports : 3
• Total Number of USB Ports : 5
