Description
High-performance dual-2.5GbE NAS Powered by a Quad-core AMD Ryzen™ processor, supporting 10GbE or M.2 SSD caching PCIe expandability for virtual applications
With its powerful AMD Ryzen™ V1000 series V1500B Quad-core processor, the TS-1273AU-RP is capable of boosting virtual machine performance with up to 4 cores/8 threads at 2.2GHz. The TS-1273AU-RP includes two 2.5GbE ports and two PCIe Gen 3 slots, providing you with fast network connectivity and the ability to add extra functionality and additional application potential. The TS-1273AU-RP also features a redundant power supply to ensure maximum system uptime. Cutting-edge hardware integrated with comprehensive software solutions makes the TS-1273AU-RP the preeminent choice to tackle resource-demanding applications and tasks.
-
Both 2.5GbE ports are backwards compatible with 1GbE/ 100MbE/ 10MbE speeds. Up to 5 Gbps transfer speeds can be achieved by using port trunking.
-
Add extra functionality to the TS-1273AU-RP with PCIe cards, including 10GbE ports, SSD caching, extra USB 3.2 Gen 2 ports, wireless networking, or Fibre Channel.
-
Supports entry-level NVIDIA® graphics cards for video processing or GPU-passthrough to VMs.
-
Qtier™ technology and SSD caching enable 24/7 optimized storage efficiency.
-
Host multiple virtual machines and containers to run a wide range of applications on the TS-1273AU-RP.
-
Supports block-based and file-based cloud storage gateways with local caching for low-latency access to cloud data.
Absolute performance with AMD Ryzen™ and up to 32GB RAM
Powered by a 4-core/8-thread AMD Ryzen™ V1500B 2.2GHz processor with AES-NI encryption acceleration and up to 32GB DDR4 RAM, the rackmount TS-1273AU-RP delivers aggressive yet power-smart performance to drive resource-demanding business applications such as VDI, R&D, private cloud, and server virtualization.
Block-based iSCSI LUN: Ideal choice for virtualization storage
The TS-1273AU-RP supports block-based iSCSI LUN and is compatible for VMware®, Citrix®, Microsoft® Hyper-V®, and Windows Server® 2019 virtualization environments to provide a high-performance and affordable storage solution. The TS-1273AU-RP also supports VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supporting QNAP vSphere Client plug-in with enhanced operational efficiency and management in virtualization applications.
Optimized performance for VMware Virtualization with iSER
The iSCSI Extensions for RDMA (iSER) protocol boosts the data transfer performance of VMware® ESXi storage and reduces the CPU load of the ESXi server. iSER support can be added to the TS-1273AU-RP by installing a QNAP QXG-10G2SF-CX4 10GbE PCIe card, which uses the Mellanox® ConnectX-4 controller. iSER can provide a significant increase in performance, providing an essential tool to optimize demanding virtualization applications.
All-in-one server to host virtual machines and containers
Regardless of your virtualization needs, you can count on Virtualization Station and Container Station for complete virtualization support. Use the Network & Virtual Switch app to allocate adequate physical network resources to virtual machines, containers, and the TS-1273AU-RP to simplify network deployment.
- Perform computational tasks effectively accrediting the amd ryzen 2.20 ghz processor
- Through RAID levels (0, 1, 5, 6, 10, 50, 60, hot spare, jbod), RAID provides data reliability, fault tolerance and improves overall performance
- Protocols : TCP/IP,IPv4,IPv6,DHCP,iSCSI,DDNS,NAT,NFSv2,HTTP,HTTPS,WEBDAV,SSL,SSH,Telnet,FTP,CIFS/SMB,AFP,NFSv3,SMSC,SMTP,LDAP,UPnP,SNMP,NFS,SFTP,TFTP,SSL/TLS,FTPS,FXP,RSync,RTSP,PPTP,L2TP,IPSec,DLNA,SNMPv2,SNMPv3
- Flash Memory Capacity : 5 GB
- Maximum Power Supply Wattage : 300 W
- Number of Hard Drives Installed : 0
- Controller Type : Serial ATA/600
- Product Series : TS-x73AU
- Total Number of USB Ports : 4
- Number of USB 3.2 Gen 1 Ports : 1
- Processor Type : Ryzen
- Processor Core : Quad-core (4 Core)
- RAID Supported : Yes
- Form Factor : Rack-mountable
- Memory Technology : DDR4 SDRAM
- Package Contents :

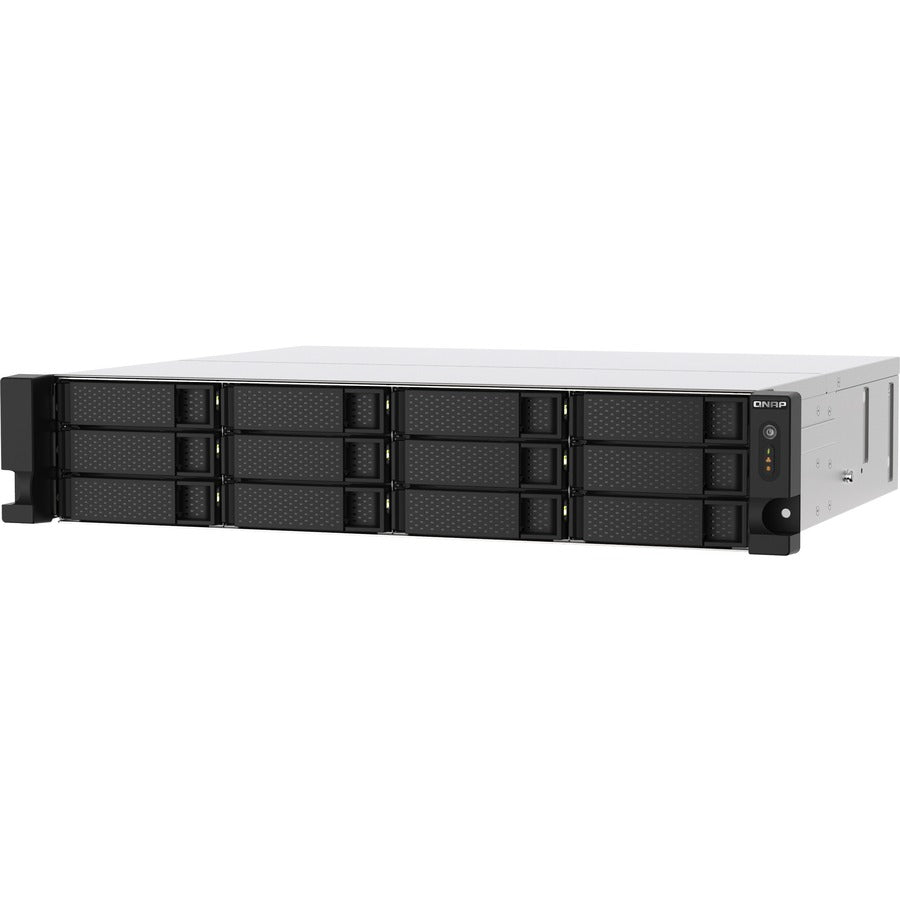

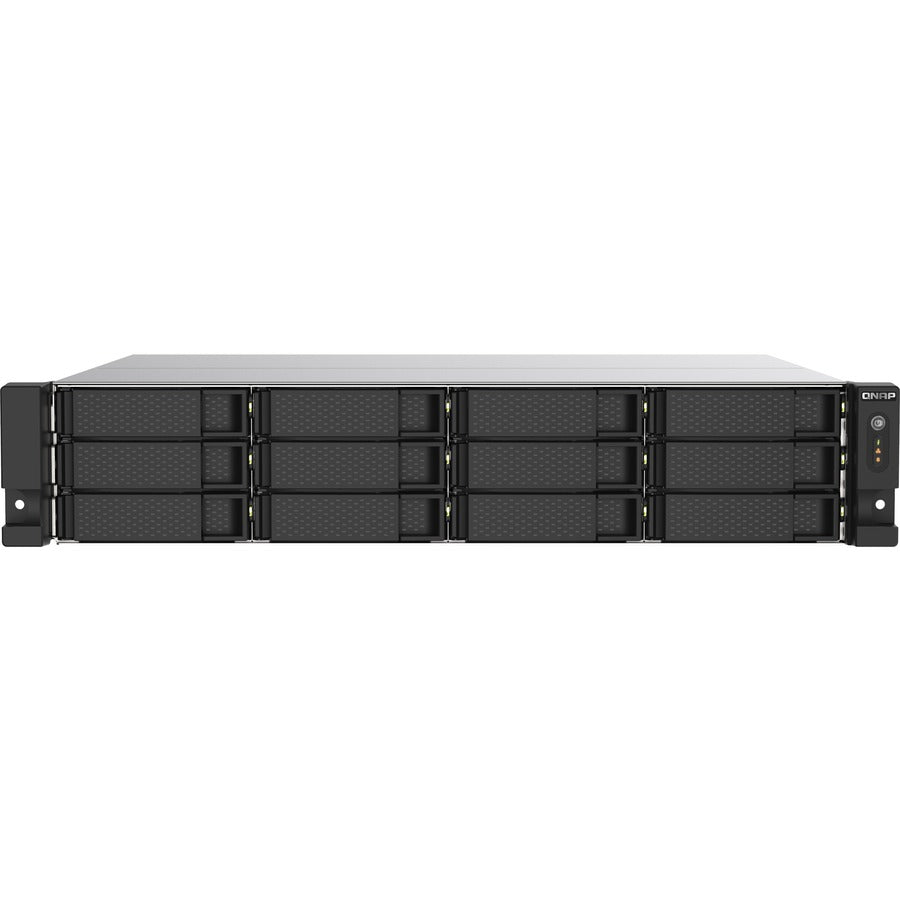

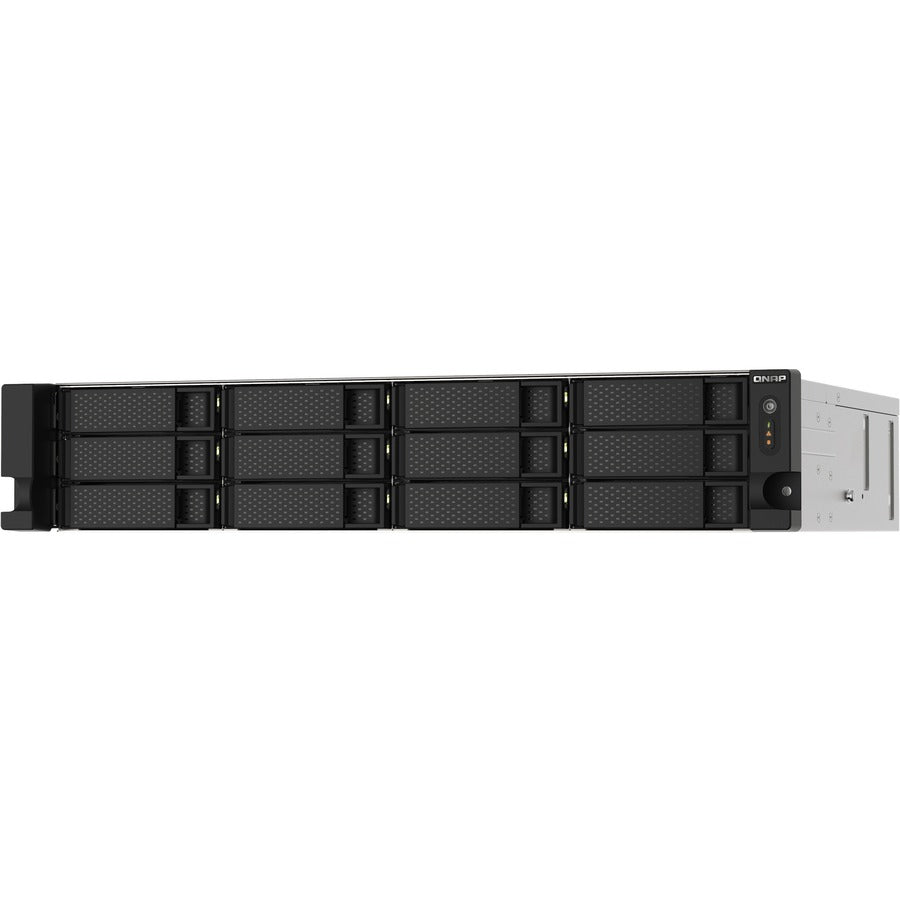

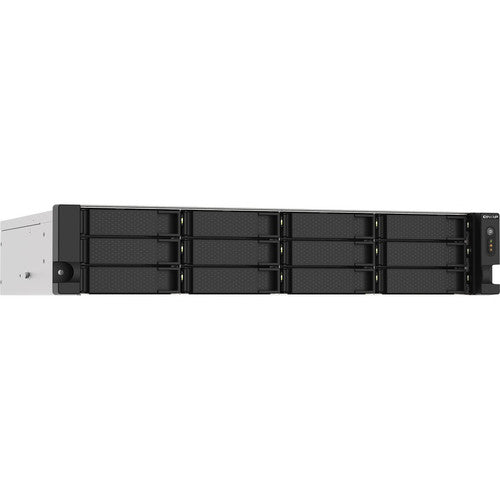

- TS-1273AU-RP-8G SAN/NAS Storage System

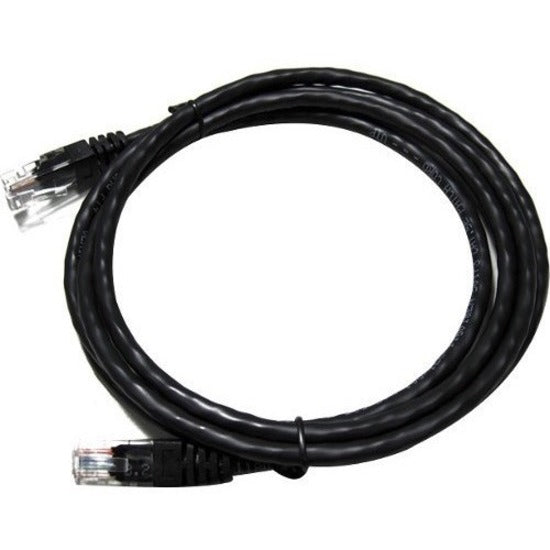

- 1 x Ethernet Cable
- 2 x Power Cords
- 48 x Flat Head Screws (for 3.5" HDD)
- 36 x Flat Head Screws (for 2.5" HDD)
- Quick Installation Guide (QIG)
- Manufacturer Website Address : http://www.qnap.com
- Processor Manufacturer : AMD
- Number of Solid State Drive Installed : 0
- Number of Power Supplies Installed : 2
- Manufacturer : QNAP Systems
- Product Model : TS-1273AU-RP-8G
- Processor Model : V1500B
- Number of Total Expansion Bays : 8
- Operating System : QTS 4.4.2
- RAID Levels : 0, 1, 5, 6, 10, 50, 60, Hot Spare, JBOD
- Rack Height : 2U
- Standard Memory : 8 GB
- Ethernet Technology : 2.5 Gigabit Ethernet
- Number of Hard Drives Supported : 12
- Number of 2.5"/3.5" Bays : 8
- Number of Solid State Drive Supported : 12
- Limited Warranty : 2 Year
- Processor Speed : 2.20 GHz
- Network (RJ-45) : Yes
- Product Type : SAN/NAS Storage System
- Number of Total Expansion Slots : 2
- Redundant Power Supply : Yes
- Country of Origin : Taiwan
- Number of Network (RJ-45) Ports : 2
- Expansion Slot Type : PCI Express 3.0 x4
