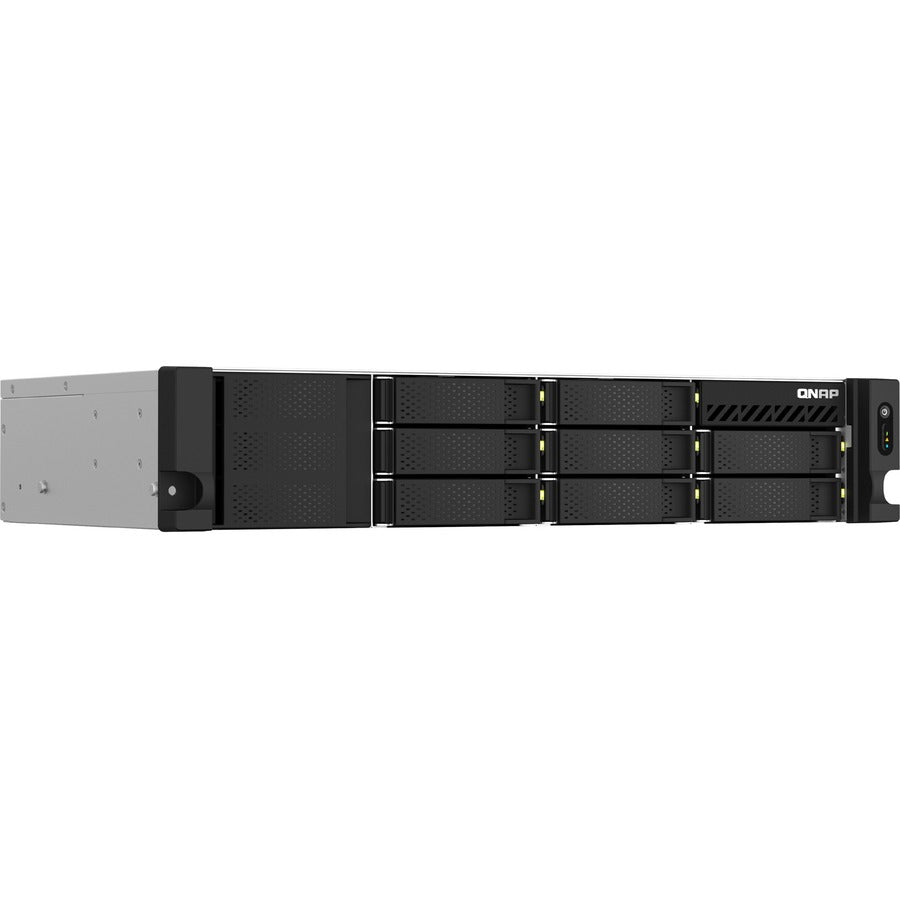

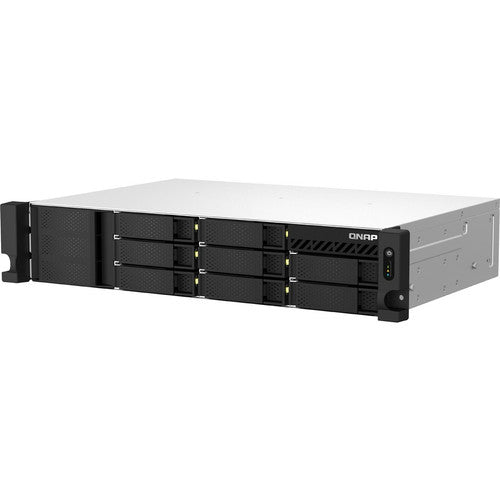

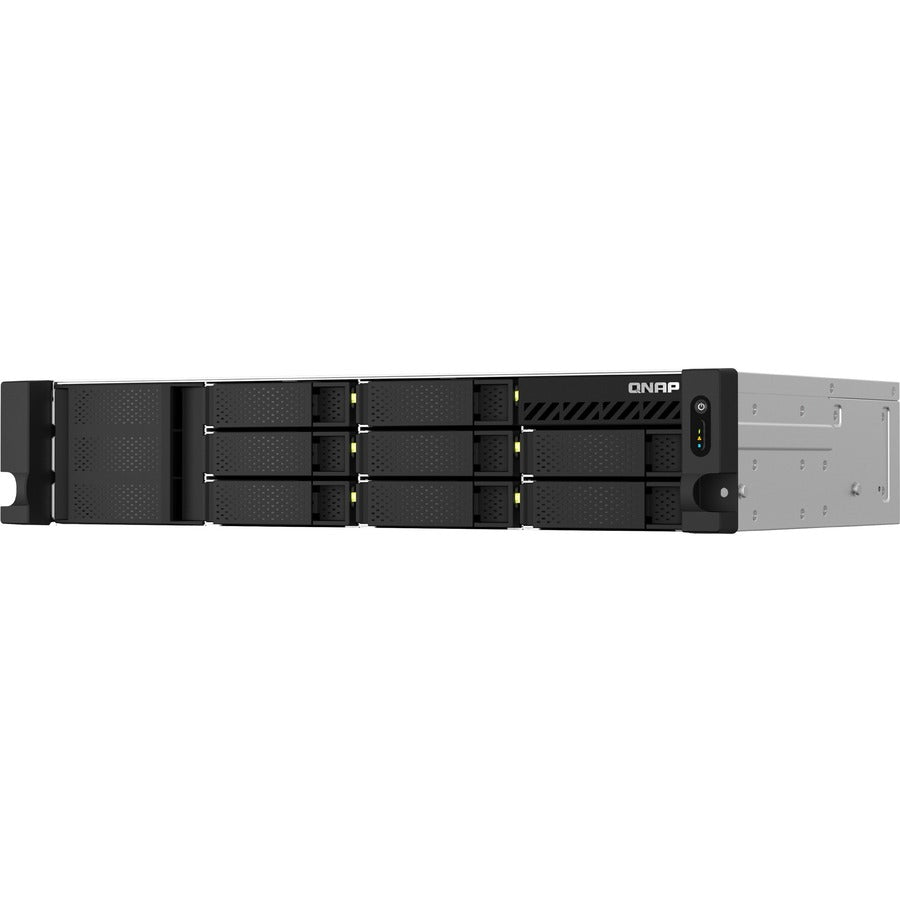

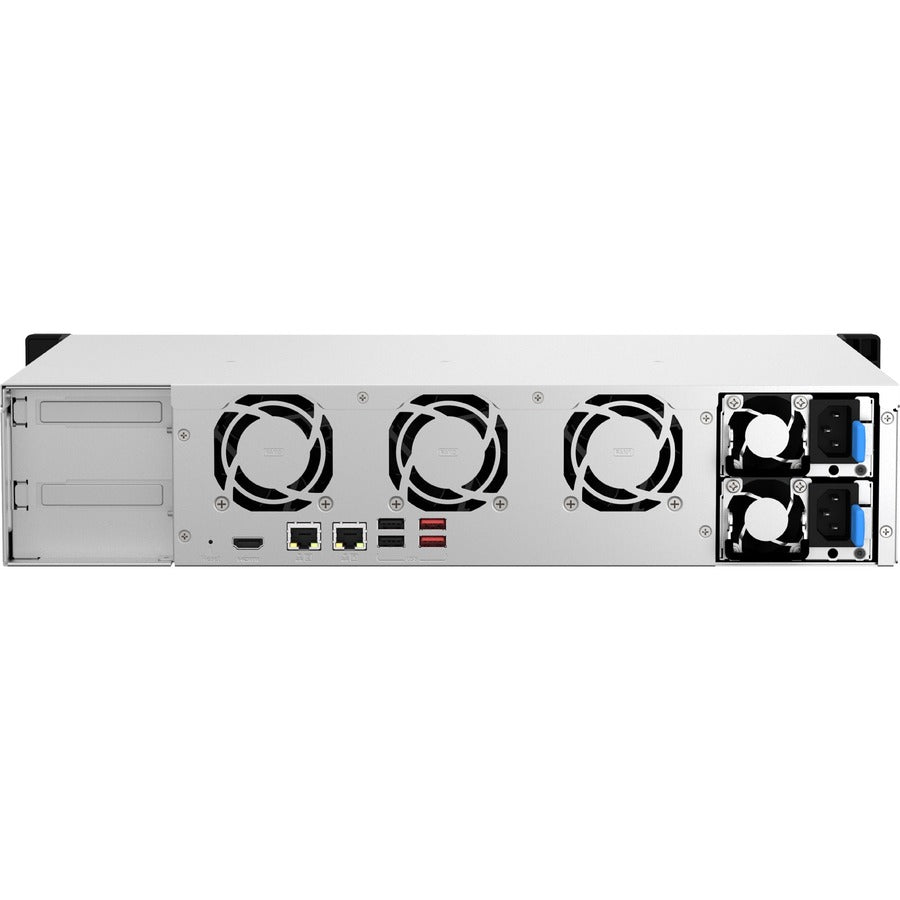

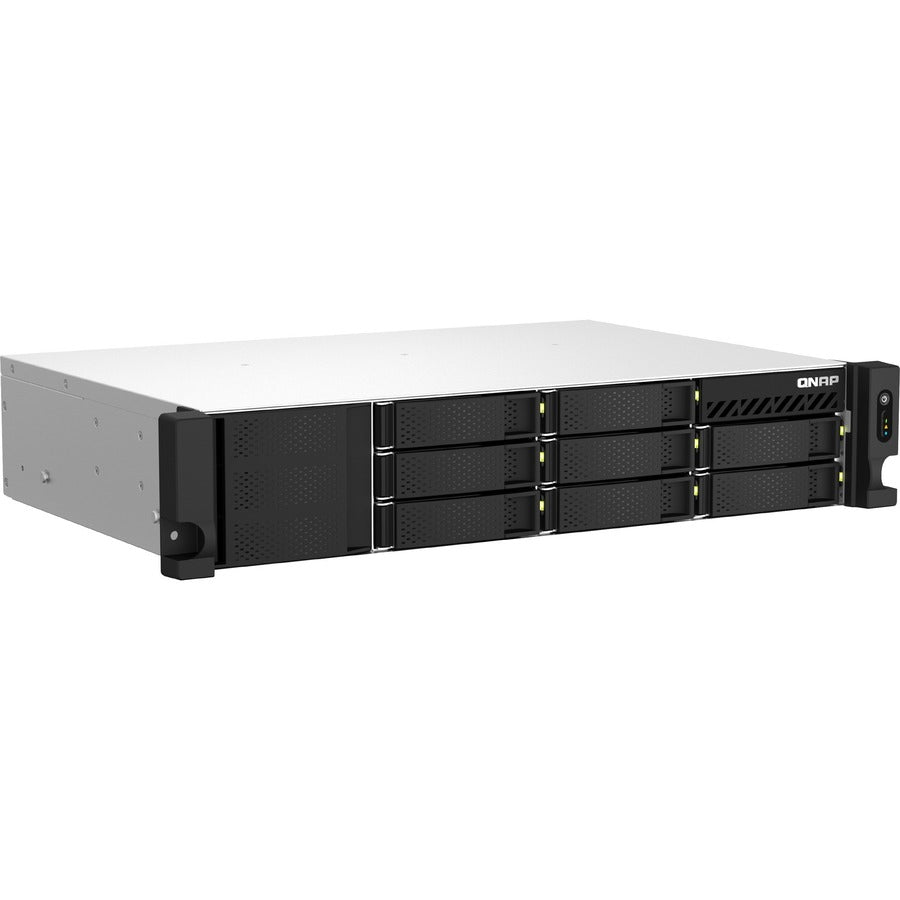

QNAP TS-864EU-RP-4G Système de stockage SAN/NAS TS-864EU-RP-4G-US

The TS-864eU-RP is powered by Intel® Celeron® N5095/5105 quad-core processor (burst up to 2.9 GHz). The space-efficient short depth design makes it easy to install in small media cabinets or places with a lot of cabling. With expandable storage capacity and feature-rich apps, the TS-864eU-RP surpasses the previous generation.

• 2.5GbE connectivity

  Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE ports.

• HDMI Output

  Supports 4K media playback and real-time transcoding.

• PCIe expandability

  One PCIe slots allow for installing 2.5/5/10GbE adapters, QM2 cards, or USB 3.2 Gen 2 (10Gbps) expansion cards.

• USB interface

  Two USB 3.2 Gen 2 10Gbps ports for faster data transfer.

• Backup and data recovery

  Protects PC/Macs, virtual machines, software containers, cloud data, and SaaS services.

• Hybrid cloud applications

  Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS.

Quad-core Processor, burst up to 2.9 GHz with Memory Upgradable to 8 GB

The TS-864eU-RP is powered by Intel® Celeron® N5095/N5105 quad-core processor (burst up to 2.9 GHz) with 4 GB DDR4 memory which is upgradable up to 16 GB. With Intel® AES-NI encryption engine, the TS-x64eU provides unmatched encryption performance with AES-256 bit encryption acceleration, boosting system performance while ensuring the safety of sensitive business data stored in the NAS.

Build a High-Speed 2.5GbE Network Environment

QNAP offers comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth-hungry applications.

• A fast 2.5GbE NAS

  A QNAP NAS featuring one or more 2.5GbE ports, and Port Trunking allows you to combine multiple ports for greater bandwidth potential.

• Upgrade computers and servers

  Servers and desktops can install PCIe-based QNAP network cards that support 10G/5G/2.5G/1G/100M Multi-Gig.

• Add a 5GbE port to laptops

  Laptops and upgrade-limited computers can use QNAP's portable USB 3.2 Gen 1 to 5GbE adapter that allows you to connect to 5G/2.5G/1G/100M networks via USB.

• A switch that supports 2.5GbE+

  QNAP's 10GbE/NBASE-T switches support 10G/5G/2.5G/1G/100M and allow connecting multiple workstations and devices for high-speed collaboration in device-dense environments.

• Experience responsive performance, power, adaptability and fun with Intel Celeron 2 ghz processor
• Through RAID levels (0, 1, 5, 6, 10, 50, 60, jbod), RAID provides data reliability, fault tolerance and improves overall performance

• Protocols : LDAP,HTTPS,L2TP,SFTP,DHCP,SSH,IPSec,FTPS,AFP,FTP,CIFS/SMB,SNMPv2,IPv4,WEBDAV,Telnet,SSL,iSCSI,TLS,HTTP,NFS,TFTP,FXP,DDNS,IPv6,PPTP
• Flash Memory Capacity : 4 GB
• Maximum Power Supply Wattage : 300 W
• Number of Hard Drives Installed : 0
• Controller Type : Serial ATA/600
• Number of USB 2.0 Ports : 2
• Total Number of USB Ports : 4
• Processor Type : Celeron
• Processor Core : Quad-core (4 Core)
• RAID Supported : Yes
• Form Factor : Rack-mountable
• Memory Technology : DDR4 SDRAM
• Manufacturer Website Address : http://www.qnap.com
• Processor Manufacturer : Intel
• Number of Solid State Drive Installed : 0
• Number of Power Supplies Installed : 2
• Manufacturer : QNAP Systems
• Product Model : TS-864EU-RP-4G
• Number of Total Expansion Bays : 8
• Operating System : QTS 5.0.0
• RAID Levels : 0, 1, 5, 6, 10, 50, 60, JBOD
• Rack Height : 2U
• Standard Memory : 4 GB
• Ethernet Technology : 2.5 Gigabit Ethernet
• Number of Hard Drives Supported : 8
• Number of 2.5"/3.5" Bays : 8
• Number of USB 3.2 Gen 2 Ports : 2
• Number of Solid State Drive Supported : 8
• Limited Warranty : 3 Year
• Processor Speed : 2 GHz
• Network (RJ-45) : Yes
• Product Type : SAN/NAS Storage System
• Number of Total Expansion Slots : 1
• HDMI : Yes
• Redundant Power Supply : Yes
• Country of Origin : Taiwan
• Number of Network (RJ-45) Ports : 2
• Expansion Slot Type : PCI Express 3.0 x2
